Brand:GE Fanuc PLC Item No.:IC200UDD040 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

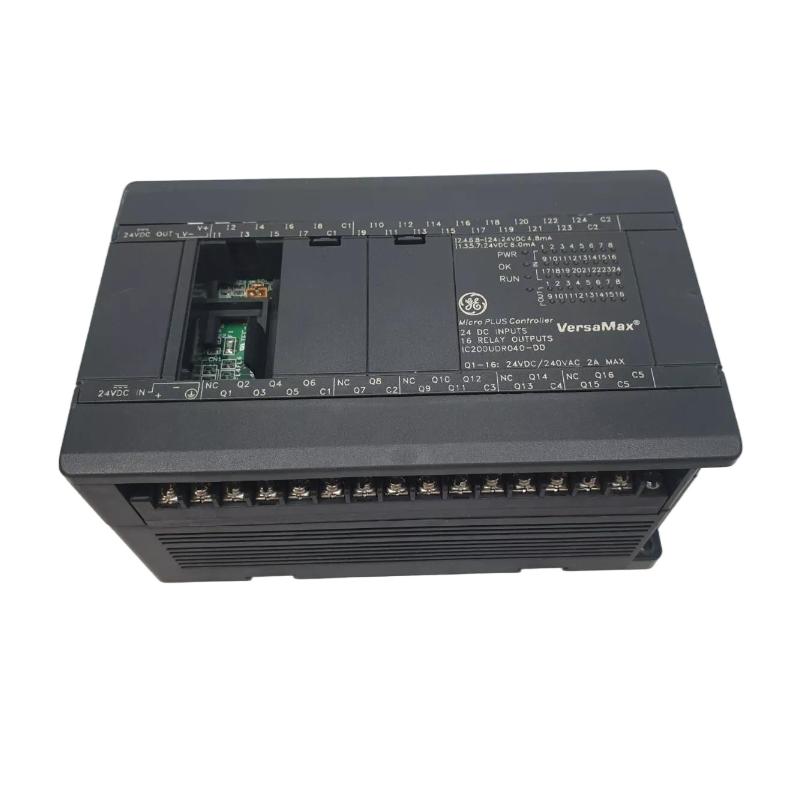

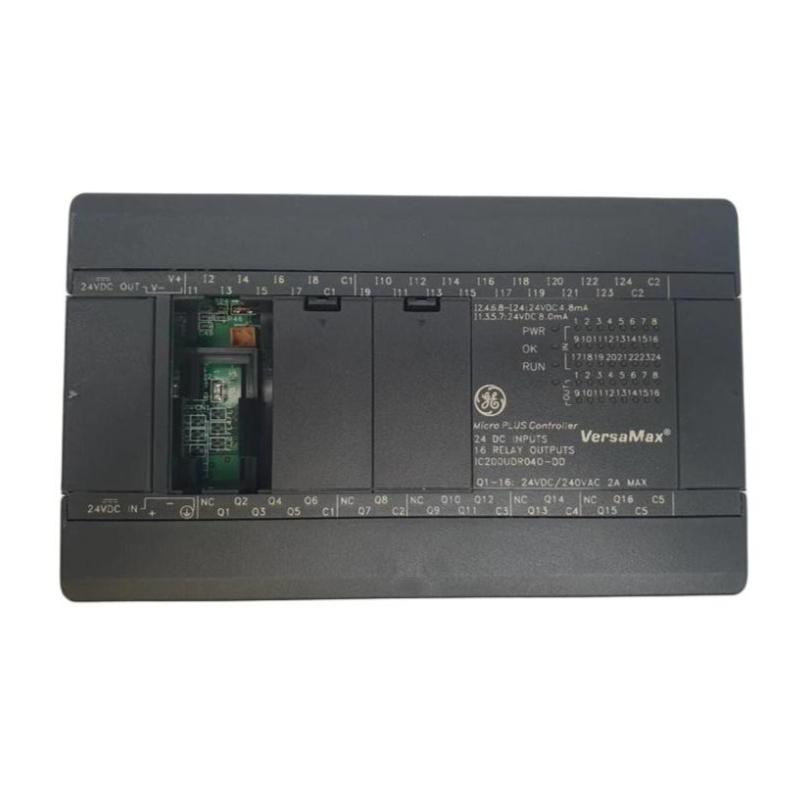

The GE IC200UDD040 Micro PLC Module is a compact and powerful controller developed for the VersaMax Micro automation family. Combining PLC processing, 24 VDC input channels, transistor outputs, communication capability, and integrated power management, it provides a practical control solution for small and medium industrial applications.
Designed for machine builders and automation engineers, the IC200UDD040 delivers fast discrete control performance while maintaining a compact installation profile. Its 40-point I/O structure allows direct connection to a wide range of field devices, reducing the need for additional control hardware.
With reliable VersaMax Micro architecture, expansion flexibility, and support for high-speed control functions, the IC200UDD040 remains an effective choice for OEM equipment, retrofit projects, and standalone industrial automation systems.
Technical Specifications
Parameter
Details
Model
IC200UDD040
Product Type
Micro PLC Module
Series
GE VersaMax Micro
Total I/O Points
40 Points
Digital Inputs
24 × 24 VDC Inputs
Input Type
Positive / Negative Logic DC Inputs
Digital Outputs
16 × 24 VDC Source Outputs
Output Type
Solid-State Transistor Output
Output Voltage
12/24 VDC
Rated Power Supply Voltage
24 VDC
Input Voltage Range
19.2–30 VDC
Output Current Q1–Q4
0.5 A per Point
Output Current Q5–Q16
0.7 A per Point
Inrush Current
Up to 2 A / 4 A depending on output group
High-Speed Counter Support
Up to 4 Type A or combined Type A/Type B configurations
Response Time
Approx. 1 ms configurable
Isolation Voltage
1500 V RMS field side to logic side
Communication
Serial Communication Port
Expansion Capability
Supports VersaMax Micro Expansion Units
Program Memory
24K Words
Register Memory
32K Words
Power Rating
Approx. 10 W
Mounting Type
Panel Mount
Operating Temperature
0°C to 55°C
Dimensions
Approx. 125 × 95 × 76 mm
Weight
Approx. 0.91 kg
Recommended Companion Models
Model
Product Name
IC200UEX012
VersaMax Micro Expansion Unit
IC200PWR102J
VersaMax AC Power Supply Module
IC200MDL750B
VersaMax Discrete Output Module
IC200ALG260A
VersaMax Analog Input Module
Frequently Selected Alternatives
Model
Product Name
IC200UDD240
VersaMax Micro 40-Point PLC Module
IC200UDR040
VersaMax Micro 40-Point Relay Output PLC
IC200UDR140
VersaMax Micro 40-Point AC Power PLC
IC200UDR440
VersaMax Micro 40-Point DC Relay PLC
Where It Excels in Industrial Use
• Designed for GE VersaMax Micro PLC systems, the IC200UDD040 integrates CPU control, 24 VDC digital inputs, transistor outputs, and power management into a compact standalone controller for efficient industrial automation.
• Ideal for packaging machines, conveyor systems, assembly equipment, small production lines, material handling systems, and OEM machinery requiring reliable discrete control in a compact footprint.
• Suitable for applications involving proximity sensors, limit switches, pushbuttons, solenoid valves, indicator lamps, contactors, and other 24 VDC field devices.
• Well suited for automation upgrades and standalone control projects where reducing cabinet space while maintaining PLC functionality and expansion capability is important.
Key Strengths at a Glance
• Provides a complete 40-point PLC solution with 24 configurable 24 VDC inputs and 16 24 VDC sourcing transistor outputs for direct machine control.
• Supports high-speed counter functions, including multiple Type A counter configurations and advanced counting applications for faster industrial processes.
• Includes built-in 24 VDC power supply operation, reducing the need for additional control hardware and simplifying installation.
• Offers expansion capability with VersaMax Micro expansion units, allowing the controller to grow with changing automation requirements.
Technical FAQs
1. What type of module is the GE IC200UDD040?
The IC200UDD040 is a VersaMax Micro 40-point PLC module with integrated CPU, digital I/O, and 24 VDC power supply functions.
2. How many input channels are available on the IC200UDD040?
The module provides 24 configurable 24 VDC discrete input points.
3. How many output channels are available on the IC200UDD040?
The module provides 16 24 VDC sourcing transistor output points.
4. What type of output technology does the IC200UDD040 use?
The module uses solid-state 24 VDC source-type transistor outputs suitable for fast switching applications.
5. What power supply voltage is required for the IC200UDD040?
The controller operates with a 24 VDC power supply input.
6. Does the IC200UDD040 support high-speed counters?
Yes. It supports multiple high-speed counter configurations for applications requiring rapid pulse counting.
7. Can the input channels support both positive and negative logic?
Yes. The 24 VDC inputs can be configured for either positive or negative logic operation.
8. Can additional I/O modules be connected to the IC200UDD040?
Yes. VersaMax Micro expansion units can be added to increase system I/O capacity.
9. What type of devices can connect to the output channels?
The outputs can control compatible 12/24 VDC loads such as valves, lamps, relays, and contactors.
10. What should be checked before replacing the IC200UDD040?
Verify the 24 VDC supply, field wiring, output load requirements, PLC program compatibility, and expansion configuration before replacement.
