Brand:GE Fanuc PLC Item No.: IC693MDL940M Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

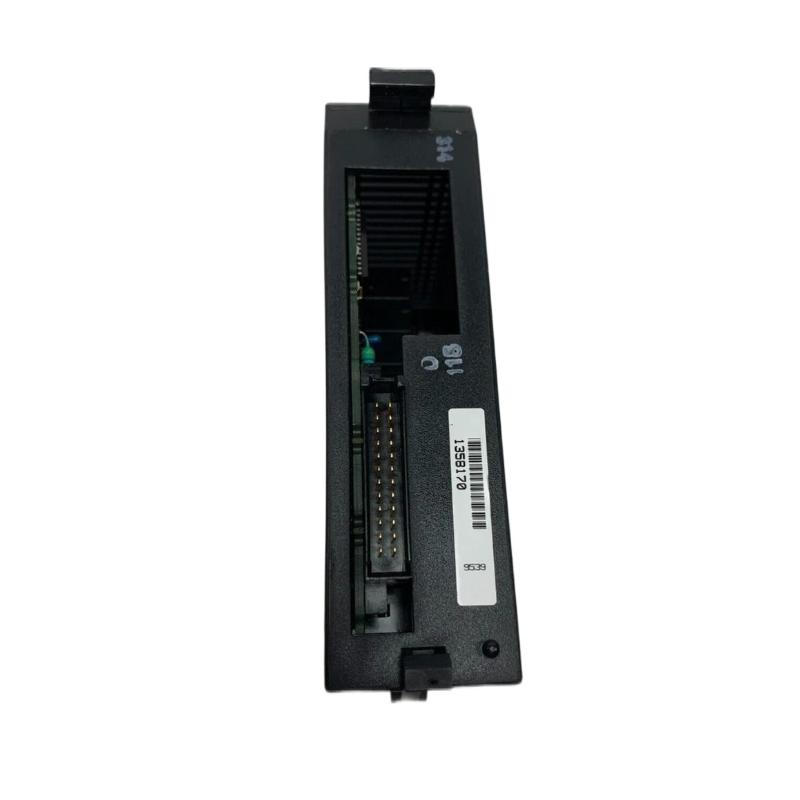

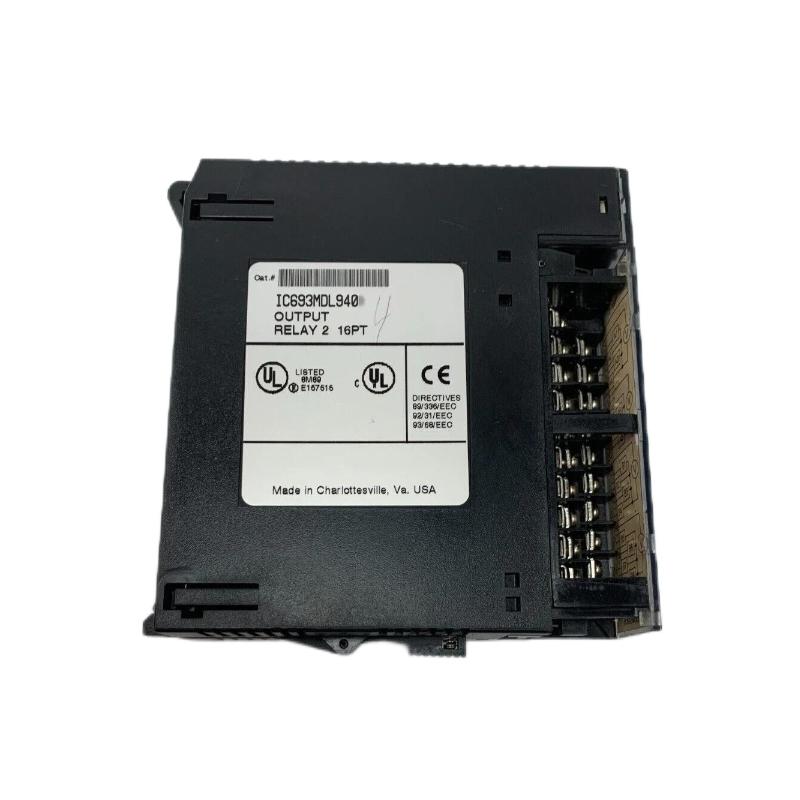

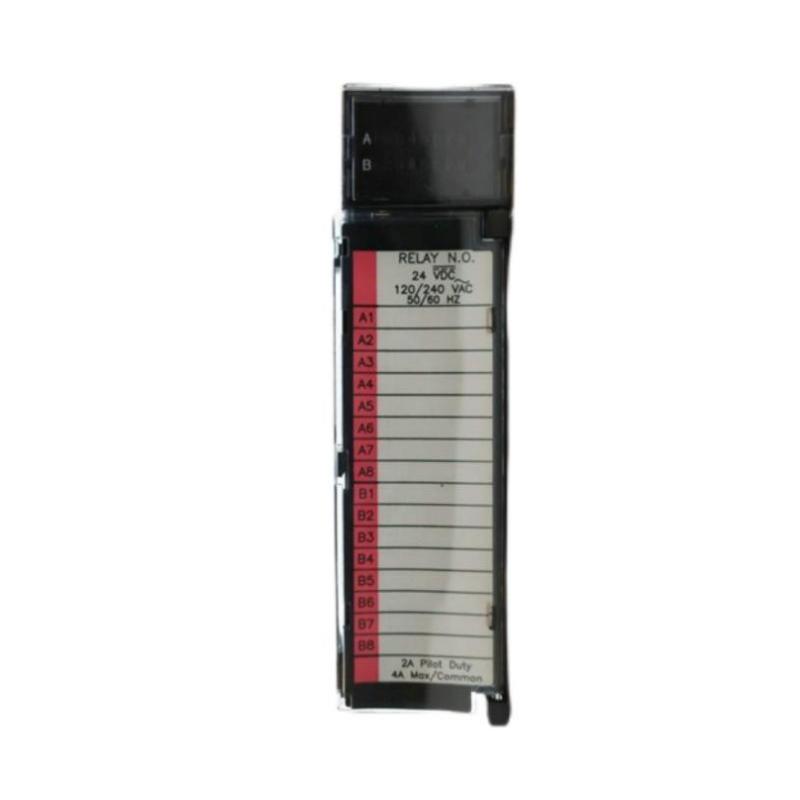

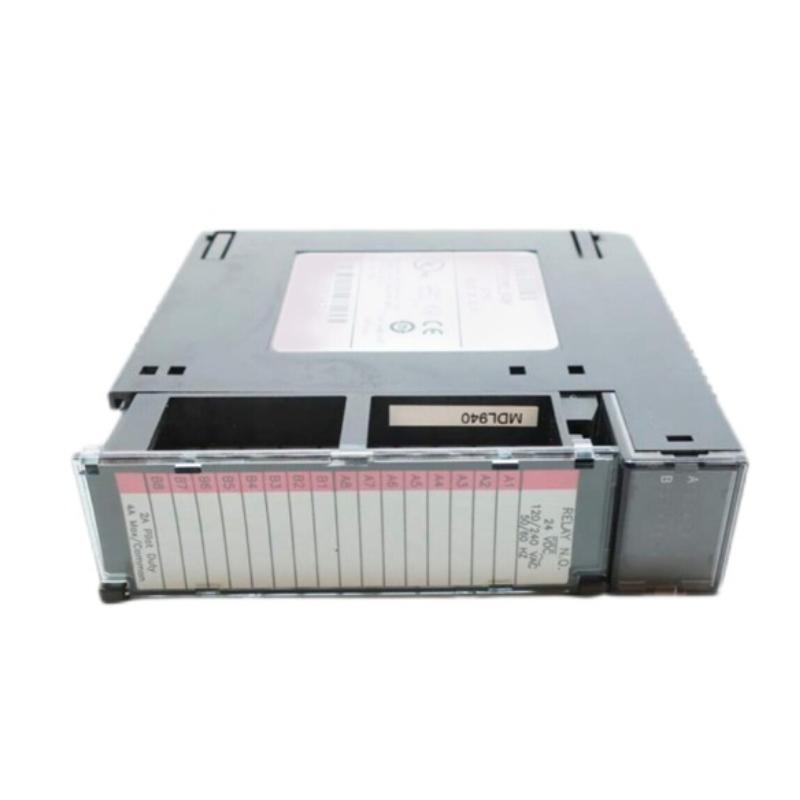

The GE IC693MDL940M Relay Output Module is a high-performance discrete output solution engineered for GE Series 90-30 PLC and PACSystems RX3i automation platforms. Featuring sixteen normally open relay outputs organized into four isolated groups, it offers reliable switching performance for a broad range of industrial AC and DC loads.
Designed for demanding industrial environments, the IC693MDL940M combines excellent electrical isolation, durable relay contacts, and flexible voltage compatibility to simplify machine control and system integration. Its individual output indicators allow maintenance personnel to quickly verify operating status, minimizing downtime during troubleshooting.
Whether deployed in new automation projects or used as a direct replacement in existing Series 90-30 systems, the IC693MDL940M delivers dependable performance, long-term reliability, and the flexibility required for modern industrial control applications.
Technical Specifications
Parameter
Details
Model
IC693MDL940M
Product Type
Relay Output Module
Series
GE Series 90-30 / PACSystems RX3i
Output Channels
16
Output Type
Normally Open Relay
Output Groups
4 Groups (4 Outputs per Group)
Rated Output Voltage
5–30 VDC / 5–250 VAC
AC Frequency
47–63 Hz
Output Current
2 A per Output (Pilot Duty)
Maximum Common Current
4 A per Common
Minimum Load Current
10 mA
Maximum Inrush Current
5 A
Response Time (ON/OFF)
15 ms Maximum
Isolation (Field to Logic)
1500 VAC
Isolation Between Groups
500 VAC
Backplane Current
7 mA @ 5 VDC
Relay Bus Current
135 mA @ 24 VDC
LED Indicators
One per Output Channel
Mounting
Series 90-30 / RX3i Baseplate
Operating Temperature
0°C to 60°C
Dimensions
Approx. 127 × 35 × 140 mm
Weight
Approx. 0.43 kg
Recommended Companion Models
Model
Product Name
IC693CPU374
Series 90-30 CPU Module
IC693PWR330
Series 90-30 High Capacity Power Supply Module
IC693CHS397
Series 90-30 5-Slot Expansion Baseplate
IC693MDL740
Series 90-30 AC Input Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL930D
Series 90-30 8-Point Relay Output Module
IC693MDL753
Series 90-30 Positive Logic Output Module
IC694MDL940D
PACSystems RX3i 16-Point Relay Output Module
IC693MDL646
Series 90-30 DC Input Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC and PACSystems RX3i platforms, the IC693MDL940M delivers dependable relay-based output control for industrial automation systems requiring flexible AC and DC load switching.
• Ideal for controlling motor starters, solenoid valves, contactors, alarm devices, indicator lamps, and other industrial loads where electrical isolation and relay switching are preferred.
• Suitable for manufacturing automation, packaging machinery, material handling equipment, water treatment facilities, and process control systems requiring high-reliability discrete outputs.
• Perfect for modernization projects and replacement of legacy Series 90-30 relay output modules while maintaining seamless compatibility with existing PLC architectures.
Key Strengths at a Glance
• Provides 16 normally open relay outputs arranged in four isolated groups of four channels for flexible field wiring.
• Supports switching of both AC and DC loads from 5–30 VDC or 5–250 VAC, making one module suitable for multiple control applications.
• Incorporates individual LED indicators for every output channel, enabling quick diagnostics and simplified maintenance.
• Offers robust isolation between field wiring and PLC logic, improving electrical reliability in demanding industrial environments.
Technical FAQs
1. What type of module is the GE IC693MDL940M?
The IC693MDL940M is a 16-point normally open relay output module for GE Series 90-30 PLC and PACSystems RX3i systems.
2. How many output channels are available?
The module provides 16 relay output channels divided into four isolated groups.
3. What type of relay contacts are used?
Each output uses a normally open (N.O.) relay contact.
4. What voltage range can the outputs switch?
The outputs support switching from 5–30 VDC or 5–250 VAC at 47–63 Hz.
5. What is the maximum output current?
Each relay output is rated for 2 A pilot duty, with a maximum of 4 A per common terminal.
6. Does the module require external field power?
Yes. External AC or DC power must be supplied to operate connected field devices.
7. Does the IC693MDL940M include output status indicators?
Yes. Individual LEDs indicate the ON/OFF status of every relay output point.
8. Can this module be installed in any I/O slot?
Yes. The module can be installed in any compatible I/O slot within a Series 90-30 or RX3i backplane.
9. Is hot swapping supported?
No. The module is not designed for hot-swap operation and should only be installed or removed with system power off.
10. What should be verified before replacing this module?
Confirm output load ratings, wiring configuration, PLC compatibility, relay group assignments, and field voltage requirements before installation.
