Brand:GE Fanuc PLC Item No.: IC693CPU341T Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

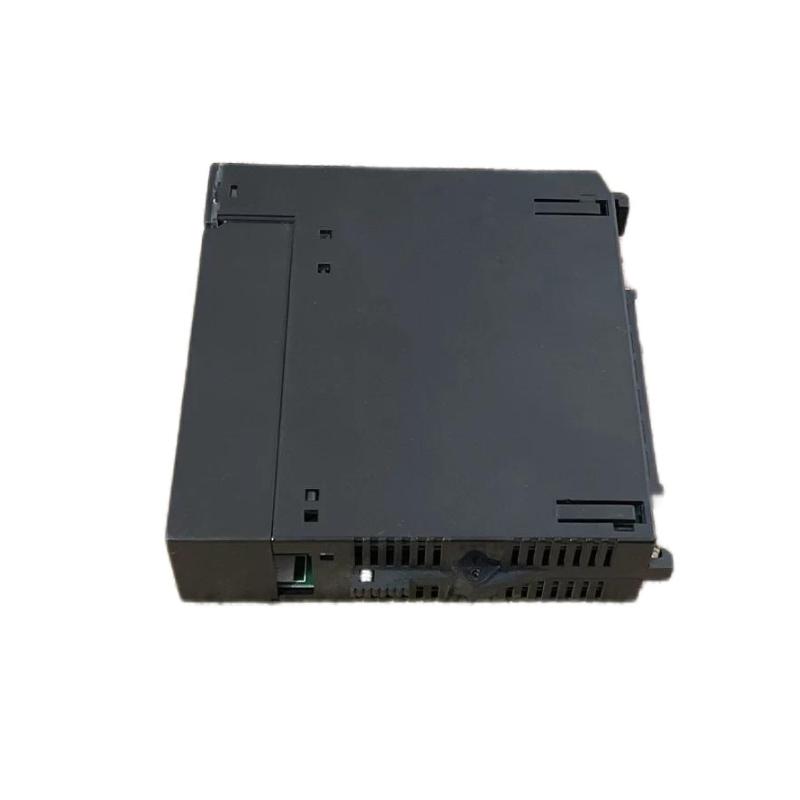

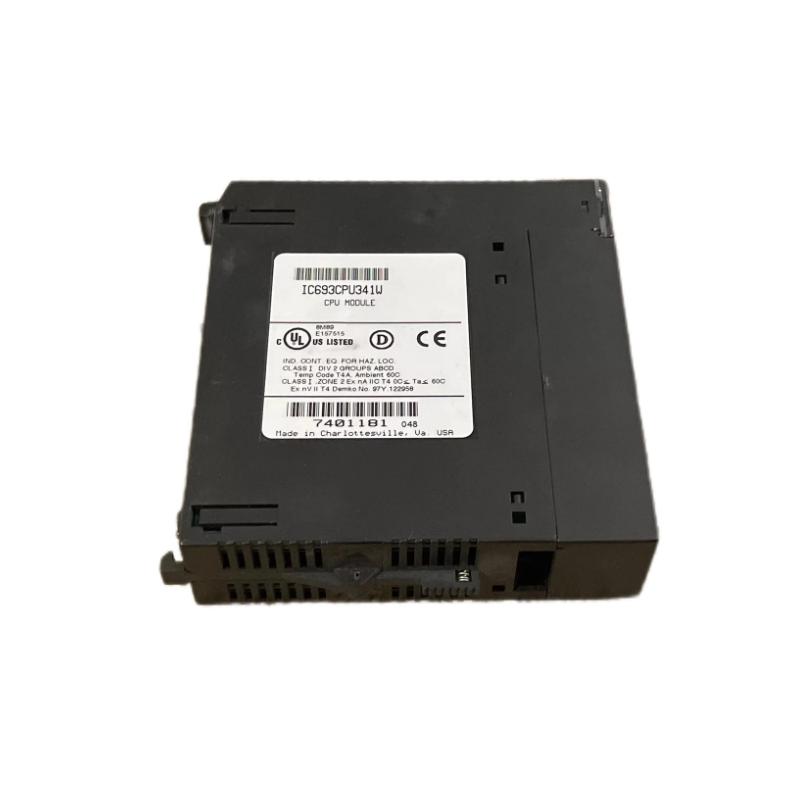

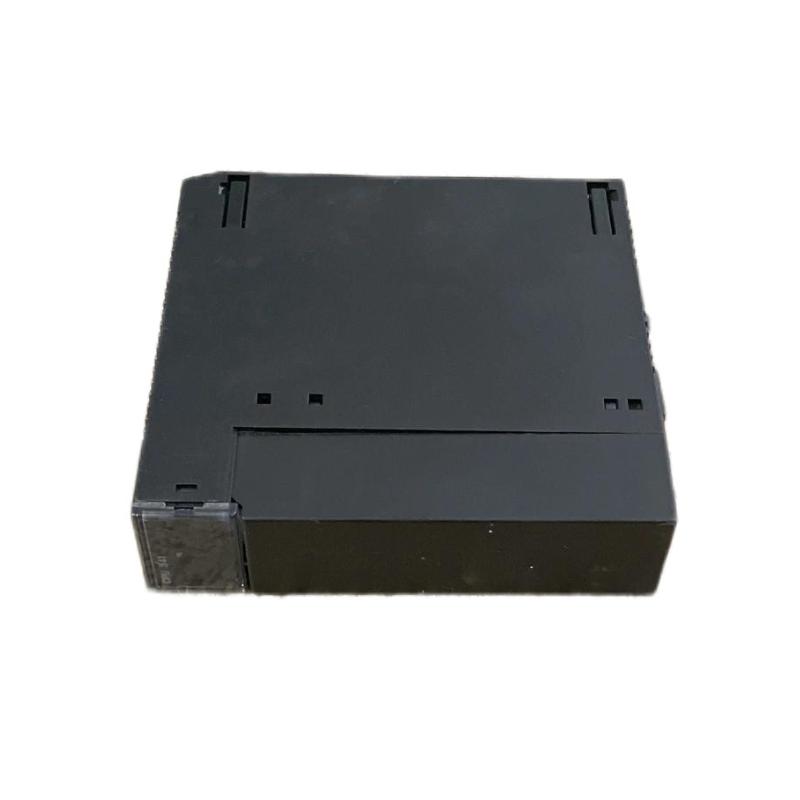

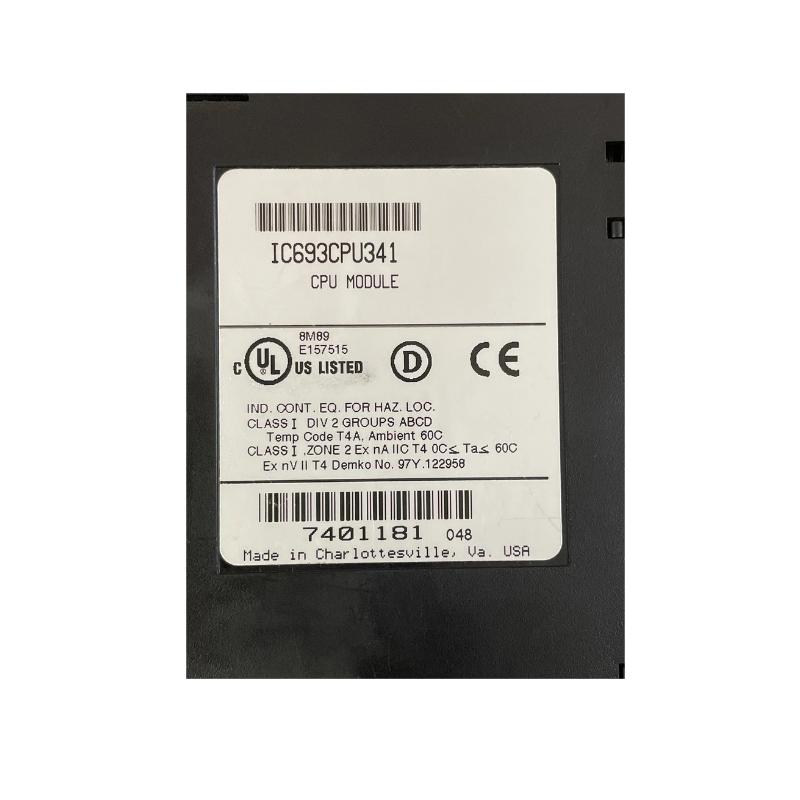

The GE IC693CPU341T CPU Module is a reliable controller developed for the Series 90-30 PLC platform, providing the processing power required for a wide range of industrial automation applications. Designed for dependable long-term operation, it combines fast logic execution, flexible memory resources, and broad communication capabilities within a compact single-slot CPU architecture.
Supporting up to five interconnected baseplates, the IC693CPU341T enables scalable control systems while maintaining compatibility with the extensive Series 90-30 family of digital, analog, and specialty I/O modules. Its integrated communication interface and optional networking modules allow seamless integration into distributed industrial control systems.
Engineered for performance, stability, and easy maintenance, the IC693CPU341T remains an excellent solution for OEM equipment, manufacturing facilities, and automation system upgrades requiring proven GE Series 90-30 technology.
Technical Specifications
Parameter
Details
Model
IC693CPU341T
Product Type
CPU Module
Series
GE Series 90-30
Processor
Intel 80C188XL
Processor Speed
20 MHz
User Program Memory
80 KB
Register Memory (%R)
9,999 Words
Analog Input Memory (%AI)
1,024 Words
Analog Output Memory (%AQ)
256 Words
Discrete Inputs (%I)
512 Points
Discrete Outputs (%Q)
512 Points
Internal Coils (%M)
1,024 Bits
Global Memory (%G)
1,280 Bits
System Status Bits (%S)
128 Bits
Typical Scan Rate
0.3 ms per 1K Boolean Logic
Maximum Baseplates
5 (1 CPU + 4 Expansion/Remote)
Built-in Communication
SNP / SNP-X Slave
Memory Type
Battery-Backed RAM with Optional Flash
Power Consumption
490 mA @ 5 VDC
Operating Temperature
0°C to 60°C
Dimensions
Approx. 127 × 35 × 130 mm
Weight
Approx. 0.45 kg
Recommended Companion Models
Model
Product Name
IC693PWR330
High Capacity Power Supply Module
IC693CHS391M
10-Slot CPU Baseplate
IC693BEM331
Genius Bus Controller Module
IC693CMM321
Ethernet Communications Coprocessor Module
Frequently Selected Alternatives
Model
Product Name
IC693CPU350
Series 90-30 CPU Module
IC693CPU360
Series 90-30 CPU Module
IC693CPU363
Series 90-30 CPU Module
IC693CPU364
Series 90-30 High-Performance CPU Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693CPU341T serves as the central processor for compact and mid-sized automation applications, delivering dependable control for industrial machinery and manufacturing processes.
• Ideal for packaging equipment, material handling systems, water treatment facilities, food and beverage production lines, and OEM machinery requiring stable PLC performance.
• Supports distributed automation architectures through compatibility with communication modules including Ethernet, Profibus, FIP, GBC, GCM, and Genius networks, enabling flexible system integration.
• Well suited for modernization projects and long-life industrial installations where proven Series 90-30 reliability, deterministic control, and straightforward maintenance are essential.
Key Strengths at a Glance
• Features a 20 MHz 80C188XL processor with fast execution, delivering a typical scan rate of approximately 0.3 ms per 1K Boolean logic.
• Provides 80 KB of user program memory with battery-backed RAM and optional Flash memory support on later hardware revisions.
• Supports up to five baseplates consisting of one CPU baseplate plus four expansion or remote baseplates for scalable automation systems.
• Includes a battery-backed real-time clock, interrupt processing, extensive register memory, and broad communication module compatibility for advanced industrial control.
Technical FAQs
1. What type of module is the GE IC693CPU341T?
The IC693CPU341T is a CPU module for the GE Series 90-30 PLC platform, providing processing, memory, and system control functions.
2. Which PLC family is compatible with the IC693CPU341T?
The module is designed for GE Series 90-30 PLC systems.
3. What processor does the IC693CPU341T use?
It utilizes an 80C188XL processor operating at 20 MHz.
4. How much user program memory is available?
The CPU provides up to 80 KB of user program memory.
5. How many baseplates can be supported?
The controller supports one CPU baseplate plus up to four expansion or remote baseplates, for a total of five.
6. Does the IC693CPU341T include a real-time clock?
Yes. It includes a battery-backed real-time clock to retain time and date information during power loss.
7. Which communication protocols are supported?
The CPU supports SNP/SNP-X slave communication through its built-in port and can support Ethernet, Profibus, FIP, Genius, GCM, and other networks using optional communication modules.
8. Does the CPU support interrupt processing?
Yes. The IC693CPU341T includes interrupt capability for responsive control applications.
9. What type of memory backup is used?
The module uses battery-backed RAM, with optional Flash memory support on later hardware revisions.
10. What should be verified before replacing the IC693CPU341T?
Verify firmware compatibility, memory configuration, battery condition, baseplate compatibility, communication module configuration, and application program backup before installation.
