Brand:GE Fanuc PLC Item No.:IC693PWR321T Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

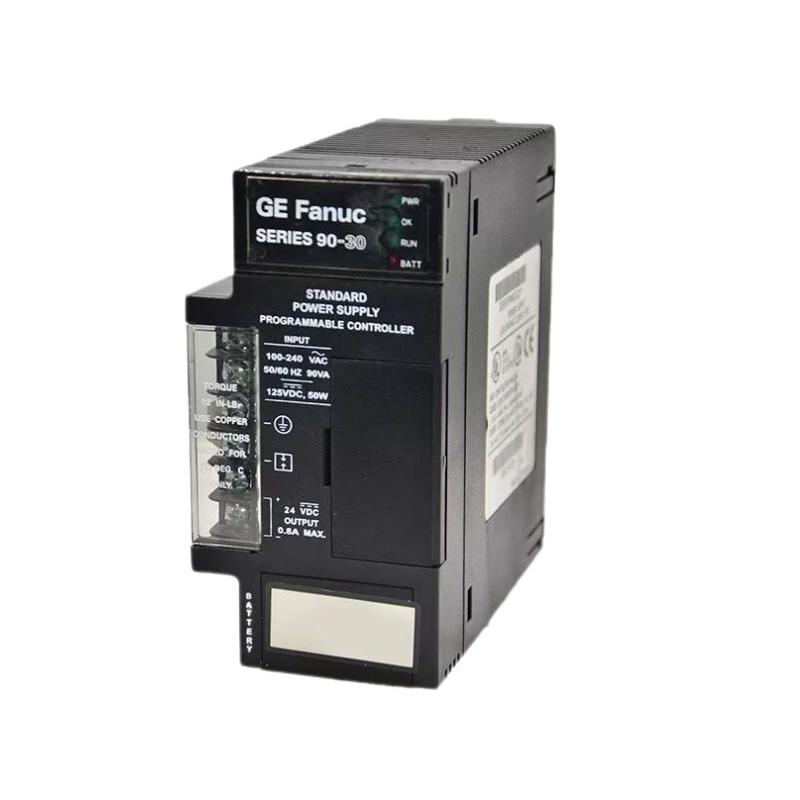

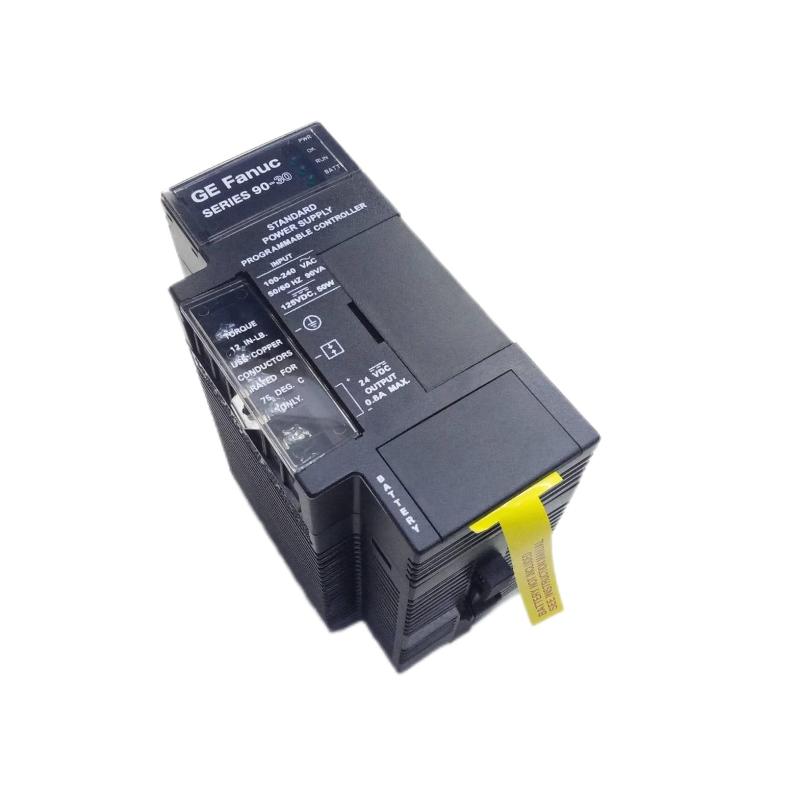

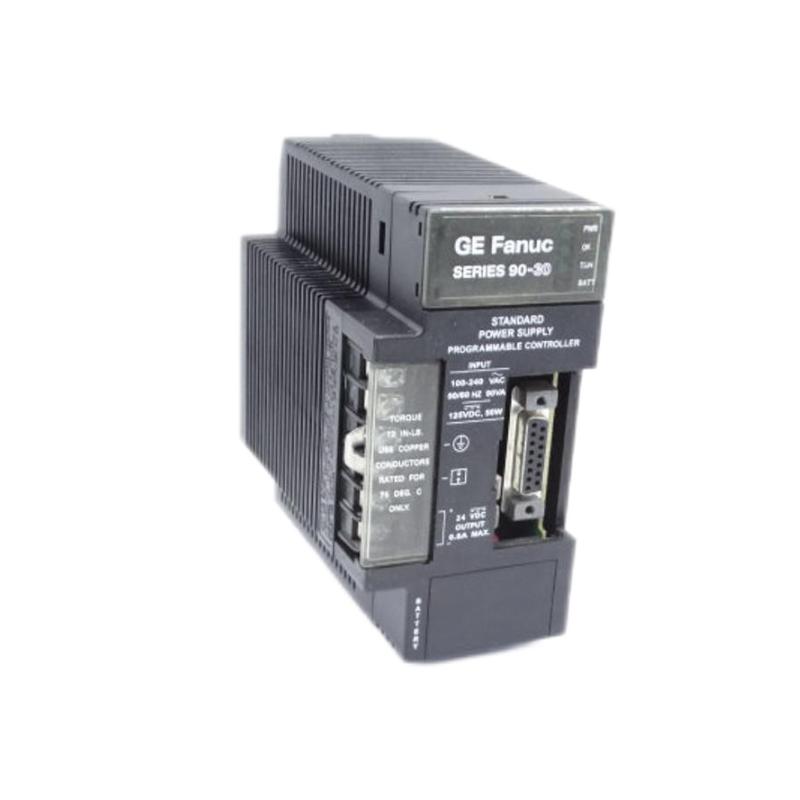

The GE IC693PWR321T Power Supply Module is a dependable AC/DC power source developed for the Series 90-30 PLC platform. Designed to provide stable operating power for CPUs, digital I/O, analog modules, and communication interfaces, it forms the foundation of a reliable industrial automation system. Its universal input capability allows operation from either AC or DC power sources, simplifying installation across a wide variety of industrial environments.
Delivering regulated +5 VDC logic power together with dedicated and isolated +24 VDC outputs, the IC693PWR321T supports both internal PLC operation and field device requirements while maintaining a total output capacity of 30 watts. Integrated protection circuitry enhances operational safety and minimizes downtime caused by abnormal electrical conditions.
Combining proven Series 90-30 compatibility, robust power regulation, and long-term reliability, the IC693PWR321T remains an excellent solution for new automation systems, equipment upgrades, and replacement applications.
Technical Specifications
Parameter
Details
Model
IC693PWR321T
Product Type
Power Supply Module
Series
GE Series 90-30
Input Voltage (Nominal)
120/240 VAC or 125 VDC
AC Input Range
85–264 VAC
DC Input Range
100–300 VDC
Input Frequency
47–63 Hz
Input Power
90 VA (AC), 50 W (DC)
Total Output Capacity
30 W Maximum
+5 VDC Output
15 W Maximum
+24 VDC Relay Output
15 W Maximum
+24 VDC Isolated Output
20 W Maximum
+5 VDC Output Voltage
5.1 VDC Nominal
Relay Output Voltage
24–28 VDC
Isolated Output Voltage
21.5–28 VDC
Holdup Time
20 ms Minimum
Inrush Current
4 A Peak, 250 ms Maximum
Protection
Overvoltage, Overcurrent, Short-Circuit
Installation Location
Leftmost Baseplate Slot
Operating Temperature
0°C to 60°C
Dimensions
Approx. 127 × 89 × 140 mm
Weight
Approx. 1.8 kg
Recommended Companion Models
Model
Product Name
IC693CPU364
Series 90-30 CPU Module
IC693CHS398
Series 90-30 16-Slot Expansion Baseplate
IC693MDL740
Series 90-30 AC Input Module
IC693ALG223
Series 90-30 Analog Input Module
Frequently Selected Alternatives
Model
Product Name
IC693PWR330
Series 90-30 High Capacity Power Supply Module
IC693PWR322
Series 90-30 DC Power Supply Module
IC695PSD040
PACSystems RX3i DC Power Supply Module
IC695PSA040
PACSystems RX3i Universal Power Supply Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693PWR321T delivers stable system power for CPUs, I/O modules, and communication modules in industrial automation environments. It is installed in the leftmost slot of a compatible baseplate to provide reliable backplane power distribution.
• Ideal for manufacturing automation, packaging equipment, material handling systems, water treatment facilities, and process control applications requiring dependable PLC power management.
• Supports both AC and DC input sources, making it suitable for new installations as well as retrofit projects where different plant power standards are used.
• An excellent choice for OEM control panels and system upgrades where long-term operational stability and continuous PLC performance are essential.
Key Strengths at a Glance
• Accepts universal 120/240 VAC or 125 VDC nominal input power with a wide operating voltage range for flexible industrial installation.
• Delivers three regulated outputs including +5 VDC logic power, +24 VDC relay power, and isolated +24 VDC field power with a combined maximum output capacity of 30 W.
• Provides built-in overvoltage, overcurrent, and short-circuit protection to improve system reliability and protect connected PLC hardware.
• Fully compatible with Series 90-30 CPU and I/O modules, providing dependable power distribution throughout the automation system.
Technical FAQs
1. What type of module is the GE IC693PWR321T?
The IC693PWR321T is a standard AC/DC power supply module for the GE Series 90-30 PLC platform.
2. Which PLC family is compatible with this power supply?
The module is designed for GE Series 90-30 PLC systems and compatible expansion baseplates.
3. What input voltage does the IC693PWR321T support?
It operates from 120/240 VAC nominal or 125 VDC nominal input power, with an operating range of 85–264 VAC or 100–300 VDC.
4. What output voltages are provided?
The module supplies regulated +5 VDC logic power, +24 VDC relay power, and isolated +24 VDC auxiliary power.
5. What is the maximum output capacity?
The combined output capacity is 30 W across all three output circuits.
6. Can the isolated 24 VDC output power external devices?
Yes. The isolated +24 VDC output can be used to supply compatible 24 VDC input modules and selected external field devices within the specified power limits.
7. Where should the power supply be installed?
The IC693PWR321T must be installed in the leftmost slot of the Series 90-30 baseplate.
8. Does the module include protection features?
Yes. It incorporates overvoltage, overcurrent, and short-circuit protection to safeguard the PLC system.
9. Does the module provide relay power separately?
Yes. A dedicated +24 VDC relay output is provided specifically for powering relay output modules.
10. What should be verified before replacing the IC693PWR321T?
Confirm the input power source, output load requirements, baseplate compatibility, wiring integrity, and total power consumption of the installed PLC system before replacement.
