Brand:GE Fanuc PLC Item No.: IC693MDL230C Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

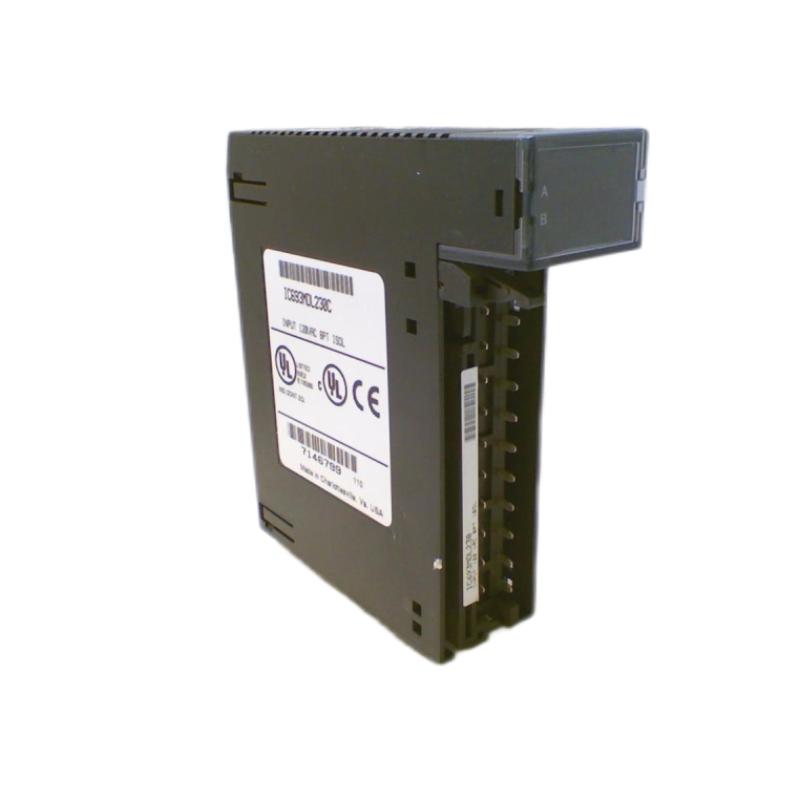

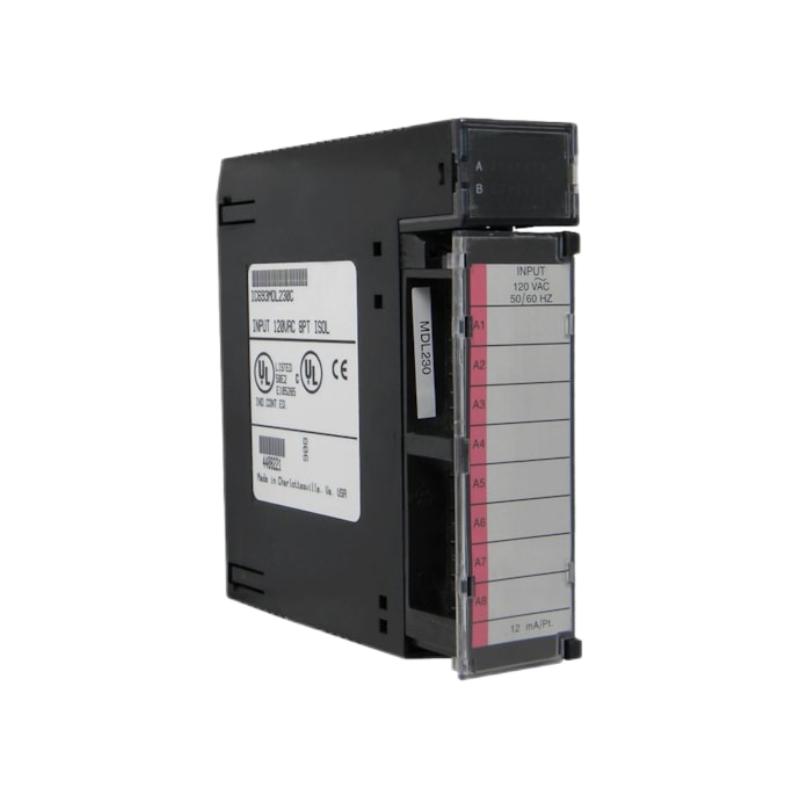

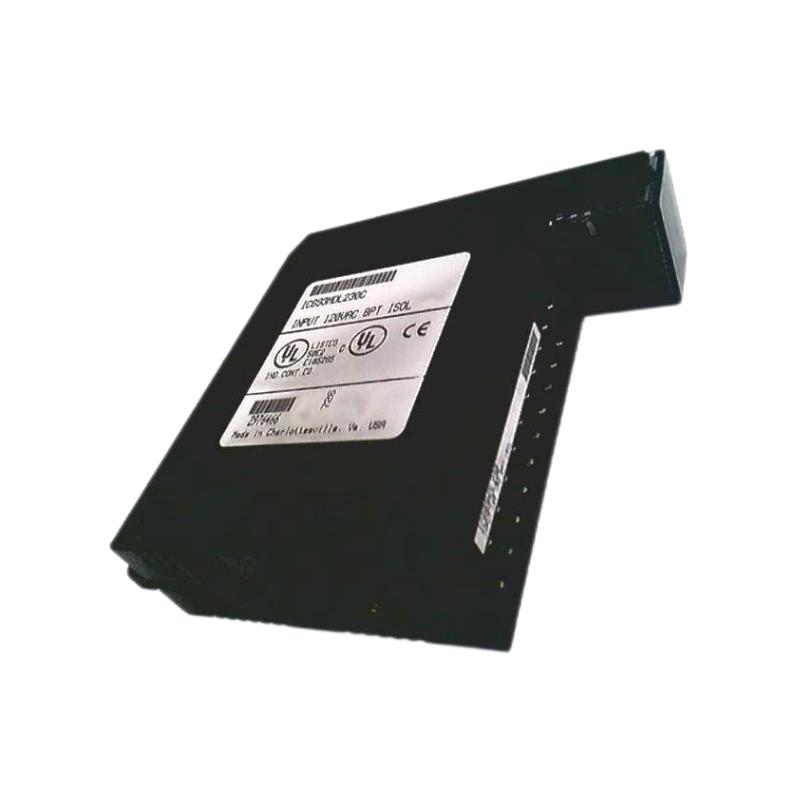

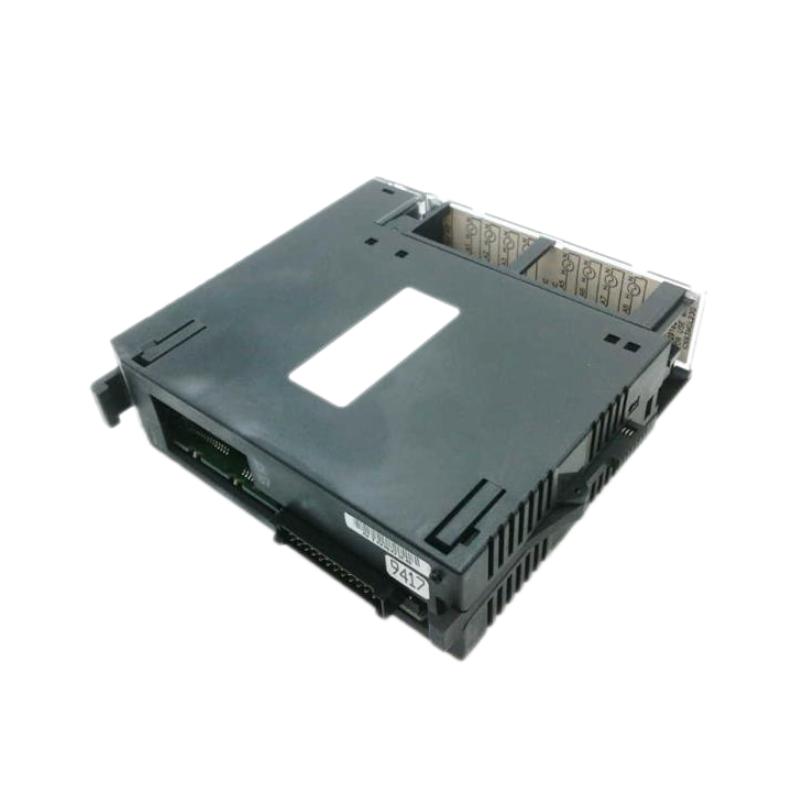

The GE IC693MDL230C Discrete Input Module is a dependable 120 VAC isolated input solution developed for the GE Series 90-30 PLC platform. Designed to interface AC field devices with the PLC controller, it delivers reliable signal acquisition while providing excellent electrical isolation between field wiring and system logic.
With eight isolated input channels and reactive input circuitry, the IC693MDL230C offers dependable performance in industrial environments where electrical noise and voltage fluctuations are common. Individual LED indicators simplify diagnostics and reduce maintenance time, while its compact design enables straightforward installation within existing Series 90-30 systems.
Combining proven Series 90-30 compatibility, robust electrical isolation, and reliable AC signal monitoring, the IC693MDL230C remains an excellent choice for industrial control systems, OEM machinery, and legacy automation upgrades.
Technical Specifications
Parameter
Details
Model
IC693MDL230C
Product Type
Discrete Input Module
Series
GE Series 90-30
Input Channels
8
Input Type
Isolated AC Input
Rated Input Voltage
120 VAC
Input Voltage Range
0–132 VAC
Input Frequency
50/60 Hz
Input Current
14.5 mA per Channel
ON-State Voltage
74–132 VAC
OFF-State Voltage
0–20 VAC
ON-State Current
6 mA Minimum
OFF-State Current
2.2 mA Maximum
Response Time
30 ms ON / 45 ms OFF
Isolation (Field to Logic)
1500 VAC RMS
Points per Common
1 (Individually Isolated)
LED Indicators
8 Individual Input LEDs
Backplane Power Consumption
60 mA @ 5 VDC
Mounting
Series 90-30 Baseplate
Operating Temperature
0°C to 60°C
Dimensions
Approx. 129 × 35 × 140 mm
Weight
Approx. 0.20 kg
Recommended Companion Models
Model
Product Name
IC693CPU350
Series 90-30 CPU Module
IC693PWR330
Series 90-30 High Capacity Power Supply Module
IC693CHS397
Series 90-30 5-Slot Expansion Baseplate
IC693BEM331
Series 90-30 Genius Bus Controller Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL231
Series 90-30 240 VAC Isolated Input Module
IC693MDL240
Series 90-30 16-Point AC Input Module
IC693MDL250
Series 90-30 16-Point 120 VAC Isolated Input Module
IC694MDL240
PACSystems RX3i 120 VAC Discrete Input Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC systems, the IC693MDL230C provides reliable 120 VAC isolated digital input acquisition for industrial automation applications requiring dependable monitoring of AC field devices.
• Ideal for packaging machinery, conveyor systems, manufacturing equipment, process control systems, and material handling applications utilizing standard 120 VAC control signals.
• Compatible with push buttons, selector switches, limit switches, float switches, relay contacts, and other 120 VAC industrial input devices, ensuring flexible field integration.
• Well suited for OEM equipment, plant modernization projects, and replacement installations where electrical isolation and stable input performance are essential.
Key Strengths at a Glance
• Provides 8 individually isolated 120 VAC input channels for enhanced protection against electrical noise and field interference.
• Supports 50/60 Hz AC input operation with reactive input circuitry, allowing compatibility with a wide range of industrial sensing devices.
• Features 1500 VAC isolation between the field side and PLC logic, improving system reliability in demanding industrial environments.
• Includes eight front-panel LED indicators for fast channel status verification and simplified maintenance.
Technical FAQs
1. What type of module is the GE IC693MDL230C?
The IC693MDL230C is an 8-point 120 VAC isolated discrete input module for the GE Series 90-30 PLC platform.
2. How many input channels does the module provide?
The module provides eight individually isolated AC input channels.
3. What input voltage is supported?
The IC693MDL230C is designed for nominal 120 VAC operation with an input range of 0 to 132 VAC at 50/60 Hz.
4. What types of field devices can be connected?
The module is compatible with push buttons, selector switches, limit switches, relay contacts, and proximity switches operating on 120 VAC.
5. What is the typical input current?
Each input channel draws approximately 14.5 mA at the rated input voltage.
6. What are the input response times?
Typical response times are 30 ms maximum for ON transitions and 45 ms maximum for OFF transitions.
7. Does the module require an external AC power source?
Yes. External 120 VAC field power is required for connected input devices.
8. Can the IC693MDL230C be installed in any Series 90-30 I/O slot?
Yes. The module may be installed in any compatible I/O slot of a Series 90-30 baseplate.
9. Does the module include diagnostic indicators?
Yes. Eight front-panel LEDs provide individual status indication for each input channel.
10. What should be verified before replacing the module?
Confirm the AC input voltage, wiring configuration, PLC compatibility, field power supply, and terminal connections before installing the replacement module.
