Brand:GE Fanuc PLC Item No.: IC693MDL940F Product Origin:USA Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

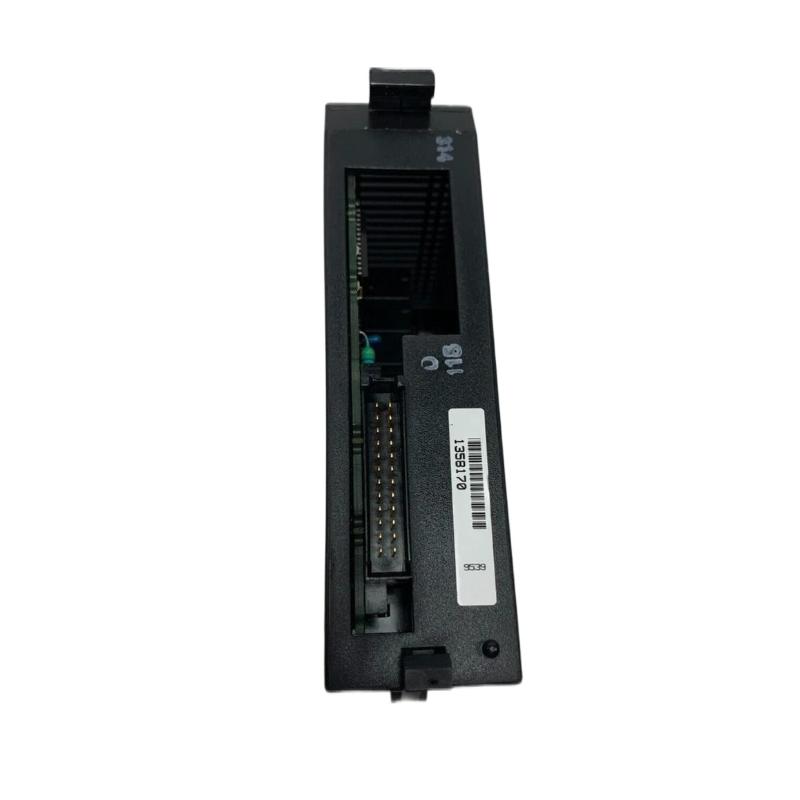

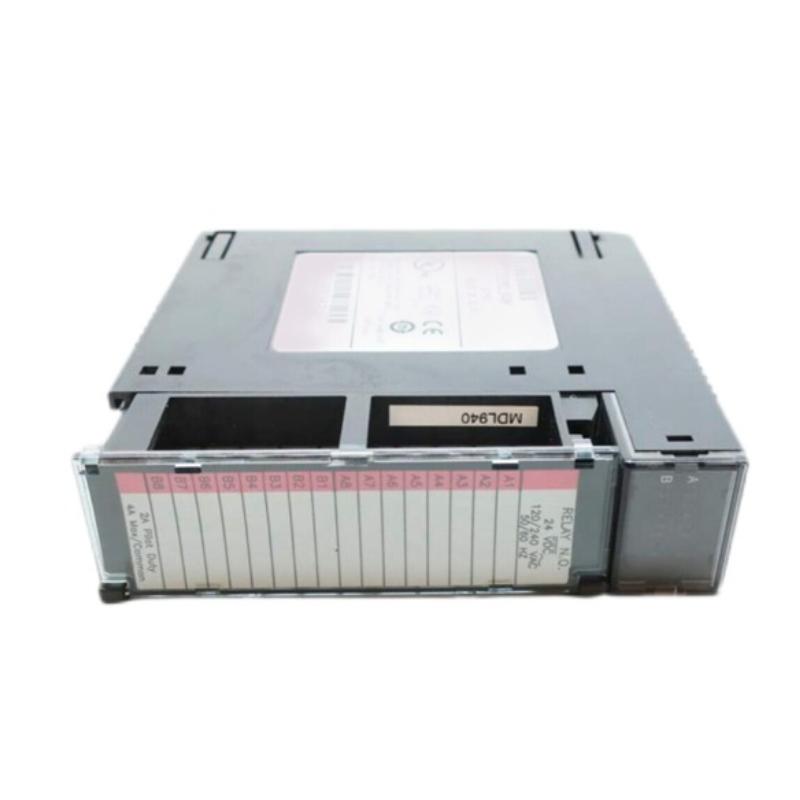

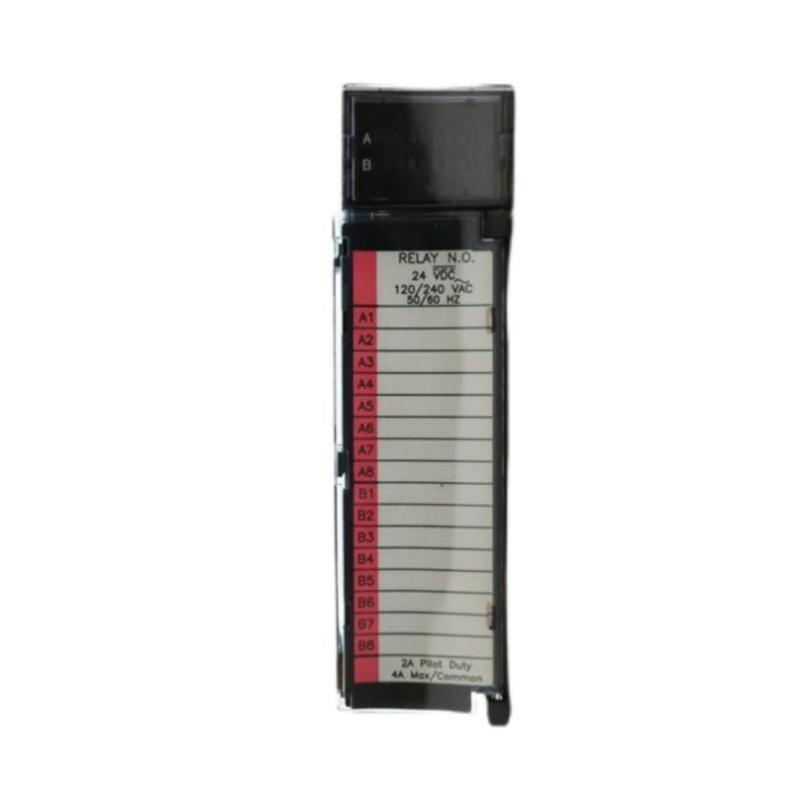

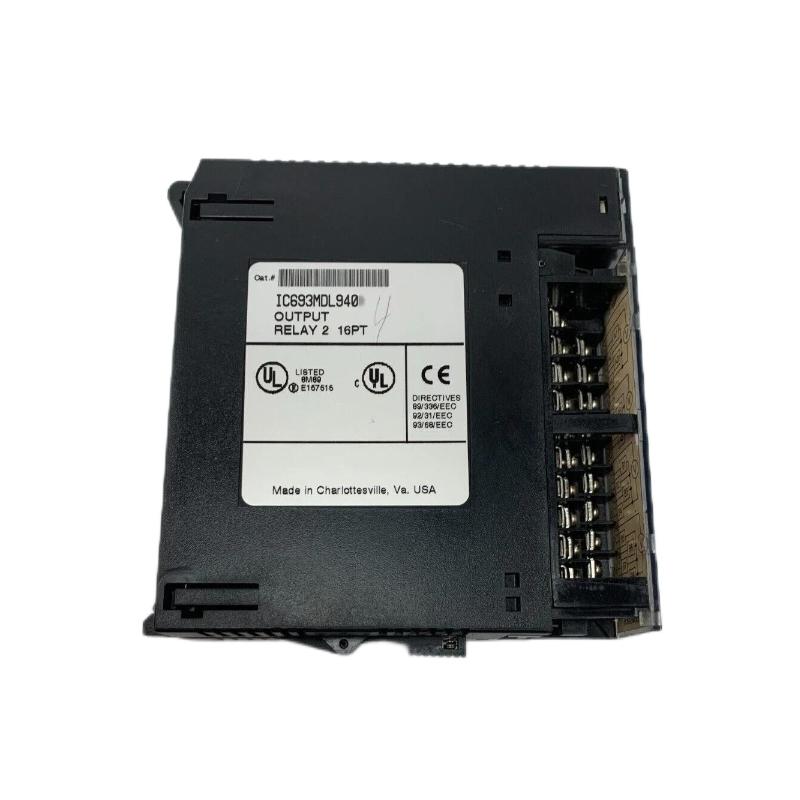

The GE IC693MDL940F Relay Output Module is a high-performance discrete output solution engineered for the Series 90-30 PLC family and PACSystems RX3i platforms. Equipped with sixteen normally open relay outputs, it provides dependable switching for a wide variety of industrial AC and DC loads while maintaining excellent electrical isolation between the controller and field devices.
Its flexible relay architecture makes the IC693MDL940F an excellent choice for controlling contactors, motor starters, solenoids, alarms, and signaling equipment in demanding industrial environments. Individual LED indicators simplify diagnostics and reduce maintenance time, while its rugged construction ensures dependable long-term operation.
Whether deployed in new automation systems or used to replace an existing Series 90-30 output module, the IC693MDL940F delivers proven performance, reliable operation, and seamless integration with GE industrial control systems.
Technical Specifications
Parameter
Details
Model
IC693MDL940F
Product Type
Relay Output Module
Series
GE Series 90-30 / PACSystems RX3i
Output Channels
16
Output Type
Normally Open Relay
Output Groups
4 Groups (4 Outputs per Group)
Rated Output Voltage
24 VDC, 120/240 VAC Nominal
Operating Voltage
5–30 VDC / 5–250 VAC
AC Frequency
50/60 Hz
Maximum Output Current
2 A per Output
Maximum Common Current
4 A per Common
Minimum Load Current
10 mA
Maximum Inrush Current
5 A
Response Time
15 ms ON / 15 ms OFF
Isolation (Field to Logic)
1500 VAC
Isolation Between Groups
500 VAC
Backplane Current
7 mA @ 5 VDC
Relay Bus Current
135 mA @ 24 VDC
LED Indicators
16 Individual LEDs
Mounting
Series 90-30 / RX3i Baseplate
Operating Temperature
0°C to 60°C
Dimensions
Approx. 127 × 35 × 140 mm
Weight
Approx. 0.40 kg
Recommended Companion Models
Model
Product Name
IC693CPU352
Series 90-30 CPU Module
IC693PWR331
Series 90-30 High Capacity Power Supply Module
IC693CHS398
Series 90-30 16-Slot Expansion Baseplate
IC693MDL645
Series 90-30 DC Input Module
Frequently Selected Alternatives
Model
Product Name
IC693MDL930
Series 90-30 8-Point Relay Output Module
IC693MDL931
Series 90-30 Form C Relay Output Module
IC694MDL940
PACSystems RX3i 16-Point Relay Output Module
IC695MDL940
PACSystems RX3i Relay Output Module
Where It Excels in Industrial Use
• Designed for GE Series 90-30 PLC and PACSystems RX3i platforms, the IC693MDL940F provides dependable relay-based output control for industrial automation systems requiring reliable switching of both AC and DC loads.
• Ideal for controlling motor starters, contactors, solenoid valves, alarm devices, indicator lamps, and other field equipment where relay isolation is preferred.
• Widely applied in packaging machinery, material handling systems, water treatment plants, process automation, and OEM equipment requiring robust discrete output performance.
• An excellent solution for system expansions, legacy equipment maintenance, and replacement projects that demand long-term operational reliability and seamless Series 90-30 compatibility.
Key Strengths at a Glance
• Provides 16 normally open relay outputs arranged in four isolated groups of four channels, allowing flexible wiring and load distribution.
• Supports switching of both AC and DC loads from 5–30 VDC or 5–250 VAC, making it suitable for a broad range of industrial applications.
• Features individual LED indicators for every output point, enabling rapid diagnostics and simplified maintenance.
• Offers high electrical isolation between field wiring and PLC logic, improving system stability in electrically demanding environments.
Technical FAQs
1. What type of module is the GE IC693MDL940F?
The IC693MDL940F is a 16-point normally open relay output module for GE Series 90-30 PLC and PACSystems RX3i automation systems.
2. How many output channels are available?
The module provides 16 relay output channels organized into four isolated groups of four outputs each.
3. What output voltage range does the module support?
The relay contacts can switch loads from 5–30 VDC or 5–250 VAC at 50/60 Hz.
4. What is the maximum output current?
Each relay output supports up to 2 A pilot duty, while each common terminal supports up to 4 A.
5. Does the module require an external power source for field devices?
Yes. External AC or DC power must be supplied to operate connected field devices.
6. Does the IC693MDL940F include output status indicators?
Yes. Sixteen front-panel LEDs provide individual ON/OFF status indication for each output channel.
7. Can the module be installed in any Series 90-30 I/O slot?
Yes. It can be installed in any compatible I/O slot within a Series 90-30 or PACSystems RX3i baseplate.
8. Does the module support hot swapping?
No. The IC693MDL940F is not designed for hot-swap operation. System power should be removed before installation or replacement.
9. Are output fuses built into the module?
No. The module does not contain internal output fuses, so external circuit protection should be provided where required.
10. What should be verified before replacing the IC693MDL940F?
Verify the field voltage, load current, wiring configuration, relay group assignments, PLC compatibility, and external protection devices before installation.
