Brand:GE Fanuc PLC Item No.:IC200ALG431H Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

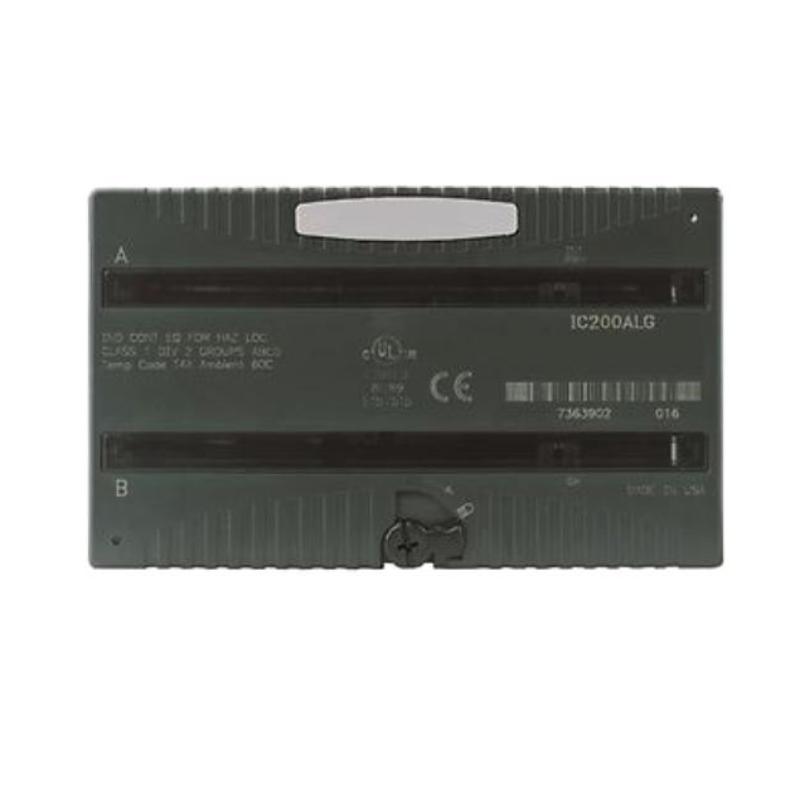

The GE IC200ALG431H Analog Mixed I/O Module is a versatile VersaMax expansion module designed to provide reliable voltage-based analog signal processing for industrial automation systems. Combining four analog inputs and two analog outputs within a compact design, it enables efficient monitoring and control functions while minimizing cabinet space requirements.
With 12-bit resolution, flexible configuration options, and dependable field diagnostics, the IC200ALG431H delivers accurate analog measurement and output control for a wide range of manufacturing and process applications. Its integrated design allows engineers to simplify system architecture while maintaining precise control over industrial equipment.
Built for GE VersaMax automation environments, this module provides a reliable solution for machine builders, system integrators, and maintenance teams requiring efficient analog expansion and long-term operational stability.
Technical Specifications
Parameter
Details
Model
IC200ALG431H
Product Type
Analog Mixed I/O Module
Series
GE VersaMax
Analog Inputs
4 Channels
Analog Outputs
2 Channels
Input Type
Voltage Input
Output Type
Voltage Output
Input Range
0 to +10 VDC
Output Range
0 to +10 VDC
Resolution
12 Bit
Input Configuration
Differential Inputs
Output Configuration
Single-Ended Outputs
Input Impedance
Approx. 120 kΩ
Update Rate
0.4 ms
Input Filter Response
5 ms
External Field Power
18–30 VDC Recommended
Backplane Current Consumption
60 mA @ 5 VDC
Output Load Resistance
5 kΩ Minimum
Diagnostics
Field Power Loss Detection
LED Indicators
OK / Field Power Status
Mounting Type
VersaMax Carrier / DIN Rail
Operating Temperature
0°C to 60°C
Dimensions
Approx. 109 × 50 × 67 mm
Weight
Approx. 0.15 kg
Recommended Companion Models
Model
Product Name
IC200PWR102
VersaMax Power Supply Module
IC200CPU001
VersaMax CPU Module
IC200CHS022
VersaMax I/O Carrier Module
IC200ALG630
VersaMax Analog Thermocouple Input Module
Frequently Selected Alternatives
Model
Product Name
IC200ALG430
VersaMax Analog Mixed Current I/O Module
IC200ALG432
VersaMax Analog Mixed ±10 VDC I/O Module
IC200ALG260
VersaMax Analog Input Module
IC200ALG264
VersaMax Analog Input Module
Where It Excels in Industrial Use
• Designed for the GE VersaMax PLC platform, the IC200ALG431H provides combined analog input and output capability in a compact module, making it ideal for applications requiring both signal monitoring and analog control within limited panel space.
• Suitable for process control systems, machine automation, temperature regulation equipment, flow control applications, pressure monitoring systems, and production equipment requiring accurate 0–10 VDC analog signal handling.
• Commonly used with analog sensors, transmitters, variable control devices, and actuator interfaces where stable voltage-based signal processing is required.
• A practical solution for OEM machinery and industrial retrofit projects that require flexible analog expansion without increasing cabinet complexity.
Key Strengths at a Glance
• Combines four 0–10 VDC analog input channels and two 0–10 VDC analog output channels in one VersaMax module, reducing hardware requirements and simplifying system design.
• Provides 12-bit analog resolution for accurate signal conversion and dependable control performance in industrial environments.
• Supports jumper-selectable output default behavior, allowing outputs to maintain the last state or return to a predefined safe condition during communication interruption.
• Includes field power diagnostics and LED status indication to improve troubleshooting efficiency and system maintenance.
Technical FAQs
1. What type of module is the GE IC200ALG431H?
The IC200ALG431H is a VersaMax 12-bit analog mixed I/O module combining analog voltage inputs and outputs.
2. How many analog input channels are available?
The module provides four 0–10 VDC analog input channels.
3. How many analog output channels are included?
The module provides two 0–10 VDC analog output channels.
4. What signal range does the module support?
The IC200ALG431H supports 0 to +10 VDC voltage input and output signals.
5. What is the resolution of the analog conversion?
The module provides 12-bit analog resolution for input and output processing.
6. Does the output circuit require external power?
Yes. The analog output section requires an external 24 VDC field power supply.
7. Does the module provide diagnostic information?
Yes. The module reports loss of user-side field power conditions and provides LED status indication.
8. What type of cable is recommended for analog connections?
Shielded twisted-pair cable is recommended to reduce electrical noise and improve analog signal stability.
9. Can output behavior be configured during faults?
Yes. Output default behavior can be selected through module configuration settings.
10. What should be checked before replacing the module?
Verify the analog signal range, wiring polarity, field power availability, PLC configuration parameters, and VersaMax system compatibility before replacement.
