Brand:GE Fanuc PLC Item No.: IC200PWR101J Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

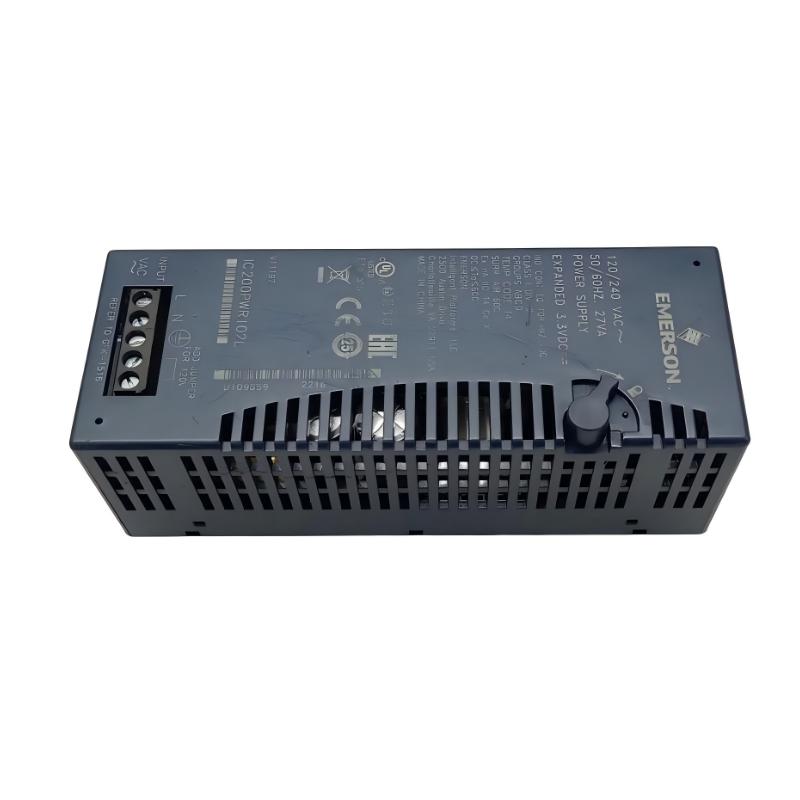

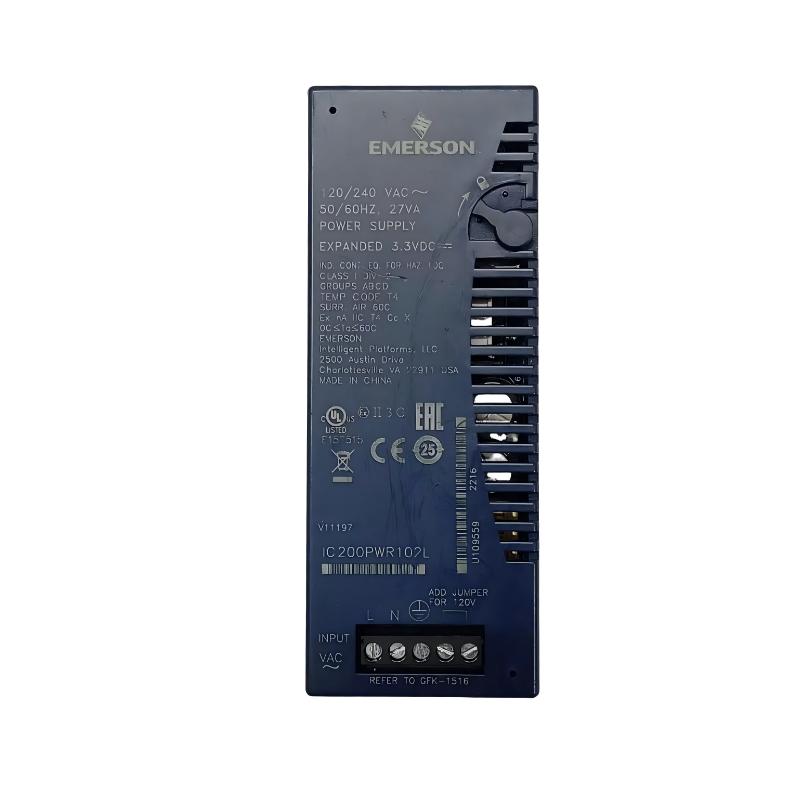

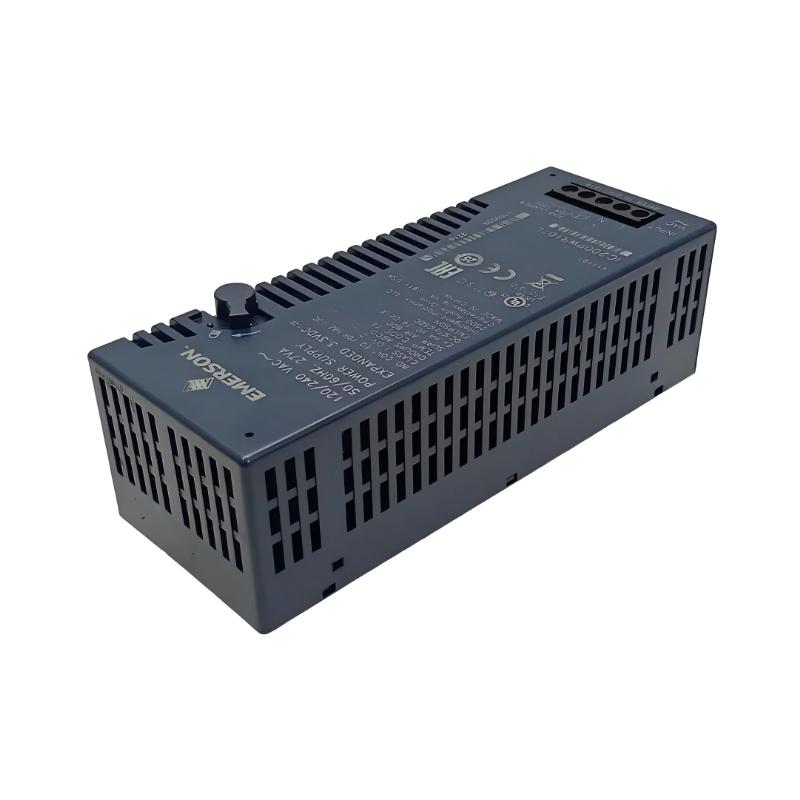

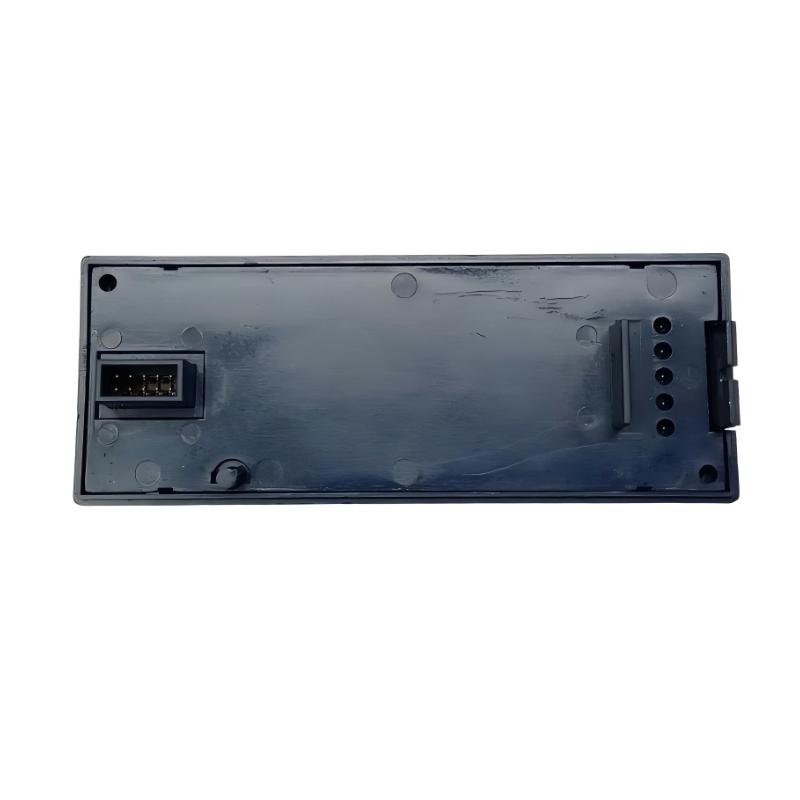

The GE IC200PWR101J Power Supply Module is a reliable AC-powered solution developed for the VersaMax PLC family. Designed to provide essential backplane power for CPUs, network interface units, and I/O modules, it delivers consistent voltage regulation for compact industrial automation systems.
With flexible 120/240 VAC input capability and dual DC output rails, the IC200PWR101J helps simplify system design while maintaining dependable performance in demanding control environments. Its compact architecture makes it especially valuable for machine builders and system integrators working with limited panel space.
Built with VersaMax compatibility, integrated protection functions, and stable power conversion characteristics, the IC200PWR101J remains a practical choice for automation upgrades, replacement installations, and long-term industrial operation.
Technical Specifications
Parameter
Details
Model
IC200PWR101J
Product Type
Power Supply Module
Series
GE VersaMax
Input Voltage
120/240 VAC
AC Input Range
85–132 VAC / 176–264 VAC
Input Frequency
47–63 Hz
Input Power
27 VA
Output Voltage
5 VDC / 3.3 VDC
Total Output Current
1.5 A Maximum
3.3 VDC Output Current
0.25 A Maximum
5 VDC Output Current
1.5 A minus 3.3 VDC load
Holdup Time
20 ms
Protection
Short Circuit, Overload
Application
CPU, NIU, I/O Backplane Power
Installation Type
VersaMax Carrier Mounted
Operating Temperature
0°C to 55°C
Dimensions
Approx. 127 × 51 × 51 mm
Weight
Approx. 0.10 kg
Recommended Companion Models
Model
Product Name
IC200CPUE05
VersaMax Ethernet CPU Module
IC200CHS022
VersaMax I/O Carrier Module
IC200MDL750
VersaMax 32-Point Digital Input Module
IC200ALG326
VersaMax Analog Input Module
Frequently Selected Alternatives
Model
Product Name
IC200PWR102
VersaMax Expanded 24 VDC Power Supply Module
IC200PWR002
VersaMax 24 VDC Power Supply Module
IC200PWR001
VersaMax Standard Power Supply Module
IC695PSD040
PACSystems RX3i DC Power Supply Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200PWR101J provides stable backplane power for CPUs, network interface units, and I/O modules in compact industrial automation installations.
• Ideal for manufacturing equipment, packaging machinery, process control systems, and OEM automation panels where reliable PLC power distribution is essential.
• Suitable for VersaMax systems requiring an AC-powered primary or supplemental power source, especially installations using 120/240 VAC plant power.
• Well suited for system expansions and retrofit applications where consistent power delivery and compatibility with existing VersaMax hardware are required.
Key Strengths at a Glance
• Supports 120/240 VAC input operation and provides regulated 5 VDC and 3.3 VDC outputs for VersaMax system components.
• Delivers up to 1.5 A total output current through combined 5 VDC and 3.3 VDC outputs, supporting a wide range of CPU, communication, and I/O configurations.
• Can operate as a primary power supply on CPU or NIU carriers and as a supplemental supply when installed with a power supply booster carrier.
• Includes short-circuit and overload protection to improve system stability and protect connected automation hardware.
Technical FAQs
1. What type of module is the GE IC200PWR101J?
The IC200PWR101J is a VersaMax AC input power supply module designed to provide backplane power for GE VersaMax PLC systems.
2. What input voltage does the IC200PWR101J support?
The module supports 120 VAC or 240 VAC nominal input operation depending on jumper configuration.
3. What output voltages are provided by the module?
The power supply provides regulated 5 VDC and 3.3 VDC outputs for VersaMax system components.
4. What is the maximum output current capacity?
The combined output current is rated up to 1.5 A, with the 3.3 VDC output supporting up to 0.25 A.
5. Can the IC200PWR101J be used as a secondary power source?
Yes. When installed on a power supply booster carrier, it can function as a supplemental power supply.
6. What type of protection features are included?
The module provides short-circuit and overload protection to help safeguard the PLC system.
7. What is the input frequency range of this power supply?
The IC200PWR101J supports an AC input frequency range of 47–63 Hz.
8. Does the module provide isolated field power output?
No. The IC200PWR101J is designed for backplane power and does not provide isolated field power output.
9. What is the typical holdup time of the module?
The power supply provides approximately 20 ms of holdup time during input power interruption.
10. What should be verified before replacing the IC200PWR101J?
Confirm the VersaMax carrier compatibility, input voltage selection, jumper configuration, system power requirements, and connected module load before installation.
