Brand:GE Fanuc PLC Item No.:IC200MDL845G Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

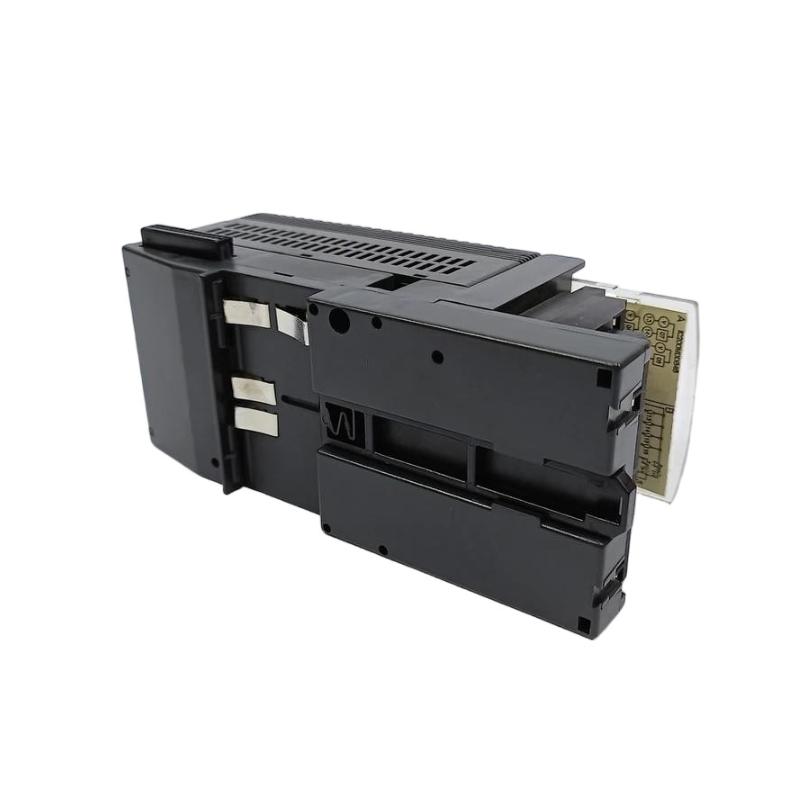

The GE IC200MDL845G Discrete Input Module is a compact digital input solution developed for the VersaMax PLC family. Designed to collect and process 24 VDC field signals, it provides reliable communication between industrial devices and the PLC control system while maintaining efficient use of panel space.
With sixteen discrete input channels and clear diagnostic indicators, the IC200MDL845G simplifies machine monitoring and maintenance operations. Its flexible design allows integration into a wide variety of automation systems, from standalone OEM machines to larger distributed control architectures.
Built for industrial environments where dependable signal processing and long-term availability are essential, the IC200MDL845G delivers the performance and compatibility expected from GE VersaMax automation products.
Technical Specifications
Parameter
Details
Model
IC200MDL845G
Product Type
Discrete Input Module
Series
GE VersaMax
Input Channels
16
Input Type
DC Digital Input
Rated Input Voltage
24 VDC
Input Logic
Positive Logic
Input Current
Approx. 7 mA per Point
Input Signal Range
0–30 VDC
ON-State Voltage
Approx. 15 VDC Minimum
OFF-State Voltage
Approx. 5 VDC Maximum
Response Time
Approx. 0.5 ms Typical
Isolation
Field to Logic Isolation
LED Indicators
16 Input Status LEDs
Power Consumption
Approx. 5 VDC Backplane Supply
Installation Type
VersaMax Carrier Mounted
Communication Interface
VersaMax Backplane
Operating Temperature
0°C to 55°C
Dimensions
Approx. 109 × 50 × 67 mm
Weight
Approx. 0.15 kg
Recommended Companion Models
Model
Product Name
IC200PWR102
VersaMax 24 VDC Power Supply Module
IC200CPU001
VersaMax CPU Module
IC200CHS022
VersaMax I/O Carrier Module
IC200MDL650
VersaMax Relay Output Module
Frequently Selected Alternatives
Model
Product Name
IC200MDL645
VersaMax 16-Point DC Input Module
IC200MDL650
VersaMax 16-Point Relay Output Module
IC200MDL740
VersaMax 16-Point DC Output Module
IC200MDL750
VersaMax 32-Point Digital Input Module
Where It Excels in Industrial Use
• Designed for GE VersaMax PLC systems, the IC200MDL845G provides reliable 24 VDC discrete input monitoring for industrial automation applications requiring compact and flexible field signal acquisition.
• Ideal for packaging equipment, conveyor systems, assembly machinery, material handling applications, and OEM automation solutions using standard DC sensors and switching devices.
• Compatible with proximity sensors, photoelectric sensors, limit switches, push buttons, and other 24 VDC field devices, providing dependable communication between field equipment and the PLC control system.
• Well suited for machine upgrades and distributed I/O architectures where space efficiency, straightforward installation, and reliable digital signal processing are important requirements.
Key Strengths at a Glance
• Provides 16-point 24 VDC discrete input capability in a compact VersaMax I/O module, helping reduce cabinet space requirements.
• Supports positive logic input operation for connection with a wide range of industrial DC devices.
• Features individual LED status indicators for each input channel, allowing quick identification of field signal conditions during troubleshooting.
• Offers fast and stable signal acquisition with VersaMax backplane communication, ensuring dependable operation in automated production environments.
Technical FAQs
1. What type of module is the GE IC200MDL845G?
The IC200MDL845G is a VersaMax 24 VDC discrete input module designed for digital signal acquisition applications.
2. How many input channels does the IC200MDL845G provide?
The module provides 16 discrete DC input channels.
3. What input voltage does this module support?
The IC200MDL845G is designed for nominal 24 VDC industrial input signals.
4. What type of field devices can be connected to this module?
The module can connect to DC proximity sensors, limit switches, push buttons, photoelectric sensors, and other compatible digital devices.
5. Does the module support positive logic inputs?
Yes. The IC200MDL845G supports positive logic input configurations.
6. Does each input channel have status indication?
Yes. Each input point includes an LED indicator for monitoring channel activity.
7. Is external field power required for operation?
Yes. External 24 VDC field power is required for connected input devices.
8. Can this module be installed in a VersaMax distributed I/O system?
Yes. The module is designed for integration within GE VersaMax I/O carrier-based systems.
9. Does the module provide electrical isolation?
The module provides isolation between field input circuits and internal PLC electronics to improve system reliability.
10. What should be checked before replacing this module?
Verify the VersaMax configuration, input voltage level, terminal wiring, field device compatibility, and PLC hardware configuration before replacement.
