Where It Excels in Industrial Use

• Designed for the GE VersaMax PLC platform, the IC200PWR102K provides expanded DC power for VersaMax CPUs, network interface units (NIUs), and I/O modules in industrial automation systems.

• Ideal for factory automation panels, machine control systems, OEM equipment, packaging lines, and distributed I/O installations requiring additional backplane power capacity.

• Commonly used where a standard VersaMax power supply is insufficient and additional 3.3 VDC capacity is needed for larger I/O configurations.

• Suitable for replacement, retrofit, and expansion projects involving existing GE VersaMax installations.

Key Strengths at a Glance

• Provides 120/240 VAC input power with regulated 5 VDC and 3.3 VDC outputs for VersaMax system modules.

• Delivers up to 1.5 A total output current, supporting larger VersaMax configurations.

• Supports up to 1.0 A at 3.3 VDC output, making it suitable for expanded I/O architectures.

• Includes overload and short-circuit protection to improve system reliability and protect connected automation hardware.

• Can operate as a primary station power supply or as supplemental power when installed with a power supply booster carrier.

Technical FAQs

1. What type of module is the GE IC200PWR102K?

The IC200PWR102K is an expanded 3.3 VDC power supply module for the GE VersaMax PLC family.

2. What input voltage does the module support?

It supports 120 VAC or 240 VAC nominal input operation:

• 85–132 VAC
• 176–264 VAC
  with a 47–63 Hz input frequency range.

3. What output voltages are provided?

The module provides:

• 5 VDC
• 3.3 VDC
  for VersaMax CPUs, NIUs, and I/O modules.

4. What is the maximum output current?

The total maximum output current is 1.5 A. The 3.3 VDC output can provide up to approximately 1.0 A.

5. Can the IC200PWR102K replace the IC200PWR101?

Yes. The IC200PWR102 is commonly listed as a replacement/upgrade for the IC200PWR101, providing expanded 3.3 VDC capability.

6. Can it be used as a supplemental power supply?

Yes. When installed on a VersaMax power supply booster carrier, it can provide additional system power.

7. Does the module provide protection features?

Yes. It includes overload and short-circuit protection.

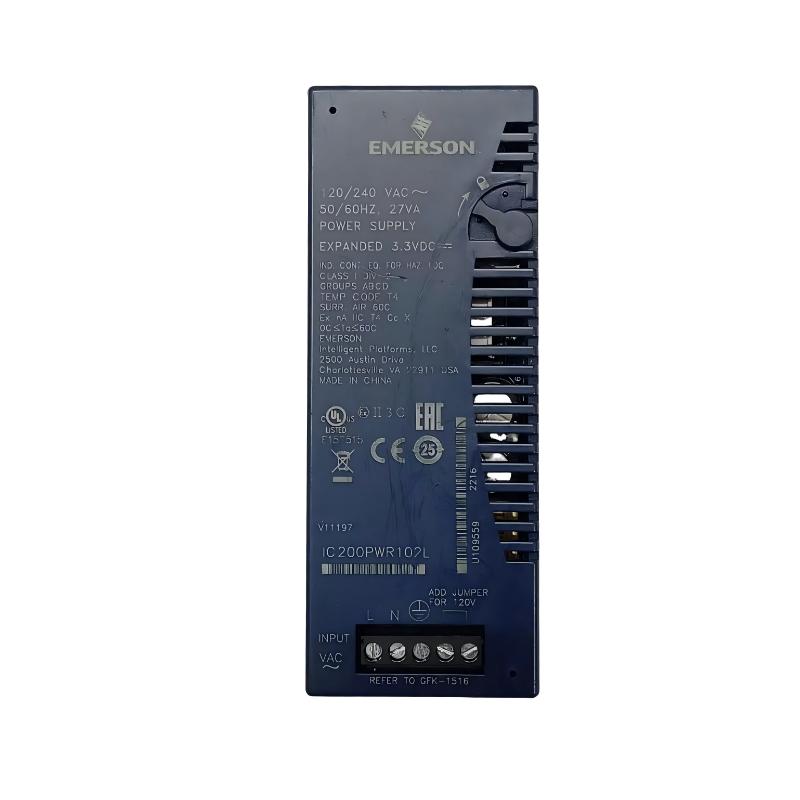

8. How is the input voltage selected?

A jumper configuration is used:

• Jumper installed → 120 VAC operation
• Jumper removed → 240 VAC operation

9. What applications commonly use this module?

Typical applications include:

• Machine automation
• Distributed I/O stations
• OEM control panels
• Process monitoring systems

10. What should be checked before replacement?

Verify:

• AC input voltage setting
• VersaMax carrier compatibility
• Total I/O power demand
• Existing module configuration
• Wiring and grounding connections
