Brand:Schneider PLC Item No.:TM221CE40R Product Origin:France Product Dimensions:202 × 21 × 261 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

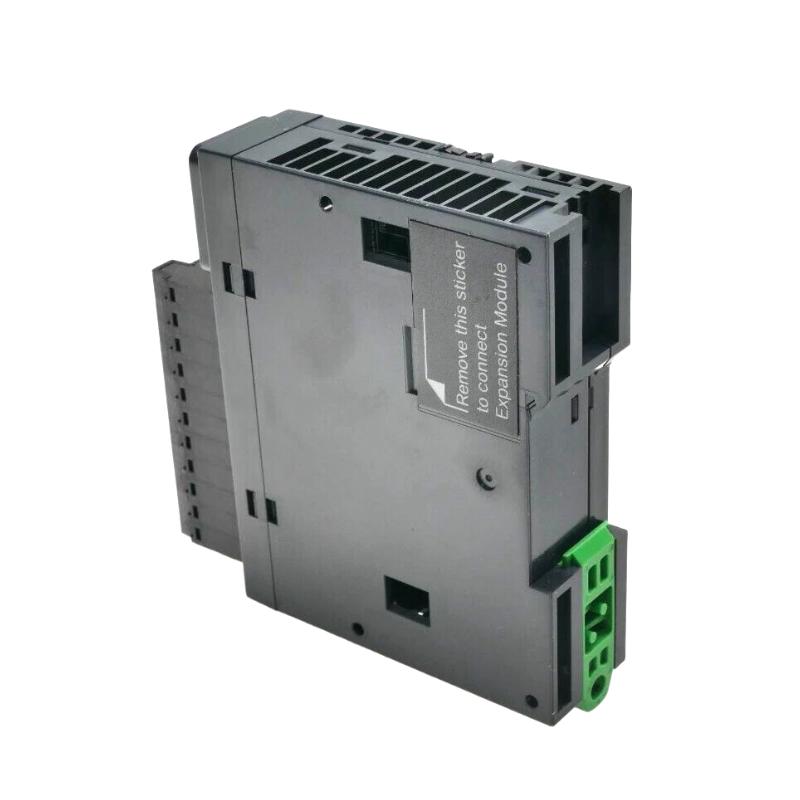

The Schneider TM221CE40R Logic Controller Module is a high-capacity member of the Modicon M221 PLC family, developed for industrial automation applications that require reliable control, extensive I/O resources, and efficient system communication. With 40 integrated I/O points, relay outputs, analog input capability, Ethernet connectivity, and TM3 expansion support, it provides a powerful automation solution for machine builders and system integrators.
Designed for demanding compact automation environments, the TM221CE40R offers excellent flexibility for controlling complex machines while reducing cabinet space and simplifying system architecture. Its combination of communication functions and scalable expansion options makes it a dependable choice for modern industrial control projects.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
TM221CE40R
Product Type
Logic Controller Module
Product Range
Modicon M221
Controller Type
Compact PLC
Rated Supply Voltage
100...240 VAC
Supply Voltage Range
85...264 VAC
Integrated I/O Number
40
Digital Inputs
24
Input Type
24 VDC Sink/Source
Analog Inputs
2
Analog Input Range
0...10 V
Analog Resolution
10 bits
Relay Outputs
16
Output Type
Relay Normally Open
Output Voltage
5...125 VDC / 5...250 VAC
Maximum Output Current
2 A
Communication Interface
Ethernet + Serial Line
Programming Interface
USB
Memory Expansion
SD Card Supported
Expansion Compatibility
Modicon TM3 Modules
Maximum Local Expansion
7 TM3 Modules
Maximum Remote Expansion
14 TM3 Modules
Mounting Type
DIN Rail Mounting
Protection Rating
IP20
Operating Temperature
-10...55°C
Storage Temperature
-25...70°C
Dimensions (W × H × D)
Approx. 160 × 90 × 70 mm
Weight
Approx. 450 g
Recommended Companion Models
Model
Product Name
TM3AI4
Schneider Modicon TM3 Analog Input Expansion Module
• Large Compact Machine Automation Control
The Schneider TM221CE40R is a Modicon M221 compact logic controller designed for automation systems requiring higher I/O capacity, reliable relay switching, and advanced communication functions. With 40 integrated I/O points, it is well suited for packaging lines, material handling systems, processing equipment, and industrial machinery requiring centralized control.
• Multi-Device Industrial Control Applications
Featuring 24 digital inputs, 16 relay outputs, and 2 analog inputs, the TM221CE40R provides a flexible control architecture for machines with multiple sensors, actuators, motors, and auxiliary devices. It helps reduce the need for additional controllers while maintaining efficient cabinet integration.
• Connected Automation System Integration
The integrated Ethernet interface, serial communication capability, USB programming port, and Modbus support allow the TM221CE40R to communicate effectively with HMIs, drives, monitoring systems, and other automation components.
• Expandable Industrial Control Platforms
Compatible with Modicon TM3 expansion modules, the TM221CE40R allows engineers to increase system functionality with additional I/O modules while maintaining a compact DIN rail installation concept.
Key Strengths at a Glance
• High-Capacity Relay Output Control
The TM221CE40R integrates 16 relay outputs capable of switching various AC and DC loads, making it suitable for machines requiring flexible actuator and equipment control.
• Broad I/O Configuration Capability
With 24 digital inputs, 16 relay outputs, and 2 analog inputs, the controller provides a balanced combination of digital control and analog signal processing for diverse industrial applications.
• Reliable Modicon M221 Performance
The TM221CE40R combines compact PLC architecture with Ethernet communication, SD card support, USB connectivity, and cartridge expansion options to simplify programming, commissioning, and maintenance.
• Scalable Expansion Architecture
Supporting TM3 expansion modules, the controller enables future system upgrades and additional automation functions without replacing the main PLC platform.
Technical FAQs
1. What type of product is the Schneider TM221CE40R?
The Schneider TM221CE40R is a Modicon M221 programmable logic controller designed for industrial machine automation and compact control applications.
2. How many integrated I/O points does the TM221CE40R provide?
The TM221CE40R provides 40 integrated I/O points, including 24 digital inputs and 16 relay outputs.
3. What type of outputs does the TM221CE40R use?
The TM221CE40R uses relay normally open outputs suitable for switching industrial loads in automation systems.
4. What power supply does the TM221CE40R require?
The TM221CE40R operates with a rated supply voltage of 100...240 VAC.
5. Does the TM221CE40R support analog input signals?
Yes. The TM221CE40R includes 2 analog inputs supporting 0...10 V signals with 10-bit resolution.
6. Which expansion modules are compatible with the TM221CE40R?
The TM221CE40R supports Schneider Electric Modicon TM3 expansion modules for additional digital, analog, and specialty automation functions.
7. What programming software is used for the TM221CE40R?
The TM221CE40R is programmed using Schneider Electric EcoStruxure Machine Expert Basic software for Modicon M221 controllers.
8. Does the TM221CE40R support Ethernet communication?
Yes. The TM221CE40R includes an integrated Ethernet interface for industrial networking and automation system integration.
9. Can the TM221CE40R communicate through Modbus?
Yes. The controller supports Modbus communication through its communication interfaces for connection with industrial devices and supervisory systems.
10. Is the TM221CE40R suitable for OEM machine builders?
Yes. The TM221CE40R is designed for OEM equipment requiring higher I/O density, reliable relay control, communication flexibility, and expansion capability.
