Brand:Schneider PLC Item No.:TM241CEC24U Product Origin:France Product Dimensions:202 × 21 × 261 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

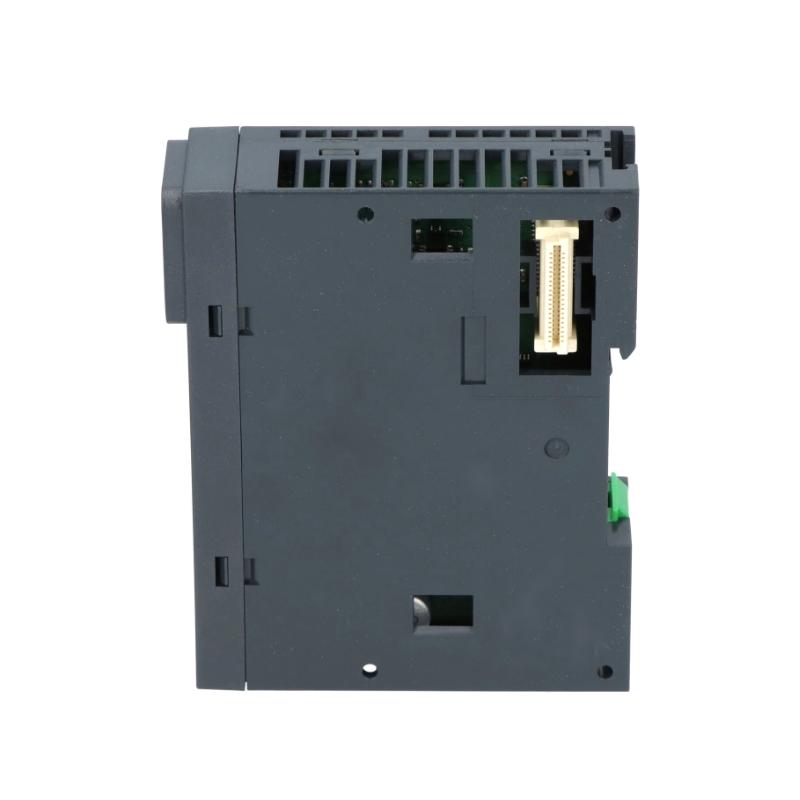

The Schneider TM241CEC24U CPU Module is part of the Modicon M241 series, developed for machine automation applications requiring reliable control performance and advanced communication capability. Designed for OEM manufacturers and system integrators, it combines compact PLC functionality with Ethernet, CANopen master communication, and flexible I/O management.
Featuring NPN transistor outputs, fast signal processing capability, and compatibility with EcoStruxure Machine Expert, the TM241CEC24U helps engineers create efficient automation systems with improved connectivity, simplified commissioning, and scalable machine architectures.
Its combination of communication flexibility and responsive control makes it a practical choice for modern industrial equipment requiring dependable automation performance.
• Connected Compact Machine Automation
The Schneider TM241CEC24U CPU Module is designed for compact industrial machines that require Ethernet communication, CANopen networking, and reliable PLC control performance. It is well suited for packaging equipment, labeling systems, assembly machines, and automated production units where communication flexibility and precise control are important.
• OEM Machine Development Applications
The TM241CEC24U provides OEM engineers with a versatile automation platform that combines integrated I/O, NPN transistor outputs, and multiple communication interfaces. Its flexible architecture supports efficient machine development, commissioning, and future system expansion.
• High-Speed Signal Processing Equipment
With fast inputs and fast transistor outputs, the controller is suitable for applications involving counting, pulse generation, positioning-related functions, and synchronized machine operations requiring quick response times.
• Distributed Industrial Control Networks
The combination of Ethernet and CANopen master communication allows the TM241CEC24U to integrate intelligent devices, remote components, and field-level automation equipment into connected industrial systems.
Key Strengths at a Glance
• Ethernet and CANopen Integration
The TM241CEC24U combines PLC control with Ethernet and CANopen master connectivity, providing a strong foundation for networked automation solutions and efficient device communication.
• Fast NPN Transistor Output Control
The NPN transistor output design provides fast switching capability for applications requiring accurate timing, pulse control, and responsive machine operation.
• Compact 24-I/O Automation Design
With 14 digital inputs and 10 transistor outputs, the controller provides an optimized solution for compact machines requiring balanced input and output management.
• Expandable Modicon M241 Platform
The TM241CEC24U supports additional expansion modules, enabling users to extend I/O capacity and adapt automation systems according to changing production requirements.
Technical FAQs
1. What type of controller is the Schneider TM241CEC24U CPU Module?
The Schneider TM241CEC24U is a Modicon M241 logic controller featuring NPN transistor outputs, Ethernet communication, and CANopen master functionality for industrial automation applications.
2. How many I/O points are available on the TM241CEC24U?
The TM241CEC24U provides 24 integrated I/O points, including 14 digital inputs and 10 transistor outputs.
3. What type of outputs does the TM241CEC24U use?
The TM241CEC24U uses NPN transistor outputs with 24 V DC output technology, supporting fast and reliable switching operations in industrial environments.
4. Does the TM241CEC24U support high-speed control functions?
Yes. The controller includes fast inputs and fast outputs designed for high-speed counting, pulse generation, and machine synchronization applications.
5. Which programming software is compatible with the TM241CEC24U?
The TM241CEC24U is programmed and configured using Schneider Electric EcoStruxure Machine Expert software, which supports controller programming, diagnostics, and system configuration.
6. What communication interfaces are available on the TM241CEC24U?
The TM241CEC24U provides Ethernet, CANopen master, two serial line ports, and a USB mini-B programming interface for flexible industrial communication.
7. Can the TM241CEC24U be expanded with additional modules?
Yes. The TM241CEC24U supports Modicon TM3 expansion modules, allowing additional I/O and functional modules to be integrated into the automation system.
8. Is the TM241CEC24U suitable for motion-related applications?
Yes. The fast transistor outputs and pulse generation functions allow the controller to support basic motion control tasks, positioning applications, and synchronized machine operations.
9. What voltage does the TM241CEC24U require?
The TM241CEC24U operates with a 24 V DC power supply, making it suitable for standard industrial control cabinets and machine automation systems.
10. Why is the TM241CEC24U suitable for OEM automation projects?
The TM241CEC24U combines compact PLC design, Ethernet connectivity, CANopen networking, fast I/O processing, and expansion capability, making it suitable for customized industrial machine solutions.
