Brand:Schneider PLC Item No.:ATV340U30N4E Product Origin:France Product Dimensions:85 x 270 x 232.5 Product Weight:2.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

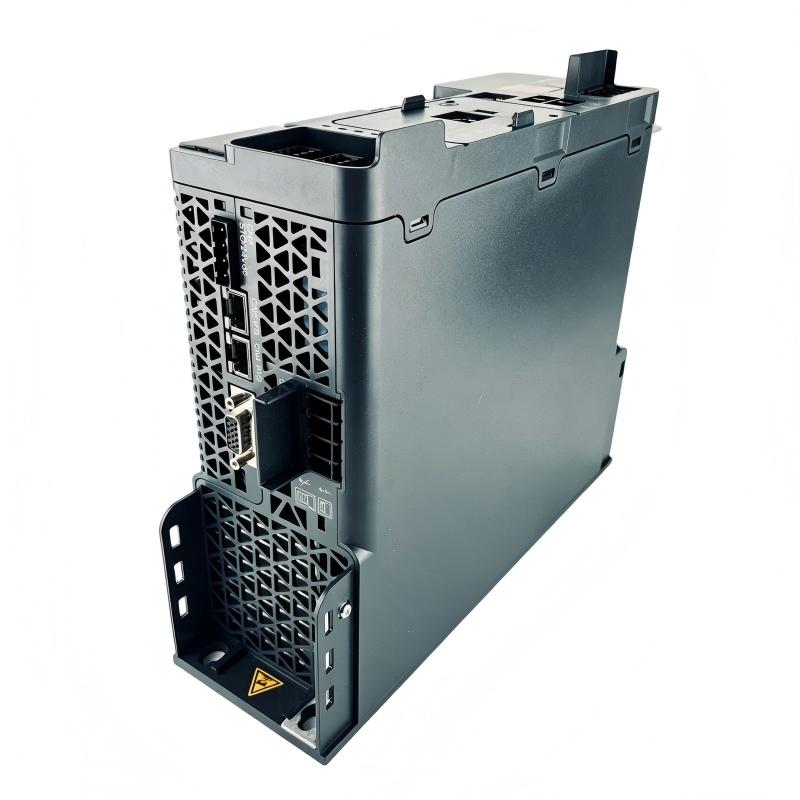

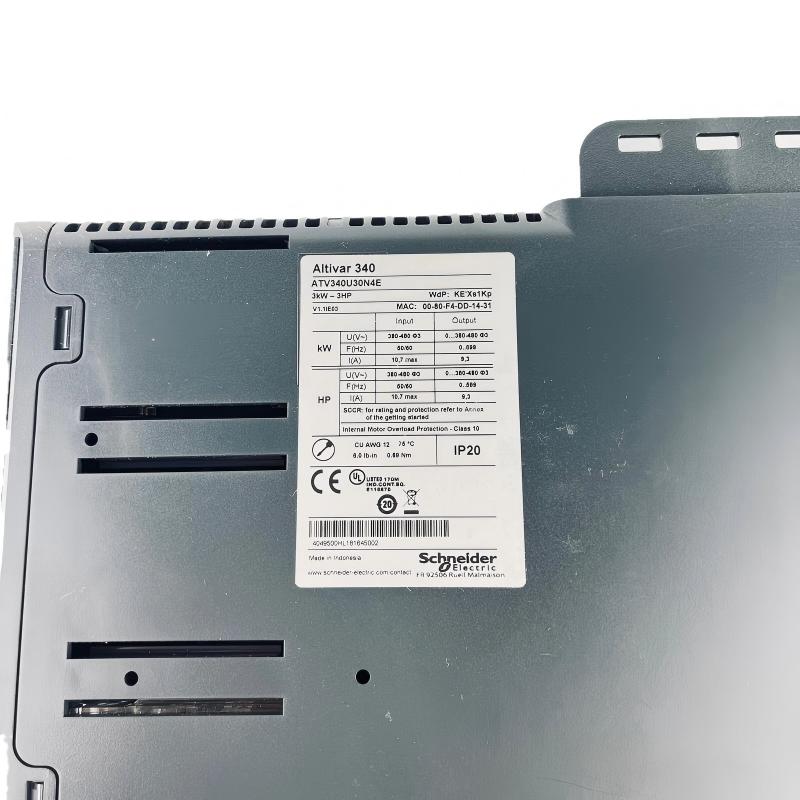

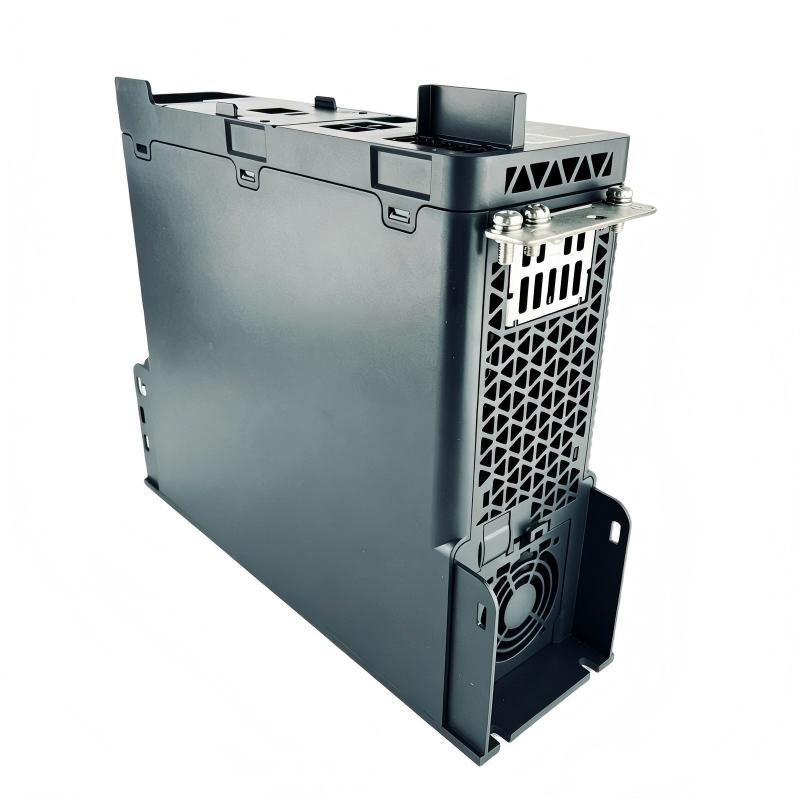

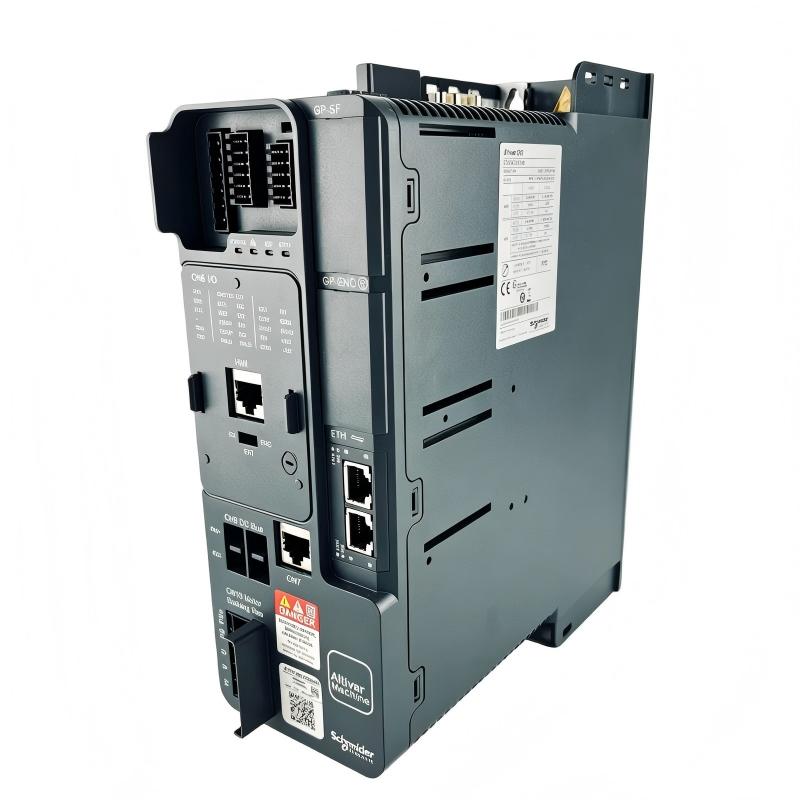

The Schneider ATV340U30N4E Variable Speed Drive is an advanced motor control solution designed for high-performance industrial machinery. It provides precise control of motor speed and torque, helping manufacturers achieve better production efficiency and improved equipment reliability.
In modern automation systems, variable speed drives play an important role in controlling motor behavior, reducing mechanical impact, and improving overall machine flexibility. The ATV340U30N4E is designed to meet these requirements by combining powerful drive technology with convenient automation integration.
This drive is widely used in industries where machine performance and uptime are critical. Its Ethernet communication capability allows easier connection with industrial networks, supporting efficient data exchange between drives, controllers, and automation devices.
For machine builders and system integrators, the Schneider ATV340U30N4E offers a reliable solution for applications requiring accurate motion control, stable operation, and long-term industrial performance.
Technical Specifications
Specification
Details
Product Type
Variable Speed Drive
Manufacturer
Schneider Electric
Model Number
ATV340U30N4E
Series
Altivar Machine ATV340
Rated Power
3 kW
Rated Voltage
380...480 V AC
Input Phase
Three-Phase
Motor Control Type
Asynchronous Motor and Synchronous Motor Control
Communication Interface
Ethernet Communication
Application
Industrial Motor Speed Control
Installation Method
Cabinet Panel Mounting
Dimensions
85 × 270 × 232.5 mm
Weight
2.20 kg (4.85 lb)
Recommended Related Models
Model
Product Type
Schneider ATV340U22N4E
Variable Speed Drive
Schneider ATV340U40N4E
Variable Speed Drive
Schneider ATV340U55N4E
Variable Speed Drive
Schneider ATV340D11N4E
Variable Speed Drive
Schneider VW3A1111
Graphic Display Terminal
Popular Related Models
Model
Product Type
Schneider ATV320U30N4B
Variable Speed Drive
Schneider ATV630U30N4
Process Variable Speed Drive
Schneider ATV930U30N4
High Performance Variable Speed Drive
Schneider ATV12H075M2
Compact Variable Speed Drive
Schneider ATV71HU30N4
Industrial Variable Speed Drive
Industrial Applications and Usage Areas
The Schneider ATV340U30N4E Variable Speed Drive is a high-performance motor control device designed for modern industrial automation and machine control applications. As part of the Altivar Machine ATV340 series, this drive provides accurate speed regulation, reliable torque control, and efficient motor management for equipment requiring high dynamic performance.
The ATV340U30N4E is developed for machine builders, OEM manufacturers, and industrial users who need stable motor operation, flexible communication, and easy integration with automation systems. With advanced drive functions and Ethernet communication capability, it supports efficient connection between motors, PLC systems, and industrial control networks.
Typical application areas include:
Automated production equipment
Packaging and filling machines
Conveyor systems
Material handling equipment
Machine tools
Industrial processing machinery
OEM automation solutions
Manufacturing production lines
The Schneider ATV340U30N4E helps improve machine performance by providing precise motor control, reducing mechanical stress, and supporting efficient operation in demanding industrial environments.
Key Engineering Advantages and Performance Features
The Schneider ATV340U30N4E Variable Speed Drive combines advanced control technology with a compact industrial design. It is designed to meet the requirements of applications where fast response, accurate control, and reliable operation are essential.
Advantage
Description
High Dynamic Motor Control
Provides accurate speed and torque management for demanding industrial machines.
Ethernet Connectivity
Enables efficient communication with modern industrial automation systems.
Flexible Motor Compatibility
Supports control of different three-phase motor applications.
Reliable Industrial Performance
Designed for continuous operation in manufacturing and automation environments.
Space-Saving Design
Compact dimensions allow convenient installation inside control cabinets.
Improved Energy Efficiency
Helps optimize motor operation and reduce unnecessary energy consumption.
Technical FAQs
Q1: What is the main function of the Schneider ATV340U30N4E Variable Speed Drive? A: The Schneider ATV340U30N4E controls motor speed, torque, and acceleration by adjusting electrical output parameters, allowing precise control of industrial motors.
Q2: What types of motors can be controlled by the ATV340U30N4E? A: The drive is designed for three-phase asynchronous motors and synchronous motors commonly used in industrial automation applications.
Q3: What should be configured before starting the ATV340U30N4E? A: Engineers should configure motor-related parameters including rated voltage, current, frequency, speed, and control mode according to the motor specifications.
Q4: Can the ATV340U30N4E communicate with PLC systems? A: Yes. The drive supports integration with PLC-based automation systems through industrial communication functions, allowing coordinated machine control.
Q5: What causes an overcurrent fault during operation? A: Possible causes include excessive mechanical load, incorrect motor parameters, improper acceleration settings, or motor wiring problems.
Q6: How can technicians improve motor control performance? A: Correct motor parameter configuration, optimized control settings, and proper matching between the drive and motor can improve operating performance.
Q7: What should be checked if the motor does not run after installation? A: Technicians should check power supply status, motor wiring, control commands, drive parameters, and active fault messages.
Q8: Does the ATV340U30N4E support advanced automation integration? A: Yes. It is designed for integration into modern machine automation systems requiring communication, monitoring, and precise motor control.
Q9: What maintenance practices are recommended for this variable speed drive? A: Regular inspection of electrical connections, cooling conditions, operating parameters, and fault history helps maintain reliable performance.
Q10: Why is the ATV340U30N4E suitable for OEM machine applications? A: Its compact design, advanced control functions, and flexible integration features make it suitable for OEM equipment requiring dependable motor management.
