Brand:Schneider PLC Item No.:ATV610C11N4 Product Origin:France Product Dimensions:300 x 850 x 375 mm Product Weight:85.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

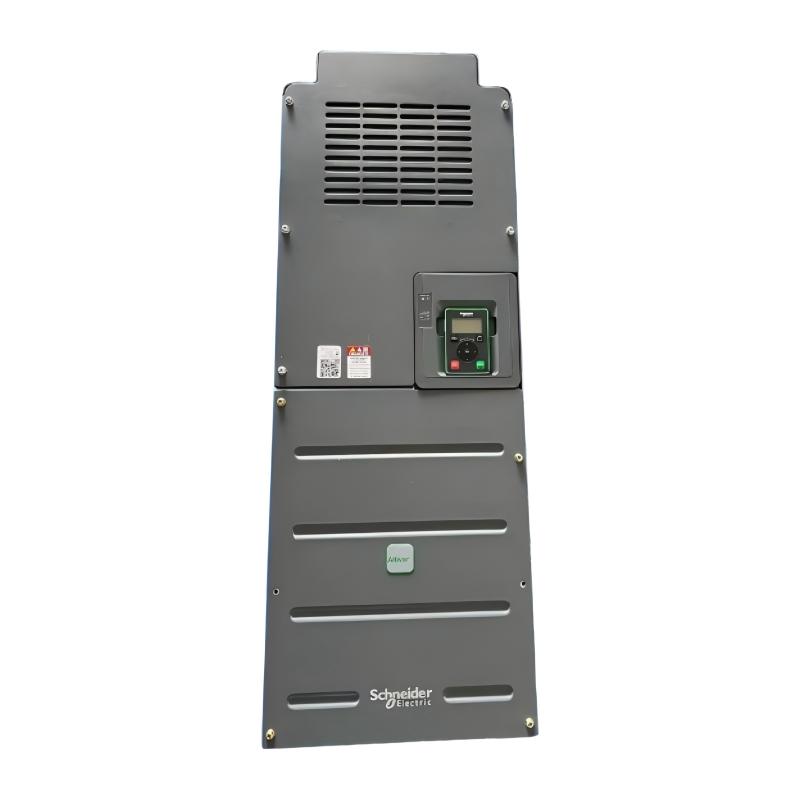

The Schneider ATV610C11N4 Variable Speed Drive is designed for industrial environments where efficient motor control and reliable operation are critical. It provides a practical solution for controlling large motors used in process industries, helping companies improve productivity while optimizing energy usage.
In many industrial applications, motors operate under changing load conditions. Traditional fixed-speed operation can lead to unnecessary energy consumption and increased mechanical wear. Variable speed drives solve this challenge by adjusting motor speed according to actual process requirements.
The ATV610C11N4 provides accurate motor management for applications requiring stable operation and efficient performance. Its industrial design allows integration into control systems used in manufacturing plants, water treatment facilities, HVAC systems, and infrastructure projects.
With strong motor control capability, reliable protection functions, and flexible application support, the Schneider ATV610C11N4 is a dependable choice for engineers looking to improve industrial automation performance and optimize motor-driven systems.
Technical Specifications
Specification
Details
Product Type
Variable Speed Drive
Manufacturer
Schneider Electric
Model Number
ATV610C11N4
Series
Easy Altivar 610
Rated Power
110 kW
Rated Voltage
380...460 V AC
Input Phase
Three-Phase
Motor Control Type
Asynchronous Motor Control
Application
Pump, Fan, Compressor, Process Control
Installation Method
Cabinet Mounting
Cooling Method
Forced Convection Cooling
Protection Rating
IP20
Communication Capability
Industrial Communication Support
Dimensions
300 × 850 × 375 mm
Weight
85.50 kg (188.50 lb)
Recommended Related Models
Model
Product Type
Schneider ATV610C07N4
Variable Speed Drive
Schneider ATV610C11N4A
Variable Speed Drive
Schneider ATV610C13N4
Variable Speed Drive
Schneider ATV610C16N4
Variable Speed Drive
Schneider ATV610D22N4
Variable Speed Drive
Popular Related Models
Model
Product Type
Schneider ATV630C11N4
Process Variable Speed Drive
Schneider ATV930C11N4
High Performance Variable Speed Drive
Schneider ATV340D11N4
Machine Variable Speed Drive
Schneider ATV320D11N4C
Compact Variable Speed Drive
Schneider ATV71HC11N4
Industrial Variable Speed Drive
Industrial Applications and Usage Areas
The Schneider ATV610C11N4 Variable Speed Drive is a high-power motor control solution designed for industrial process applications that require efficient operation, stable performance, and reliable speed regulation. As part of the Easy Altivar 610 series, this drive is optimized for applications involving pumps, fans, compressors, and other variable torque equipment where energy efficiency and operational reliability are important.
Designed for industrial facilities, infrastructure projects, and process automation systems, the ATV610C11N4 provides precise control of large asynchronous motors while helping users improve energy management and reduce mechanical stress on equipment.
The drive is suitable for continuous-duty applications where stable motor operation and long-term reliability are essential.
Typical application areas include:
Water and wastewater treatment systems
Industrial pumping stations
HVAC and ventilation systems
Cooling and circulation equipment
Air compressors
Conveyor systems
Manufacturing process equipment
Infrastructure and utility applications
The Schneider ATV610C11N4 helps industries optimize motor performance by adjusting operating speed according to actual process requirements, improving system efficiency and reducing unnecessary energy consumption.
Key Engineering Advantages and Performance Features
The Schneider ATV610C11N4 Variable Speed Drive combines powerful motor control capability with reliable industrial design. It is developed for engineers and system integrators who need efficient control of high-power motors in demanding environments.
Advantage
Description
High Power Motor Control
Supports large industrial motors for demanding process applications.
Energy Saving Capability
Optimizes motor speed according to load requirements to improve efficiency.
Stable Industrial Operation
Designed for continuous operation in factories and process facilities.
Reliable Motor Protection
Provides functions that help protect motors and drive systems during operation.
Flexible System Integration
Supports connection with industrial automation and monitoring systems.
Robust Industrial Design
Suitable for applications requiring long service life and dependable performance.
Technical FAQs
Q1: What is the main function of the Schneider ATV610C11N4 Variable Speed Drive? A: The Schneider ATV610C11N4 controls motor speed and torque by adjusting output frequency and voltage, allowing industrial motors to operate according to process requirements.
Q2: What type of applications is the ATV610C11N4 mainly designed for? A: It is mainly designed for variable torque applications such as pumps, fans, compressors, and similar industrial equipment.
Q3: What type of motors can be controlled by the ATV610C11N4? A: The drive is designed for controlling three-phase asynchronous motors commonly used in industrial process systems.
Q4: What parameters should be configured before commissioning the ATV610C11N4? A: Engineers should configure motor voltage, rated current, frequency, speed, acceleration time, deceleration time, and control mode according to the motor specifications.
Q5: What are common reasons for an overcurrent fault? A: Overcurrent faults may be caused by excessive load, motor wiring problems, incorrect motor parameters, short circuits, or unsuitable acceleration settings.
Q6: How can the ATV610C11N4 improve energy efficiency? A: By adjusting motor speed according to actual system demand, the drive can reduce unnecessary power consumption in variable torque applications.
Q7: Can the ATV610C11N4 be integrated into industrial control systems? A: Yes. The drive can work with industrial automation systems for monitoring, control, and process optimization.
Q8: What should technicians check if the drive cannot start the motor? A: Technicians should inspect incoming power, motor connections, control commands, parameter settings, and fault information.
Q9: What maintenance is recommended for the ATV610C11N4? A: Regular inspection of cooling conditions, electrical connections, operating parameters, and fault history is recommended to maintain reliable performance.
Q10: Why is the ATV610C11N4 suitable for process industries? A: It provides reliable high-power motor control, efficient operation, and stable performance for continuous industrial applications.
