Brand:Schneider PLC Item No.:TSXDSY08T22 Product Origin:France Product Dimensions:260 x 180 x 55 mm Product Weight:0.41 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

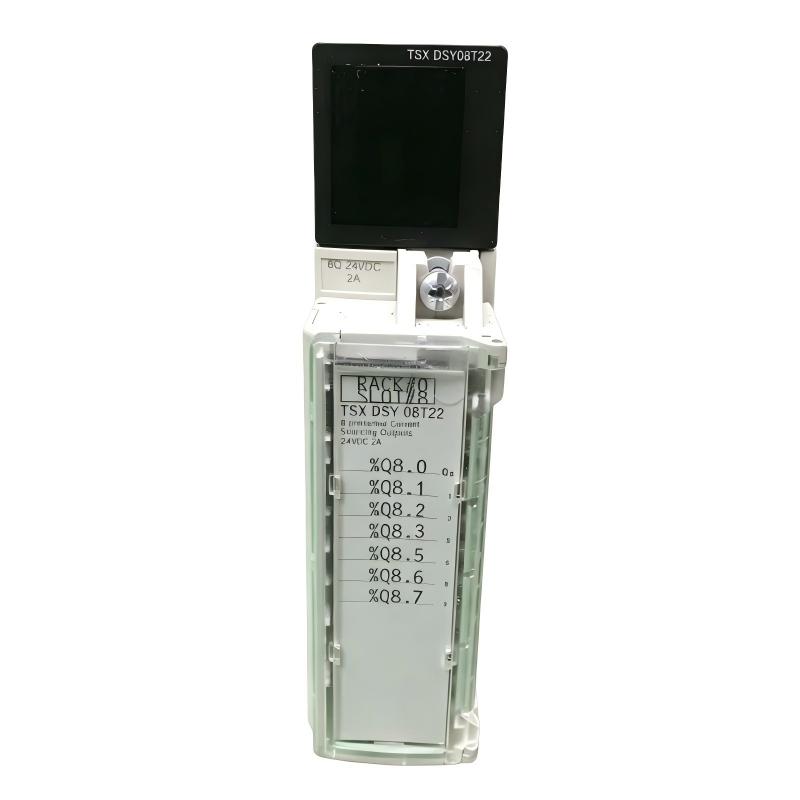

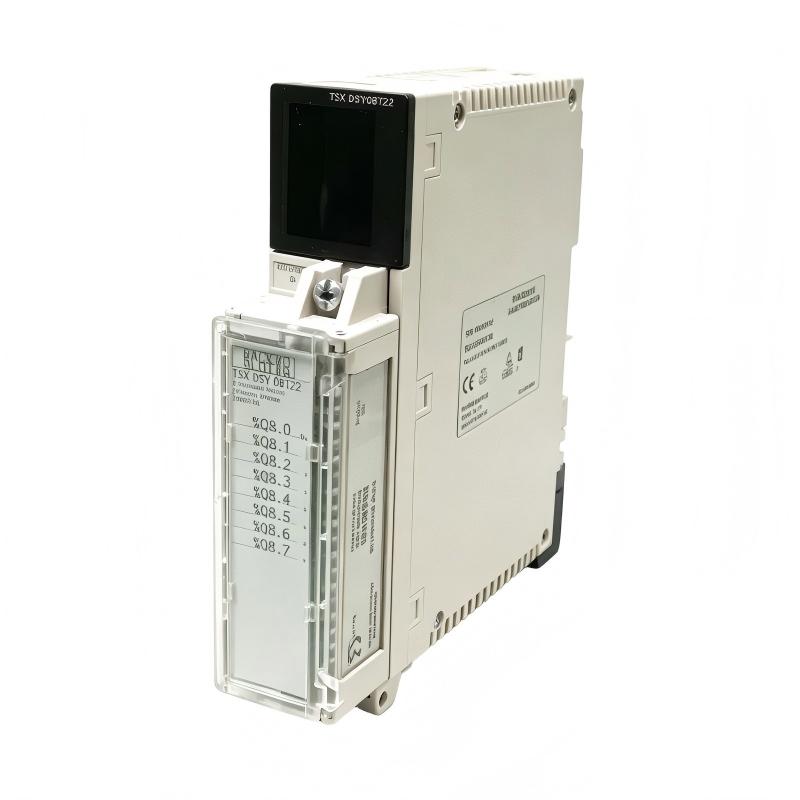

The Schneider TSXDSY08T22 Discrete Output Module is designed to provide dependable output control for industrial automation systems using the Modicon Premium PLC platform. As an important component of PLC I/O architecture, it connects the digital control logic inside the PLC with physical equipment operating in the field.
In modern industrial automation, output modules directly influence machine performance because they control the actions of motors, valves, actuators, and other devices. A reliable output module ensures that programmed commands are executed accurately and consistently during production processes.
The TSXDSY08T22 uses solid-state transistor output technology to provide fast switching performance and improved durability for industrial applications. Its built-in protection functions help reduce risks caused by electrical overloads and abnormal operating conditions.
For automation engineers, system integrators, and maintenance teams, the Schneider TSXDSY08T22 offers a dependable solution for expanding PLC output capacity and maintaining stable industrial control performance.
The Schneider TSXDSY08T22 Discrete Output Module is a high-reliability digital output expansion module designed for Modicon Premium PLC automation systems. This module provides stable 24 V DC transistor output control, allowing PLC programs to directly operate industrial field devices such as solenoid valves, contactors, relays, actuators, and indicator equipment.
Designed for industrial environments requiring fast response and dependable switching performance, the TSXDSY08T22 features protected solid-state outputs with overload, short-circuit, and overvoltage protection functions. It is suitable for automation systems where frequent switching operations and long-term reliability are important.
The Schneider TSXDSY08T22 provides an effective solution for expanding PLC output capability while maintaining accurate control and stable communication between the controller and field devices.
Typical application areas include:
Industrial manufacturing systems
Packaging and filling machinery
Automated assembly equipment
Conveyor control systems
Material handling machines
Process automation systems
Factory production lines
Machine control cabinets
OEM automation equipment
The Schneider TSXDSY08T22 helps improve automation system flexibility by providing reliable digital output management for various industrial control tasks.
Engineering Advantages and Product Features
The Schneider TSXDSY08T22 Discrete Output Module combines solid-state switching technology with industrial protection functions. It is designed for engineers who require reliable PLC output performance in demanding automation applications.
Advantage
Description
Protected Solid-State Outputs
Provides reliable transistor switching with built-in protection functions.
8-Channel Output Design
Supports multiple field devices within a single PLC module.
Fast Switching Response
Provides rapid output response for high-performance automation control.
High Current Capability
Supports industrial loads requiring stable 24 V DC output control.
Improved System Reliability
Reduces downtime caused by output overload and short-circuit conditions.
Modicon Premium Compatibility
Designed for integration with Schneider Premium PLC automation systems.
Technical FAQs
Q1: What is the main function of the Schneider TSXDSY08T22 module? A: The TSXDSY08T22 is a PLC digital output module that converts control commands from the PLC program into electrical signals for operating external devices.
Q2: What type of output does the TSXDSY08T22 provide? A: The module provides 24 V DC positive logic transistor outputs with solid-state protection.
Q3: How many output channels are available on the TSXDSY08T22? A: The module provides 8 discrete output channels for industrial control applications.
Q4: What devices can be connected to the TSXDSY08T22 outputs? A: Compatible devices include solenoid valves, contactors, relays, actuators, and industrial indicators.
Q5: What protection functions are included in the TSXDSY08T22? A: The module includes protection against overvoltage, reverse polarity, overload, and short-circuit conditions.
Q6: What should technicians check if an output channel fails? A: Check the PLC program logic, output status, wiring connections, field device condition, and load current requirements.
Q7: What causes repeated output overload faults? A: Common causes include incorrect load selection, excessive current demand, wiring problems, or damaged connected equipment.
Q8: Can the TSXDSY08T22 be used for high-frequency switching applications? A: Yes. Its transistor output design provides fast response suitable for applications requiring frequent switching operations.
Q9: How can users improve the service life of this output module? A: Proper wiring, suitable load selection, stable power conditions, and regular system inspections help maintain reliable operation.
Q10: Why is the TSXDSY08T22 suitable for industrial automation systems? A: Its reliable solid-state outputs, protection features, and compatibility with Modicon Premium PLC systems make it suitable for demanding automation applications.
