Brand:Schneider PLC Item No.:TSXDSZ32R5 Product Origin:France Product Dimensions:260 x 180 x 55 mm Product Weight:0.641 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

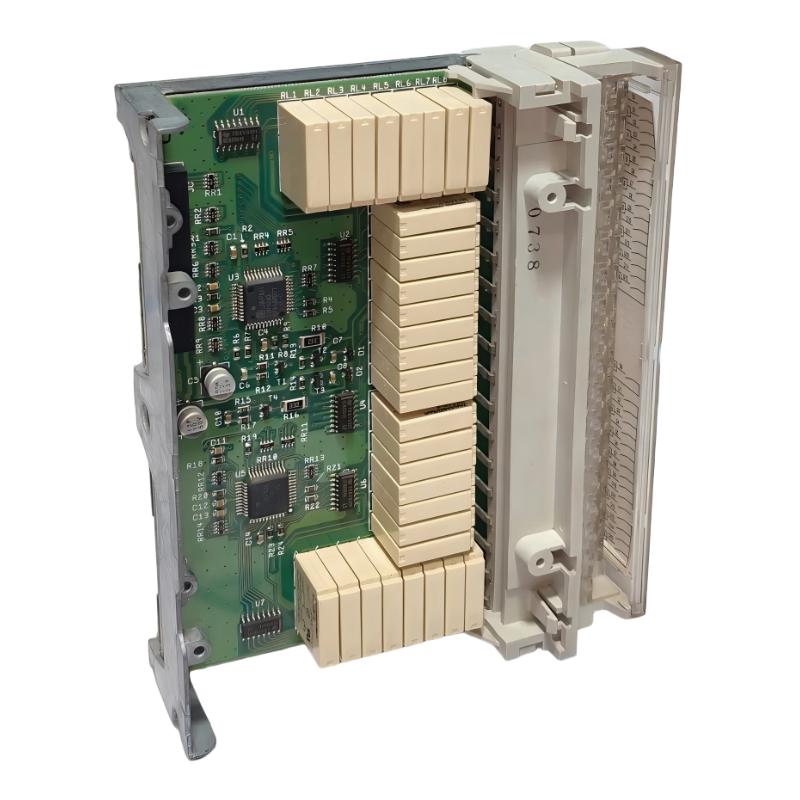

The Schneider TSXDSZ32R5 Relay Discrete Output Module is developed for industrial automation systems requiring a large number of reliable output signals. As an important PLC expansion component, it provides the connection between automation programs and real-world electrical equipment.
In modern manufacturing environments, automation systems often need to control many devices simultaneously. Output modules play an essential role in ensuring that PLC instructions are accurately transferred to field equipment such as motors, valves, contactors, and alarm systems.
The relay-based design of the TSXDSZ32R5 provides excellent flexibility for different industrial applications. Compared with dedicated electronic outputs, relay contacts can handle a wider range of electrical loads, making this module suitable for machines with diverse control requirements.
The Schneider TSXDSZ32R5 helps automation professionals improve system organization, expand PLC capabilities, and maintain stable machine operation. It is a practical choice for industrial equipment upgrades, replacement projects, and long-term automation system maintenance.
Technical Specifications
Specification
Details
Product Type
Relay Discrete Output Module
Manufacturer
Schneider Electric
Model Number
TSXDSZ32R5
Product Series
Modicon TSX Micro
Output Type
Relay Output
Number of Outputs
32 Outputs
Contact Type
Normally Open (NO)
Output Voltage Range
19...264 V AC / 10...34 V DC
Output Current
2 A
Switching Technology
Electromechanical Relay
Application
Industrial Digital Output Control
Isolation Function
Electrical Isolation Between Control and Load Circuits
Connection Type
Terminal Connection
Installation Method
PLC Rack Mounting
Dimensions
260 × 180 × 55 mm
Weight
0.64 kg (1.41 lb)
Recommended Related Models
Model
Product Type
Schneider TSXDSZ08R5
Relay Discrete Output Module
Schneider TSXDSZ08T2
Discrete Output Module
Schneider TSXDSZ08T22
Discrete Output Module
Schneider TSXDSY32T2K
Discrete Output Module
Schneider TSXDMZ28DT
Discrete Mixed I/O Module
Popular Related Models
Model
Product Type
Schneider TSX3721001
Modicon TSX Micro PLC Controller
Schneider TSX3705001
Modicon TSX Micro PLC Controller
Schneider TM221CE40R
Modicon M221 Logic Controller
Schneider BMXDDO3202K
Modicon X80 Discrete Output Module
Schneider BMXP342020
Modicon M340 Processor Module
Industrial Applications and Usage Areas
The Schneider TSXDSZ32R5 Relay Discrete Output Module is a high-density relay output module designed for Modicon TSX Micro PLC automation systems. It provides 32 relay output channels, allowing PLC controllers to manage multiple industrial devices through reliable electromechanical switching technology.
The TSXDSZ32R5 is designed for industrial applications where flexible load compatibility, electrical isolation, and stable switching performance are required. Its relay output structure allows automation systems to control a wide range of field devices, including contactors, solenoid valves, alarms, indicator lamps, and auxiliary control circuits.
With its large number of output points and dependable relay switching capability, the Schneider TSXDSZ32R5 is an ideal solution for automation engineers, machine builders, and system integrators who need efficient PLC output expansion and reliable industrial control.
Typical application areas include:
Industrial manufacturing equipment
Automated production lines
Packaging machinery
Conveyor systems
Machine control cabinets
Motor control applications
Process automation systems
OEM customized equipment
Factory automation projects
The Schneider TSXDSZ32R5 helps improve PLC system flexibility by providing stable output control between the automation controller and connected industrial devices, supporting efficient machine operation and reliable production processes.
Flexible Relay Control Advantages and Application Benefits
The Schneider TSXDSZ32R5 Relay Discrete Output Module combines high-density output capacity with reliable relay switching technology. It is designed for industrial systems requiring multiple output points, flexible load control, and long-term operating stability.
Advantage
Description
32 Relay Output Channels
Provides a large number of output points for complex automation applications.
Flexible Load Compatibility
Supports various AC and DC electrical devices through relay contacts.
Electrical Isolation Design
Helps protect PLC circuits by separating control signals from field loads.
Reliable Switching Performance
Provides stable operation for industrial control applications.
High System Expansion Capability
Increases PLC output capacity without changing the main controller.
Easy Maintenance Structure
Simplifies troubleshooting, replacement, and system servicing.
Technical FAQs
Q1: What is the main function of the Schneider TSXDSZ32R5 module? A: The TSXDSZ32R5 is a relay output module that converts PLC control commands into switching actions for external industrial devices.
Q2: How many output channels does the TSXDSZ32R5 provide? A: The module provides 32 relay output channels for controlling multiple automation devices.
Q3: What type of output technology does the TSXDSZ32R5 use? A: The module uses electromechanical relay output technology, providing flexible switching capability for industrial loads.
Q4: What devices can be controlled by the TSXDSZ32R5? A: It can control compatible devices such as contactors, solenoid valves, alarms, relays, indicator lamps, and other industrial components.
Q5: What should be checked if a relay output channel does not operate? A: Check PLC program logic, module status, wiring connections, external power supply, and the condition of the connected load.
Q6: What are common causes of relay output failure? A: Common causes include excessive load current, incorrect wiring, electrical arcing, unsuitable load conditions, or damaged external devices.
Q7: Can the TSXDSZ32R5 control both AC and DC loads? A: Yes. Relay output technology allows flexible switching of compatible AC and DC electrical loads.
Q8: How can users extend the service life of relay contacts? A: Selecting suitable loads, reducing electrical stress, using protection components for inductive loads, and maintaining proper wiring can improve relay durability.
Q9: What is the advantage of relay output compared with transistor output? A: Relay output provides wider load compatibility and electrical isolation, while transistor output is generally preferred for high-speed switching applications.
Q10: Why is the TSXDSZ32R5 suitable for industrial automation systems? A: Its high output density, flexible relay switching capability, and compatibility with Schneider PLC platforms make it suitable for various industrial control applications.
