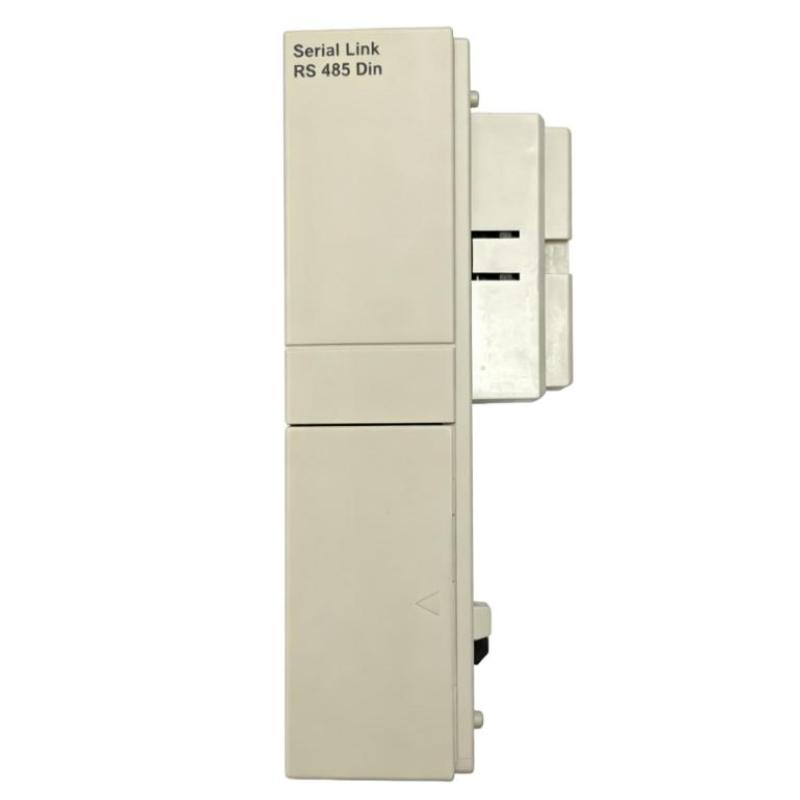

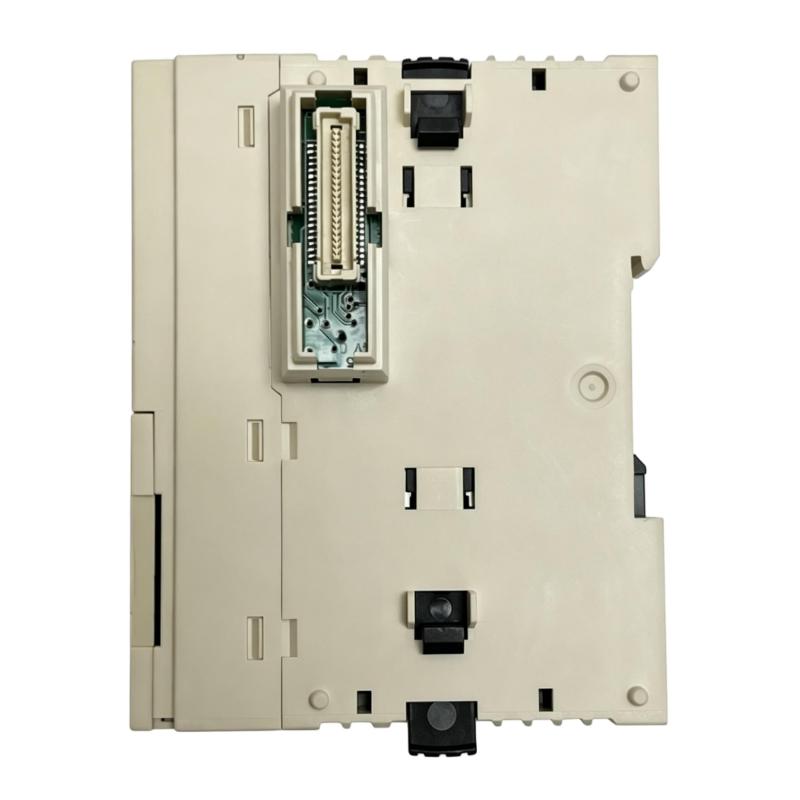

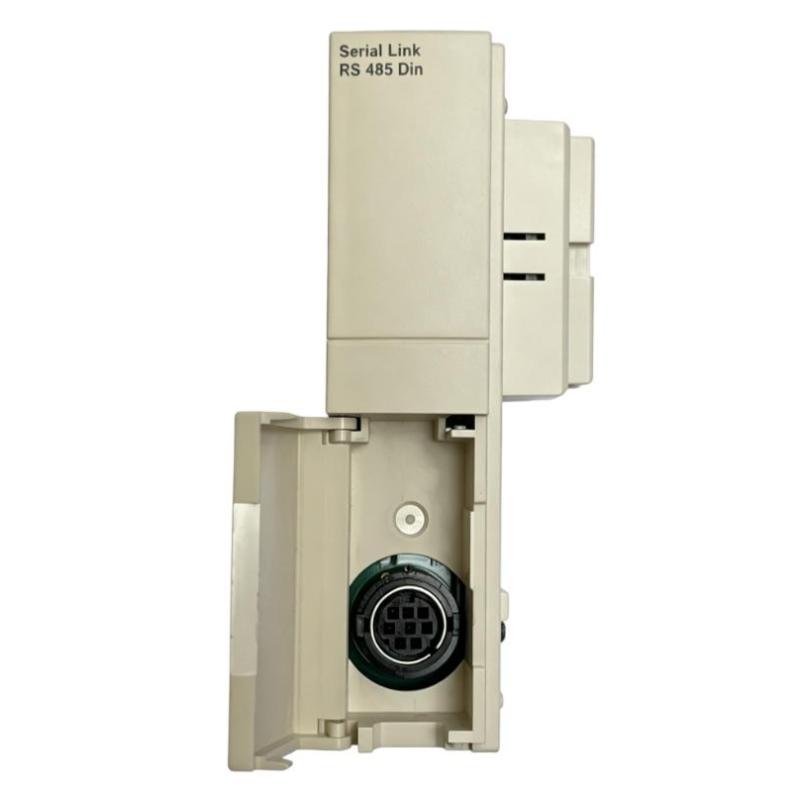

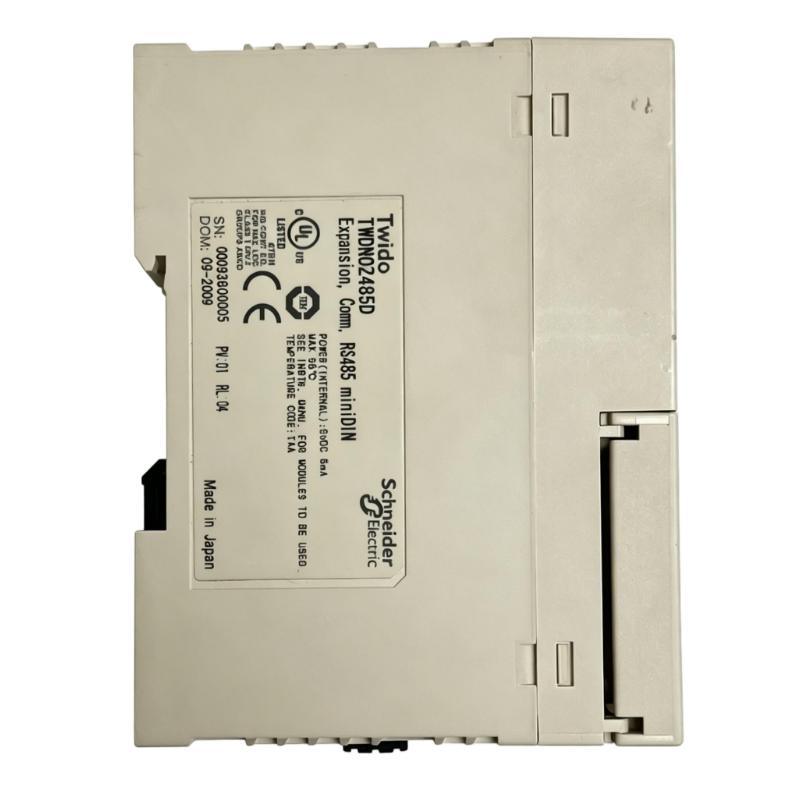

Schneider TWDNOZ485D Module With Integrated Serial link Adapter
Schneider TWDNOZ485D Module With Integrated Serial link Adapter
0.0
Points
Brand:Schneider PLC Item No.:TWDNOZ485D Product Origin:France Product Dimensions:70 x 22.5 x 90 mm Product Weight:0.085 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider TWDNOZ485D Module With Integrated Serial Link Adapter is designed to enhance communication capabilities in Twido PLC-based automation systems. As industrial automation continues to develop toward connected and intelligent control, communication modules have become essential components for integrating different devices within a control network.
The TWDNOZ485D provides an additional serial communication interface, allowing PLC controllers to exchange information with external equipment. This capability helps automation systems collect data, coordinate device operation, and improve overall production efficiency.
RS-485 communication remains widely used in industrial applications due to its stable transmission performance, strong noise resistance, and suitability for multi-device networks. The TWDNOZ485D uses this communication technology to provide a reliable connection between Twido PLC systems and external automation equipment.
For system integrators, machine manufacturers, and maintenance engineers, the Schneider TWDNOZ485D offers a convenient solution for expanding PLC communication functions, upgrading existing equipment, and improving automation system flexibility.
Technical Specifications
Specification
Details
Product Type
Communication Module
Manufacturer
Schneider Electric
Model Number
TWDNOZ485D
Product Series
Twido
Module Function
Integrated Serial Link Adapter
Communication Interface
RS-485
Communication Type
Serial Communication
Connector Type
Mini DIN Connector
Application
PLC Communication Expansion
Compatible System
Twido PLC Controllers
Installation Method
PLC Expansion Mounting
Operating Application
Industrial Automation Communication
Dimensions
70 × 22.5 × 90 mm
Weight
0.09 kg (0.19 lb)
Recommended Related Models
Model
Product Type
Schneider TWDNOZ485T
Serial Link Adapter Module
Schneider TWDLMDA20DTK
Twido Modular Logic Controller
Schneider TWDLMDA40DTK
Twido Modular Logic Controller
Schneider TWDLMDA40DUK
Twido Modular Logic Controller
Schneider TWDLMDA20DRT
Twido Modular Logic Controller
Popular Related Models
Model
Product Type
Schneider TM221CE16R
Modicon M221 Logic Controller
Schneider TM221CE40R
Modicon M221 Logic Controller
Schneider TM241CE40R
Modicon M241 Logic Controller
Schneider BMXNOM0200
Modicon X80 Serial Communication Module
Schneider BMXP342020
Modicon M340 Processor Module
Communication Applications and Industrial Usage
The Schneider TWDNOZ485D Module With Integrated Serial Link Adapter is a communication expansion module designed for Twido PLC automation systems. It provides an additional RS-485 serial communication interface, enabling PLC controllers to exchange data with external automation equipment such as HMIs, variable frequency drives, intelligent instruments, and other industrial devices.
Designed for industrial communication expansion, the TWDNOZ485D helps engineers improve system connectivity without replacing the existing PLC controller. Its compact structure allows easy integration into automation cabinets while maintaining reliable communication performance in various industrial environments.
The Schneider TWDNOZ485D is widely used in automation projects where stable serial communication, flexible device integration, and efficient data exchange are required.
Typical application areas include:
Industrial machine automation
PLC and HMI communication systems
Motor drive control applications
Factory automation networks
Building automation equipment
Industrial monitoring systems
OEM machinery projects
Process control applications
Equipment upgrade projects
The Schneider TWDNOZ485D provides a practical communication expansion solution for Twido PLC systems, helping improve automation flexibility and system integration capability.
Compact Communication Expansion Benefits
The Schneider TWDNOZ485D Module With Integrated Serial Link Adapter combines compact installation design with reliable industrial communication capability. It is suitable for automation systems that require additional serial connectivity and stable data transmission.
Advantage
Description
RS-485 Communication Capability
Provides reliable serial communication for industrial automation devices.
Integrated Serial Adapter Design
Simplifies communication expansion and reduces additional hardware requirements.
Compact Module Structure
Saves installation space inside automation control cabinets.
Twido System Compatibility
Designed for seamless integration with compatible Twido PLC platforms.
Stable Data Exchange
Supports reliable communication between controllers and external devices.
Flexible Automation Expansion
Helps extend existing PLC communication functions for system upgrades.
Technical FAQs
Q1: What is the main function of the Schneider TWDNOZ485D module? A: The TWDNOZ485D is a communication expansion module that adds an RS-485 serial interface to compatible Twido PLC systems.
Q2: What communication standard does the TWDNOZ485D support? A: The module supports RS-485 serial communication, which is widely used in industrial automation networks.
Q3: What devices can be connected through the TWDNOZ485D? A: It can connect compatible devices such as HMIs, drives, intelligent controllers, and serial communication equipment.
Q4: What should be checked when serial communication fails? A: Check communication parameters, wiring polarity, device address settings, communication protocol configuration, and cable conditions.
Q5: What are common causes of RS-485 communication instability? A: Common causes include incorrect baud rate settings, improper termination, signal wiring errors, grounding problems, and communication conflicts.
Q6: Can the TWDNOZ485D be used in Modbus communication applications? A: Yes, it can support industrial serial communication applications depending on the configured Twido PLC communication settings.
Q7: Does the TWDNOZ485D require a separate external power supply? A: No. The module receives power through the connected Twido PLC system.
Q8: How can communication reliability be improved when using the TWDNOZ485D? A: Using proper RS-485 wiring, correct network termination, stable configuration parameters, and suitable industrial cables can improve communication reliability.
Q9: What is the advantage of RS-485 communication in industrial systems? A: RS-485 provides reliable long-distance communication capability and supports multiple devices on the same communication network.
Q10: Why choose the TWDNOZ485D for automation system upgrades? A: It provides an efficient way to expand Twido PLC communication capability while maintaining the existing control system structure.
