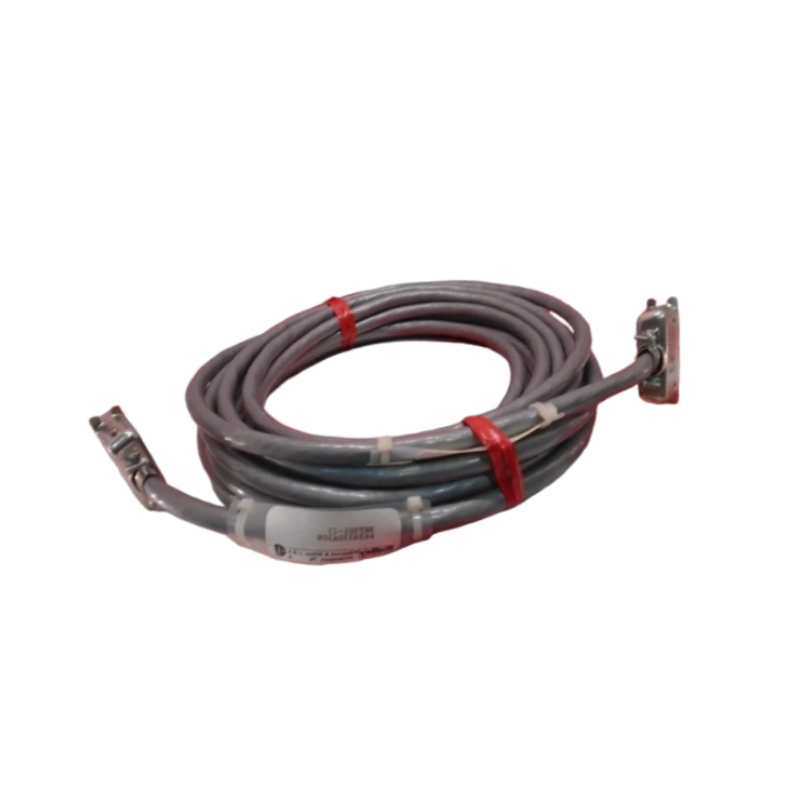

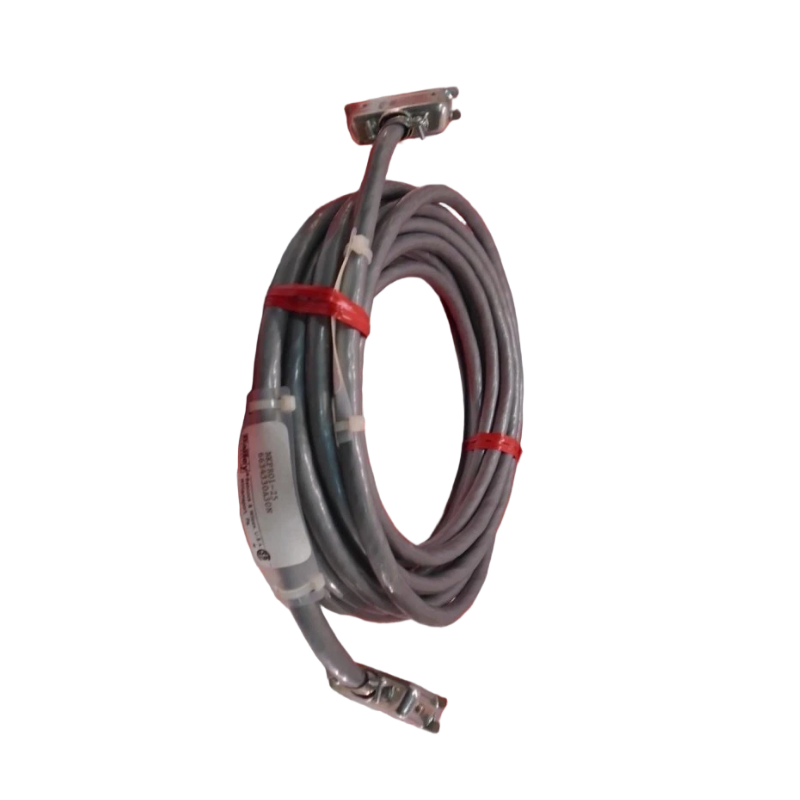

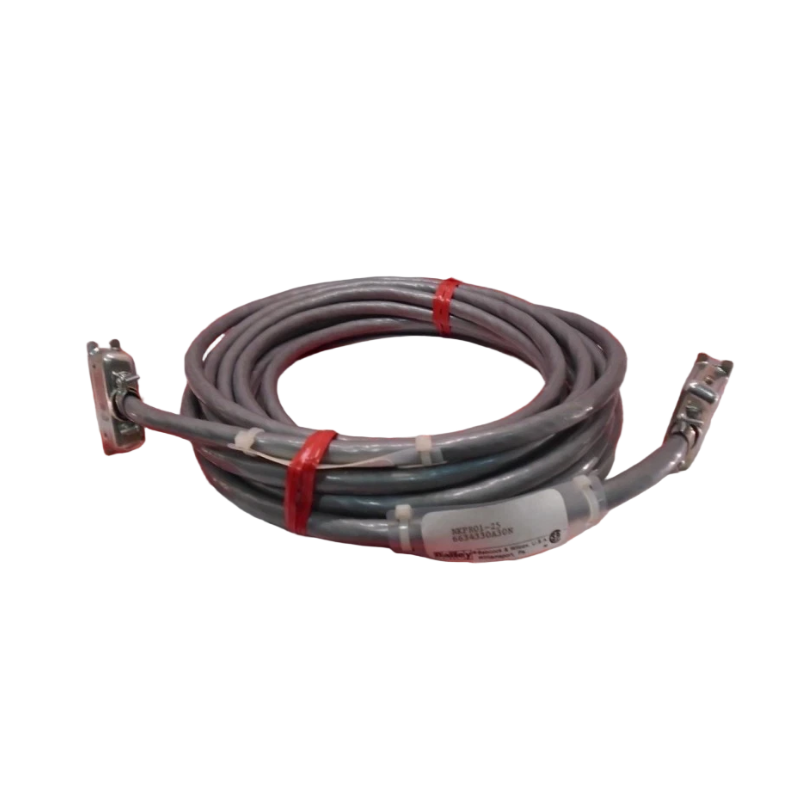

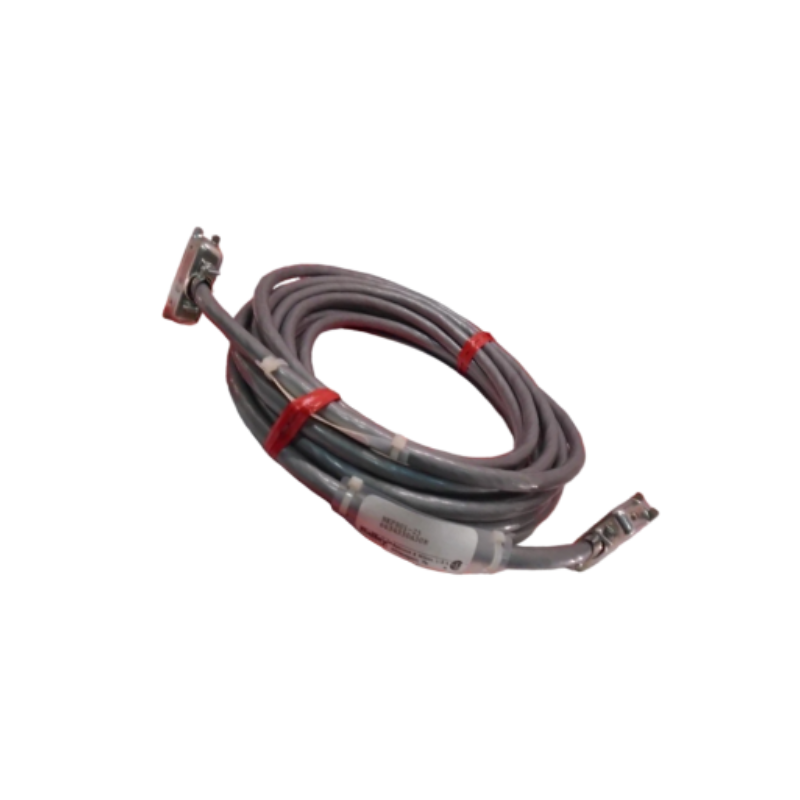

ABB Bailey NKAS11-15 Analog Slave Termination Unit Cable
ABB Bailey NKAS11-15 Analog Slave Termination Unit Cable
0.0
Points
Brand:ABB Bailey Item No.:NKAS11-15 Product Origin:USA Product Dimensions:7.6 × 7.6 × 2.5 cm Product Weight:1.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB Bailey NKAS11-15 Analog Slave Termination Unit Cable is a dedicated connection component designed for Bailey INFI 90 and Net 90 distributed control systems. It provides a reliable interface between the IMASI03 Analog Input Module and the NTAI06 Analog Input Termination Unit, ensuring accurate analog signal transmission in industrial process applications.
Engineered for legacy automation environments, the NKAS11-15 helps maintain system reliability by providing stable field signal connectivity. Its non-PVC cable construction and compatibility with established Bailey architectures make it a practical choice for control system maintenance, upgrades, and replacement requirements.
Technical Specifications
Specification
Details
Manufacturer
ABB Bailey
Model
NKAS11-15
Module Type
Analog Slave Termination Unit Cable
Product Family
ABB Bailey INFI 90 / Net 90
Cable Length
15 ft (Approx. 4.6 m)
Cable Type
Non-PVC Insulated Cable
Compatible Module
IMASI03 Analog Input Slave Module
Compatible Termination Unit
NTAI06 Analog Input Termination Unit
Application
Analog Signal Connection
Installation Type
Field Termination System
Dimensions
Approx. 7.6 × 7.6 × 2.5 cm
Weight
Approx. 1.6 kg
Recommended Companion Models
Model
Product Name
IMASI03
ABB Bailey Analog Input Slave Module
NTAI06
ABB Bailey Analog Input Termination Unit
NKAS11-12
ABB Bailey Analog Slave Termination Unit Cable 12 ft
NKAS01-15
ABB Bailey Analog Slave Termination Unit Cable PVC 15 ft
Frequently Selected Alternatives
Model
Product Name
NKAS11-10
ABB Bailey Analog Slave Termination Unit Cable 10 ft
NKAS11-20
ABB Bailey Analog Slave Termination Unit Cable 20 ft
NKAS01-15
ABB Bailey Analog Slave Termination Unit Cable PVC 15 ft
NKTU11-15
ABB Bailey I/O Module to Termination Unit Cable
Where It Excels in Industrial Use
• Designed for ABB Bailey INFI 90 and Net 90 distributed control systems requiring reliable analog signal connection between field termination units and analog input modules.
• Suitable for process automation applications in power generation, oil and gas, chemical processing, and manufacturing industries where accurate analog signal transmission is essential.
• Ideal for connecting ABB Bailey analog input architectures, supporting stable communication between the IMASI03 Analog Slave Module and NTAI06 Analog Input Termination Unit.
Key Strengths at a Glance
• Provides a dedicated 15-foot analog slave termination connection for ABB Bailey INFI 90 control systems.
• Uses non-PVC cable construction designed for industrial installation environments requiring enhanced cable material performance.
• Ensures reliable analog signal routing between termination units and I/O modules for consistent process measurement performance.
• Supports legacy Bailey automation systems with dependable connectivity for long-term maintenance and system availability.
Technical FAQs
1. What type of component is the ABB Bailey NKAS11-15?
The ABB Bailey NKAS11-15 is an Analog Slave Termination Unit Cable used in Bailey INFI 90 and Net 90 automation systems.
2. What is the main function of the NKAS11-15 cable?
The NKAS11-15 provides the connection between the analog slave module and the analog input termination unit, enabling reliable analog signal transfer within the control system.
3. Which ABB Bailey modules are compatible with the NKAS11-15?
The cable is designed for use with the ABB Bailey IMASI03 Analog Input Module and NTAI06 Analog Input Termination Unit.
4. What type of signals does the NKAS11-15 support?
The NKAS11-15 supports analog input signal connections used for process measurement applications within Bailey INFI 90 systems.
5. What is the cable length of the NKAS11-15?
The NKAS11-15 is a 15-foot analog slave termination unit cable designed for flexible installation between system components.
6. What is the difference between NKAS01 and NKAS11 cables?
The NKAS11 series uses non-PVC insulation, while NKAS01 uses PVC insulation for similar termination cable applications.
7. Does the NKAS11-15 require software configuration?
No, the NKAS11-15 is a hardware connection cable and does not require software configuration.
8. Can the NKAS11-15 be used in existing Bailey INFI 90 installations?
Yes, it is designed to support existing Bailey INFI 90 installations using compatible analog input modules and termination units.
9. What maintenance considerations apply to this cable assembly?
Maintenance typically includes checking connector integrity, cable condition, and ensuring secure connections between modules and termination units.
10. Why is reliable termination cabling important in industrial control systems?
Reliable termination cabling helps maintain signal accuracy, reduce communication issues, and improve overall system stability in process automation environments.
