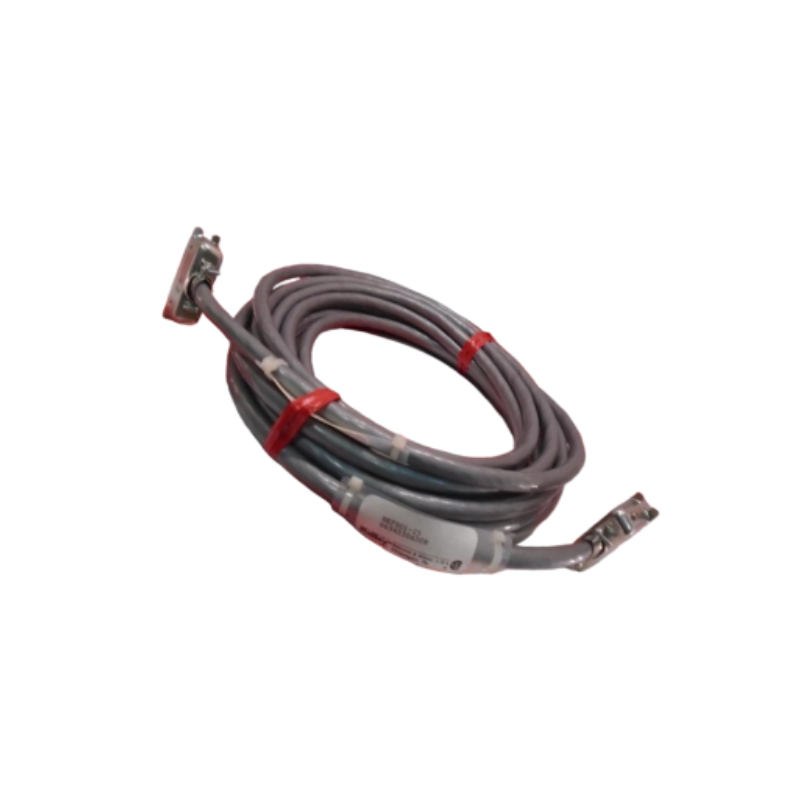

ABB Bailey NKSD11-15 SOE Digital Input Module Cable
ABB Bailey NKSD11-15 SOE Digital Input Module Cable
0.0
Points
Brand:ABB Bailey Item No.: NKSD11-15 Product Origin:USA Product Dimensions:7.6 × 7.6 × 5.1 cm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB Bailey NKSD11-15 SOE Digital Input Module Cable is a dedicated connection component designed for ABB Bailey INFI 90 distributed control systems. It provides reliable connectivity between sequence-of-events digital input modules and termination units, supporting accurate event monitoring in demanding industrial environments.
Built for legacy control system applications, the NKSD11-15 helps maintain stable system performance by providing dependable signal transmission paths. It is widely used in industries where precise digital event capture, operational reliability, and efficient maintenance are essential.
Technical Specifications
Specification
Details
Manufacturer
ABB Bailey
Model
NKSD11-15
Module Type
SOE Digital Input Module Cable
Product Family
ABB Bailey INFI 90 / Net 90
Cable Length
15 ft (Approx. 4.6 m)
Cable Type
Non-PVC Cable Assembly
Application
Sequence of Events Digital Input Connection
Function
I/O Module to Termination Unit Connection
Compatible System
ABB Bailey INFI 90 Control System
Installation Type
Cabinet / Control Room Wiring
Dimensions
Approx. 7.6 × 7.6 × 5.1 cm
Weight
Approx. 1.1 kg
Recommended Companion Models
Model
Product Name
NKSD11-10
ABB Bailey SOE Digital Input Module Cable 10 ft
NKS01-15
ABB Bailey SOE Digital Input Cable 15 ft
NKTU11-15
ABB Bailey I/O Module to Termination Unit Cable 15 ft
IMDSO14
ABB Bailey Sequence of Events Digital Input Module
Frequently Selected Alternatives
Model
Product Name
NKSD01-15
ABB Bailey SOE Digital Input Module Cable PVC 15 ft
NKSD11-20
ABB Bailey SOE Digital Input Module Cable 20 ft
NKTU11-50
ABB Bailey I/O Module to Termination Unit Cable 50 ft
IMDSI13
ABB Bailey Digital Input Slave Module
Where It Excels in Industrial Use
• Designed for ABB Bailey INFI 90 and Net 90 distributed control systems requiring reliable connection between Sequence of Events (SOE) digital input modules and termination units.
• Suitable for power generation, oil and gas, chemical processing, and other continuous process industries where accurate event recording and high-speed digital signal transmission are required.
• Ideal for legacy Bailey automation installations that require dependable field wiring connections and long-term system maintenance support.
Key Strengths at a Glance
• Provides a dedicated SOE digital input module connection solution for ABB Bailey INFI 90 control architectures.
• Supports reliable signal transfer between SOE input modules and termination units to maintain accurate event monitoring performance.
• Designed for industrial environments where stable connectivity and reduced signal interruption are essential.
• Helps simplify maintenance and replacement tasks for existing Bailey distributed control systems.
Technical FAQs
1. What type of component is the ABB Bailey NKSD11-15?
The ABB Bailey NKSD11-15 is a SOE Digital Input Module Cable designed for connecting Sequence of Events input modules with termination units in Bailey INFI 90 systems.
2. What is the primary function of the NKSD11-15 cable?
The NKSD11-15 provides signal and connection support between the SOE digital input module and the corresponding termination assembly.
3. Which ABB Bailey systems are compatible with the NKSD11-15?
The NKSD11-15 is designed for use with ABB Bailey INFI 90 and related Net 90 distributed control system architectures.
4. What type of signals does the NKSD11-15 support?
The cable supports digital input signals used for high-speed event monitoring and sequence-of-events applications.
5. Does the NKSD11-15 require software configuration?
No, the NKSD11-15 is a hardware connection cable and does not require software configuration.
6. What applications commonly use SOE digital input cables?
SOE digital input cables are commonly used in applications requiring precise event time recording, such as turbine control, power systems, and critical process monitoring.
7. What is the difference between SOE cables and standard I/O cables?
SOE cables are designed for event recording applications where accurate timing and rapid digital signal acquisition are important.
8. Can the NKSD11-15 replace older Bailey cable assemblies?
The NKSD11-15 can be used as a replacement component in compatible Bailey systems when the original configuration requirements are met.
9. What maintenance checks are recommended for this cable assembly?
Maintenance should include checking connector condition, cable integrity, and secure installation between modules and termination units.
10. Why is reliable SOE signal connection important in industrial systems?
Reliable SOE connections help ensure accurate event history recording, improve troubleshooting efficiency, and support safer industrial operation.
