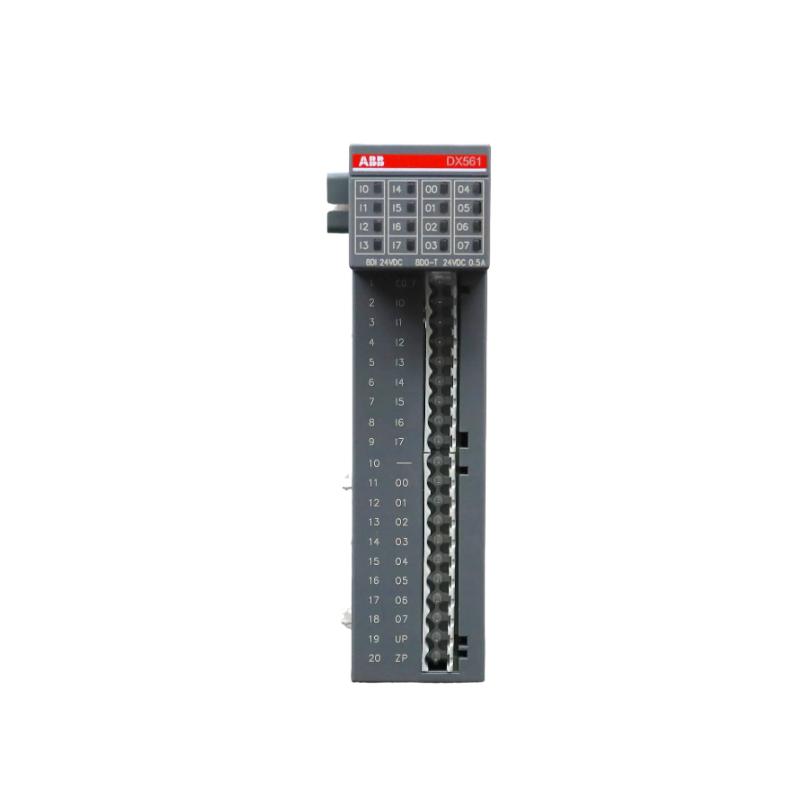

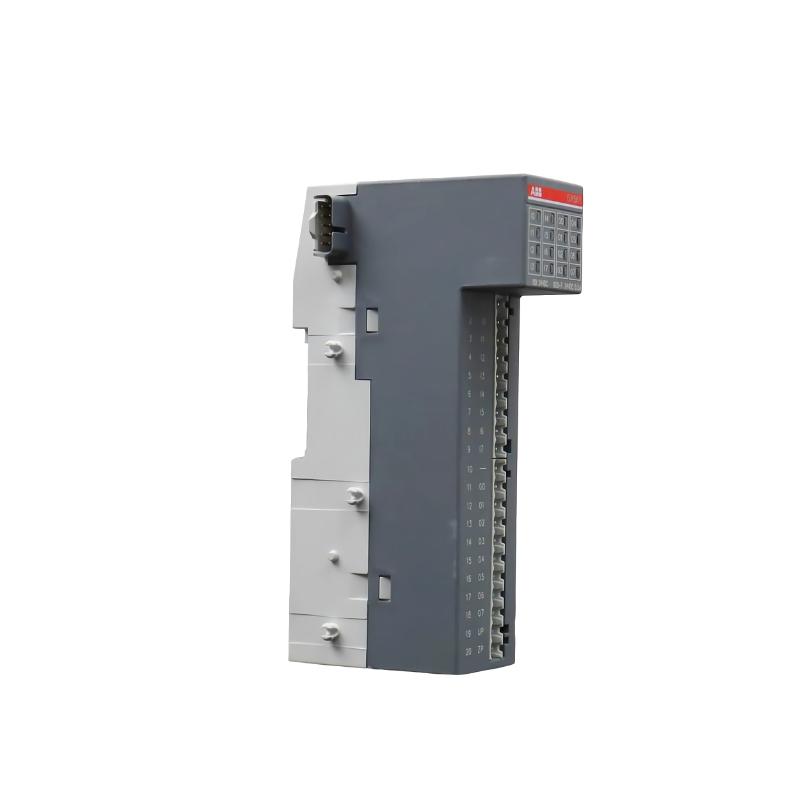

DX561 1TNE968902R2301-3 DX561 1TNE968902R2301-1 DX561 1TNE968902R2301-4 DX561 1TNE968902R2301-2

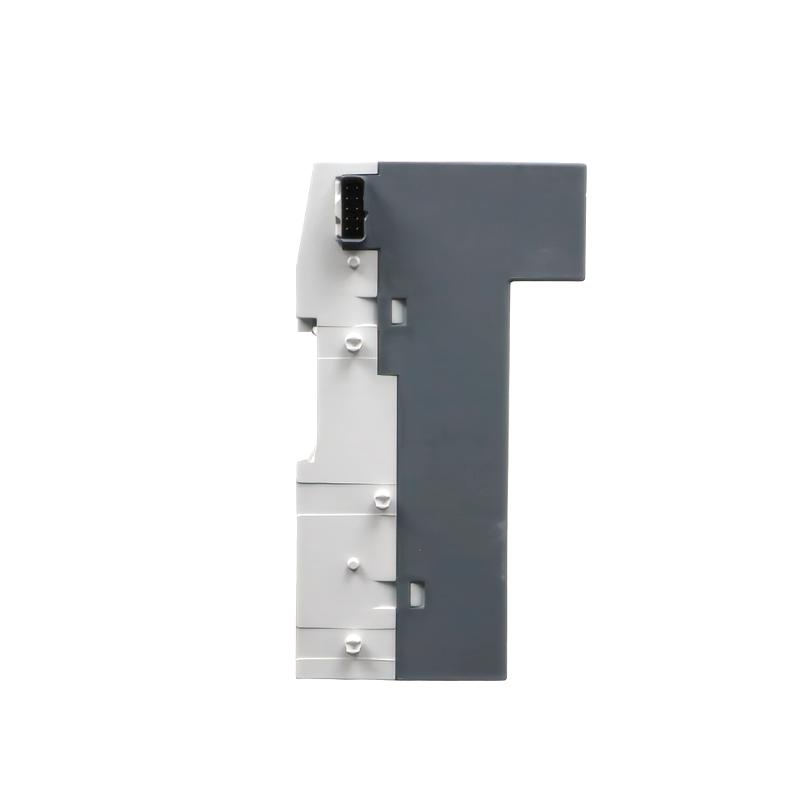

The ABB DX561 I/O Module is engineered to provide exceptional performance in industrial automation and process control systems. Designed for high reliability and ease of integration, this module is perfect for applications that require accurate and continuous monitoring and control of inputs and outputs. Whether for upgrading existing systems or implementing new projects, the DX561 ensures that operations run smoothly and efficiently in industries ranging from manufacturing and energy to infrastructure and chemical processing.

This module is a key component in ABB's broader automation solutions, offering seamless connectivity and compatibility with systems like ABB Freelance 800, AC800M, and 800XA. Its robust design guarantees longevity, while its compact size makes it suitable for various industrial environments, including hazardous zones. The DX561 delivers both scalability and real-time data processing capabilities, ensuring optimal performance in mission-critical applications.

Technical Specifications

Feature	Description
Model Name	DX561
Type	I/O Module
Input Voltage Range	20.4 VDC to 28.8 VDC
Power Consumption	1.5 A (Max)
Dimensions (W x H x D)	150 mm x 100 mm x 30 mm
Weight	0.6 kg
Operating Temperature	-10°C to +60°C
Storage Temperature	-40°C to +85°C
Max. I/O Points	64 points (32 inputs + 32 outputs)
Communication Ports	2 x Ethernet, 1 x RS-485
Compatibility	ABB Freelance 800, 800XA, AC800M
Certification	UL, CE, Ex (Explosion Proof)

Recommended Related Models

ABB DX562 – Offers a higher density of I/O points, ideal for complex applications requiring greater scalability.
ABB DX563 – Features additional I/O capabilities and high-speed data communication for large-scale systems.
ABB DX520 – A smaller, more cost-effective alternative, perfect for less demanding control systems.

Popular ABB Models

ABB AC800M – A highly flexible and modular controller, perfect for a wide range of industrial control applications.
ABB Freelance 800 – A versatile automation system ideal for small to medium-sized process control applications.
ABB 800XA – A powerful and comprehensive distributed control system for large-scale industrial processes requiring high levels of automation.

Applications

Manufacturing Automation: Used for controlling production lines, robotics, and machinery to ensure smooth and efficient operation.
Energy Management: Provides accurate monitoring and control of power generation and distribution systems.
Chemical Processing: Ideal for environments where precise control of chemical reactions, temperature, and flow is essential.
Infrastructure Management: Perfect for automation in water treatment, sewage systems, and large-scale transportation networks.
Building Automation: Controls HVAC systems, lighting, and energy management, enhancing operational efficiency in commercial buildings.

Advantages

Modular Flexibility: The DX561 supports a range of I/O configurations, allowing for customization to meet specific system requirements.
Durable and Rugged: Built with industrial-grade components, it is designed to withstand harsh environmental conditions and ensure continuous operation.
Real-time Data Processing: Offers fast and precise processing of input and output signals, ensuring timely control decisions.
Seamless Integration: Easily integrates with ABB's automation platforms, including Freelance 800, AC800M, and 800XA.
Compact Design: Small and efficient, the module fits in environments where space is at a premium.
High Availability: Designed for 24/7 operation in mission-critical applications, ensuring minimal downtime.
Explosion-Proof Certification: Available with explosion-proof certification, making it safe for use in hazardous environments.
Scalability: As your system grows, the DX561 can be easily expanded to meet increased I/O needs.
Energy Efficient: Optimized for low power consumption, helping to reduce operational costs while maintaining high performance.
Wide Operating Temperature Range: The module is capable of operating in extreme temperatures, making it ideal for both indoor and outdoor installations.

Technical FAQs

How many I/O points can the DX561 support?
The DX561 supports up to 64 I/O points, with 32 inputs and 32 outputs.
What is the input voltage range for the DX561?
It operates within a voltage range of 20.4 VDC to 28.8 VDC, which is standard for industrial systems.
Can the DX561 module be used in explosive environments?
Yes, the DX561 is available with an explosion-proof certification (Ex), making it safe for use in hazardous environments.
How many communication ports does the DX561 have?
The module has 2 x Ethernet ports and 1 x RS-485 port, providing versatile communication options.
What is the weight of the DX561 module?
The DX561 weighs 0.6 kg, making it easy to install and handle during setup.
What is the temperature range for the DX561's operation?
The module can operate in temperatures ranging from -10°C to +60°C, suitable for a wide range of industrial environments.
Can the DX561 be integrated into existing ABB automation systems?
Yes, it is fully compatible with ABB’s Freelance 800, AC800M, and 800XA systems for easy integration into your setup.
What is the storage temperature range for the DX561?
It can be stored at temperatures from -40°C to +85°C, ensuring its durability in extreme conditions.
How do I expand the I/O capability with the DX561?
The DX561 can be combined with other I/O modules to scale your system as needed, offering flexibility and growth potential.
Which industries can benefit most from the DX561 module?
The DX561 is perfect for industries including manufacturing, energy, chemical processing, building automation, and infrastructure.
