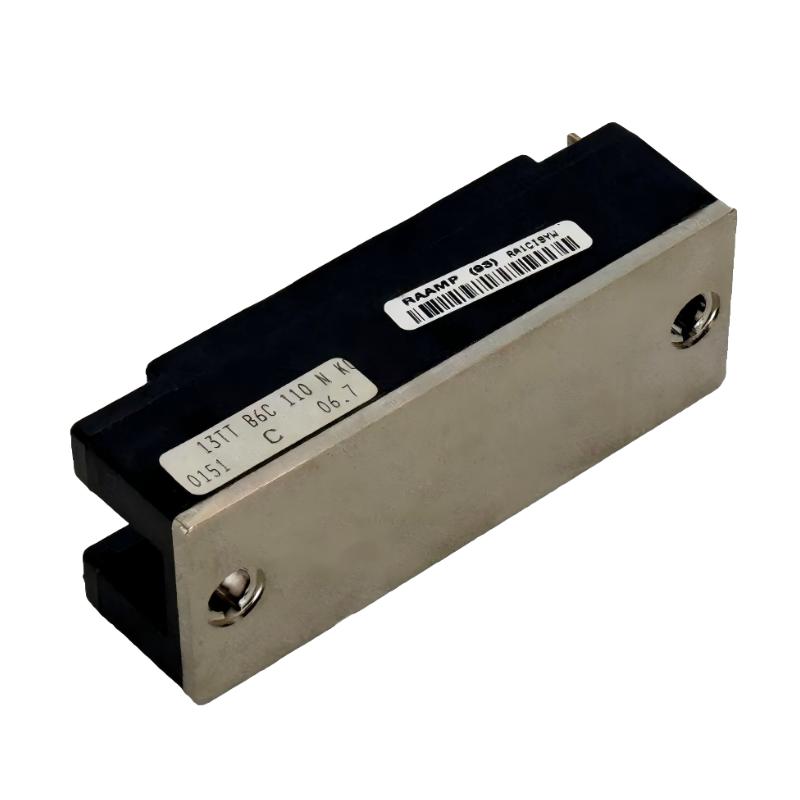

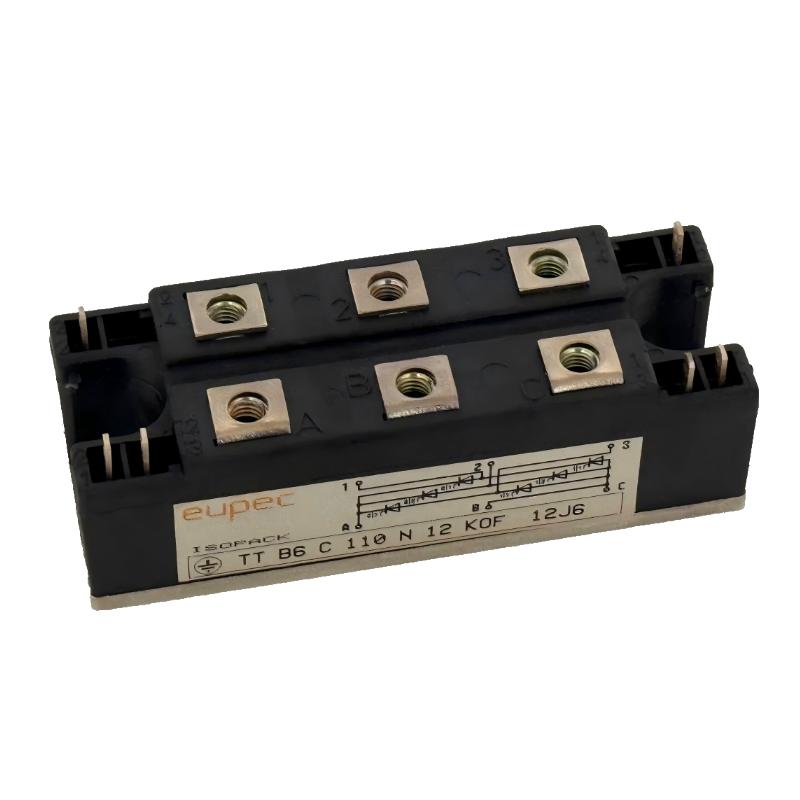

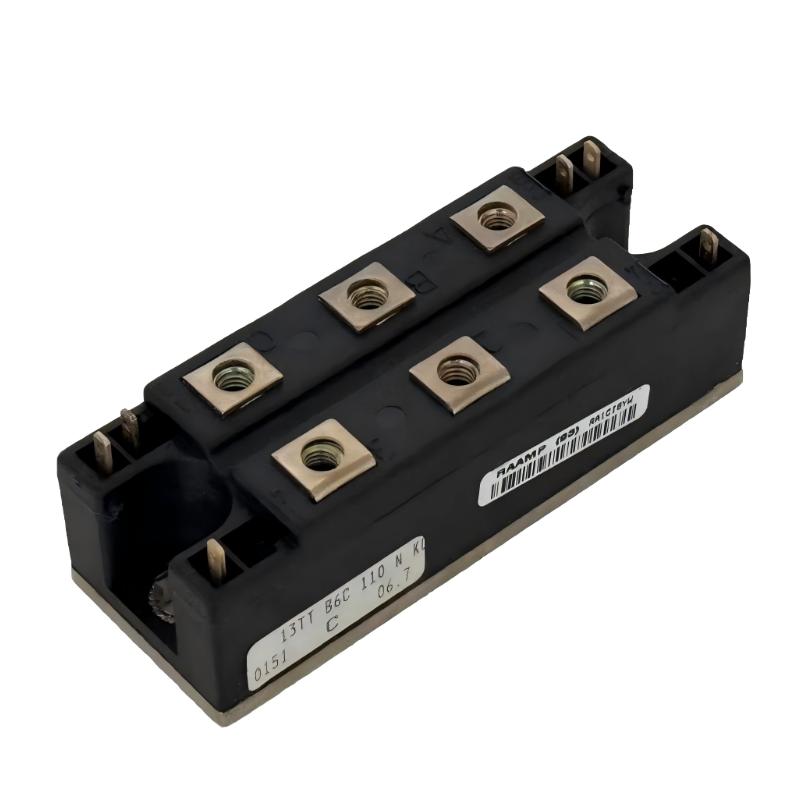

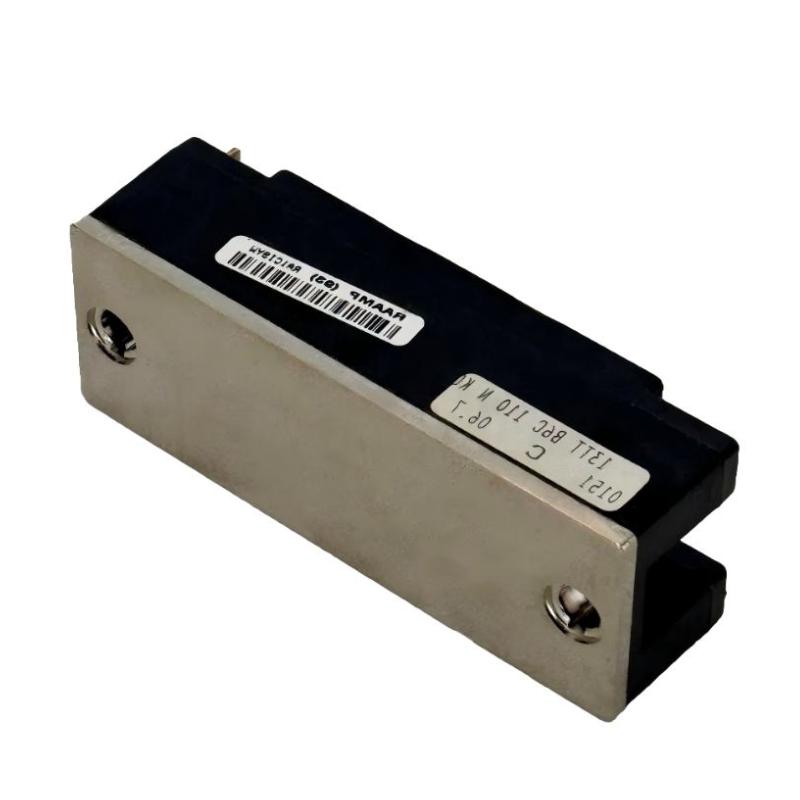

Allen Bradley 1336-BR-SP5A Bridge Rectifier

Industrial Applications and Drive System Usage

The Allen Bradley 1336-BR-SP5A Bridge Rectifier Module is a dedicated power conversion component designed for Allen-Bradley 1336 series adjustable frequency drives. It functions as a key element within the drive power section, converting AC input power into DC voltage to support stable inverter operation and reliable motor control.

This bridge rectifier is widely used in industrial automation environments where drive reliability, efficient maintenance, and long-term equipment availability are essential, including:

• Variable frequency drive repair and refurbishment projects
• Industrial motor control applications
• Automated production machinery
• Pump, fan, and conveyor systems
• Factory equipment based on Allen-Bradley 1336 drive platforms

For facilities maintaining legacy drive installations, the 1336-BR-SP5A provides an effective replacement option that helps restore power conversion performance while extending the service life of existing automation equipment.

Key Advantages and Industrial Performance Benefits

The Allen Bradley 1336-BR-SP5A Bridge Rectifier Module is engineered to deliver dependable power handling and stable operation in industrial drive systems. Its dedicated design supports efficient troubleshooting, maintenance, and replacement of critical drive components.

Efficient Power Rectification
The module provides reliable AC-to-DC conversion, creating the DC bus voltage required for proper inverter operation and motor control.

Reliable Drive Restoration Component
Replacing a damaged bridge rectifier with the correct component can help restore drive functionality without requiring complete system replacement.

Stable Electrical Performance
The module is designed to support consistent current flow and dependable operation in industrial environments with continuous motor demands.

Improved Maintenance Efficiency
Its application-specific design simplifies repair procedures and helps reduce equipment downtime during drive servicing.

Extended Service Life for Existing Systems
The 1336-BR-SP5A allows users to maintain proven Allen-Bradley 1336 drive installations while avoiding unnecessary infrastructure changes.

Technical FAQs and Application Troubleshooting

Q1: What is the primary function of the Allen Bradley 1336-BR-SP5A Bridge Rectifier Module?
A: The module converts incoming AC power into DC voltage for the drive DC bus, enabling the inverter section to control connected motors.

Q2: Where is the 1336-BR-SP5A installed within the drive system?
A: It is installed in the power conversion section of compatible Allen-Bradley 1336 adjustable frequency drives.

Q3: What problems can occur when the bridge rectifier fails?
A: A failed rectifier may cause DC bus faults, drive startup failures, input power alarms, or complete loss of motor operation.

Q4: How can technicians diagnose a defective bridge rectifier?
A: Diagnosis can be performed through electrical testing methods such as diode checks, voltage measurements, and inspection of related power components.

Q5: What are common causes of bridge rectifier damage?
A: Common causes include electrical surges, excessive current, overheating, poor ventilation, and failures in connected power circuits.

Q6: Does replacing the bridge rectifier require drive parameter programming?
A: The rectifier itself does not require parameter configuration, but the repaired drive should be tested to confirm correct operation.

Q7: Can a damaged rectifier affect inverter performance?
A: Yes. Insufficient or unstable DC bus voltage can prevent the inverter from producing proper output signals.

Q8: What safety procedures should be followed before replacement?
A: Technicians must isolate power, verify the absence of hazardous voltage, discharge stored energy, and follow proper electrical safety procedures.

Q9: How can the reliability of the bridge rectifier be improved after installation?
A: Maintaining proper cooling, preventing overload conditions, and regularly inspecting electrical connections can improve service reliability.

Q10: Is the 1336-BR-SP5A suitable for modern PowerFlex drive systems?
A: No. This component is designed specifically for compatible Allen-Bradley 1336 series drive applications.
