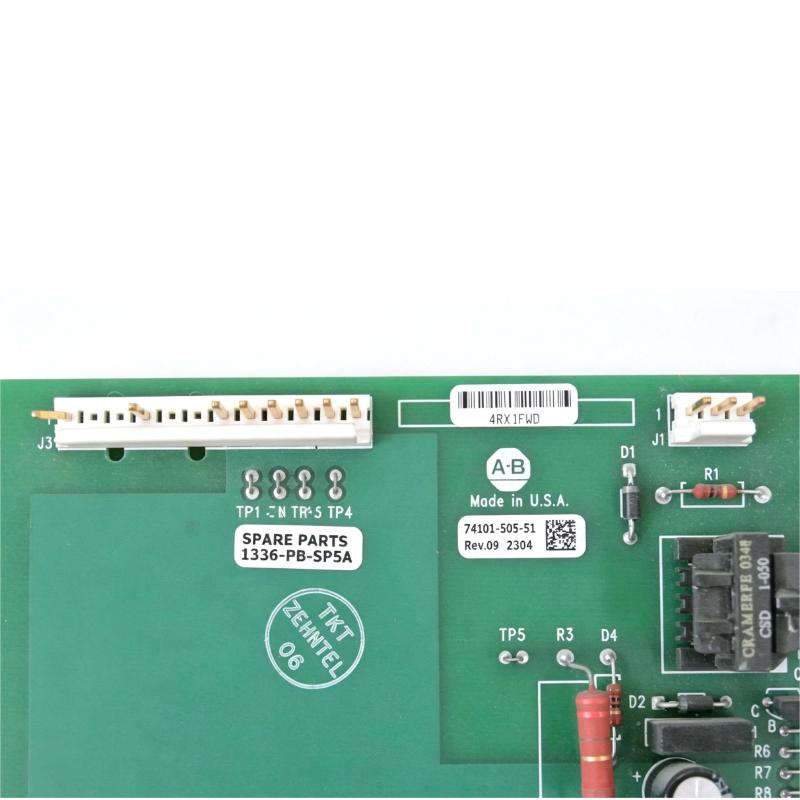

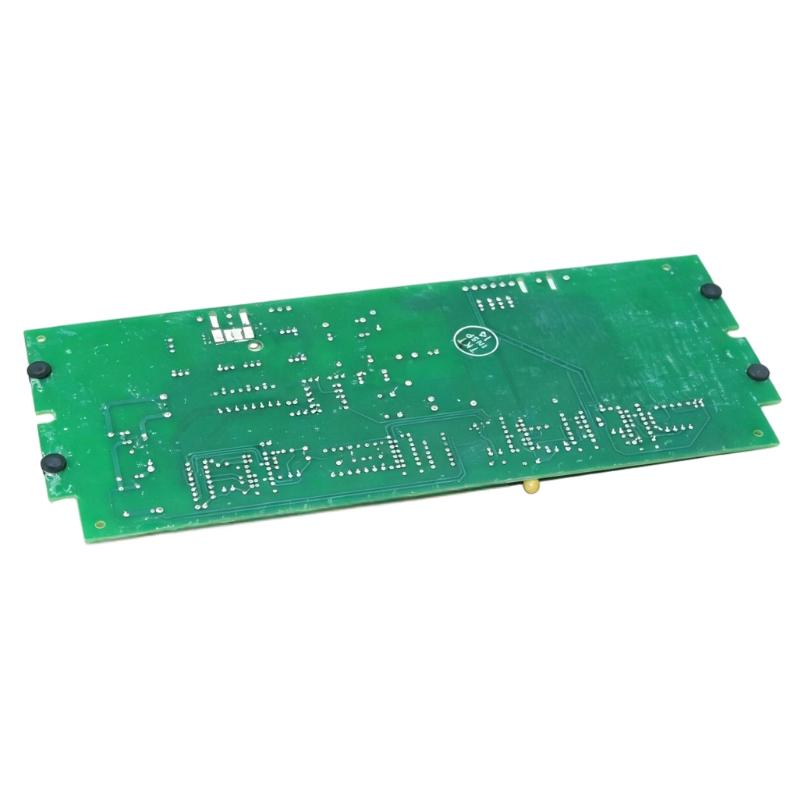

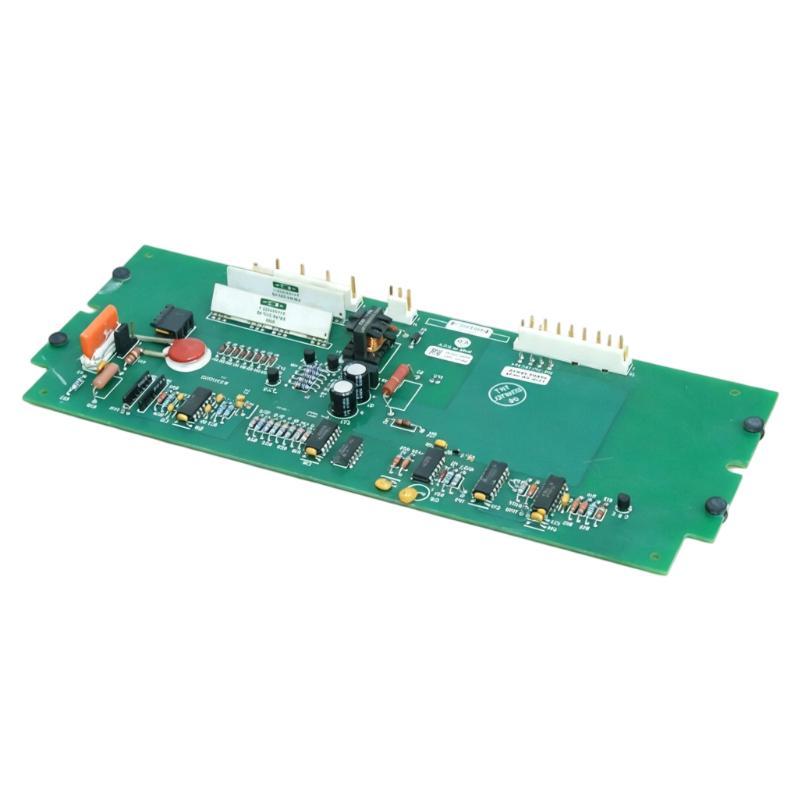

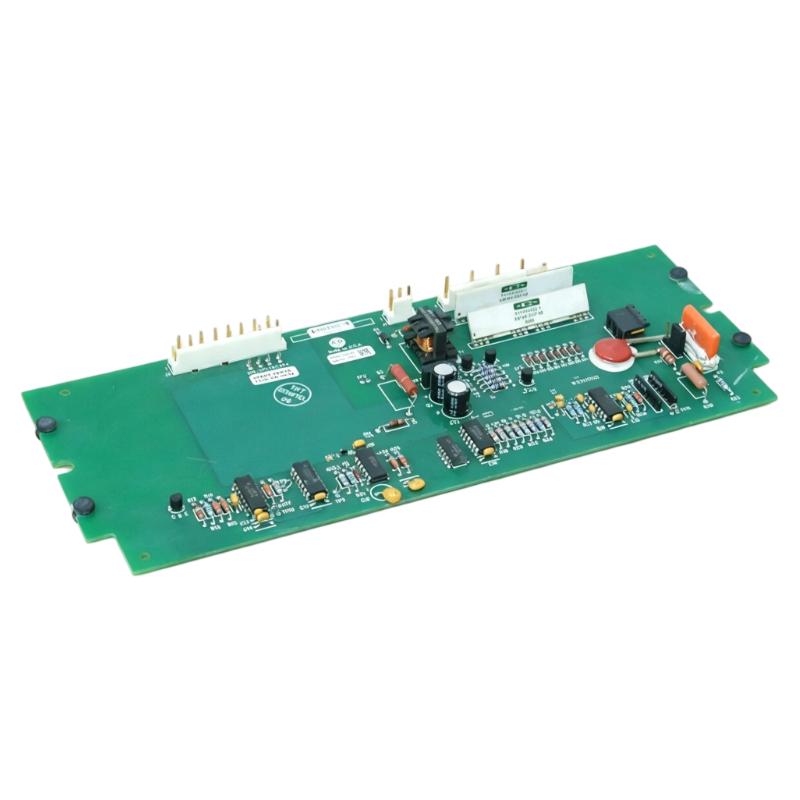

Allen Bradley 1336-PB-SP5A Precharge Circuit Board
Allen Bradley 1336-PB-SP5A Precharge Circuit Board
0.0
Points
Brand:Allen Bradley PLC Item No.:1336-PB-SP5A Product Origin:USA Product Dimensions:130 × 25 × 100 mm Product Weight:0.16 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1336-PB-SP5A Precharge Circuit Board is an important electronic power control component developed for Allen-Bradley 1336 adjustable frequency drives. It performs a critical role in managing the controlled charging of the DC bus system, ensuring safe startup operation and protecting internal drive components.
In industrial automation systems, reliable startup performance is essential for maintaining production efficiency and preventing unexpected equipment interruptions. A damaged precharge circuit can affect drive initialization and create additional stress on the power section.
The 1336-PB-SP5A provides a dependable replacement solution for industrial maintenance applications. With its dedicated function, compact design, and compatibility with established Allen-Bradley drive platforms, it helps users restore drive performance while extending the operational life of existing equipment.
Technical Specifications and Product Data
Parameter
Specification
Manufacturer
Allen Bradley
Model Number
1336-PB-SP5A
Product Type
Precharge Circuit Board
Compatible Drive Family
Allen-Bradley 1336 Series Adjustable Frequency Drives
Main Function
DC bus precharge control
Application
AC drive startup protection and maintenance
Circuit Function
Inrush current control and capacitor charging management
Installation Type
Internal drive circuit board replacement
Dimensions
130 × 25 × 100 mm
Weight
0.16 kg (0.35 lb)
Recommended Related Models for Drive Maintenance
Model
Product Type
1336-PB-SP2E
Precharge Circuit Board
1336-PB-SP21B
Precharge Control Board
1336-PB-SP23D
Precharge Circuit Assembly
1336-BR-SP5A
Bridge Rectifier Module
1336-CAP-SP15A
Bus Capacitor Module
Popular Related Models and Alternative Components
Model
Product Type
1336F-MCB-SP1G
Drive Control Board
1336-L7E
Control Interface Board
1336-BDB-SP31C
Gate Driver Module
1336 Power Supply Board Series
Drive Power Supply Components
1336 Drive Power Circuit Series
AC Drive Replacement Components
Industrial Applications and Drive System Integration
The Allen Bradley 1336-PB-SP5A Precharge Circuit Board is a specialized power control component designed for Allen-Bradley 1336 series adjustable frequency drive systems. It manages the DC bus precharge process during drive startup, controlling the initial charging current and helping protect internal power components from electrical stress.
This precharge circuit board is commonly used in industrial automation environments where reliable startup performance, stable DC bus charging, and long-term drive operation are required, including:
For facilities operating existing 1336 drive platforms, the 1336-PB-SP5A provides an effective replacement solution that helps restore startup protection functions, improve drive reliability, and extend the service life of installed automation equipment.
Engineering Advantages and Performance Benefits
The Allen Bradley 1336-PB-SP5A Precharge Circuit Board is designed to provide reliable power management during drive startup operations. Its dedicated control function helps maintain stable charging behavior and protects critical components within the drive power section.
Controlled DC Bus Charging
The board regulates the initial charging process of the DC bus capacitors, reducing excessive inrush current during startup.
Enhanced Component Protection
By controlling charging conditions, the module helps reduce electrical stress on capacitors, power semiconductors, and related drive components.
Reliable Drive Restoration Solution
Replacing a failed precharge circuit board allows users to restore drive functionality without replacing the complete drive system.
Improved Startup Reliability
A properly operating precharge circuit supports consistent drive initialization and reduces startup-related faults.
Designed for Industrial Maintenance
The module provides a practical replacement option for maintaining existing Allen-Bradley 1336 drive installations in demanding industrial environments.
Technical FAQs and Troubleshooting Guide
Q1: What is the main function of the Allen Bradley 1336-PB-SP5A Precharge Circuit Board?
A: The board controls the DC bus precharge process, limiting startup current and protecting drive power components during initialization.
Q2: Which drive systems are compatible with the 1336-PB-SP5A?
A: The module is designed for compatible Allen-Bradley 1336 series adjustable frequency drive systems.
Q3: What symptoms indicate a failed precharge circuit board?
A: Common symptoms include startup failure, DC bus charging errors, drive initialization faults, and unexpected power-up problems.
Q4: Why is the precharge circuit important in an AC drive?
A: It prevents excessive current from flowing into DC bus capacitors when power is first applied, helping protect sensitive components.
Q5: How can technicians diagnose a defective precharge board?
A: Diagnosis typically includes checking startup behavior, verifying DC bus charging conditions, inspecting wiring, and testing related components.
Q6: What causes precharge circuit board failure?
A: Electrical surges, overheating, aging components, repeated startup cycles, and failures in connected power circuits can contribute to failure.
Q7: Does replacing the 1336-PB-SP5A require software configuration?
A: No. The board is a hardware replacement component, but the drive should be tested after installation.
Q8: What safety procedures are required before replacing the precharge board?
A: Power must be disconnected, stored DC voltage must be discharged, and proper electrical safety procedures must be followed.
Q9: Can a faulty precharge board damage other drive components?
A: Yes. Improper precharge operation may increase electrical stress on DC bus capacitors and power switching components.
Q10: How can the service life of the precharge circuit be improved?
A: Maintaining proper cooling, stable power conditions, and regular inspection of drive components can improve reliability.
