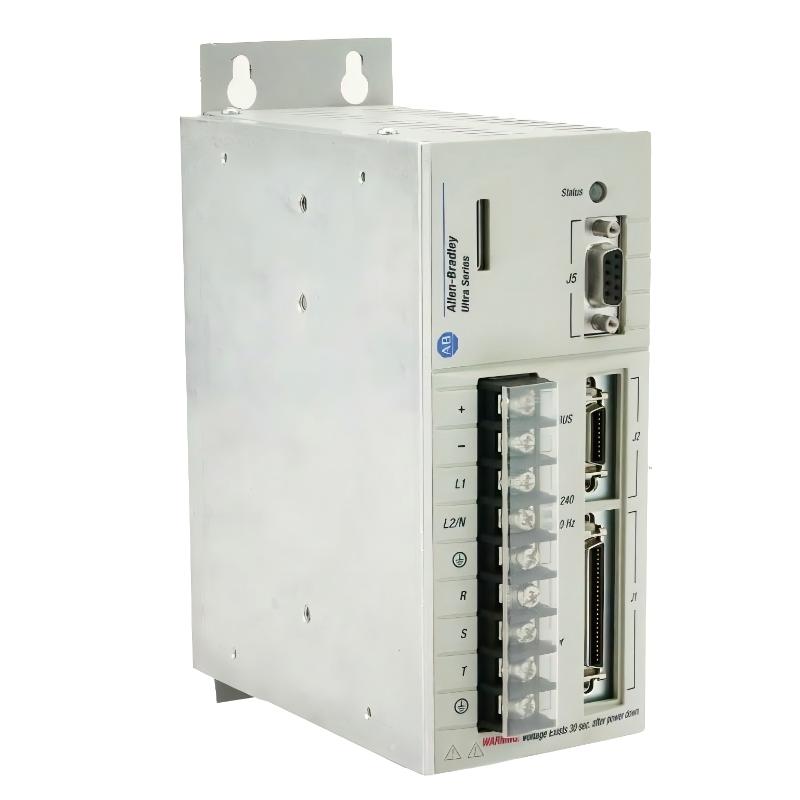

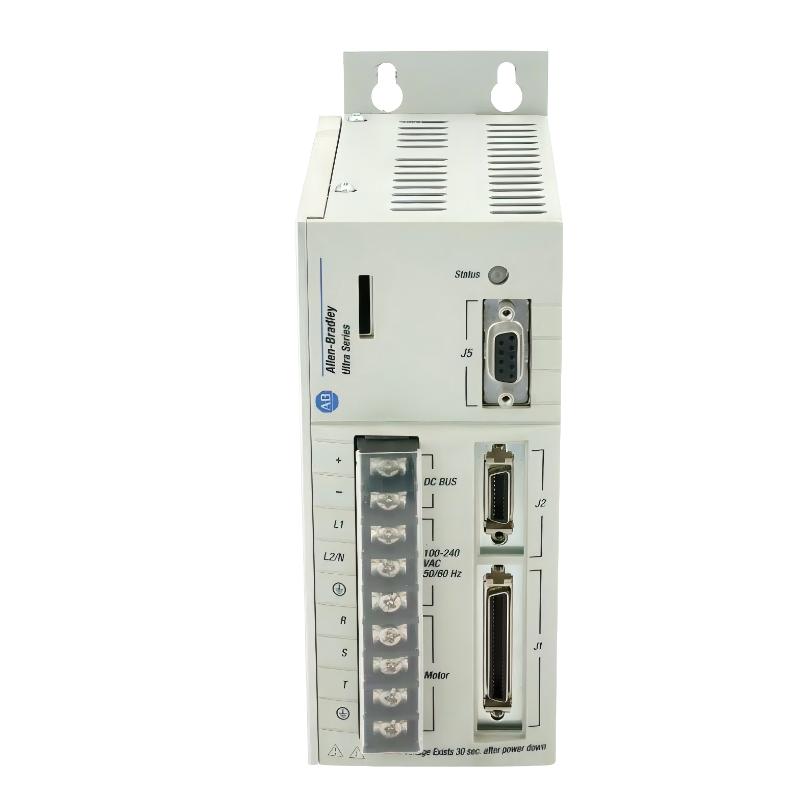

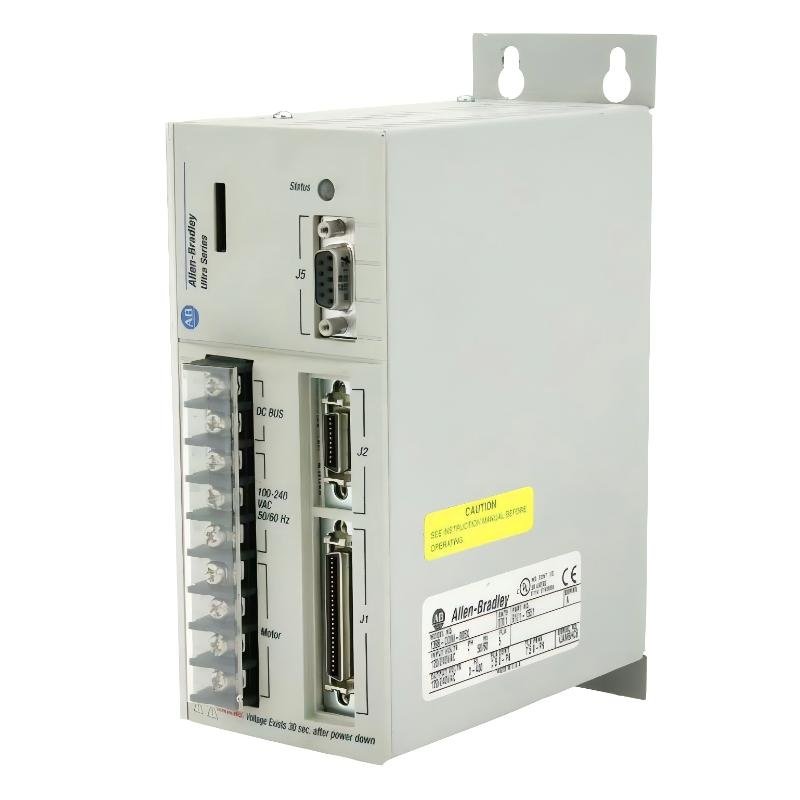

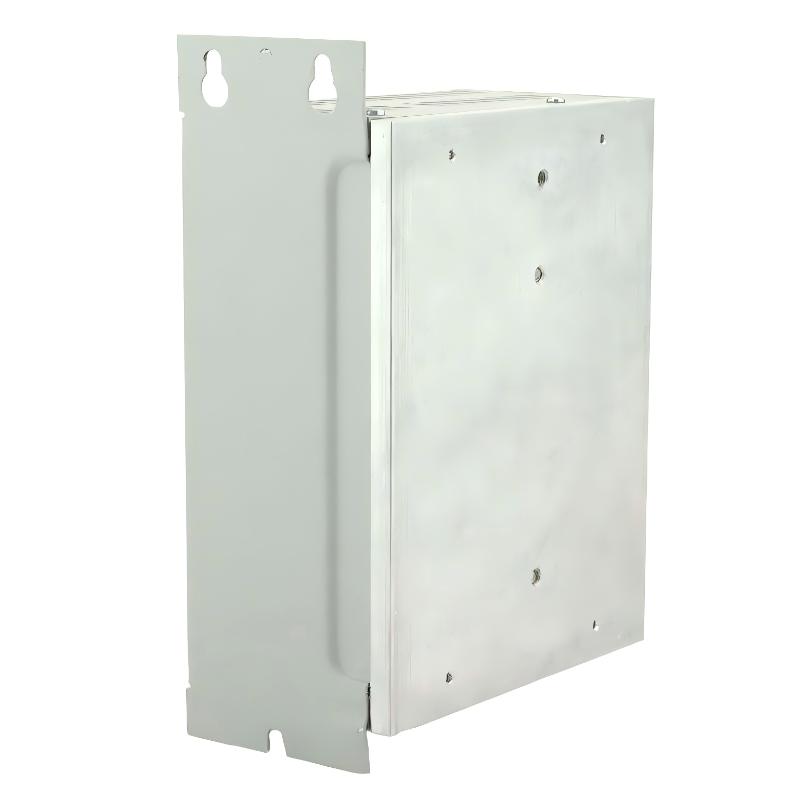

Allen Bradley 1398-DDM-005X Ultra 100 Digital Servo Drive

Industrial Applications and Motion Control Integration

The Allen Bradley 1398-DDM-005X Ultra 100 Digital Servo Drive is a high-performance servo control device designed for industrial motion applications requiring accurate positioning, smooth speed regulation, and reliable torque management. As part of the Ultra 100 digital servo drive family, it provides advanced digital processing capability for controlling compatible servo motors in single-axis automation systems.

This digital servo drive is widely used in applications where motion accuracy and repeatable performance are critical, including:

• Automated assembly equipment
• Packaging and labeling machinery
• Robotics and positioning systems
• Electronic manufacturing equipment
• Machine tools and precision processing systems
• Industrial automation retrofit projects

With its compact structure and flexible motion control capability, the 1398-DDM-005X provides an efficient solution for maintaining existing servo systems while improving operational stability and equipment productivity.

Engineering Advantages and Performance Benefits

The Allen Bradley 1398-DDM-005X Ultra 100 Digital Servo Drive combines advanced digital control technology with reliable industrial hardware design to deliver accurate and consistent motion performance.

Precision Servo Control Performance
The drive manages torque, velocity, and position control loops digitally, providing accurate motor response for demanding automation applications.

Compact Cabinet Integration
Its space-efficient design allows easy installation in control cabinets while maintaining dependable servo performance.

Flexible Motion Application Support
The drive supports a wide range of positioning tasks, making it suitable for machinery requiring precise axis movement and repeatable operation.

Stable Dynamic Response
The unit provides fast control response and smooth motor operation, helping improve machine efficiency and production consistency.

Reliable Legacy System Replacement
The 1398-DDM-005X offers a practical maintenance solution for existing Ultra 100 servo applications, helping extend the service life of installed equipment.

Technical FAQs and Servo Drive Troubleshooting Guide

Q1: What is the main function of the Allen Bradley 1398-DDM-005X Ultra 100 Digital Servo Drive?
A: The drive controls servo motor operation by managing position, velocity, and torque commands for precision motion applications.

Q2: What type of applications are suitable for the 1398-DDM-005X?
A: It is suitable for single-axis motion systems requiring accurate positioning, speed control, and repeatable movement.

Q3: What are common signs of servo drive failure?
A: Typical symptoms include motor movement errors, overcurrent faults, position tracking problems, communication failures, and unexpected shutdowns.

Q4: Does the 1398-DDM-005X support indexing functions?
A: Yes. The indexing version supports programmed motion sequences for applications requiring independent positioning operations.

Q5: What should be checked before installing a replacement servo drive?
A: Technicians should verify motor compatibility, feedback wiring, power connections, control signals, and application parameters.

Q6: What causes servo drive faults during operation?
A: Common causes include incorrect tuning, excessive mechanical load, feedback issues, unstable power supply, and wiring problems.

Q7: Does the servo drive require parameter setup after replacement?
A: Yes. Motor configuration, feedback settings, motion parameters, and application settings should be verified before startup.

Q8: How can servo positioning accuracy be improved?
A: Proper servo tuning, correct feedback installation, mechanical alignment, and optimized motion parameters improve positioning performance.

Q9: What safety precautions are required when servicing the servo drive?
A: Power must be disconnected, stored energy must be released, and qualified personnel should follow electrical safety procedures.

Q10: How can maintenance teams improve servo drive reliability?
A: Regular inspection of cooling conditions, wiring connections, motor feedback systems, and operating loads helps maintain long-term reliability.
