Schneider ATV650D15N4E Variable Speed Drive

Industrial Applications and Process Drive Integration

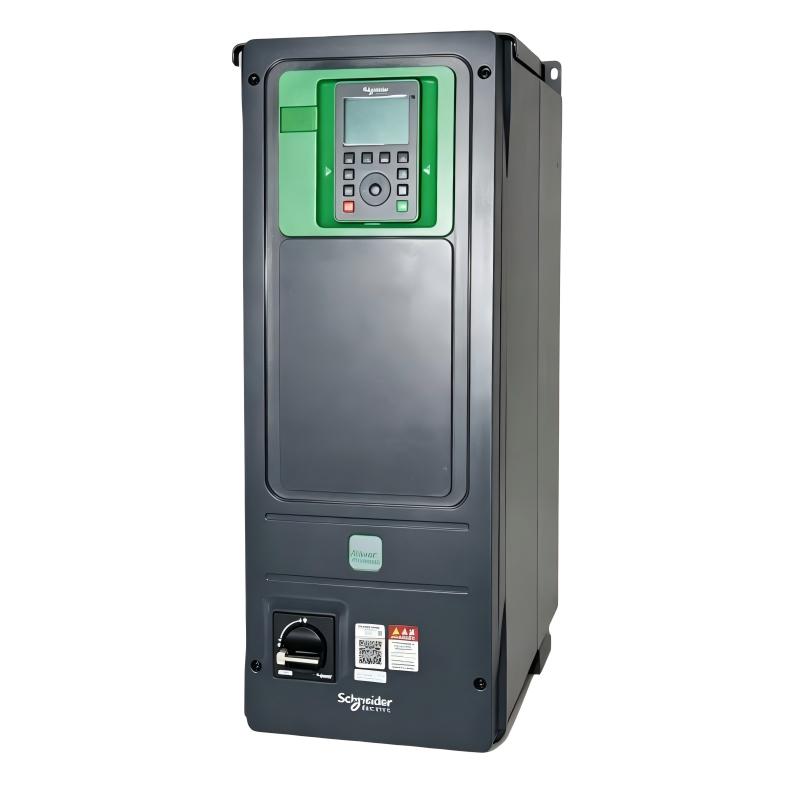

The Schneider ATV650D15N4E Variable Speed Drive is a reliable industrial motor control solution designed for applications requiring accurate speed adjustment, efficient energy management, and stable process operation. As part of the Altivar Process ATV650 series, this drive provides advanced variable frequency control technology combined with a rugged industrial design to support continuous-duty automation systems.

The ATV650D15N4E is widely used in industrial environments where dependable motor performance and simplified maintenance are required, including:

• Water and wastewater treatment systems
• Industrial pumping equipment
• HVAC and ventilation applications
• Fans and compressors
• Material handling systems
• Production line machinery
• Process automation equipment

With its integrated disconnect switch, strong protection capability, and flexible motor control functions, the ATV650D15N4E helps improve operational efficiency, enhance equipment reliability, and optimize energy usage in modern industrial facilities.

Engineering Advantages and Performance Benefits

The Schneider ATV650D15N4E Variable Speed Drive combines intelligent motor management technology with durable industrial construction to meet the needs of demanding process applications.

Accurate Motor Speed Regulation
The drive provides precise control of motor frequency, speed, and torque, allowing machines to maintain stable operation under changing load conditions.

Improved Energy Efficiency
By matching motor output with actual process demand, the ATV650D15N4E helps reduce energy waste and improves system efficiency in variable-load applications.

Integrated Disconnect Design
The built-in disconnect function simplifies maintenance procedures by allowing easier isolation of the drive from the power system.

Comprehensive Protection Features
The drive provides protection against overload, overheating, abnormal voltage conditions, and other operational risks to improve system reliability.

Flexible Industrial Integration
Designed for modern automation environments, the ATV650D15N4E supports communication and control system integration for efficient equipment management.

Technical FAQs and Troubleshooting Guide

Q1: What is the primary function of the Schneider ATV650D15N4E Variable Speed Drive?
A: The drive regulates motor speed and torque by adjusting output frequency and voltage to achieve efficient industrial process control.

Q2: What motor types can be connected to the ATV650D15N4E?
A: The drive supports compatible three-phase asynchronous motors and synchronous motors used in industrial applications.

Q3: What are common reasons for an overcurrent fault?
A: Overcurrent faults may occur due to excessive mechanical load, motor cable faults, incorrect parameters, short circuits, or improper acceleration settings.

Q4: How can communication failures be diagnosed?
A: Inspect communication wiring, network configuration, addressing parameters, and controller settings to identify communication issues.

Q5: Is parameter configuration required after drive installation?
A: Yes. Motor data, control settings, and application parameters should be configured to achieve optimal performance.

Q6: Why does the connected motor experience unstable speed operation?
A: Possible causes include incorrect tuning, unstable control signals, feedback problems, or mechanical load variations.

Q7: What should be checked before replacing the ATV650D15N4E?
A: Confirm power supply requirements, motor specifications, control wiring, communication settings, and application conditions.

Q8: How can overheating problems be reduced during operation?
A: Ensure proper ventilation, clean cooling paths, suitable load conditions, and correct drive configuration.

Q9: What causes abnormal DC bus voltage conditions?
A: Possible causes include unstable input power, rapid deceleration, regenerative energy, or incorrect braking settings.

Q10: How can maintenance teams improve drive reliability?
A: Regular inspection, proper cooling management, electrical connection checks, and fault monitoring help extend service life.
