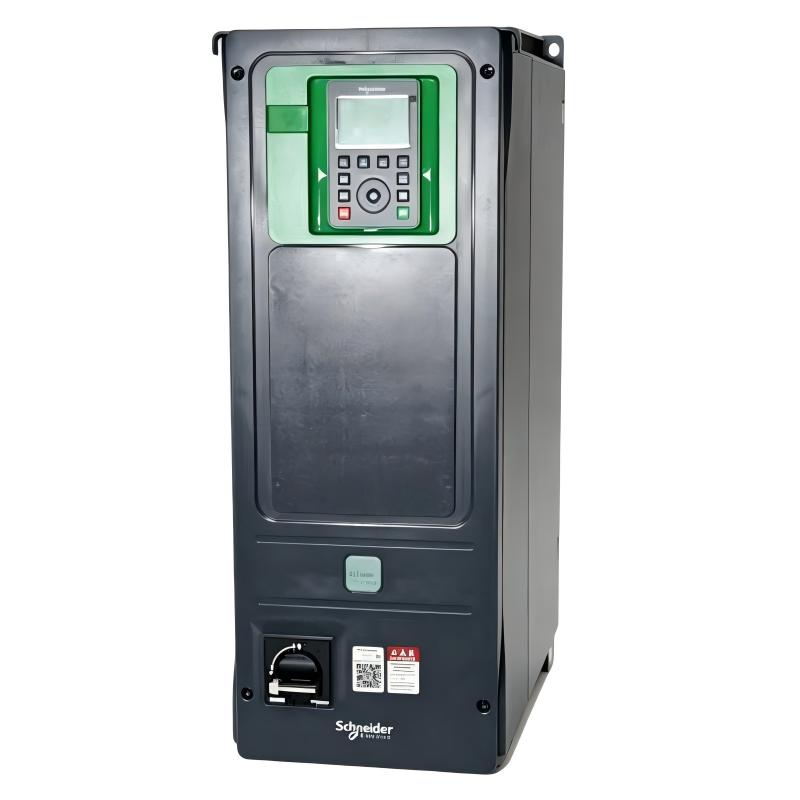

Schneider ATV650D18N4E Variable Speed Drive

Industrial Applications and Process Drive Integration

The Schneider ATV650D18N4E Variable Speed Drive is a high-performance industrial motor control solution designed for process applications requiring efficient speed regulation, stable operation, and reliable equipment management. As part of the Altivar Process ATV650 series, this drive is engineered to support demanding industrial environments where energy efficiency, operational continuity, and precise motor control are essential.

The ATV650D18N4E is widely applied in industries requiring dependable variable speed operation, including:

• Water and wastewater treatment systems
• Industrial pumping and fluid management equipment
• HVAC and ventilation installations
• Fans and compressor systems
• Material handling machinery
• Manufacturing process equipment
• Industrial utility automation systems

With its integrated disconnect switch, IP55 protection design, and intelligent motor management functions, the ATV650D18N4E provides an effective solution for improving process efficiency, reducing maintenance complexity, and ensuring reliable operation in industrial facilities.

Engineering Advantages and Performance Benefits

The Schneider ATV650D18N4E Variable Speed Drive combines advanced control technology with industrial durability to deliver stable performance for medium-power motor applications.

High-Performance Motor Regulation
The drive provides accurate speed and torque control, allowing motors to operate smoothly under different load conditions while maintaining process stability.

Optimized Energy Management
By adjusting motor operation according to actual system demand, the ATV650D18N4E helps reduce energy consumption in applications such as pumps, fans, and fluid systems.

Integrated Maintenance Convenience
The built-in disconnect function simplifies service procedures by providing easier equipment isolation during maintenance activities.

Enhanced System Protection
The drive includes protective functions against overload, overheating, abnormal voltage conditions, and other operating risks to improve equipment reliability.

Flexible Automation Integration
The ATV650D18N4E supports industrial communication and automation system integration, making it suitable for both new installations and modernization projects.

Technical FAQs and Troubleshooting Guide

Q1: What is the main purpose of the Schneider ATV650D18N4E Variable Speed Drive?
A: The drive controls motor speed and torque by adjusting output frequency and voltage to optimize industrial process performance.

Q2: What motor types can be controlled by the ATV650D18N4E?
A: The drive supports compatible three-phase asynchronous motors and synchronous motors used in industrial applications.

Q3: What causes an overcurrent fault during operation?
A: Common causes include excessive mechanical load, motor cable issues, incorrect motor parameters, short circuits, or improper acceleration settings.

Q4: How can communication faults be diagnosed on this drive?
A: Check communication wiring, network configuration, addressing settings, and controller parameters to identify possible communication problems.

Q5: Is motor parameter configuration required after installation?
A: Yes. Correct motor data entry and drive parameter adjustment help achieve optimal control performance.

Q6: Why does motor speed fluctuate during operation?
A: Possible causes include incorrect tuning settings, unstable reference signals, feedback problems, or changing mechanical loads.

Q7: What should be checked before replacing the ATV650D18N4E?
A: Verify power supply requirements, motor specifications, control wiring, communication settings, and application conditions.

Q8: How can overheating problems be prevented during continuous operation?
A: Maintain proper ventilation, clean cooling paths, suitable load conditions, and correct installation practices.

Q9: What causes abnormal DC bus voltage alarms?
A: Possible causes include unstable power supply, excessive regenerative energy, rapid deceleration, or incorrect braking settings.

Q10: How can the service life of the ATV650D18N4E be extended?
A: Regular inspection, preventive maintenance, electrical checks, and monitoring operating conditions help maintain long-term reliability.
