Brand:Schneider PLC Item No.:HMIST6200 Product Origin:France Product Dimensions:108.5 x 134.5 x 43 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

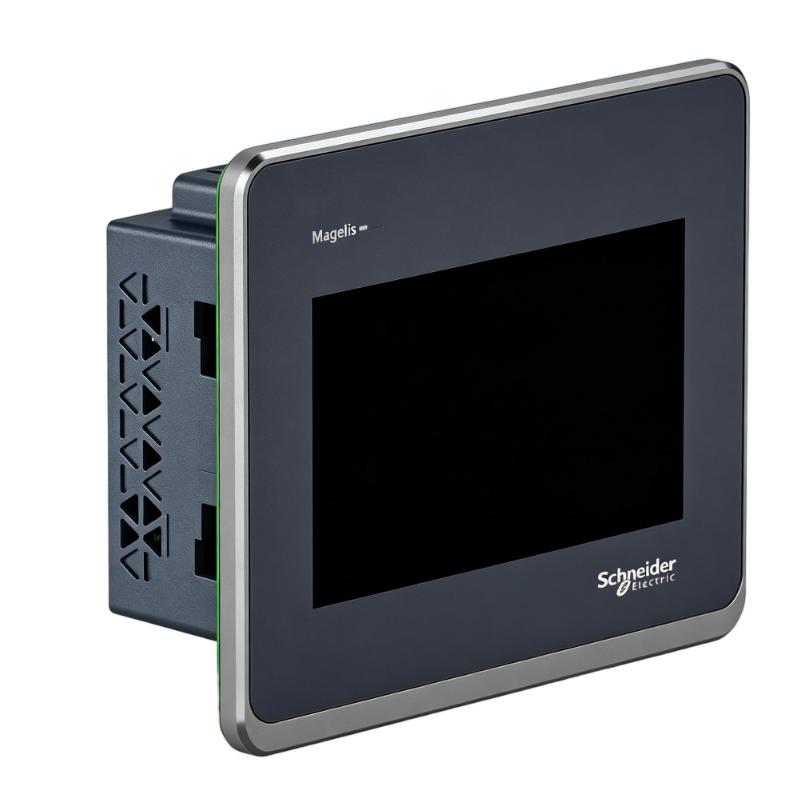

The Schneider HMIST6200 4-inch Touchscreen is an industrial operator interface designed for Harmony ST6 automation systems. It provides a compact and reliable solution for machine visualization, operator control, and real-time equipment monitoring.
The panel is designed to meet the needs of modern automation systems requiring efficient human-machine interaction in limited installation spaces. It supports industrial communication functions and provides operators with a convenient method to access machine information, modify settings, and respond to operational conditions.
The HMIST6200 is widely used in OEM equipment, manufacturing machinery, and industrial automation projects where dependable touchscreen operation and compact installation are important. Its combination of performance, flexibility, and durability makes it a practical choice for machine builders and automation engineers.
Technical Specifications and Product Data
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
HMIST6200
Product Type
4-inch Touchscreen
Product Family
Harmony ST6
Display Size
4 inch
Display Type
Color TFT LCD
Display Resolution
480 × 272 pixels
Display Colors
16 million colors
Touch Technology
Analog resistive touchscreen
Supply Voltage
24 V DC
Communication Interfaces
Ethernet, Serial Communication, USB
Processor Architecture
ARM Cortex-A8
Software Platform
EcoStruxure Operator Terminal Expert
Installation Type
Panel mounting
Application
Industrial HMI visualization and control
Dimensions
108.5 × 134.5 × 43 mm
Weight
0.40 kg (0.88 lb)
Recommended Related Models for HMI Automation Applications
Model
Product Type
HMIST6200
Harmony ST6 4-inch Touch Panel
HMIST6400
Harmony ST6 7-inch Touch Panel
HMIST6500
Harmony ST6 10-inch Touch Panel
HMIST6600
Harmony ST6 12-inch Touch Panel
HMISTU855
Harmony STU Touch Panel
Popular Related Models and Alternative Solutions
Model
Product Type
HMISCU6B5
Harmony SCU Touch Controller
HMIGTO1300
Harmony GTO Touch Panel
HMIGTO2310
Harmony GTO Advanced HMI
HMIGTO5310
Harmony GTO Industrial HMI
HMIG3U
Harmony GTU Advanced Touch Panel
Industrial Applications and Operator Interface Management
The Schneider HMIST6200 4-inch Touchscreen is a compact industrial HMI panel designed for Harmony ST6 automation applications. It provides an efficient operator interface solution by combining a high-quality display, intuitive touch operation, and industrial communication functions in a space-saving design.
The HMIST6200 is suitable for automation environments where reliable visualization and machine interaction are required, including:
Packaging and assembly equipment
OEM machinery
Production line monitoring systems
Industrial control cabinets
Machine parameter adjustment stations
Factory automation applications
Compact process control systems
With its compact structure, clear graphical display, and flexible communication capability, the HMIST6200 helps operators monitor machine conditions, adjust parameters, and improve equipment efficiency while maintaining a simple and reliable control interface.
Engineering Advantages and Performance Benefits
The Schneider HMIST6200 Touchscreen Panel provides a practical combination of visualization performance, communication flexibility, and industrial reliability.
Compact HMI Visualization Solution
The HMIST6200 offers a compact touchscreen interface designed for machines that require essential operating information, alarm monitoring, and process visualization without occupying excessive cabinet space.
High-Quality Display Performance
The 4-inch color TFT display delivers clear graphical information, allowing operators to view machine status, production data, and control parameters with ease.
Flexible Industrial Communication
Multiple communication interfaces allow integration with PLC controllers, automation devices, and industrial networks, improving system connectivity and data exchange.
Reliable Touchscreen Operation
The industrial touchscreen design provides accurate and stable operator input for machine control, configuration, and monitoring tasks.
Simplified Installation and Maintenance
The compact panel structure reduces installation complexity and supports easier replacement and maintenance during the equipment lifecycle.
Technical FAQs and Troubleshooting Guide
Q1: What is the primary function of the Schneider HMIST6200?
A: The HMIST6200 provides a graphical operator interface for monitoring, controlling, and adjusting industrial automation equipment.
Q2: What type of touchscreen technology is used in the HMIST6200?
A: The panel uses an analog resistive touchscreen designed for industrial environments.
Q3: Why does the touchscreen become inaccurate during operation?
A: Possible causes include calibration errors, surface contamination, application issues, or touchscreen component damage.
Q4: How can communication faults between the HMIST6200 and PLC be solved?
A: Verify communication settings, cable connections, network configuration, PLC parameters, and device addressing.
Q5: What software is used to develop HMIST6200 applications?
A: The panel is configured using Schneider HMI engineering software for designing and managing operator applications.
Q6: Why does the HMI display incorrect data values?
A: Incorrect variable mapping, communication errors, PLC program issues, or configuration mistakes may cause incorrect displayed information.
Q7: What causes slow HMI response performance?
A: Excessive screen objects, complex graphics, heavy communication traffic, or inefficient application design may affect response speed.
Q8: How can communication stability be improved?
A: Use proper wiring methods, correct communication parameters, appropriate network design, and regular system checks.
Q9: Why does the HMI application fail after startup?
A: Possible causes include damaged project files, incorrect application settings, insufficient memory, or unstable power conditions.
Q10: How can the HMIST6200 operating life be extended?
A: Maintain proper installation conditions, protect against harsh environments, perform regular inspections, and keep application backups.
