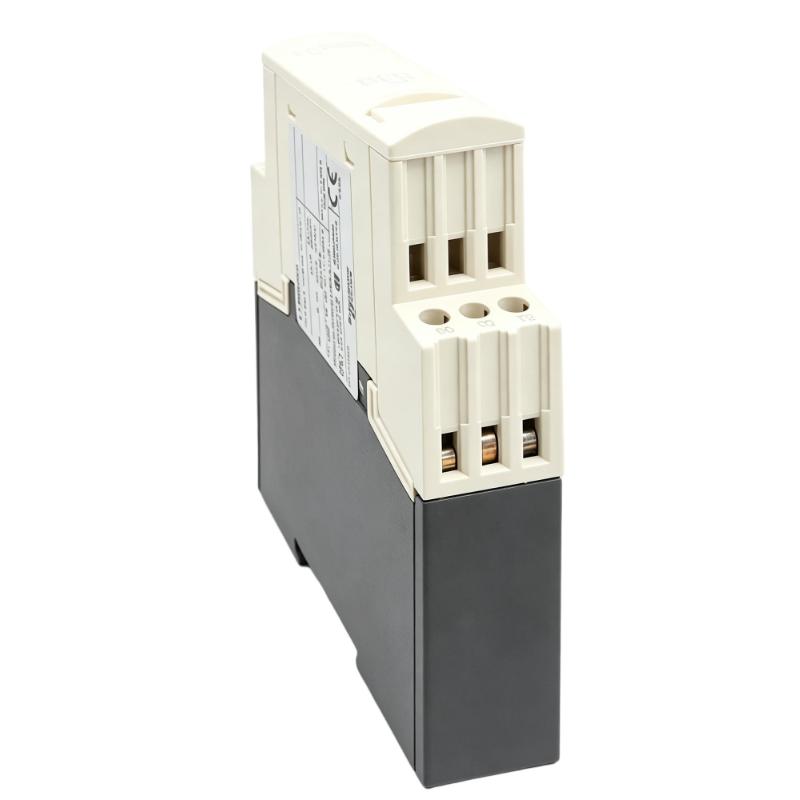

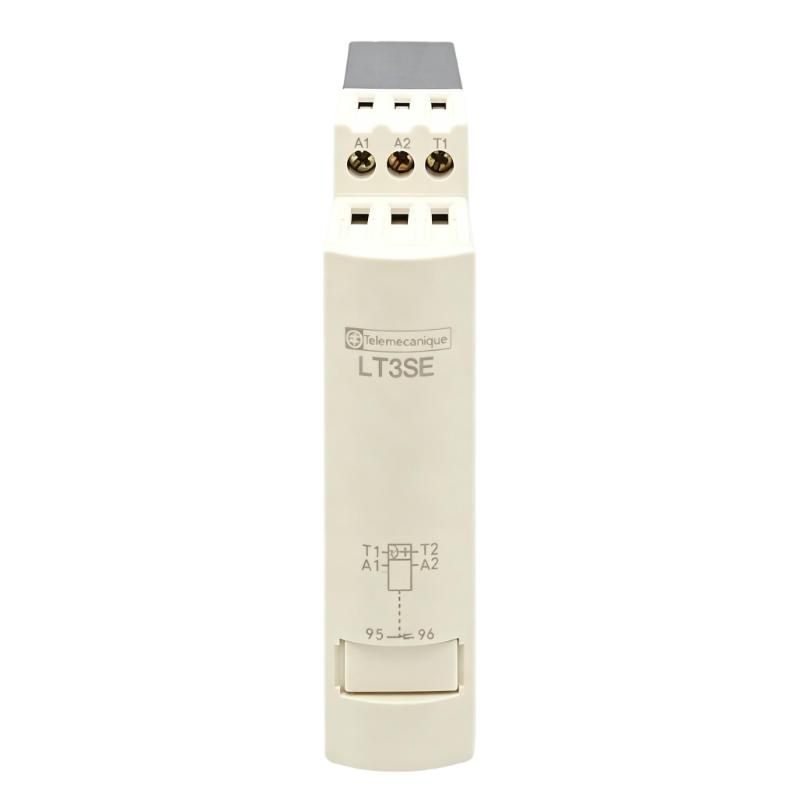

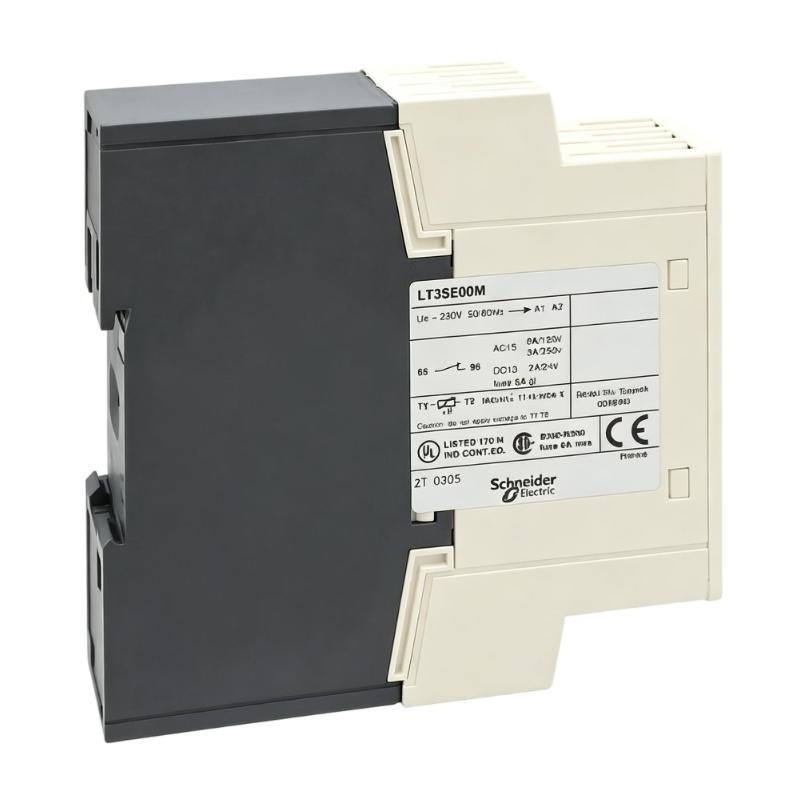

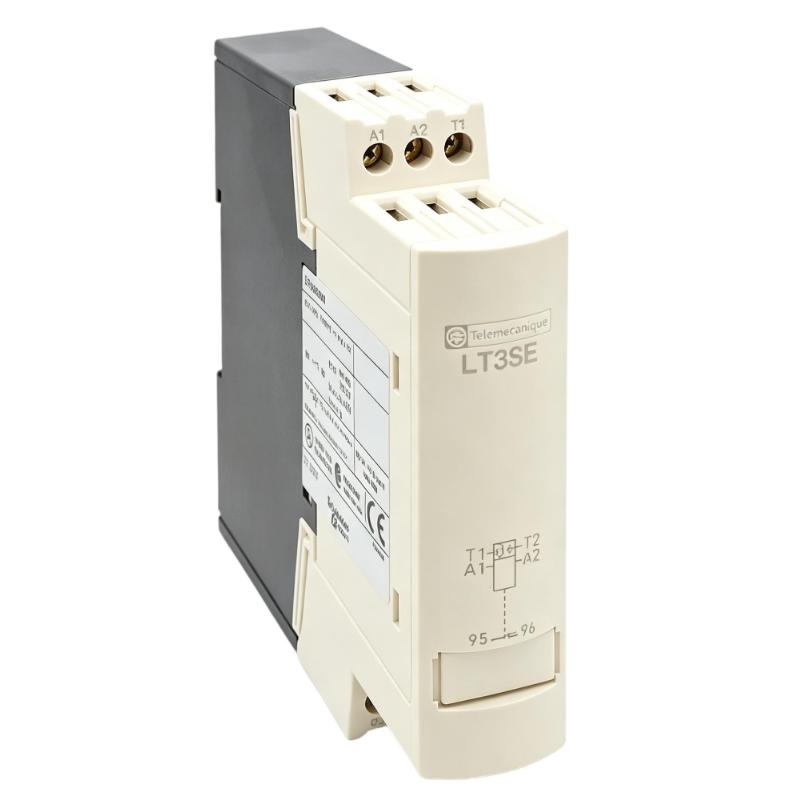

Schneider LT3SE00M Thermistor Protection Unit

Industrial Applications and Motor Protection Management

The Schneider LT3SE00M Thermistor Protection Unit is a temperature monitoring and motor protection device designed for industrial motor control applications. It works with PTC thermistor probes to monitor motor winding temperature and provide reliable protection against overheating conditions, helping improve equipment safety and operational stability.

The LT3SE00M is widely used in industrial environments where motor thermal protection and preventive fault management are required, including:

• Motor control panels
• Pump and fan systems
• Conveyor equipment
• Industrial machinery
• Compressor protection systems
• Manufacturing automation equipment
• Motor starter applications

With its compact design, automatic reset function, and reliable temperature monitoring capability, the LT3SE00M provides an effective protection solution for motors operating under demanding industrial conditions.

Engineering Advantages and Performance Benefits

The Schneider LT3SE00M Thermistor Protection Unit combines accurate temperature monitoring with dependable motor protection performance.

Reliable Thermal Protection Function
The LT3SE00M continuously monitors PTC thermistor signals installed in motor windings, allowing early detection of abnormal temperature increases and helping prevent motor damage.

Automatic Reset Operation
The automatic reset function simplifies system recovery after temperature conditions return to normal, reducing unnecessary manual intervention.

Enhanced Motor Safety
By monitoring motor thermal conditions, the unit helps protect electrical equipment from overheating caused by overloads, insufficient cooling, or abnormal operating conditions.

Compact DIN Rail Installation
The compact structure allows easy integration into industrial control cabinets and motor starter systems.

Stable Industrial Performance
Designed for continuous industrial operation, the LT3SE00M provides dependable protection for motors in automation and process applications.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider LT3SE00M?
A: The LT3SE00M monitors motor temperature through PTC thermistor probes and provides protection against overheating conditions.

Q2: How does the LT3SE00M detect motor overheating?
A: The unit detects changes in PTC thermistor resistance values and activates the protection output when temperature exceeds the defined threshold.

Q3: What causes the LT3SE00M protection output to activate unexpectedly?
A: Possible causes include excessive motor load, insufficient ventilation, damaged thermistor wiring, or abnormal operating conditions.

Q4: How can a thermistor circuit fault be diagnosed?
A: Check probe resistance values, wiring continuity, terminal connections, and verify that the connected PTC sensors are functioning correctly.

Q5: Can the LT3SE00M support multiple thermistor probes?
A: Yes, the unit can operate with multiple PTC probes connected in series for motor temperature monitoring applications.

Q6: Why does the protection unit fail to reset?
A: Possible causes include continued overheating, incorrect sensor resistance, wiring faults, or insufficient cooling conditions.

Q7: What happens if the thermistor cable is damaged?
A: A damaged cable may cause incorrect temperature detection, false alarms, or failure of the protection function.

Q8: How can motor protection reliability be improved?
A: Proper sensor installation, correct wiring, regular inspections, and appropriate motor operating conditions improve system reliability.

Q9: Why does the motor stop during normal operation?
A: Possible causes include temperature protection activation, motor overload, cooling problems, or incorrect protection settings.

Q10: What should be checked before replacing the LT3SE00M?
A: Verify power supply conditions, sensor wiring, motor temperature status, and control circuit configuration before replacement.
