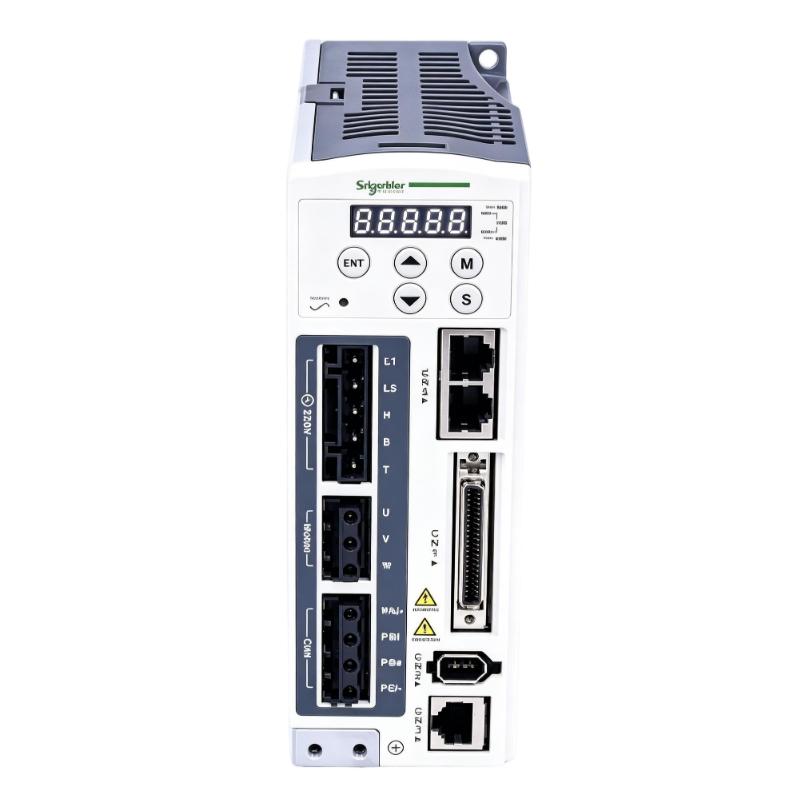

Schneider LXM23AU04M3X Motion Servo Drive

Industrial Applications and Motion Control Management

The Schneider LXM23AU04M3X Motion Servo Drive is a compact servo drive designed for Lexium 23 motion control systems. It provides accurate speed, position, and torque regulation for industrial automation equipment requiring stable and precise movement control.

The LXM23AU04M3X is widely used in applications where high positioning accuracy and reliable dynamic response are essential, including:

• Packaging and filling machinery
• Pick-and-place systems
• Electronic assembly equipment
• Printing and labeling machines
• Material handling systems
• Precision positioning platforms
• Automated manufacturing equipment

With its compact installation design, efficient servo control technology, and flexible integration capability, the LXM23AU04M3X helps machine builders improve motion accuracy, reduce system complexity, and achieve reliable automation performance.

Engineering Advantages and Performance Benefits

The Schneider LXM23AU04M3X Motion Servo Drive combines precision control technology with a compact industrial structure to support demanding motion applications.

High-Accuracy Servo Control
The drive provides precise regulation of motor position, speed, and torque, enabling smooth movement, repeatable positioning, and improved machine performance.

Compact Cabinet Integration
The narrow servo drive design allows efficient use of control cabinet space, making it suitable for compact automation equipment.

Fast Dynamic Response
Advanced servo control functions support quick acceleration and deceleration, helping machines maintain stable operation during high-speed motion cycles.

Flexible Automation Connectivity
The LXM23AU04M3X supports industrial communication integration, allowing coordinated operation with PLC systems, motion controllers, and automation networks.

Reliable Machine Performance
Designed for continuous industrial operation, the servo drive provides stable control performance for OEM equipment and precision automation applications.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider LXM23AU04M3X?
A: The LXM23AU04M3X controls servo motors by managing position, speed, and torque commands in industrial motion systems.

Q2: What applications are suitable for this servo drive?
A: It is suitable for precision automation equipment such as packaging machines, assembly systems, and positioning mechanisms.

Q3: Why does the servo motor fail to start?
A: Possible causes include incorrect wiring, disabled drive status, incorrect parameters, feedback problems, or insufficient power supply.

Q4: How can servo positioning errors be corrected?
A: Check motor feedback signals, mechanical alignment, servo tuning parameters, load conditions, and motion settings.

Q5: What causes overcurrent faults in the servo drive?
A: Possible causes include excessive load torque, motor cable faults, incorrect acceleration settings, or improper motor parameters.

Q6: Why does the motor vibrate during operation?
A: Possible causes include incorrect tuning, mechanical resonance, unstable feedback signals, or improper load matching.

Q7: How can communication faults be diagnosed?
A: Verify communication settings, network wiring, device addresses, and controller configuration parameters.

Q8: What causes the servo drive to overheat?
A: Common causes include poor ventilation, excessive operating load, high ambient temperature, or improper installation.

Q9: How can motion accuracy be improved?
A: Optimize servo parameters, reduce mechanical backlash, verify feedback performance, and adjust motion profiles.

Q10: What should be checked before replacing the servo drive?
A: Confirm fault history, motor compatibility, wiring conditions, parameter settings, and system power requirements before replacement.
