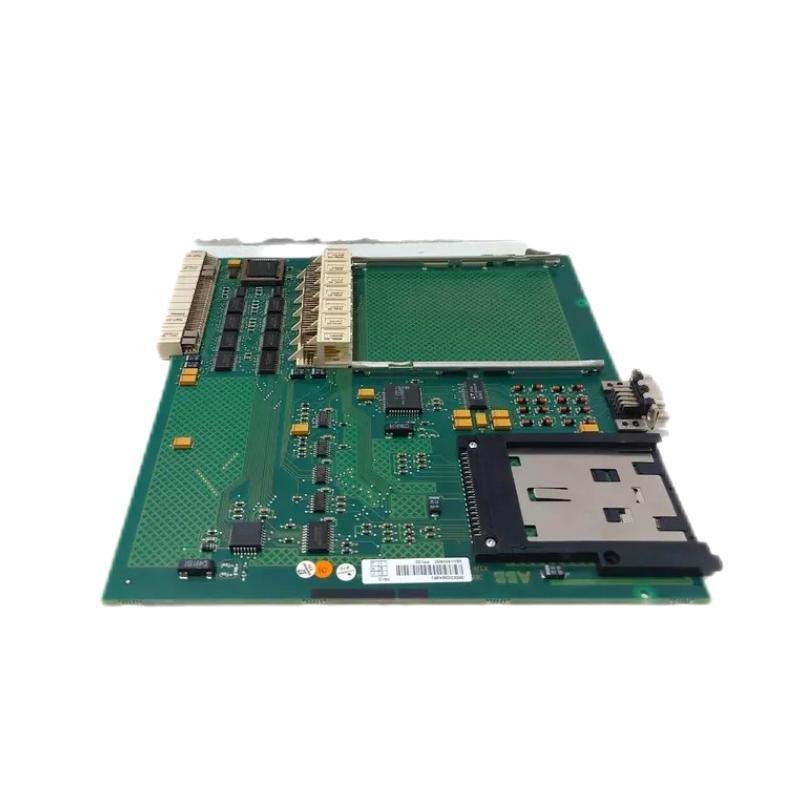

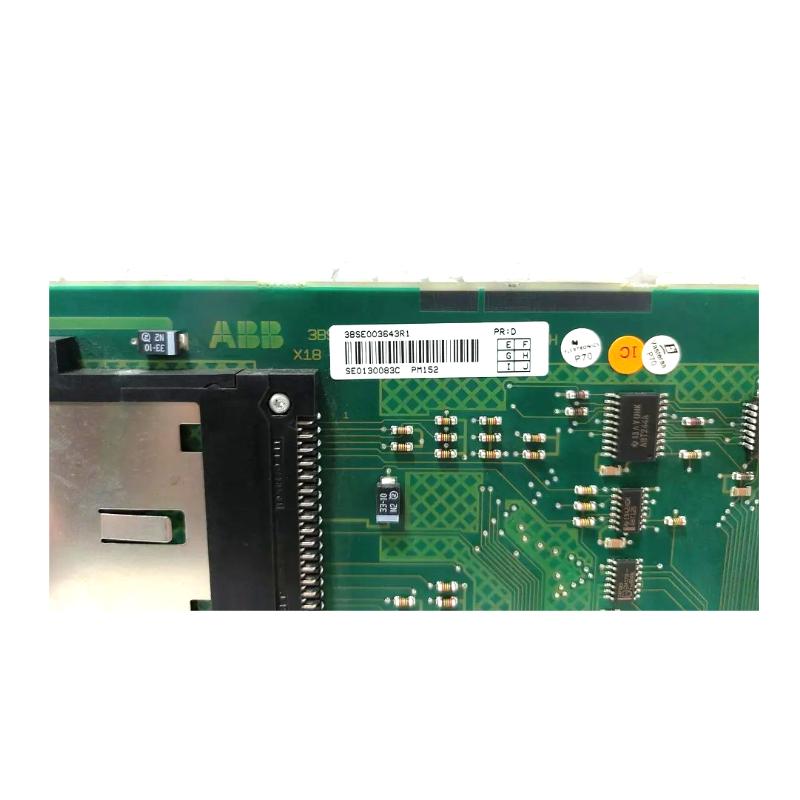

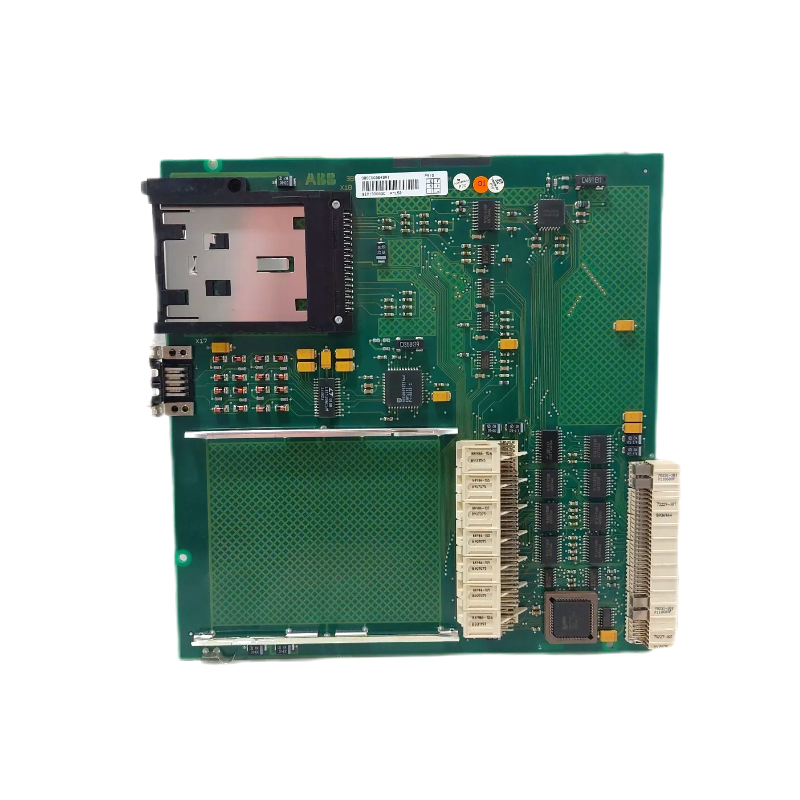

The ABB PM152 series delivers cutting-edge control capabilities with the PM152 CPU Module, a robust and flexible solution designed to meet the demands of modern industrial automation. With its powerful processing capabilities, extensive connectivity options, and ease of integration, the PM152 CPU Module is ideal for managing complex automation systems across various industries. Whether you are controlling manufacturing processes, monitoring energy consumption, or managing sophisticated building systems, the PM152 offers optimal performance and scalability to support your operations now and into the future.

Technical Specifications

Model Type: PM152 CPU Module
Dimensions: 185 mm x 140 mm x 40 mm
Weight: 0.75 kg
Voltage Rating: 24 V DC
Current Consumption: 300 mA (maximum)
Operating Temperature Range: -10°C to 75°C
Mounting Type: DIN Rail Mountable
Ports: 2 x Ethernet, 1 x RS232, 1 x USB
LED Indicators: Power, Communication, Fault, System Status
Processor Type: 32-bit ARM Cortex-A15
Memory: 16 GB onboard storage, 2 GB RAM

Recommended Related Models

To enhance your ABB PM152 CPU Module, consider integrating the following related modules:

PM152 Power Supply Module: Ensures stable and reliable power to the system, maintaining performance even under load.
PM152 Communication Module: Expands communication capabilities, supporting industrial protocols such as Modbus, Profibus, and Ethernet/IP.
PM152 Expansion I/O Module: Increases input and output options to accommodate more complex systems and diverse automation needs.

Popular Allen Bradley Models

For users seeking to expand their control systems, Allen Bradley provides a variety of solutions that complement the PM152 series. Popular models include:

Allen Bradley ControlLogix: Known for its scalability and high-speed processing, ideal for complex systems that require extensive control.
Allen Bradley CompactLogix: A versatile controller designed for medium-sized automation systems, offering flexibility and easy expansion.
Allen Bradley 1756-L83E ControlLogix Processor: Offers exceptional processing capabilities for large-scale automation tasks, ideal for mission-critical applications.

Applications

The ABB PM152 CPU Module is perfect for a variety of industrial and commercial applications, delivering reliability and performance across diverse sectors. Common applications include:

Manufacturing Automation: Control robotic systems, production lines, and machinery with precision and efficiency, improving productivity.
Energy Management: Monitor and optimize energy usage in industrial plants, helping to reduce operational costs and carbon footprints.
Process Control: Used in industries such as chemicals, pharmaceuticals, and food production for reliable process monitoring and control.
Building Automation: Manage systems like HVAC, lighting, and security for efficient building management and enhanced user comfort.

Advantages

The ABB PM152 CPU Module offers a range of benefits that make it a superior choice for industrial automation:

Superior Reliability: Designed for high-performance environments, the PM152 ensures maximum uptime and robust operation.
Highly Scalable: Easily expand the system by adding I/O and communication modules to meet the evolving needs of your business.
Flexible Connectivity: Supports a broad range of industrial protocols for seamless communication with other automation systems.
User-Friendly Integration: With intuitive setup and easy configuration, the PM152 simplifies integration into existing systems, saving valuable time and reducing costs.
Power Efficiency: Designed with energy savings in mind, the PM152 reduces operational costs while maintaining high performance.
Compact and Durable: Its space-saving design allows it to fit into tight control panels, while its rugged build ensures long-term reliability in harsh industrial environments.
Wide Operating Range: Operates effectively in temperatures ranging from -10°C to 75°C, making it ideal for challenging environments.
Low Maintenance: The PM152's durable construction and low maintenance requirements ensure long-term reliability with minimal service interruptions.
Versatile Use Cases: The PM152 is adaptable for use in a variety of industries, from manufacturing to energy management and building systems.

Technical FAQs

What is the maximum power consumption of the PM152 CPU Module?
The PM152 CPU Module consumes a maximum of 300 mA at 24 V DC.
What are the key communication protocols supported by the PM152?
The PM152 supports Modbus, Profibus, Ethernet/IP, and other industrial communication protocols.
What is the temperature range for the PM152 CPU Module?
The PM152 operates in temperatures from -10°C to 75°C, making it suitable for a variety of industrial environments.
How is the PM152 CPU Module mounted?
The PM152 is designed for easy DIN rail mounting, ensuring secure and straightforward installation.
How much memory does the PM152 CPU Module have?
The PM152 features 16 GB of onboard storage and 2 GB of RAM, providing ample capacity for high-performance applications.
Can the PM152 be expanded with additional modules?
Yes, you can expand the PM152 with I/O and communication modules to meet growing system demands.
Does the PM152 include LED indicators?
Yes, the PM152 features LED indicators for power, communication status, fault detection, and overall system health.
What are the physical dimensions of the PM152 CPU Module?
The PM152 measures 185 mm x 140 mm x 40 mm, making it a compact solution for space-constrained installations.
Can the PM152 CPU Module be integrated with other Allen Bradley systems?
Yes, the PM152 integrates easily with other Allen Bradley controllers such as ControlLogix and CompactLogix.
How easy is it to configure the PM152 CPU Module?
The PM152 features an intuitive configuration process, allowing for quick setup and integration into existing automation systems.
