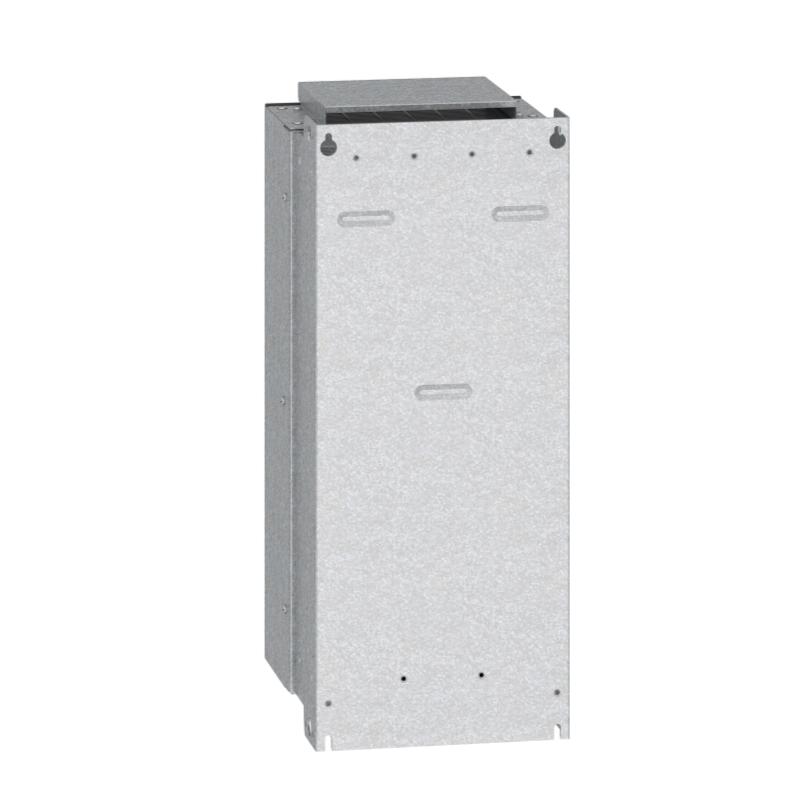

Schneider VW3A5302 Output dv/dt Filter for Altivar Variable Speed Drives
Schneider VW3A5302 Output dv/dt Filter for Altivar Variable Speed Drives
0.0
Points
Brand:Schneider PLC Item No.:VW3A5302 Product Origin:France Product Dimensions:202 × 21 × 261 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider VW3A5302 Output dv/dt Filter is a passive output filter designed for Altivar Process ATV600 and ATV900 variable speed drives. Installed between the drive and the motor, it limits PWM voltage rise time, suppresses reflected-wave overvoltage, and reduces electromagnetic interference. These features help protect motor insulation, improve system reliability, and allow the use of longer motor cables in demanding industrial applications.
The VW3A5302 is particularly suited for industrial automation systems where motors are located at a significant distance from the drive. Its robust IP20 construction and compatibility with Altivar Process drives make it an ideal solution for OEMs, panel builders, and system integrators seeking enhanced motor protection and improved EMC performance.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
VW3A5302
Product Family
Altivar Process
Product Type
Output dv/dt Filter
Rated Current
15 A
Compatible Drive Power
1.5–5.5 kW
Compatible Drive Series
Altivar Process ATV600 / ATV900
Installation Position
Between Drive and Motor
Maximum Output Frequency
100 Hz
Protection Rating
IP20
Power Loss
Approx. 38 W
Approximate Weight
12 kg
Recommended Companion Models
Model
Product Name
Schneider ATV630U15N4
Altivar Process ATV630 Variable Speed Drive
Schneider ATV630U55N4
Altivar Process ATV630 Variable Speed Drive
Schneider ATV930U15N4
Altivar Process ATV930 Variable Speed Drive
Schneider VW3A1101
Graphic Display Terminal
Frequently Selected Alternatives
Model
Product Name
Schneider VW3A5301
Output dv/dt Filter
Schneider VW3A5303
Output dv/dt Filter
Schneider VW3A5304
Output dv/dt Filter
Schneider VW3A5402
Sinus Filter for Altivar Drives
Where It Excels in Industrial Use
• Motor Protection with Long Cable Runs
The Schneider VW3A5302 is an output dv/dt filter designed for Altivar Process variable speed drives. Installed between the drive and the motor, it limits voltage rise time (dv/dt) and reduces voltage peaks at the motor terminals, making it ideal for installations with long motor cables.
• Reduced Electromagnetic Interference
The filter suppresses high-frequency interference generated by PWM inverter outputs, improving electromagnetic compatibility (EMC) and reducing electrical noise in industrial automation systems.
• Improved Motor Reliability
By minimizing reflected wave overvoltage and reducing insulation stress, the VW3A5302 helps extend motor service life, especially when using standard motors that are not specifically designed for inverter duty.
• Industrial Automation Applications
Suitable for pumps, fans, conveyors, compressors, packaging machinery, material handling systems, HVAC equipment, and process automation installations using Altivar Process drives.
Key Strengths at a Glance
• Output dv/dt Filter
Designed specifically to reduce the impact of high dv/dt switching generated by variable speed drives.
• 15 A Rated Current
Supports variable speed drives with a continuous output current of 15 A.
• Supports Longer Motor Cables
Allows motor cable lengths beyond the standard maximum permitted by the drive while maintaining reliable motor operation.
• Compact IP20 Design
Designed for installation inside industrial control cabinets with an IP20 protection rating.
Technical FAQs
1. What is the Schneider VW3A5302?
The VW3A5302 is an output dv/dt filter for Schneider Electric Altivar Process ATV600 and ATV900 variable speed drives.
2. What is its primary function?
It limits voltage rise time (dv/dt), reduces motor terminal overvoltage, suppresses electrical interference, and protects motor insulation.
3. What are its electrical ratings?
Rated current: 15 A
Drive power range: 1.5–5.5 kW
Maximum drive output frequency: 100 Hz
Protection rating: IP20
4. Where is the filter installed?
It is installed between the variable speed drive and the motor as an output filter.
5. Which drive families are compatible?
Compatible with Schneider Electric Altivar Process ATV600 and ATV900 variable speed drives within the supported power range.
6. Why use a dv/dt filter?
A dv/dt filter helps:
Reduce motor overvoltage
Protect motor insulation
Lower bearing current risk
Reduce electromagnetic interference
Support longer motor cable installations
7. Does it require an external power supply?
No. The VW3A5302 is a passive output filter and requires no auxiliary power source.
8. What is its protection rating?
The filter has an IP20 enclosure rating and is intended for installation inside an electrical enclosure.
9. What is the approximate product weight?
The filter weighs approximately 12 kg.
10. What are the typical applications?
Typical applications include industrial pumps, fans, conveyors, compressors, packaging equipment, water treatment systems, HVAC systems, and process automation installations requiring long motor cable runs.
