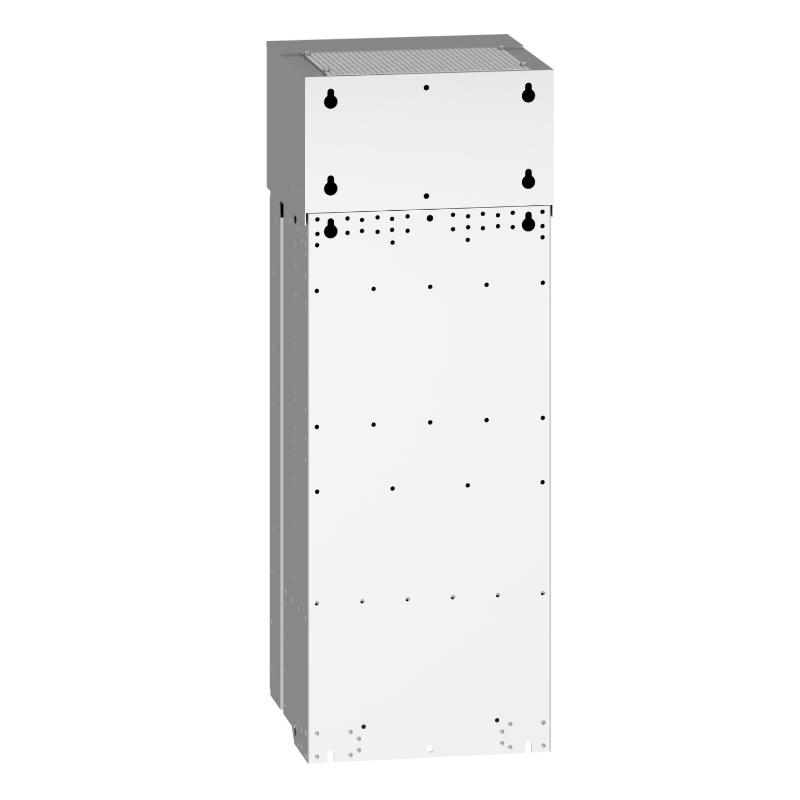

Schneider VW3A5306 Output dv/dt Filter for Altivar Variable Speed Drives
Schneider VW3A5306 Output dv/dt Filter for Altivar Variable Speed Drives
0.0
Points
Brand:Schneider PLC Item No.:VW3A5306 Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Schneider VW3A5306 Output dv/dt Filter is a heavy-duty passive output filter engineered for Schneider Electric Altivar Process ATV600, ATV900, Altivar Easy 610, and selected ATV340 variable speed drives. Rated at 180 A, it is designed for applications with drive power from 30 kW to 90 kW. Installed between the drive and the motor, it reduces PWM switching voltage stress, minimizes reflected-wave overvoltage, lowers leakage current, and enhances motor protection.
Its robust industrial construction, IP00 enclosure, and high-current copper bar terminals make the VW3A5306 suitable for demanding industrial environments. It is an excellent choice for OEM machine builders, panel manufacturers, and system integrators requiring improved motor reliability, enhanced EMC performance, and support for extended motor cable lengths.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
VW3A5306
Product Family
Altivar
Product Type
Output dv/dt Filter
Rated Current
180 A
Compatible Drive Power
30–90 kW
Compatible Drive Series
Altivar Process ATV600, ATV900, Altivar Easy 610, selected ATV340
Installation Position
Between Drive and Motor
Maximum Output Frequency
100 Hz
Electrical Connection
Copper Bar M10
Protection Rating
IP00
Approximate Weight
20.5–22 kg
Recommended Companion Models
Model
Product Name
Schneider ATV630D30N4
Altivar Process ATV630 Variable Speed Drive
Schneider ATV930D45N4
Altivar Process ATV930 Variable Speed Drive
Schneider ATV340D45N4
Altivar Machine ATV340 Variable Speed Drive
Schneider VW3A1101
Graphic Display Terminal
Frequently Selected Alternatives
Model
Product Name
Schneider VW3A5304
Output dv/dt Filter
Schneider VW3A5305
Output dv/dt Filter
Schneider VW3A5307
Output dv/dt Filter
Schneider VW3A5406
Sinus Filter for Altivar Drives
Where It Excels in Industrial Use
• Protection for Long Motor Cable Installations
The Schneider VW3A5306 is an output dv/dt filter designed for Altivar variable speed drives. Installed between the drive and motor, it limits voltage rise time (dv/dt), suppresses reflected-wave overvoltage, and protects motor insulation in applications with long motor cable lengths.
• Reduced Electromagnetic Interference
The filter reduces high-frequency switching noise generated by PWM inverter outputs, helping improve electromagnetic compatibility (EMC) and minimizing interference with nearby industrial equipment.
• Enhanced Motor Reliability
By reducing voltage peaks at the motor terminals and lowering leakage currents, the VW3A5306 helps extend motor service life and is especially beneficial for standard motors operating on inverter power.
• Industrial Automation Applications
Suitable for pumps, fans, compressors, conveyors, mixers, HVAC systems, water treatment equipment, mining machinery, and other industrial automation systems utilizing high-power Altivar drives.
Key Strengths at a Glance
• High Current Capacity
Supports a continuous rated current of 180 A, making it suitable for medium- and high-power drive applications.
• Supports 30–90 kW Drives
Designed for Altivar drives with motor power ratings from 30 kW to 90 kW.
• Reduces Motor Overvoltage
Limits voltage overshoot at motor terminals, helping protect winding insulation and reducing premature motor failures.
• Industrial Cabinet Installation
Features an IP00 enclosure rating and heavy-duty copper bar M10 power connections for installation inside electrical control cabinets.
Technical FAQs
1. What is the Schneider VW3A5306?
The VW3A5306 is an output dv/dt filter designed for Schneider Electric Altivar variable speed drives.
2. What is its primary function?
It reduces PWM voltage rise time, suppresses reflected-wave overvoltage, lowers leakage current, and protects motor insulation.
3. What are its electrical ratings?
Rated current: 180 A
Compatible drive power: 30–90 kW
Maximum output frequency: 100 Hz
Protection rating: IP00
4. Where is the filter installed?
It is installed between the variable speed drive and the motor as an output filter.
5. Which drive families are compatible?
Compatible with Schneider Electric:
Altivar Process ATV600
Altivar Process ATV900
Altivar Easy 610
Altivar Machine ATV340 (supported models)
6. Why use a dv/dt filter?
It helps:
Reduce motor terminal overvoltage
Protect motor insulation
Reduce leakage current
Improve EMC performance
Support longer motor cable installations
7. Does it require an external power supply?
No. The VW3A5306 is a passive filter and requires no auxiliary power source.
8. What is its protection rating?
The filter has an IP00 protection rating and is intended for installation inside an electrical enclosure.
9. What is the approximate product weight?
The product weighs approximately 20.5–22 kg, depending on documentation and packaging.
10. What are the typical applications?
Typical applications include industrial pumps, fans, conveyors, compressors, mining equipment, process plants, water treatment systems, HVAC installations, and other high-power motor control systems requiring long motor cable runs.
