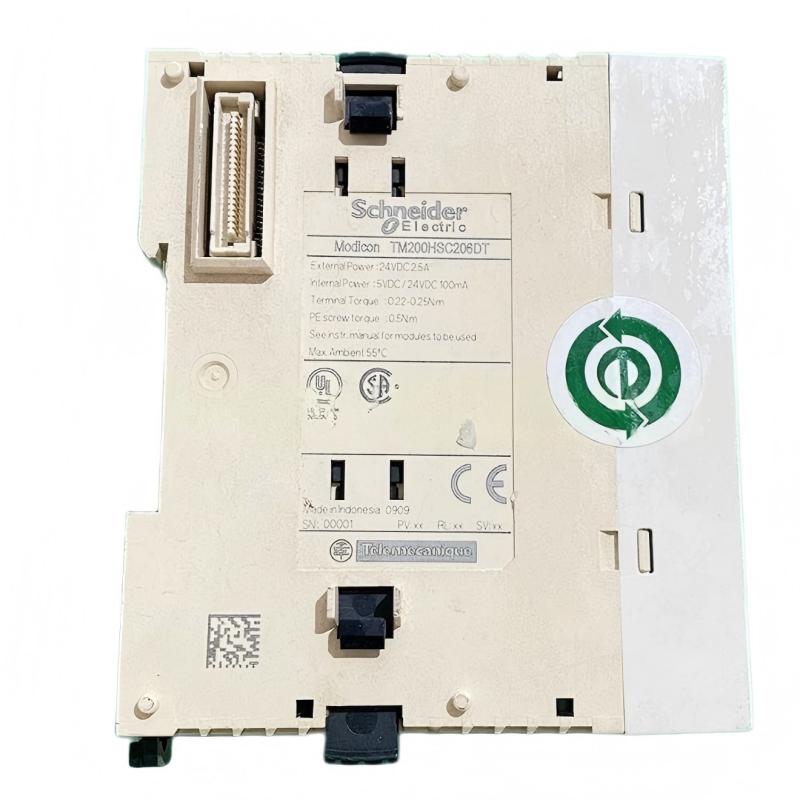

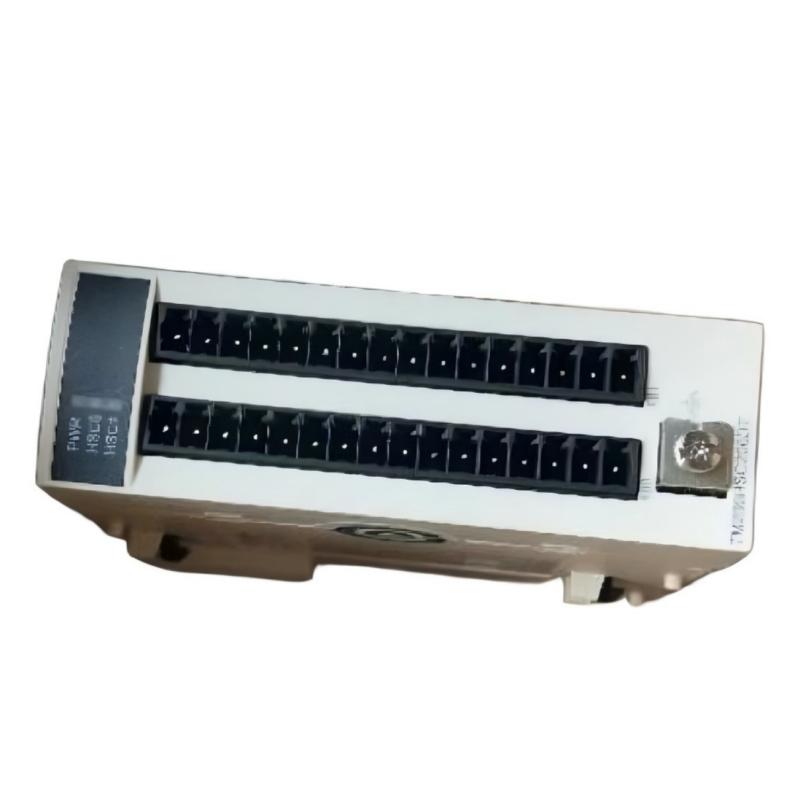

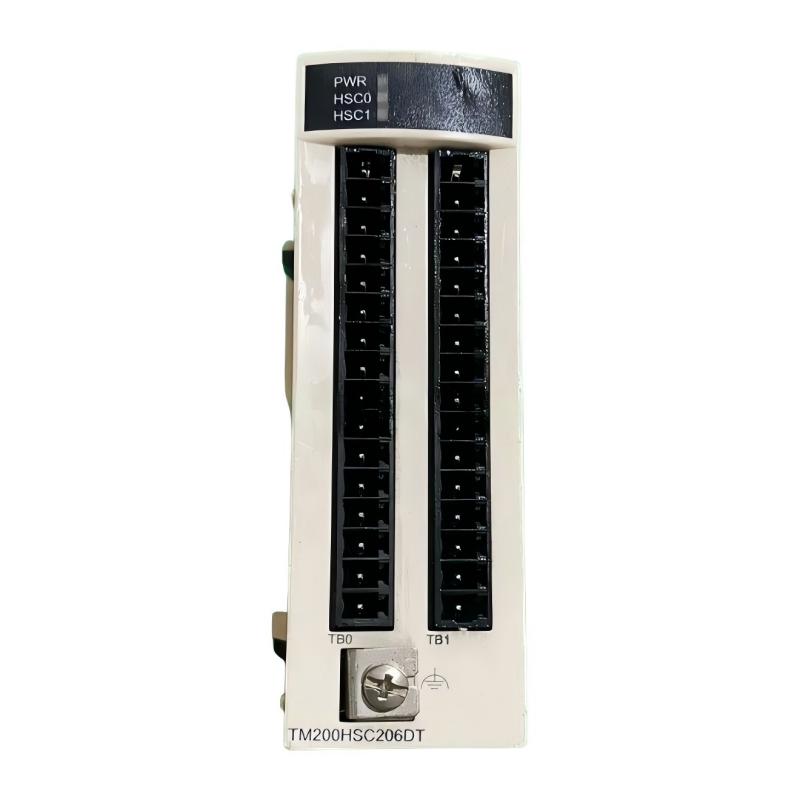

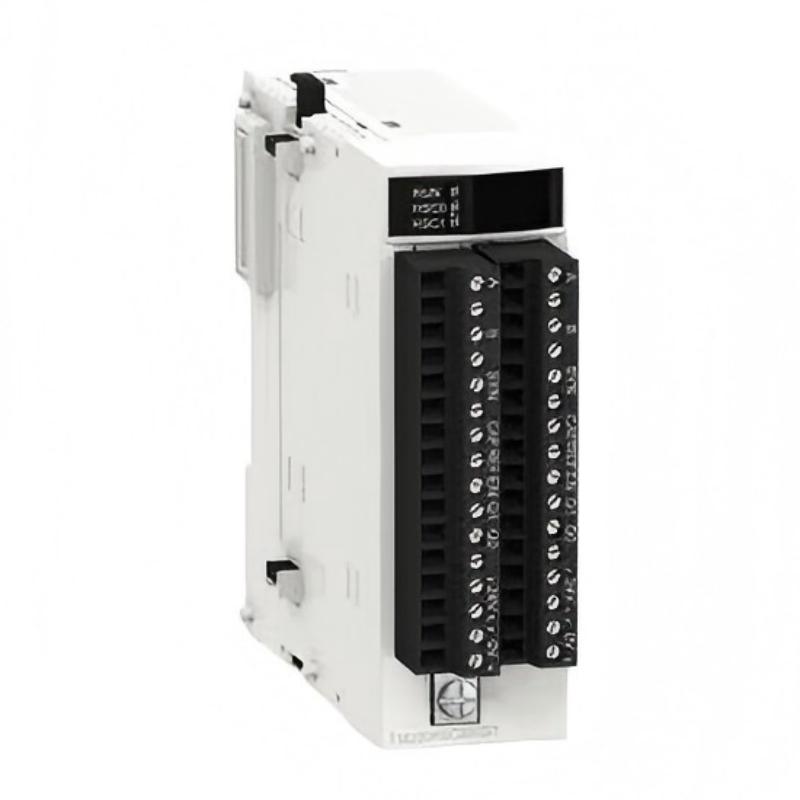

Schneider TM200HSC206DT High-Speed Counter Module

Industrial Applications and High-Speed Signal Processing

The Schneider TM200HSC206DT High-Speed Counter Module is a dedicated PLC expansion module designed for precise pulse counting, encoder feedback processing, and high-frequency signal measurement in industrial automation systems. It extends standard PLC capabilities by providing specialized counting functions for applications that require fast and accurate signal acquisition.

The TM200HSC206DT is suitable for automation systems requiring reliable speed detection, position monitoring, and event counting, including:

• Packaging and labeling machines
• Conveyor tracking systems
• Rotary encoder applications
• Material handling equipment
• Automated assembly systems
• Production counting systems
• Machine synchronization applications

With its high-speed counting capability, configurable operating modes, and compact industrial design, the TM200HSC206DT helps engineers improve machine accuracy, optimize production processes, and achieve faster automation response.

Engineering Advantages and Performance Benefits

The Schneider TM200HSC206DT High-Speed Counter Module provides advanced counting functionality and reliable signal processing for demanding automation applications.

Dedicated High-Speed Counting Performance
The module uses dedicated hardware processing to handle high-frequency pulse signals, reducing the burden on the main PLC scan cycle and improving counting accuracy during fast machine operation.

Flexible Counting Functions
The TM200HSC206DT supports multiple counting modes, allowing users to configure the module for different industrial requirements such as incremental counting, frequency measurement, speed monitoring, and position tracking.

Encoder Signal Processing Capability
The module can process incremental encoder signals, making it suitable for applications requiring accurate position feedback, rotary measurement, and synchronized machine movement.

Fast Response Control Function
The high-speed processing capability enables quick response to counter events, helping improve machine synchronization and production efficiency.

Compact PLC Expansion Design
The compact module structure allows easy integration into existing control cabinets while expanding PLC functionality without increasing system complexity.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider TM200HSC206DT?
A: The TM200HSC206DT is a high-speed counter module used for processing pulse signals, encoder feedback, and high-frequency counting tasks.

Q2: What devices can be connected to the TM200HSC206DT?
A: The module can be connected to pulse sensors, proximity sensors, and incremental encoders for industrial measurement and counting applications.

Q3: Why does the counter value not increase during operation?
A: Possible causes include incorrect input wiring, wrong signal type selection, disabled counter configuration, or sensor failure.

Q4: Why are counting results inaccurate?
A: Possible causes include electrical interference, poor grounding, incorrect parameter settings, unstable input signals, or improper encoder installation.

Q5: How can encoder counting direction errors be corrected?
A: Check the encoder A/B phase wiring, verify counting mode settings, and confirm that the signal sequence matches the application requirements.

Q6: Why does the module miss pulse signals at high speed?
A: Possible causes include excessive input frequency, signal noise, poor cable shielding, incorrect wiring, or unsuitable sensor response time.

Q7: Can the TM200HSC206DT perform frequency measurement?
A: Yes, the module supports frequency-related measurement functions for speed monitoring and pulse rate detection.

Q8: Why is the module not recognized by the PLC system?
A: Possible causes include incorrect module installation, expansion bus connection problems, configuration errors, or incorrect software settings.

Q9: Is the TM200HSC206DT suitable for position monitoring applications?
A: Yes, it can process encoder signals and pulse feedback for position tracking and machine synchronization tasks.

Q10: How can the service life of the TM200HSC206DT be improved?
A: Proper wiring, electrical protection, stable operating conditions, regular inspection, and correct configuration help maintain reliable operation.
