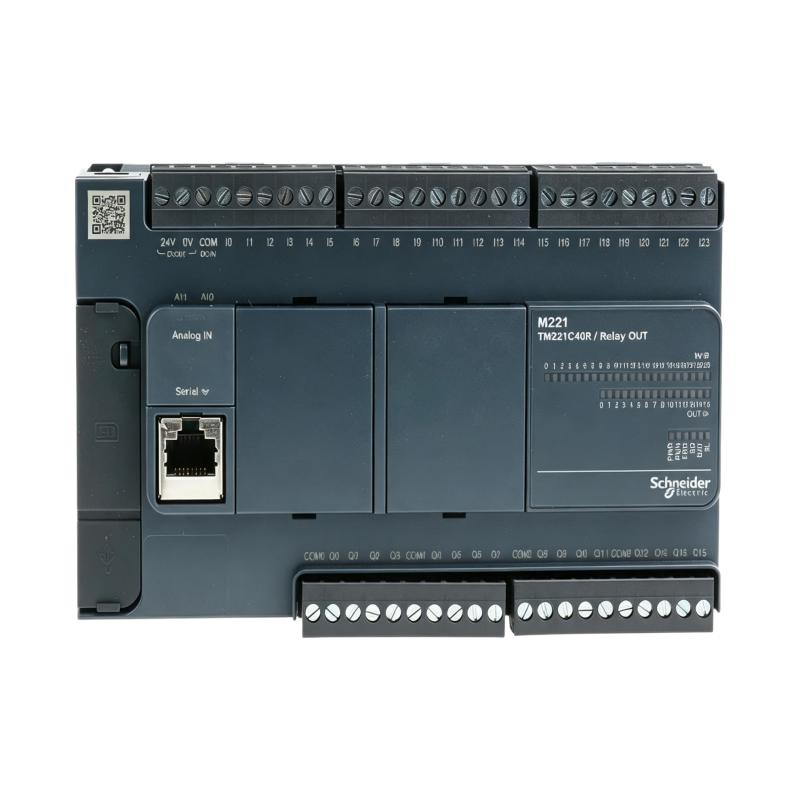

Schneider TM221C40R Modicon M221 Logic Controller

Industrial Applications and Intelligent Machine Automation

The Schneider TM221C40R Modicon M221 Logic Controller is a compact programmable logic controller designed for industrial automation systems requiring reliable processing, flexible I/O management, and efficient machine control. It provides integrated PLC processing, digital signal handling, relay output control, communication capability, and expansion support in a compact industrial housing.

The TM221C40R is suitable for a wide range of automation applications, including:

• Packaging and filling machines
• Conveyor and material handling systems
• Automated assembly equipment
• Production line control systems
• OEM machinery applications
• Pump and motor control systems
• Industrial monitoring equipment

With its 40 I/O configuration, relay output design, communication functions, and expansion capability, the TM221C40R provides engineers with a practical PLC platform for developing reliable, scalable, and efficient automation solutions.

Engineering Advantages and Performance Benefits

The Schneider TM221C40R Modicon M221 Logic Controller combines compact hardware design with powerful PLC functionality to support modern industrial control requirements.

Efficient PLC Processing Platform
The TM221C40R integrates CPU processing, digital I/O management, memory resources, communication interfaces, and control functions into a single controller, reducing system complexity and simplifying cabinet installation.

Reliable Relay Output Control
The relay output structure provides flexible switching performance for industrial devices such as contactors, valves, motors, indicators, and other automation components.

Large I/O Capacity for Machine Applications
With 40 integrated I/O points, the controller can manage multiple sensors and actuators, making it suitable for medium-scale machine automation systems.

Integrated Analog Signal Handling
Built-in analog input capability allows connection with industrial sensors and measurement devices for monitoring and process control applications.

Flexible Communication Capability
The TM221C40R supports industrial communication functions, allowing convenient connection with HMIs, programming tools, and other automation devices.

Expandable Automation Architecture
The controller supports compatible expansion modules, enabling users to increase system capacity and adapt the automation solution for future upgrades.

Simplified Programming and Maintenance
The M221 platform provides efficient programming functions, helping engineers create structured applications and reduce commissioning and troubleshooting time.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider TM221C40R?
A: The TM221C40R is a compact PLC controller used to execute automation programs, process input signals, and control industrial equipment.

Q2: What type of outputs does the TM221C40R provide?
A: The controller uses relay outputs, providing flexible switching control for different industrial loads.

Q3: Why does the TM221C40R fail to power on?
A: Possible causes include incorrect power wiring, unstable supply voltage, loose terminals, or internal controller faults.

Q4: Why are relay outputs not switching correctly?
A: Possible causes include incorrect PLC logic, output configuration errors, wiring issues, or external equipment problems.

Q5: How can analog input problems be diagnosed?
A: Check sensor wiring, signal configuration, grounding conditions, and PLC monitoring values to identify incorrect input signals.

Q6: Why does the controller lose communication with external devices?
A: Check communication cables, addressing settings, interface configuration, and network parameters.

Q7: What causes digital input signals to be detected incorrectly?
A: Possible causes include faulty sensors, incorrect wiring, unstable voltage levels, or incorrect input configuration.

Q8: Can the TM221C40R support additional expansion modules?
A: Yes, compatible expansion modules can be connected to increase I/O capacity and extend system functionality.

Q9: Why does the PLC program run slower than expected?
A: Possible causes include complex application logic, excessive communication tasks, or inefficient programming structures.

Q10: How can the operating reliability of the TM221C40R be improved?
A: Proper installation, stable power supply, regular maintenance, environmental protection, and software backups help maintain reliable operation.
