Brand:Schneider PLC Item No.:TM221C40T Product Origin:France Product Dimensions:90 × 70 × 160 mm Product Weight:0.456 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

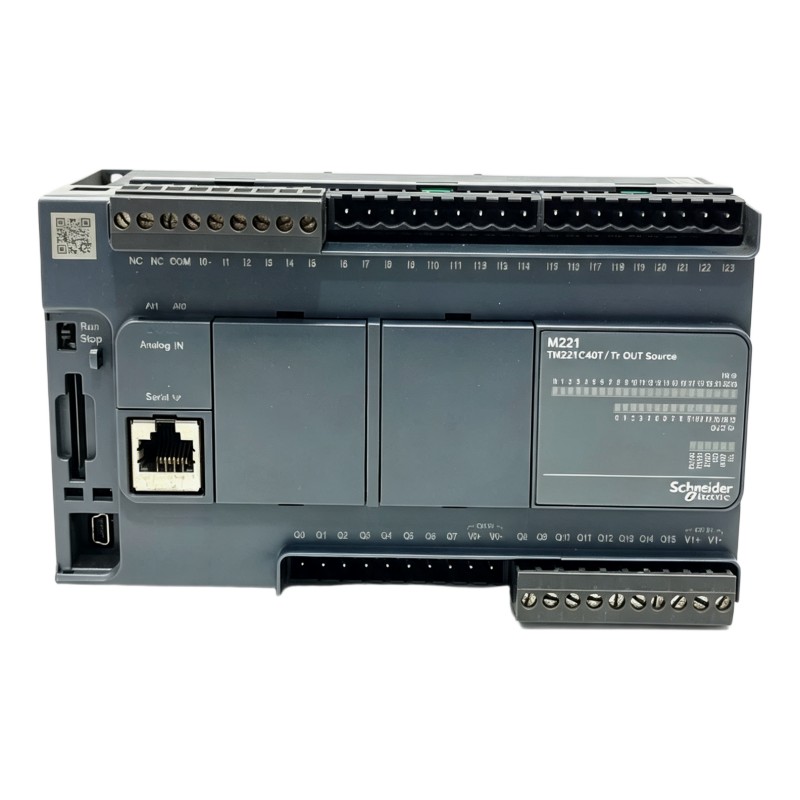

The Schneider TM221C40T Modicon M221 Logic Controller is a compact automation controller designed for machine builders and industrial users requiring fast response, reliable PLC performance, and flexible system expansion.
The M221 series provides an efficient control platform with integrated digital I/O, high-speed processing capability, communication functions, and expansion support. The TM221C40T model is optimized for applications where transistor output speed, compact installation, and dependable control performance are essential.
The controller is widely used in OEM machinery, automated production systems, and industrial control applications. Its combination of high-speed outputs, flexible configuration, and compact design makes it an effective solution for modern PLC-based automation projects.
Technical Specifications and Product Data
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
TM221C40T
Product Type
Modicon M221 Logic Controller
Controller Type
Compact PLC
Rated Supply Voltage
24 V DC
Total Digital I/O
40 points
Digital Inputs
24 inputs
High-Speed Inputs
Integrated high-speed input channels
Analog Inputs
2 analog inputs
Digital Outputs
16 transistor outputs
Output Type
PNP Transistor Output
Output Voltage
24 V DC
High-Speed Output Function
Supported
Communication Interface
Ethernet and Serial Communication
Programming Port
USB Port
Expansion Capability
Supports Modicon TM3 Expansion Modules
Mounting Type
DIN Rail Mounting
Application
Industrial Machine Automation Control
Dimensions
90 × 70 × 160 mm
Weight
0.46 kg (1.01 lb)
Recommended Related Models for PLC Automation Applications
Model
Product Type
TM221C40T
Modicon M221 Transistor Output Controller
TM221C40R
Modicon M221 Relay Output Controller
TM221CE40T
Modicon M221 Ethernet Transistor Controller
TM221CE40R
Modicon M221 Ethernet Relay Controller
TM221C24T
Modicon M221 Compact Transistor Controller
Popular Related Models and Alternative Solutions
Model
Product Type
TM241CE40T
Modicon M241 Logic Controller
TM241CE40R
Modicon M241 Logic Controller
TM251MESE
Modicon M251 Logic Controller
BMXP342020
Modicon M340 Processor Module
BMEP582040
Modicon M580 Processor Module
Industrial Applications and Intelligent Machine Automation
The Schneider TM221C40T Modicon M221 Logic Controller is a compact programmable logic controller designed for high-performance machine automation, industrial equipment control, and flexible PLC system integration. It combines powerful processing capability, transistor output control, digital signal management, communication functions, and expansion flexibility into a compact industrial controller.
The TM221C40T is suitable for automation systems that require fast switching response, accurate control execution, and reliable operation, including:
Packaging and filling machinery
Automated assembly equipment
Conveyor and sorting systems
Material handling applications
OEM machine solutions
Production line control systems
Industrial monitoring equipment
With 40 integrated I/O points, fast transistor output performance, high-speed signal processing capability, and expansion support, the TM221C40T provides engineers with an efficient PLC platform for developing responsive and scalable automation solutions.
Engineering Advantages and Performance Benefits
The Schneider TM221C40T Modicon M221 Logic Controller combines compact construction with advanced PLC functions to support modern industrial automation requirements.
Fast Transistor Output Performance
The TM221C40T uses transistor outputs designed for rapid switching operations, making it suitable for applications requiring precise timing control, pulse output, and fast actuator response.
Compact Integrated PLC Design
The controller integrates CPU processing, digital I/O control, communication functions, memory resources, and expansion capability into a single unit, helping reduce cabinet space and simplify system architecture.
High I/O Density for Machine Control
With 40 integrated I/O points, the controller can manage multiple sensors, actuators, and automation devices, making it suitable for medium-scale machine applications.
High-Speed Signal Processing Capability
Integrated high-speed inputs allow accurate processing of pulse signals from sensors and encoders, supporting applications such as counting, speed measurement, and synchronization control.
Flexible Communication Capability
The controller supports industrial communication functions, enabling convenient integration with HMIs, programming tools, and other automation devices.
Expandable System Architecture
The TM221C40T supports compatible expansion modules, allowing users to increase system capacity and customize automation solutions according to project requirements.
Efficient Programming and Maintenance
The M221 platform provides practical programming functions and diagnostic capabilities, helping engineers simplify commissioning, troubleshooting, and system maintenance.
Technical FAQs and Troubleshooting Guide
Q1: What is the main function of the Schneider TM221C40T?
A: The TM221C40T is a compact PLC controller used to execute automation programs, process industrial signals, and control machine operations.
Q2: What type of outputs does the TM221C40T provide?
A: The controller uses transistor outputs designed for fast switching and high-speed control applications.
Q3: Why does the TM221C40T fail to power on?
A: Possible causes include incorrect 24 V DC wiring, unstable power supply, loose terminals, or internal hardware faults.
Q4: Why are transistor outputs not operating correctly?
A: Possible causes include incorrect program logic, output configuration errors, wiring problems, or excessive load conditions.
Q5: How can analog input problems be diagnosed?
A: Check sensor wiring, signal range settings, grounding conditions, input configuration, and PLC monitoring values.
Q6: Why does the controller lose communication with external devices?
A: Check communication cables, network settings, addressing parameters, and controller configuration.
Q7: What causes incorrect pulse counting results?
A: Possible causes include electrical interference, poor shielding, incorrect sensor installation, or improper high-speed input configuration.
Q8: Can the TM221C40T support additional expansion modules?
A: Yes, compatible expansion modules can be connected to increase I/O capacity and extend system functionality.
Q9: Why does the PLC program execute slower than expected?
A: Possible causes include complex application logic, excessive communication tasks, or inefficient programming structures.
Q10: How can the reliability of the TM221C40T be improved?
A: Proper installation, stable power supply, correct wiring, regular inspection, and software backup help maintain reliable long-term operation.
