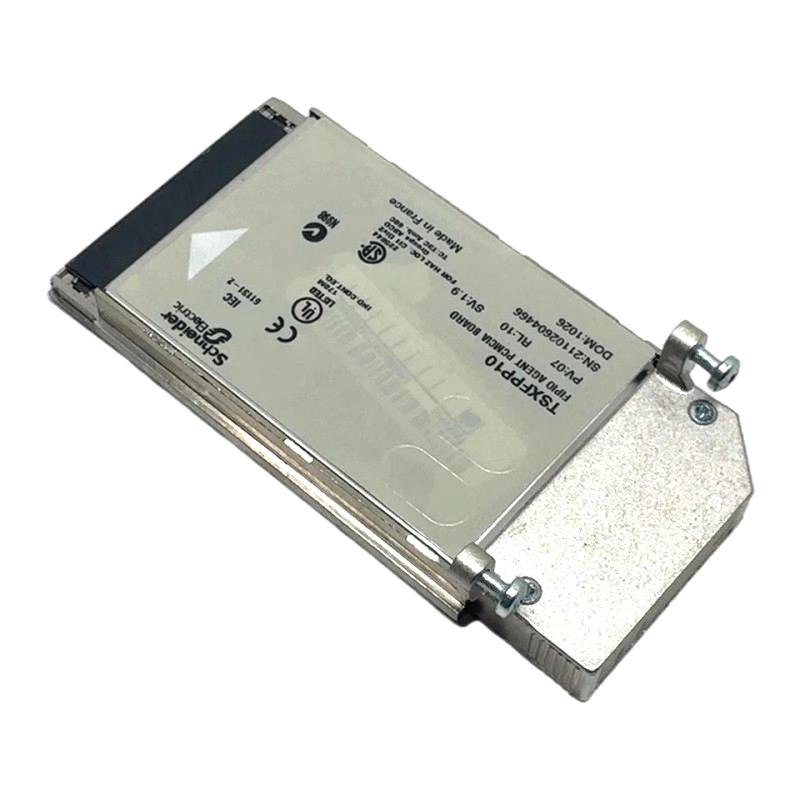

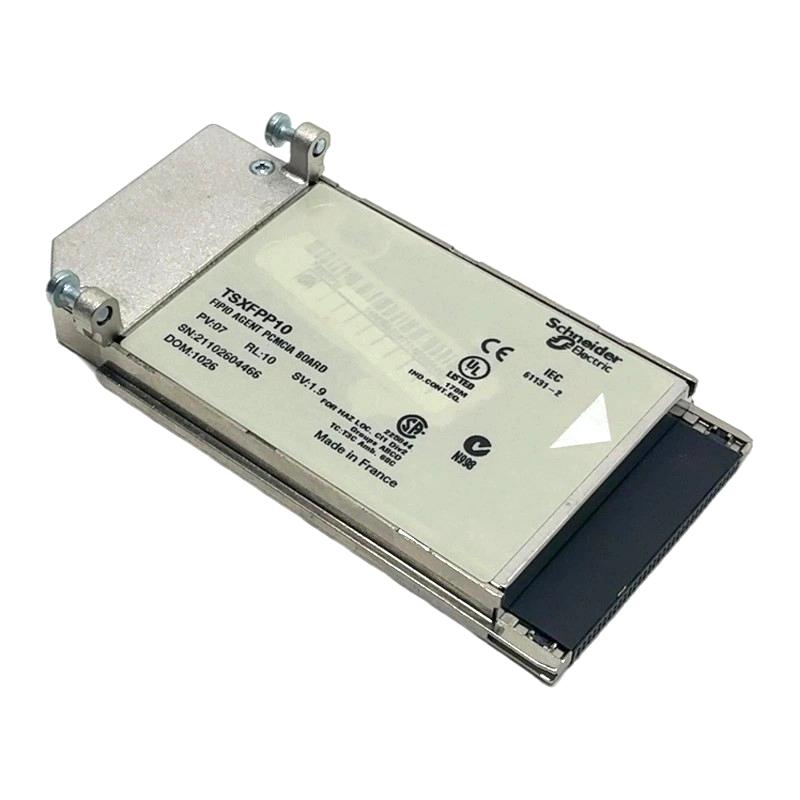

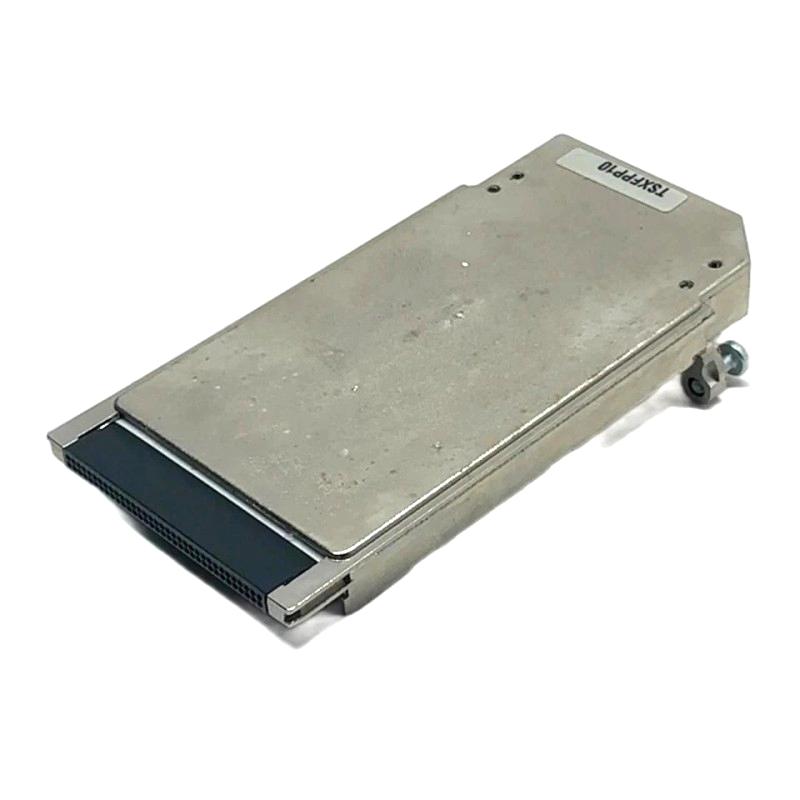

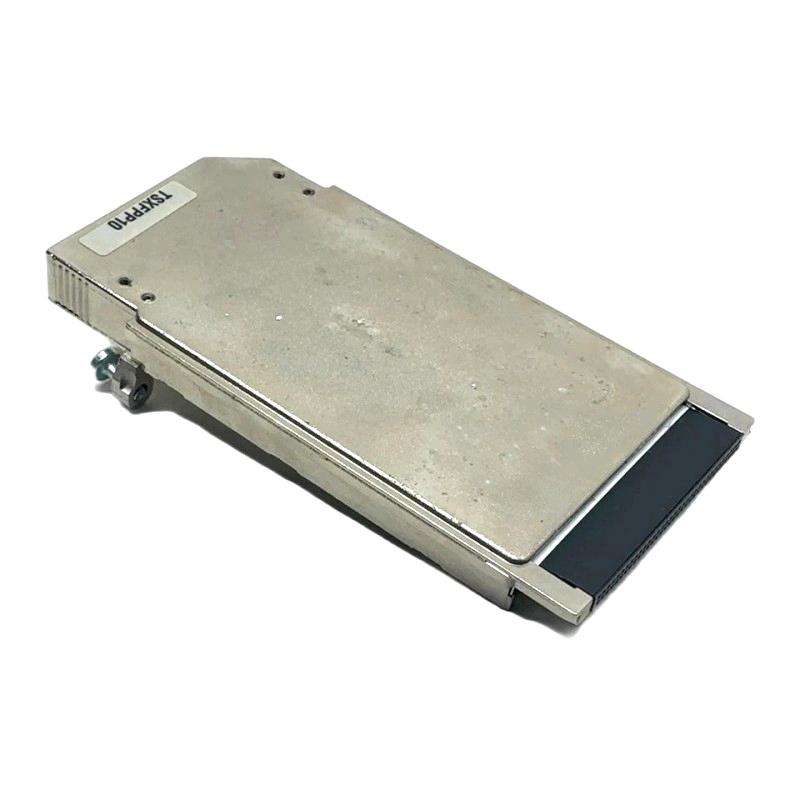

Schneider TSXFPP10 PCMCIA Card

Industrial Applications and FIPIO Network Communication

The Schneider TSXFPP10 FIPIO Agent PCMCIA Card is a communication interface designed for Modicon Premium and Atrium PLC platforms. It provides fieldbus connectivity between PLC processors and FIPIO network devices, enabling reliable communication with distributed I/O modules, operator terminals, and industrial automation equipment.

The TSXFPP10 is suitable for industrial systems requiring stable fieldbus communication and distributed control, including:

• PLC distributed I/O networks
• Machine automation systems
• Factory equipment communication
• Industrial control stations
• Operator interface integration
• Process monitoring systems
• Existing Modicon Premium network expansion

By adding FIPIO communication capability to compatible PLC systems, the TSXFPP10 helps engineers build efficient distributed automation architectures while maintaining reliable data exchange between controllers and field devices.

Engineering Advantages and Performance Benefits

The Schneider TSXFPP10 FIPIO Agent PCMCIA Card provides flexible communication expansion and dependable fieldbus performance for industrial automation applications.

Dedicated FIPIO Communication Interface
The TSXFPP10 provides direct connection to FIPIO networks, allowing PLC processors to communicate with remote field devices and distributed automation components.

Compact PCMCIA Communication Design
The card-style structure provides a space-saving communication solution, making it suitable for PLC systems where cabinet space and hardware flexibility are important.

Direct PLC Processor Integration
The TSXFPP10 is designed for installation into compatible processor communication slots, reducing additional hardware requirements and simplifying system configuration.

Reliable Distributed Device Connectivity
The communication card supports stable data exchange between PLC controllers and connected FIPIO devices, helping maintain consistent automation operation.

Easy Maintenance and Replacement
The removable PCMCIA design allows convenient inspection, replacement, and troubleshooting during system maintenance.

Communication Status Monitoring
Integrated status indicators provide useful information about communication conditions, helping technicians quickly identify network problems.

Support for Existing Automation Systems
The TSXFPP10 provides a practical solution for maintaining and expanding installed Modicon Premium automation systems that use FIPIO networks.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider TSXFPP10?
A: The TSXFPP10 is a FIPIO communication card used to connect compatible Modicon Premium processors with FIPIO fieldbus networks.

Q2: Which PLC systems can use the TSXFPP10?
A: The card is designed for compatible Modicon Premium and Atrium processor platforms.

Q3: Why can the PLC not communicate with FIPIO devices?
A: Possible causes include incorrect network configuration, communication cable problems, incorrect device addressing, or improper card installation.

Q4: Why is the communication indicator not showing normal operation?
A: Check the card installation, FIPIO wiring, processor configuration, and network status.

Q5: Why does the FIPIO communication become unstable?
A: Possible causes include signal interference, damaged cables, incorrect wiring, poor grounding, or network configuration errors.

Q6: How can TSXFPP10 communication faults be diagnosed?
A: Check PLC diagnostic information, card status indicators, communication parameters, and fieldbus connections.

Q7: Can the TSXFPP10 be removed while the PLC is running?
A: The card should be installed or removed according to proper maintenance procedures, and power isolation is recommended before replacement.

Q8: Why is the PLC unable to detect the TSXFPP10 card?
A: Possible causes include incorrect card insertion, incompatible processor type, configuration errors, or hardware failure.

Q9: What should be checked before replacing the communication card?
A: Verify card compatibility, processor configuration, network wiring, communication settings, and diagnostic information.

Q10: How can the reliability of the TSXFPP10 be improved?
A: Correct installation, proper network configuration, stable operating conditions, and regular inspection help maintain reliable communication.
