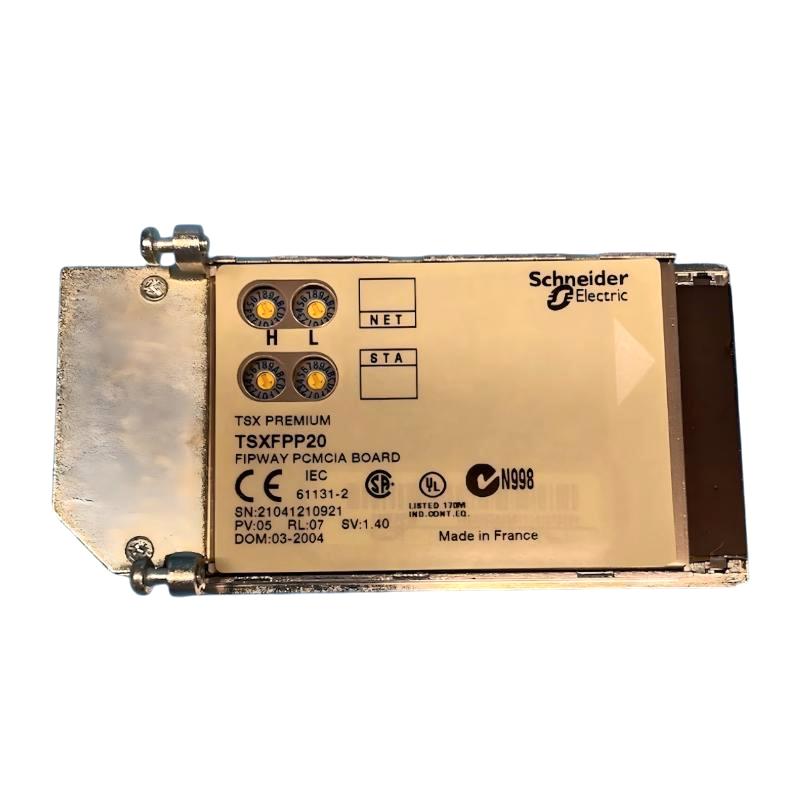

Schneider TSXFPP20 PCMCIA Card

Industrial Applications and FIPWAY Network Communication

The Schneider TSXFPP20 Fipway Agent PCMCIA Card is a communication interface designed for Modicon Premium and Atrium PLC systems. It provides FIPWAY network connectivity, enabling reliable communication between PLC controllers, automation devices, and distributed control equipment.

The TSXFPP20 is developed for industrial automation systems where stable network communication and efficient data exchange are required. It is commonly used in:

• PLC-to-PLC communication networks
• Distributed automation architectures
• Factory control systems
• Machine synchronization applications
• Industrial monitoring networks
• Modicon Premium system expansion
• Legacy FIPWAY network maintenance projects

By adding FIPWAY communication capability through a compact PCMCIA format, the TSXFPP20 allows engineers to maintain efficient communication between automation components while improving system integration and operational reliability.

Engineering Advantages and Performance Benefits

The Schneider TSXFPP20 Fipway Agent PCMCIA Card provides dependable network communication and convenient integration for industrial automation systems.

Dedicated FIPWAY Network Communication
The TSXFPP20 is designed specifically for FIPWAY communication environments, allowing compatible PLC systems to exchange information with controllers, remote devices, and automation equipment.

Compact Communication Card Design
The PCMCIA structure provides a compact solution for expanding PLC communication capability while minimizing additional cabinet space requirements.

Easy PLC System Integration
The card can be installed into compatible Modicon Premium processor slots or communication interfaces, simplifying network expansion and system configuration.

Reliable Industrial Data Transmission
The TSXFPP20 supports stable communication between connected automation devices, helping maintain consistent performance in distributed control applications.

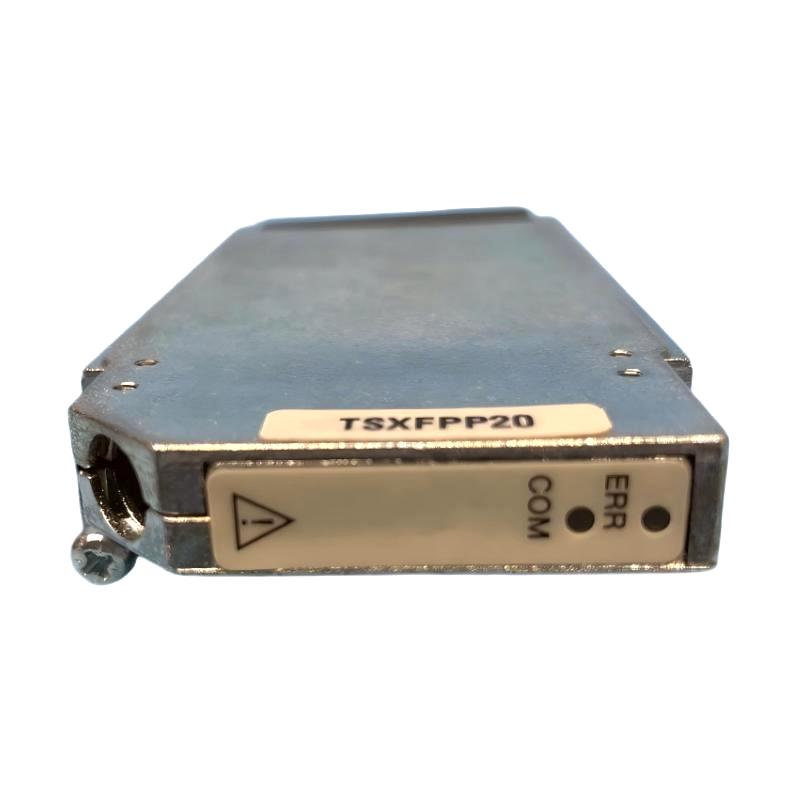

Communication Status Monitoring
Integrated indicators allow technicians to monitor communication conditions and quickly identify network status changes during commissioning and maintenance.

Simplified Troubleshooting Process
The removable card structure makes inspection, replacement, and fault diagnosis more convenient compared with larger communication hardware.

Support for Existing Automation Infrastructure
The TSXFPP20 provides a practical solution for maintaining installed FIPWAY-based automation systems without requiring complete network replacement.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider TSXFPP20?
A: The TSXFPP20 is a FIPWAY communication card used to connect Modicon Premium PLC systems with FIPWAY industrial networks.

Q2: Which PLC platforms support the TSXFPP20?
A: The card is designed for compatible Modicon Premium and Atrium automation platforms.

Q3: Why can the PLC not communicate through the TSXFPP20?
A: Possible causes include incorrect network parameters, communication cable problems, incorrect addressing, or improper card installation.

Q4: Why is the communication indicator not working normally?
A: Check the card installation, network wiring, PLC configuration, and communication status settings.

Q5: Why does FIPWAY communication become unstable?
A: Possible causes include electrical interference, damaged cables, incorrect network configuration, poor grounding, or communication conflicts.

Q6: How can TSXFPP20 communication faults be diagnosed?
A: Check PLC diagnostic information, communication indicators, network settings, and connected device status.

Q7: Can the TSXFPP20 replace another communication card directly?
A: Replacement requires checking system compatibility and ensuring that communication parameters match the existing network configuration.

Q8: Why is the PLC unable to recognize the TSXFPP20 card?
A: Possible causes include incorrect installation, incompatible hardware, configuration errors, or card failure.

Q9: What should be checked before replacing the TSXFPP20?
A: Verify card installation, processor compatibility, FIPWAY cable condition, communication settings, and diagnostic information.

Q10: How can the operating reliability of the TSXFPP20 be improved?
A: Correct installation, stable power conditions, proper network configuration, and regular maintenance help ensure reliable communication performance.
