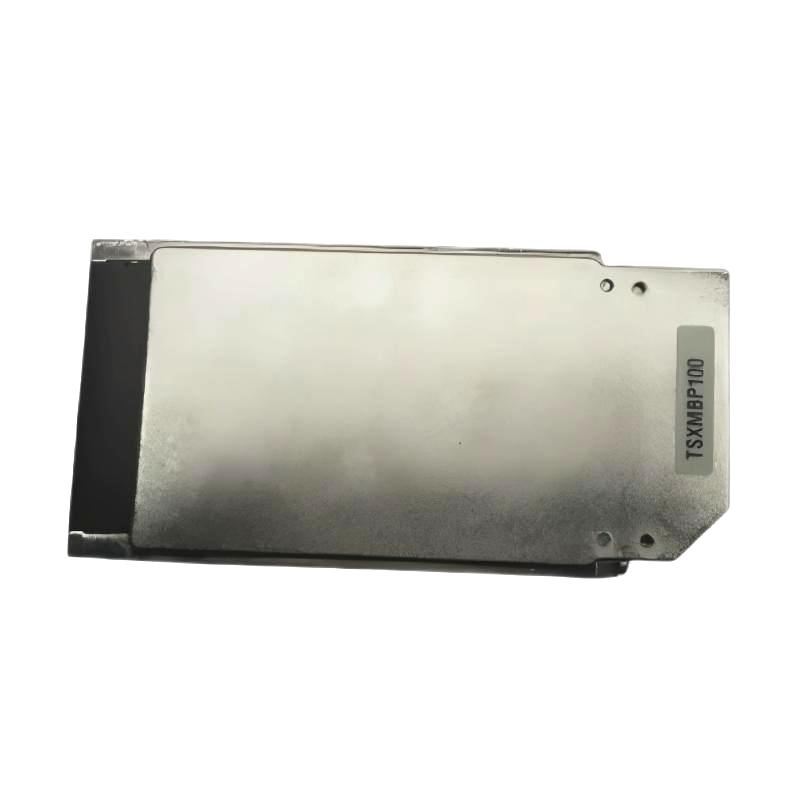

Schneider TSXMBP100 PCMCIA Card

Industrial Applications and Modbus Plus Network Communication

The Schneider TSXMBP100 Modbus Plus PCMCIA Card is a communication interface designed for Modicon Premium PLC platforms and compatible industrial automation systems. It provides Modbus Plus network connectivity, enabling PLC controllers, operator terminals, and automation devices to exchange data through a reliable industrial communication network.

The TSXMBP100 is suitable for applications that require stable controller communication and distributed automation management, including:

• PLC-to-PLC communication systems
• Factory automation networks
• Distributed control applications
• Industrial equipment monitoring
• Machine coordination systems
• Production line communication networks
• Existing Modicon Premium system upgrades

By adding Modbus Plus communication capability through a compact PCMCIA design, the TSXMBP100 helps engineers integrate automation devices efficiently, maintain existing network structures, and improve overall system communication performance.

Engineering Advantages and Performance Benefits

The Schneider TSXMBP100 Modbus Plus PCMCIA Card provides reliable network communication expansion and flexible integration capability for industrial automation applications.

Dedicated Modbus Plus Network Support
The TSXMBP100 is designed specifically for Modbus Plus communication, allowing compatible PLC systems to exchange control data, operating information, and diagnostic messages with connected devices.

Compact PCMCIA Type III Structure
The compact card design reduces hardware installation requirements and provides a convenient communication expansion solution for PLC systems with limited cabinet space.

Direct PLC Communication Integration
The TSXMBP100 integrates with compatible Modicon Premium processors and automation equipment, allowing efficient connection to existing Modbus Plus networks.

Reliable Industrial Data Exchange
The module provides stable communication performance for distributed automation systems, helping maintain consistent operation between controllers and field devices.

Simplified Network Expansion
The communication card allows existing automation installations to connect additional Modbus Plus devices without major changes to the control architecture.

Convenient Maintenance and Replacement
The removable PCMCIA format simplifies inspection, replacement, and troubleshooting during system maintenance.

Support for Legacy Automation Systems
The TSXMBP100 provides an effective solution for maintaining and expanding installed Modicon Premium systems that rely on Modbus Plus communication networks.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of the Schneider TSXMBP100?
A: The TSXMBP100 is a Modbus Plus PCMCIA communication card used to connect compatible PLC systems with Modbus Plus industrial networks.

Q2: Which systems are compatible with the TSXMBP100?
A: The card is designed for compatible Modicon Premium PLC processors and related automation devices.

Q3: Why can the PLC not communicate through the TSXMBP100?
A: Possible causes include incorrect network configuration, communication address errors, cable faults, or improper card installation.

Q4: Why does the Modbus Plus network connection fail?
A: Check communication wiring, device addresses, network configuration parameters, and PCMCIA card installation status.

Q5: Why is communication unstable during operation?
A: Possible causes include electrical interference, damaged communication cables, incorrect network setup, or communication conflicts.

Q6: How can TSXMBP100 communication faults be diagnosed?
A: Check PLC diagnostic information, communication status indicators, network settings, and connected device conditions.

Q7: Can the TSXMBP100 support PLC-to-PLC communication?
A: Yes, the card is designed for Modbus Plus networks where multiple controllers exchange information.

Q8: Why is the PLC unable to recognize the communication card?
A: Possible causes include incorrect card insertion, unsupported processor type, configuration problems, or hardware failure.

Q9: What should be checked before replacing the TSXMBP100?
A: Verify card compatibility, PLC configuration, communication wiring, network parameters, and diagnostic information.

Q10: How can the reliability of the TSXMBP100 be improved?
A: Proper installation, correct network planning, stable power conditions, and regular maintenance help ensure reliable communication performance.
