Applications in High-Performance Servo Power Connection Systems

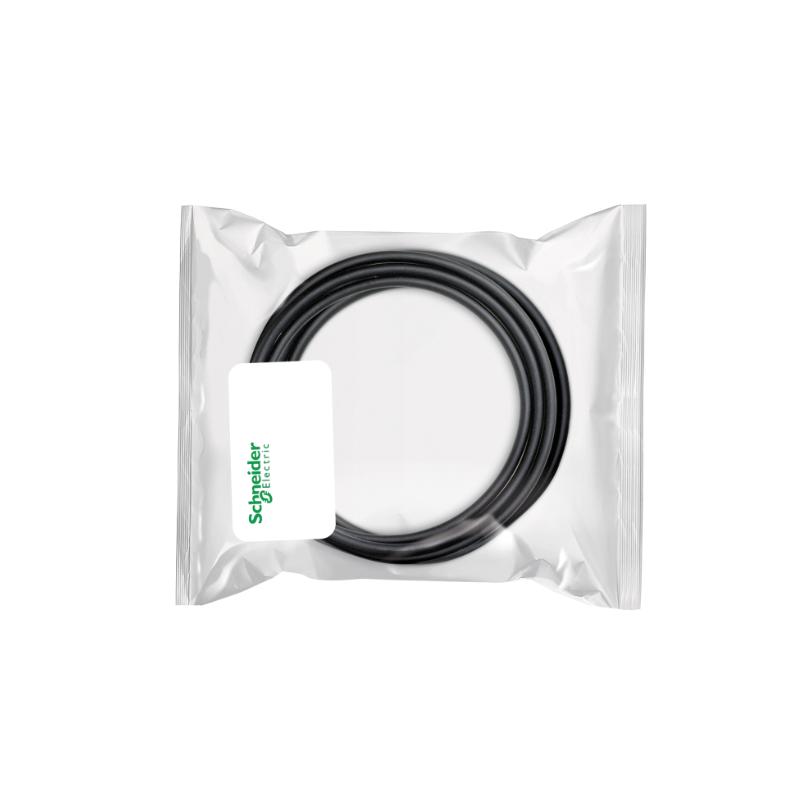

The Schneider VW3M5103R100 Power Cable Module is a dedicated servo motor power cable accessory engineered for connecting Schneider Electric BSH servo motors with compatible Lexium servo drives. Designed as a preassembled power cordset, it provides a reliable electrical connection between the motor and drive, supporting stable power transmission in demanding industrial motion applications.

This cable is widely used in robotics, packaging machinery, CNC equipment, automated assembly lines, material handling systems, and precision manufacturing platforms where accurate servo control and dependable motor operation are essential. The VW3M5103R100 features an industrial connector on the servo motor side and a free cable end on the servo drive side, allowing flexible cabinet integration.

Designed for OEM machine builders and automation engineers, this Schneider accessory helps simplify installation, improve wiring consistency, and maintain professional standards in advanced motion control systems.

Performance Advantages and Industrial Value

Optimized Power Transmission for Servo Applications

The VW3M5103R100 is designed specifically for BSH servo motor and servo drive connections, using a 4 × 4 mm² + 2 × 1 mm² cable configuration to support reliable motor power delivery and auxiliary signal requirements in motion systems.

Preassembled Cable Design for Efficient Installation

The factory-assembled structure reduces the need for manual cable preparation and connector assembly. This improves installation efficiency while helping maintain consistent connection quality during machine production and maintenance.

Industrial M23 Connector Interface

The motor side is equipped with an industrial connector designed for secure servo motor connection, while the drive side uses a free cable end for convenient wiring inside control cabinets. This design provides flexibility for different machine layouts.

Reliable Solution for Lexium Motion Platforms

As part of the Schneider Electric Lexium accessory ecosystem, the VW3M5103R100 supports professional motion system integration and is suitable for applications requiring stable servo performance and long-term operational reliability.

Technical FAQs

1. What is the main function of Schneider VW3M5103R100?

The VW3M5103R100 is a servo motor power cable used to connect Schneider Electric BSH servo motors with compatible servo drives.

2. Which Schneider product families are compatible with VW3M5103R100?

This cable belongs to the Lexium motion accessory family and is designed for use with compatible Schneider servo motor and servo drive systems.

3. What is the cable specification of VW3M5103R100?

The cable uses a 4 × 4 mm² + 2 × 1 mm² conductor configuration, suitable for servo motor power connection applications.

4. Is VW3M5103R100 a communication cable?

No. The VW3M5103R100 is a power cable accessory designed for servo motor electrical connection, not for fieldbus or Ethernet communication.

5. What connectors are included with VW3M5103R100?

The cable includes:

• Industrial connector for the servo motor side
• Free cable end for servo drive-side electrical connection

6. What is the advantage of using a Schneider preassembled servo cable?

A dedicated Schneider cable provides correct mechanical compatibility, optimized electrical characteristics, and improved reliability compared with manually assembled alternatives.

7. Can VW3M5103R100 be used with standard industrial motors?

No. It is designed specifically for Schneider servo motor and servo drive systems and should be installed with compatible motion components.

8. What applications commonly use this power cable?

Typical applications include:

• Multi-axis servo systems
• Industrial robots
• Packaging equipment
• Automated production machinery
• Precision positioning systems

9. Does VW3M5103R100 require software configuration?

No. The cable is a passive electrical accessory and does not require programming or parameter configuration.

10. Why is correct servo cable selection important?

Using the correct servo cable helps ensure proper power transmission, electromagnetic performance, and reliable operation of the complete motion control system.
