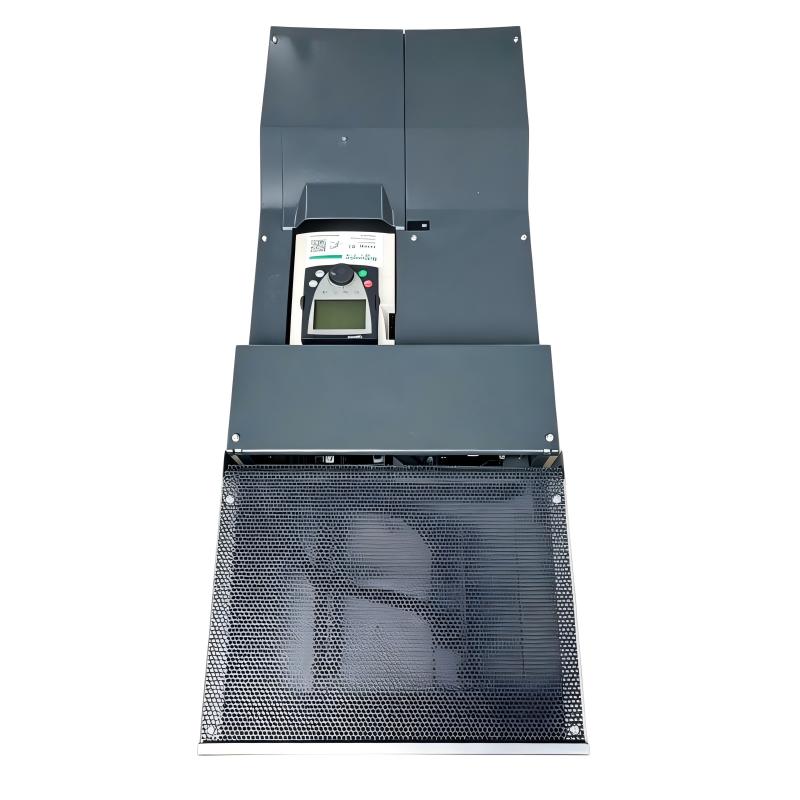

Schneider ATV71HC31N4 Variable-Speed Drive

Heavy-Duty Industrial Motor Control Applications and Advanced Automation Engineering Solutions

The Schneider ATV71HC31N4 Variable-Speed Drive is a high-performance Altivar 71 AC drive designed for large-scale industrial motor applications that demand exceptional power handling, accurate speed regulation, and reliable continuous operation. With a 315 kW (500 HP) motor control capability, this drive is engineered for heavy industrial equipment where stable torque output and advanced control performance are essential.

Built for 380 to 480 VAC three-phase power systems, the ATV71HC31N4 combines advanced motor control technology with flexible automation integration. It supports demanding applications requiring high starting torque, smooth acceleration, and precise speed management, making it suitable for industries such as manufacturing, mining, water treatment, and large process systems.

As part of Schneider Electric’s Altivar 71 platform, the ATV71HC31N4 provides powerful configuration capabilities, communication options, and expansion compatibility. Its industrial design allows engineers to develop reliable drive systems for complex machinery while improving operational efficiency and reducing maintenance challenges.

Typical application fields include:

• Heavy-duty conveyor systems
• Mining and mineral processing equipment
• Large industrial pumps
• Compressors and ventilation systems
• Cranes and lifting machinery
• Steel and metal processing lines
• Production machinery
• Large OEM automation equipment

The ATV71HC31N4 provides a dependable high-power drive solution for industries requiring accurate motor management, strong overload capability, and long service life.

High-Power Drive Performance Advantages and Industrial Automation Benefits

315 kW High-Capacity Motor Control

The ATV71HC31N4 is designed for high-power motor applications up to 315 kW (500 HP). It delivers strong torque performance and stable speed regulation for heavy mechanical loads, helping industrial systems maintain consistent operation under demanding conditions.

Advanced Vector Control Technology

The drive supports advanced motor control methods, including vector control strategies, allowing improved torque response, smooth acceleration, and accurate speed control even in complex operating environments.

Designed for Large Industrial Equipment

The ATV71HC31N4 is optimized for applications where conventional drives cannot provide sufficient power capacity. Its robust architecture supports large motors used in continuous production and heavy machinery.

Flexible Industrial Communication Capability

The drive supports industrial communication solutions including Modbus and CANopen, allowing integration with PLC systems, SCADA platforms, and distributed automation networks.

Reliable Heavy-Load Operation

With high overload capability and advanced protection functions, the ATV71HC31N4 helps protect motors and connected equipment against abnormal operating conditions.

Energy Optimization for Large Motors

By adjusting motor speed according to actual process requirements, the drive helps reduce unnecessary energy consumption while improving overall system efficiency.

Comprehensive Fault Monitoring

Built-in diagnostic functions provide detailed operating information, helping maintenance teams identify issues such as overload conditions, communication failures, and motor protection events.

Expandable Automation Architecture

The drive supports optional communication cards, encoder interfaces, and application-specific modules, allowing customization for different industrial automation projects.

Technical FAQs – Schneider ATV71HC31N4 Variable-Speed Drive

1. What is the main function of the Schneider ATV71HC31N4?
The ATV71HC31N4 controls large AC motors by adjusting output frequency and voltage to achieve precise speed and torque management.

2. What motor power rating does the ATV71HC31N4 support?
The drive is designed for 315 kW (500 HP) motor applications in industrial environments.

3. What type of motors can be controlled by the ATV71HC31N4?
The drive is suitable for industrial asynchronous motors and applications requiring advanced motor control performance.

4. Why does the drive generate an overcurrent fault during startup?
Possible causes include excessive mechanical load, incorrect motor parameters, insufficient acceleration time, motor cable problems, or short circuits.

5. How can communication problems between the drive and PLC be diagnosed?
Check network wiring, communication parameters, addressing configuration, protocol settings, and PLC communication status.

6. What causes DC bus overvoltage alarms?
Common causes include rapid deceleration, excessive regenerative energy, braking problems, or unstable incoming power conditions.

7. How can unstable motor speed output be corrected?
Review motor tuning parameters, feedback configuration, speed reference signals, and mechanical load conditions.

8. Why does the drive trip during heavy-load operation?
Heavy-load trips may occur due to motor overload, incorrect acceleration settings, insufficient drive capacity, or mechanical blockage.

9. Can the ATV71HC31N4 operate in continuous industrial applications?
Yes. It is designed for demanding industrial environments requiring reliable long-term operation.

10. What maintenance procedures are recommended for this drive?
Recommended maintenance includes checking cooling systems, inspecting power terminals, reviewing fault records, and verifying parameter settings.
