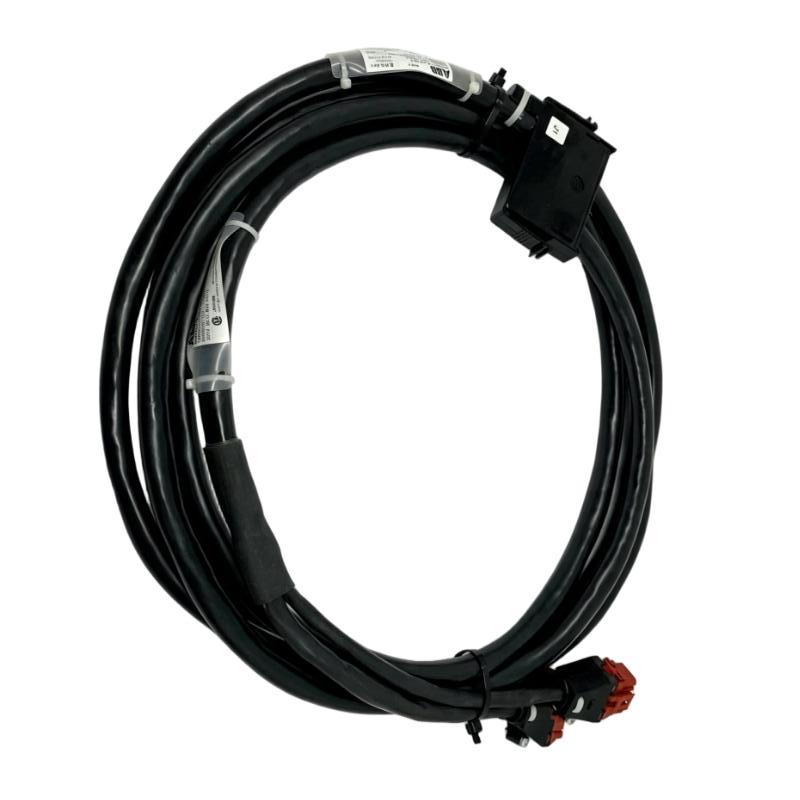

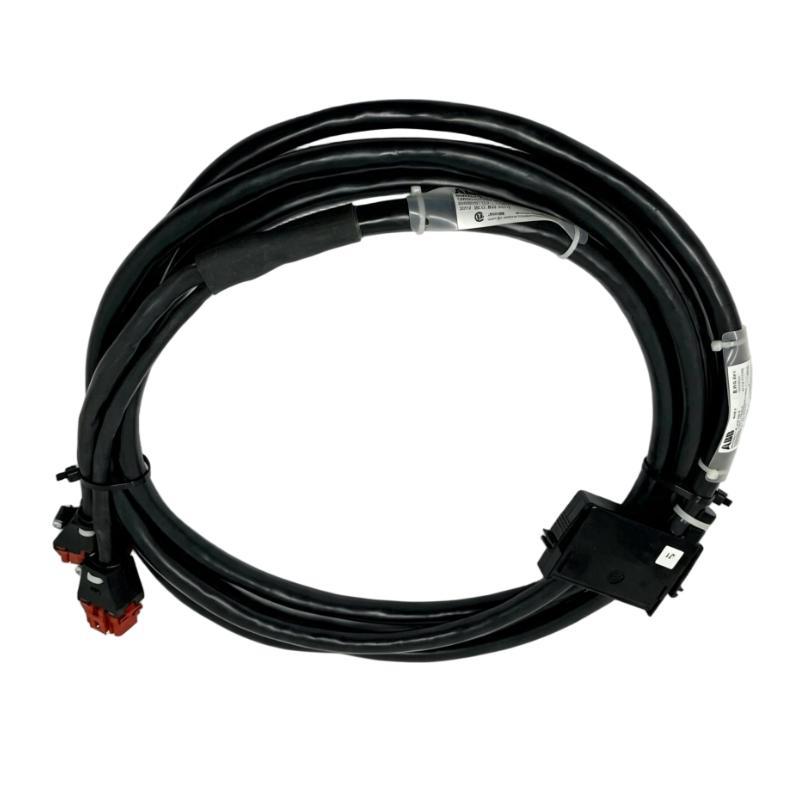

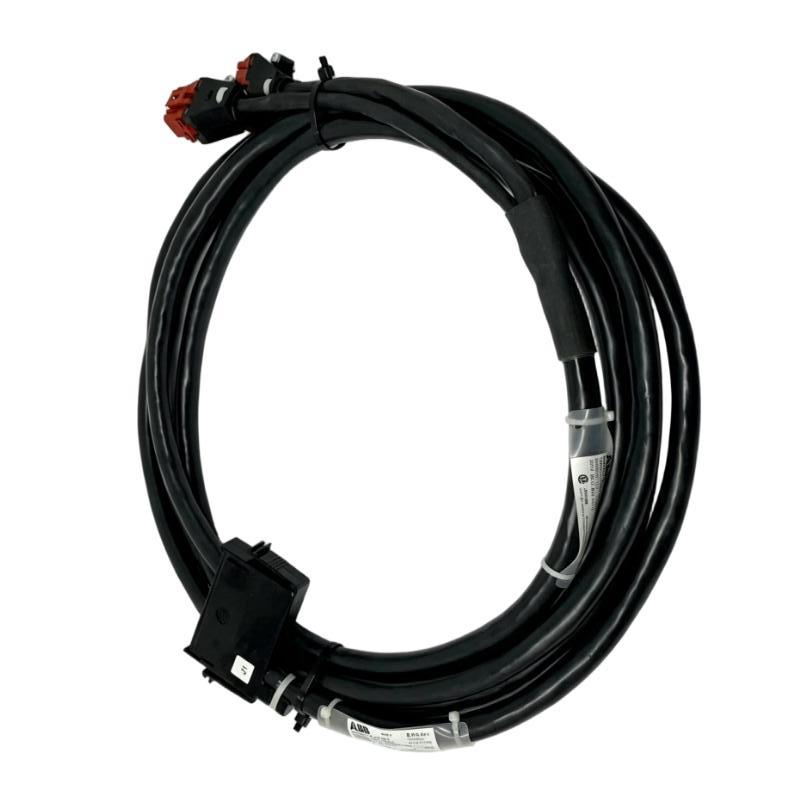

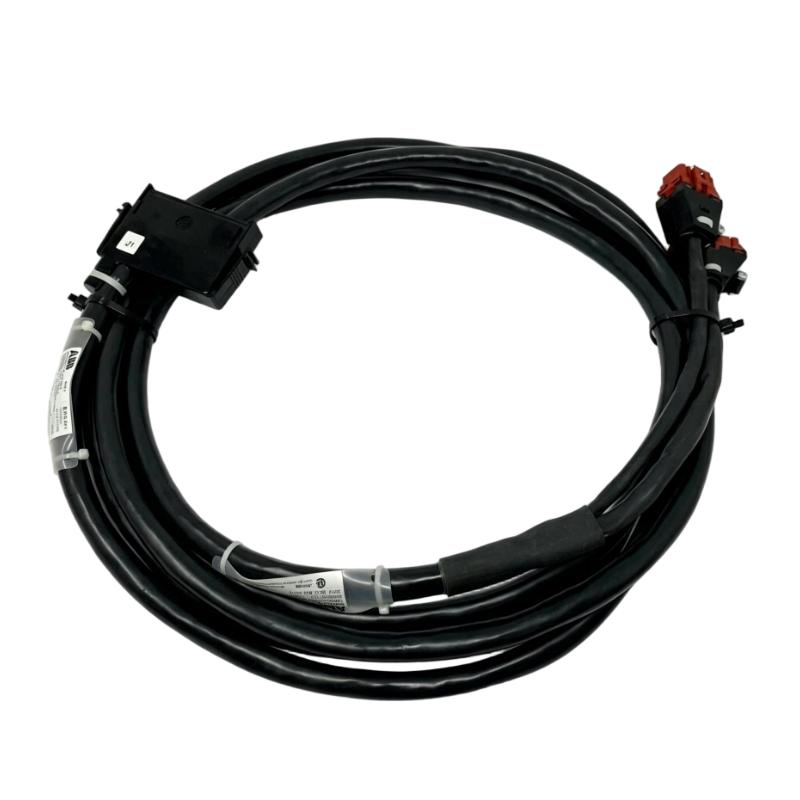

ABB Bailey NKST11-15 SOE Time Synchronization Cable

Applications and Precision Event Timing Communication

The ABB Bailey NKST11-15 SOE Time Synchronization Cable is a specialized industrial cable assembly designed for ABB Bailey Sequence of Events (SOE) systems. This cable provides a reliable connection between the SPSET SOE module and the NTST01 termination unit, supporting accurate time synchronization and dependable event timestamp transmission within ABB Bailey Infi 90 distributed control system environments.

The NKST11-15 is widely applied in power generation, chemical processing, oil and gas, and other process automation industries where precise event recording is essential. SOE systems rely on accurate synchronization signals to ensure that alarms, equipment trips, and operational changes are recorded in the correct chronological order for troubleshooting and performance analysis.

Featuring a 15-foot cable length and non-PVC insulation construction, the NKST11-15 provides flexible installation capability for control cabinets, I/O racks, and distributed termination layouts. It is a practical maintenance component for facilities operating ABB Bailey legacy DCS systems that require stable and accurate SOE timing communication.

Key Performance Benefits and Industrial Integration Advantages

Dedicated SOE Time Synchronization Function
The NKST11-15 is designed specifically for ABB Bailey SOE timing applications, providing a dedicated signal path between synchronization modules and termination equipment.

Supports Accurate Sequence of Events Analysis
Precise time synchronization allows distributed digital events to be recorded with consistent timestamps, improving fault investigation, alarm analysis, and operational diagnostics.

Non-PVC Cable Construction
The NKST11 series uses non-PVC insulation, providing a robust cable solution suitable for industrial environments where reliable long-term operation is required.

Flexible 15-Foot Installation Design
The extended cable length allows easier routing between separate cabinet sections and provides additional flexibility for complex control system layouts.

Reliable ABB Bailey System Compatibility
The NKST11-15 helps maintenance teams preserve existing ABB Bailey Infi 90 and Symphony-based automation systems by providing a compatible replacement connection solution.

Technical FAQs About ABB Bailey NKST11-15 SOE Time Synchronization Cable

1. What is the main purpose of the ABB Bailey NKST11-15 cable?
The NKST11-15 is used to connect ABB Bailey SOE timing components and provide synchronization signal transmission within the control system.

2. Which ABB Bailey components are connected by NKST11-15?
The cable connects the SPSET SOE module to the NTST01 termination unit in compatible ABB Bailey configurations.

3. Why is time synchronization important in SOE systems?
Time synchronization ensures that events from different control points are recorded with consistent timing information, allowing accurate sequence analysis.

4. What type of signals are transmitted through the NKST11-15?
The cable transmits SOE time synchronization signals used for coordinating event timestamps across the system.

5. What problems can occur if the SOE synchronization cable fails?
A failed cable may result in incorrect event timing, loss of synchronization signals, or inaccurate event sequence records.

6. Can the NKST11-15 be used as a standard communication cable?
No. It is specifically designed for ABB Bailey SOE time synchronization applications.

7. What should be checked when SOE timestamps are inaccurate?
Technicians should inspect cable connections, termination points, SOE modules, synchronization sources, and system configuration parameters.

8. Is the NKST11-15 suitable for legacy ABB Bailey systems?
Yes. It is designed for ABB Bailey Infi 90 and related SOE system architectures.

9. What are common causes of NKST11-15 signal faults?
Common causes include connector problems, cable damage, improper installation, and faults in connected timing modules.

10. How can engineers maintain reliable operation of this cable?
Regular inspection of connectors, cable routing, insulation condition, and system diagnostics helps maintain stable performance.
