Brand:Schneider PLC Item No.:BMEP586040 Product Origin:France Product Dimensions:134.6 × 64.6 × 130.3 mm Product Weight:0.849 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

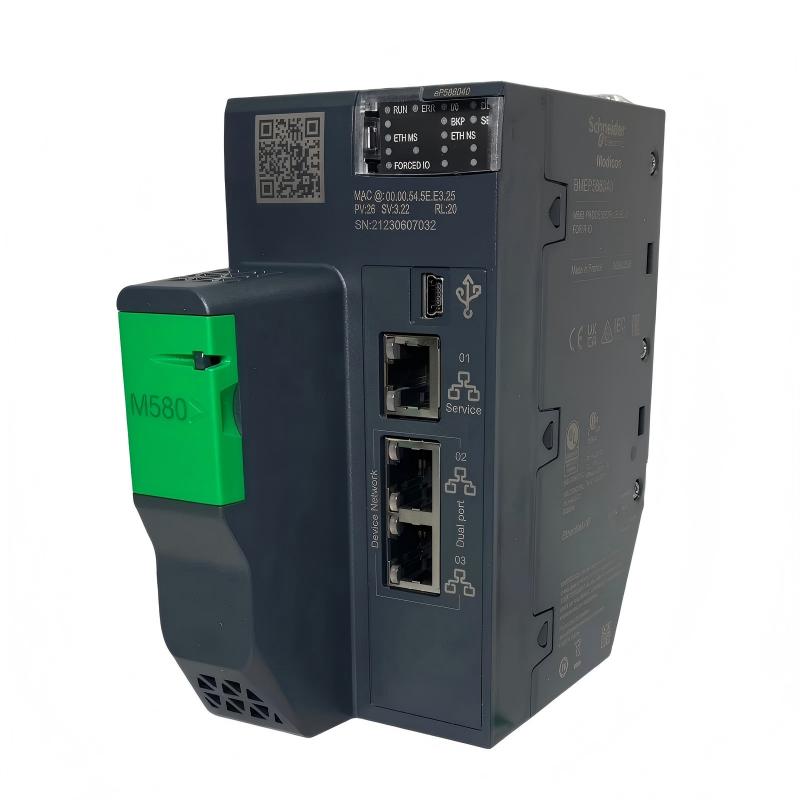

Introduction to Schneider BMEP586040 Independent Processor
The Schneider BMEP586040 Independent Processor is a powerful controller component developed for advanced industrial automation applications based on the Modicon M580 PAC platform. It provides the processing capability required for large automation projects involving extensive I/O networks, distributed control structures, and complex process management.
Designed for demanding industrial environments, the processor combines high-speed execution, flexible communication functions, and broad system compatibility. It supports large application structures, remote I/O integration, and advanced automation services, making it suitable for industries where system availability and scalability are critical.
The BMEP586040 is an ideal choice for system integrators and automation professionals who require a dependable PAC processor for modernization projects, expansion of existing Modicon M580 systems, and high-performance industrial control applications.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMEP586040
Product Type
Independent Processor Module
Series
Modicon M580
Processor Level
Level 6
Supply Voltage
24 V DC
Current Consumption
Approx. 295 mA
Program and Data Memory
64 MB RAM
Data Storage
Expandable Flash up to 4 GB
Local Discrete I/O Capacity
6144 I/O
Local Analog I/O Capacity
1536 I/O
Remote I/O Stations Supported
Up to 31
Ethernet Communication
TCP/IP Ethernet
USB Interface
Mini USB Type B
Communication Services
RIO Scanner, DIO Scanner
Application Tasks
Cyclic, Periodic, Event Tasks
Dimensions
134.6 × 64.6 × 130.3 mm
Weight
0.85 kg (1.87 lb)
Recommended Related Models
Model
Product Type
Schneider BMEP585040
Modicon M580 Independent Processor
Schneider BMEP584040
Modicon M580 Processor Module
Schneider BMEP582040
Modicon M580 Processor Module
Schneider BMENOC0311
Ethernet Communication Module
Schneider BMENOP0300
IEC 61850 Communication Module
Popular Related Models
Model
Application Category
Schneider BMECRA31210
X80 Remote I/O Adapter Module
Schneider BMEXBP0800
Modicon X80 Backplane
Schneider BMXP3420302
Modicon M340 Processor Module
Schneider BMEH582040
Safety Processor Module
Schneider BMENUA0100
OPC UA Communication Module
Applications and Advanced PAC Control Architecture
The Schneider BMEP586040 Independent Processor is a high-performance processor module designed for the Modicon M580 PAC platform, providing advanced control capabilities for large-scale industrial automation systems. As a Level 6 processor within the M580 family, this module is engineered for complex applications that require high processing capacity, extensive I/O management, and reliable Ethernet-based communication.
The BMEP586040 is widely used in process industries, power generation, infrastructure automation, water treatment, transportation systems, and large manufacturing facilities where centralized control and distributed I/O management are essential. Supporting remote I/O architectures, Ethernet communication networks, and advanced process control functions, this processor provides a strong foundation for scalable automation solutions.
With support for Modicon X80 I/O expansion, remote I/O stations, and multiple Ethernet communication services, the BMEP586040 enables engineers to build flexible automation systems with improved operational visibility, faster data exchange, and simplified system expansion.
Core Performance Advantages and System Integration Benefits
High-Level Processing Capability
The BMEP586040 delivers Level 6 processing performance for demanding automation applications, supporting large application programs, complex control logic, and advanced industrial processes.
Large I/O Management Capacity
Designed for extensive control architectures, this processor supports up to 6144 discrete local I/O points and 1536 analog I/O points, making it suitable for large-scale machine and process automation systems.
Flexible Ethernet Communication Architecture
The processor includes Ethernet TCP/IP communication interfaces for service access and device networking, allowing efficient integration with distributed control systems, engineering tools, and supervisory platforms.
Remote I/O System Support
The BMEP586040 supports remote I/O architectures with multiple remote stations, helping engineers create distributed automation systems while maintaining centralized control performance.
Reliable Industrial Automation Operation
Built for continuous industrial operation, this processor provides stable execution, advanced diagnostics, and strong compatibility with Schneider Electric Modicon M580 system components.
Technical FAQs About Schneider BMEP586040 Independent Processor
1. What type of module is the Schneider BMEP586040?
The BMEP586040 is a standalone processor module designed for Schneider Electric Modicon M580 PAC systems.
2. Which automation platform uses the BMEP586040 processor?
This processor is designed specifically for the Modicon M580 automation platform.
3. What communication interfaces are available on the BMEP586040?
The processor provides Ethernet TCP/IP service communication, Ethernet device network communication, and USB programming connectivity.
4. How many remote I/O stations can the BMEP586040 support?
The processor supports up to 31 remote I/O stations within suitable Modicon M580 architectures.
5. What programming software is used for configuring this processor?
The BMEP586040 is configured using Schneider Electric Control Expert engineering software.
6. How can processor communication faults be diagnosed?
Technicians should check Ethernet status indicators, IP configuration, network topology, firmware compatibility, and PLC diagnostic messages.
7. What causes a processor module to enter a fault state?
Common causes include incorrect configuration, incompatible firmware, application errors, communication failures, or hardware issues.
8. Can the BMEP586040 handle motion control applications?
Yes. The processor supports application-specific functions including motion-related control capabilities when configured within a suitable M580 architecture.
9. How can application execution performance be improved?
Engineers can optimize program structure, reduce unnecessary tasks, manage communication loads, and configure appropriate scan settings.
10. What maintenance practices are recommended for this processor?
Regular backup of application programs, inspection of communication networks, firmware management, and review of diagnostic information help maintain reliable operation.
