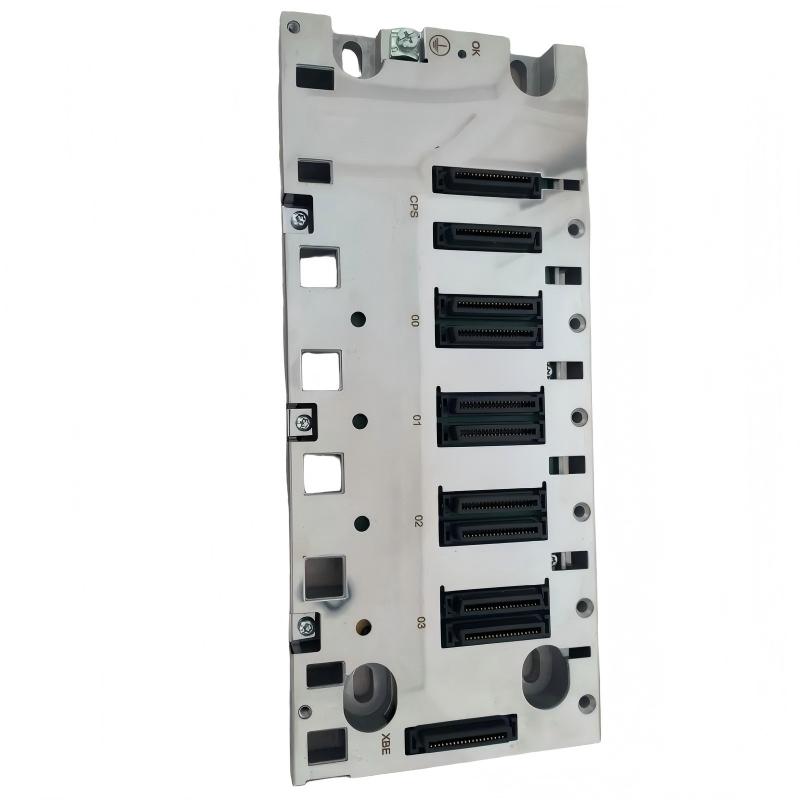

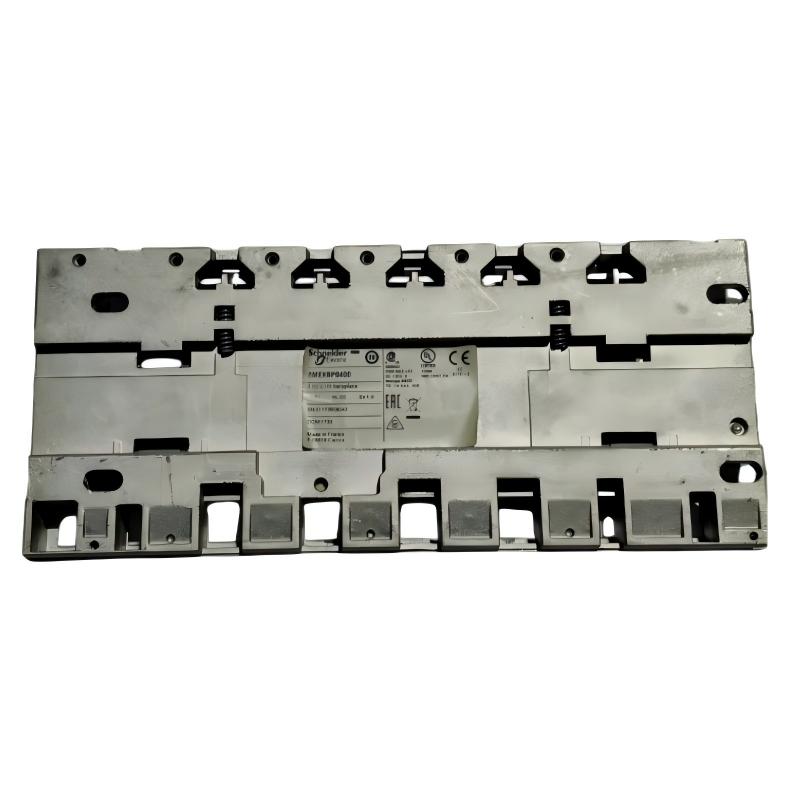

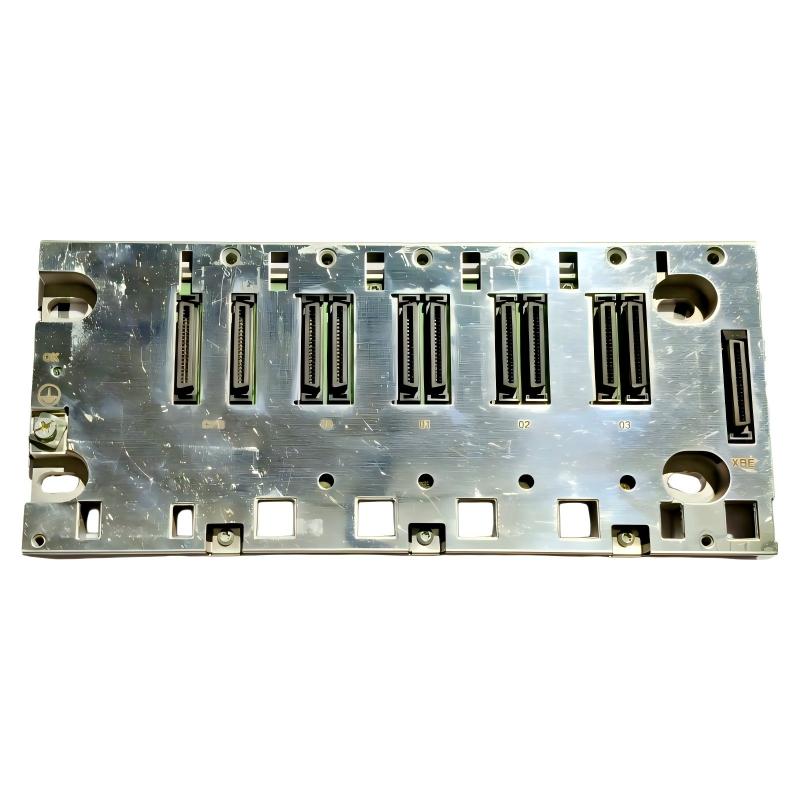

Schneider BMEXBP0400 4-Slot Ethernet Backplane

Applications and Modicon X80 System Expansion Platform

The Schneider BMEXBP0400 4-Slot Ethernet Backplane is a key hardware component designed for the Modicon X80 automation platform, providing a stable mounting and communication foundation for PLC processors, power supply modules, I/O modules, and specialized application modules. This Ethernet backplane enables efficient integration of Schneider Electric automation components within Modicon M340 and Modicon M580 architectures.

The BMEXBP0400 is commonly deployed in industrial control cabinets, process automation systems, manufacturing production lines, energy management applications, and infrastructure control projects where flexible rack expansion and reliable module communication are required. With four available module slots supporting X-bus and Ethernet connectivity, it provides a compact solution for building scalable automation systems.

Designed for engineers requiring dependable system organization and simplified hardware expansion, this backplane supports Schneider Electric BME processors, BMXCPS power supplies, I/O modules, and application-specific modules. Its robust rack design improves system stability while allowing easier maintenance and future upgrades.

Structural Advantages and Automation Integration Benefits

Dual X-Bus and Ethernet Communication Architecture
The BMEXBP0400 combines X-bus and Ethernet backplane technology, allowing compatible Modicon X80 modules to communicate efficiently within the same rack structure. This design supports modern automation architectures requiring both local I/O management and Ethernet-based system connectivity.

Flexible Four-Slot Rack Configuration
Featuring four module slots, the backplane provides a compact installation solution for small and medium-sized control systems. It allows users to build customized PLC configurations according to application requirements while saving cabinet space.

Wide Modicon Platform Compatibility
The BMEXBP0400 is compatible with Modicon M580 and Modicon X80 components, making it suitable for new automation projects as well as modernization of existing Schneider Electric control systems.

Stable Module Mounting Design
The rack structure provides secure mechanical installation for processors, power supplies, and I/O modules, helping maintain reliable connections during continuous industrial operation.

Easy System Expansion Capability
With rack expansion support and compatibility with various X80 modules, the BMEXBP0400 allows engineers to expand automation systems without major redesigns, improving project flexibility and lifecycle value.

Technical FAQs About Schneider BMEXBP0400 4-Slot Ethernet Backplane

1. What is the Schneider BMEXBP0400 used for?
The BMEXBP0400 is an Ethernet backplane rack used to connect and support Modicon X80 automation modules.

2. Which Schneider automation platforms support the BMEXBP0400?
The backplane is designed for Modicon X80 systems and is compatible with Modicon M580 and M340 architectures.

3. How many modules can be installed on the BMEXBP0400?
The BMEXBP0400 provides four X-bus and Ethernet module slots.

4. Which types of modules can be mounted on this backplane?
It supports BME processors, BMXCPS power supplies, I/O modules, and application-specific modules.

5. Does the BMEXBP0400 support Ethernet communication between modules?
Yes. The backplane provides Ethernet connectivity for compatible Modicon X80 modules.

6. How is the BMEXBP0400 configured in a PLC system?
The backplane is automatically recognized as part of the hardware configuration when compatible modules are configured using Schneider Electric engineering software.

7. What should be checked if modules on the rack cannot communicate?
Technicians should inspect module installation, power supply status, rack configuration, connector conditions, and PLC diagnostics.

8. Can modules be replaced without shutting down the entire system?
Many compatible Modicon X80 I/O modules support hot swapping when system conditions and module types allow it.

9. What causes communication errors on an Ethernet backplane?
Common causes include incorrect module configuration, damaged connectors, power issues, firmware mismatches, or hardware installation problems.

10. What maintenance is recommended for the BMEXBP0400?
Regular inspection of module connections, rack mounting, environmental conditions, and system diagnostics helps ensure reliable operation.
