Brand:Schneider PLC Item No.:BMEXBP0800 Product Origin:France Product Dimensions:105.11 × 372.8 × 19 mm Product Weight:1.06 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

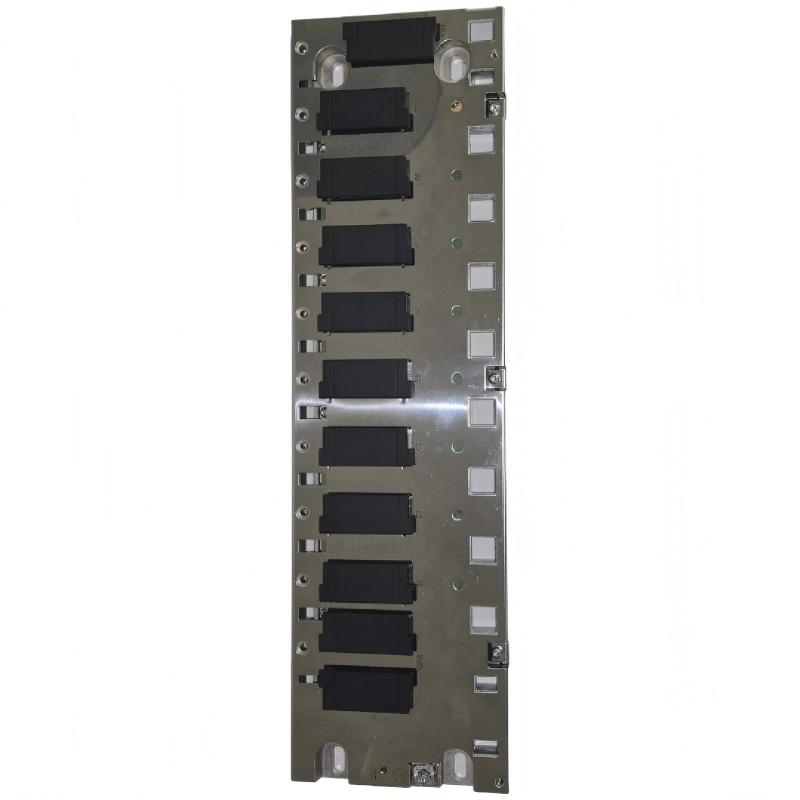

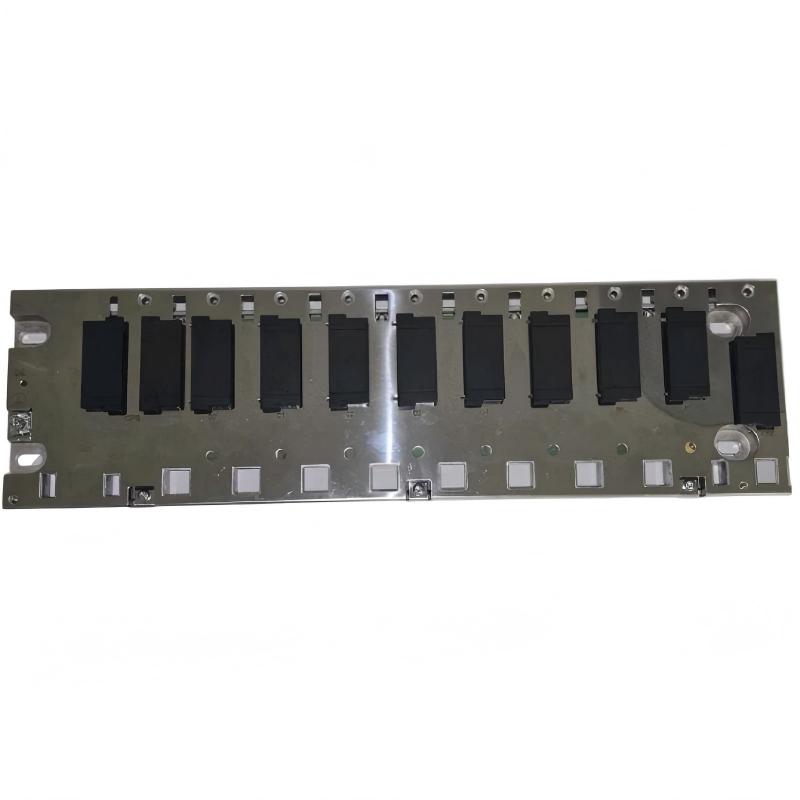

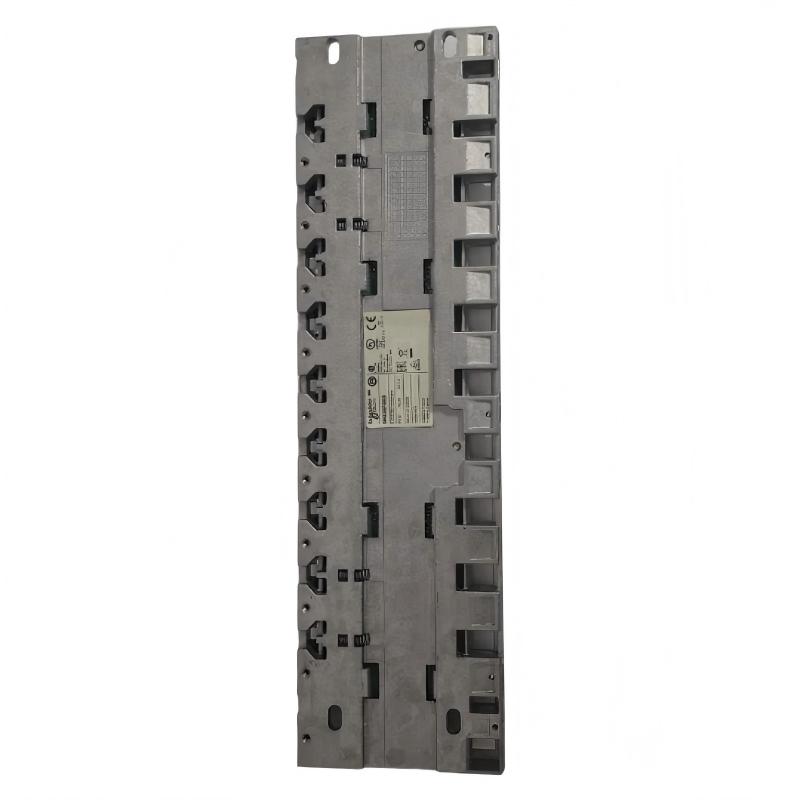

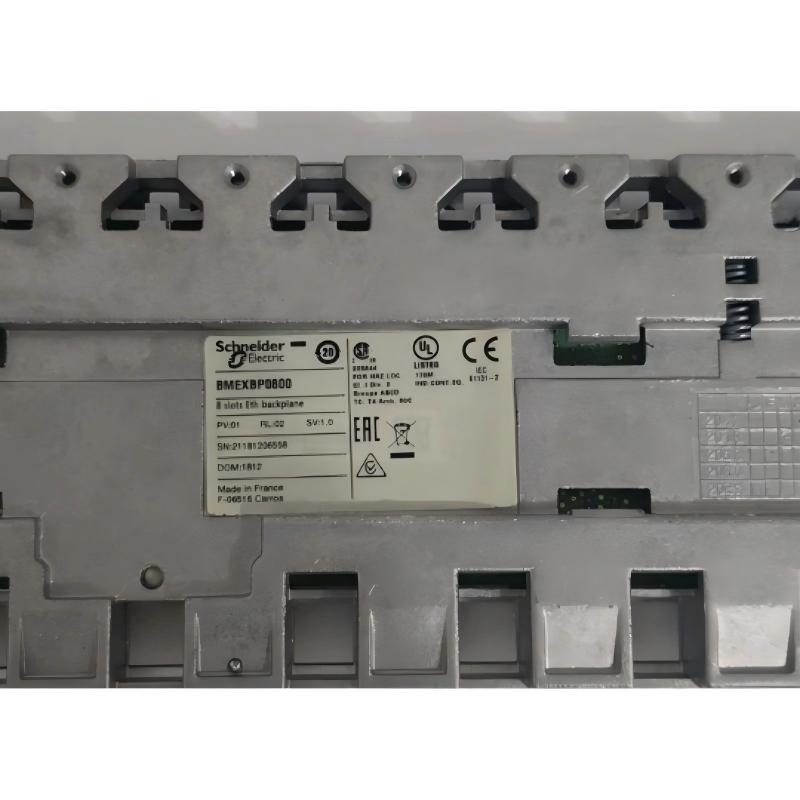

Introduction to Schneider BMEXBP0800 8-Slot Ethernet Backplane
The Schneider BMEXBP0800 8-Slot Ethernet Backplane is a core infrastructure component for building advanced Modicon X80 automation systems. It provides the connection platform required for integrating processors, communication modules, power supplies, and I/O devices into a structured industrial control architecture.
Designed for medium and large-scale automation applications, the BMEXBP0800 combines high flexibility with reliable communication performance. The rack supports Ethernet-based system architectures while maintaining compatibility with Schneider Electric’s extensive range of Modicon X80 modules, allowing users to create customized solutions for complex industrial processes.
For system integrators, OEM manufacturers, and industrial maintenance teams, this Ethernet backplane provides an efficient solution for expanding PLC systems, modernizing existing installations, and improving the reliability of automation infrastructure.
Applications and Industrial Control System Expansion
The Schneider BMEXBP0800 8-Slot Ethernet Backplane is a high-capacity rack component designed for the Modicon X80 automation platform, providing a reliable hardware foundation for connecting processors, power supplies, I/O modules, and specialized application modules. As an essential part of Schneider Electric Modicon M580 and M340 architectures, this backplane enables flexible system configuration and efficient module communication within industrial automation networks.
The BMEXBP0800 is widely used in process automation, manufacturing systems, energy management, water treatment facilities, transportation infrastructure, and large industrial control applications. With 8 available module slots supporting X-Bus and Ethernet communication, it allows engineers to create scalable PLC architectures while maintaining stable data exchange between automation components.
Designed for demanding industrial environments, this Ethernet backplane supports Schneider Electric BME processors, BMX processors, power supply modules, I/O modules, and application-specific modules. Its modular rack structure helps simplify system expansion, improve cabinet organization, and provide a dependable platform for long-term automation operation.
Engineering Advantages and System Integration Features
Expanded Eight-Slot Modular Architecture
The BMEXBP0800 provides eight module positions, allowing automation engineers to build larger control configurations compared with smaller rack solutions. This flexible structure is suitable for applications requiring additional I/O capacity, communication modules, or processing resources.
Ethernet and X-Bus Dual Communication Support
By combining Ethernet backplane technology with X-Bus communication, the module provides efficient internal communication between compatible Modicon X80 components. This architecture improves system flexibility and supports modern PAC-based automation designs.
Broad Modicon Platform Compatibility
The BMEXBP0800 is designed for Modicon X80 systems and supports integration with Modicon M580 and M340 automation platforms, making it suitable for both new installations and modernization projects.
Reliable Industrial Module Mounting
The backplane provides a stable mechanical mounting structure for processors, power modules, and I/O components, helping maintain secure connections during continuous industrial operation.
Simplified System Expansion and Maintenance
With its modular rack design and compatibility with multiple Schneider Electric automation components, the BMEXBP0800 allows engineers to expand control systems efficiently while reducing redesign requirements during future upgrades.
Technical FAQs About Schneider BMEXBP0800 8-Slot Ethernet Backplane
1. What is the Schneider BMEXBP0800 used for?
The BMEXBP0800 is an Ethernet backplane rack used to connect and organize compatible Modicon X80 automation modules.
2. Which Schneider automation systems support the BMEXBP0800?
The backplane is designed for Modicon X80 systems and is commonly used with Modicon M580 and M340 platforms.
3. How many modules can be installed on the BMEXBP0800?
The BMEXBP0800 provides eight module slots for compatible processors, power supplies, I/O modules, and application modules.
4. What communication buses are available on this backplane?
The backplane supports both X-Bus and Ethernet communication between compatible modules.
5. Which processor modules can be installed on the BMEXBP0800?
Compatible BME processors and BMX processors can be integrated into systems using this backplane.
6. How can rack communication problems be diagnosed?
Technicians should verify module seating, power availability, configuration settings, firmware compatibility, and diagnostic indicators.
7. What causes modules on the rack to fail communication?
Common causes include incorrect hardware configuration, poor module installation, damaged connectors, power issues, or incompatible firmware versions.
8. Does the BMEXBP0800 support system expansion?
Yes. The backplane supports expansion architectures using compatible Modicon X80 components.
9. How is the BMEXBP0800 configured in an automation project?
The backplane and installed modules are configured through Schneider Electric engineering software during PLC hardware setup.
10. What maintenance practices improve backplane reliability?
Regular inspection of module connections, cabinet conditions, power stability, and system diagnostics helps maintain reliable operation.
