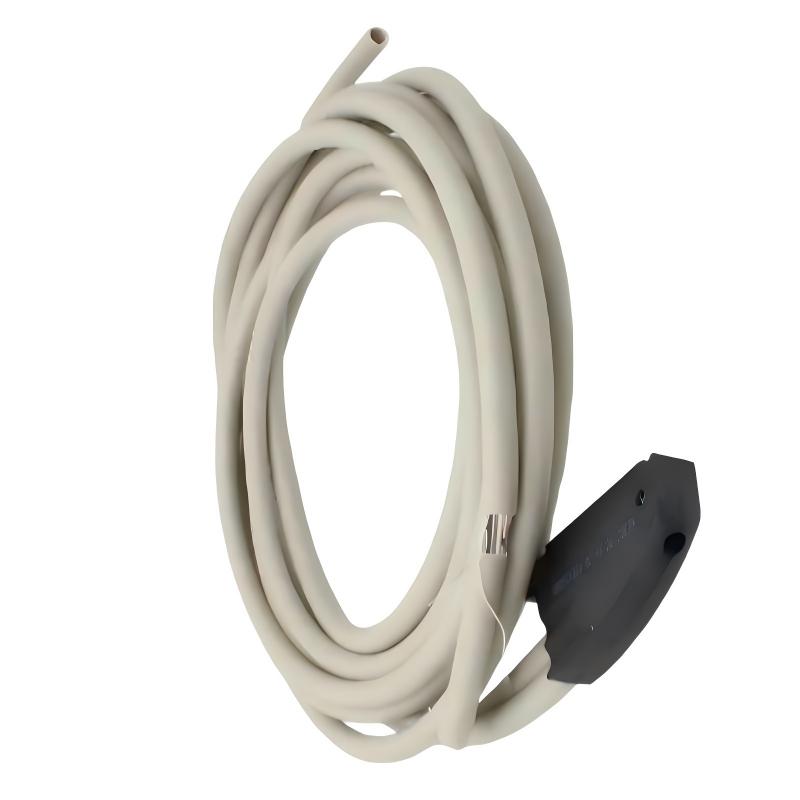

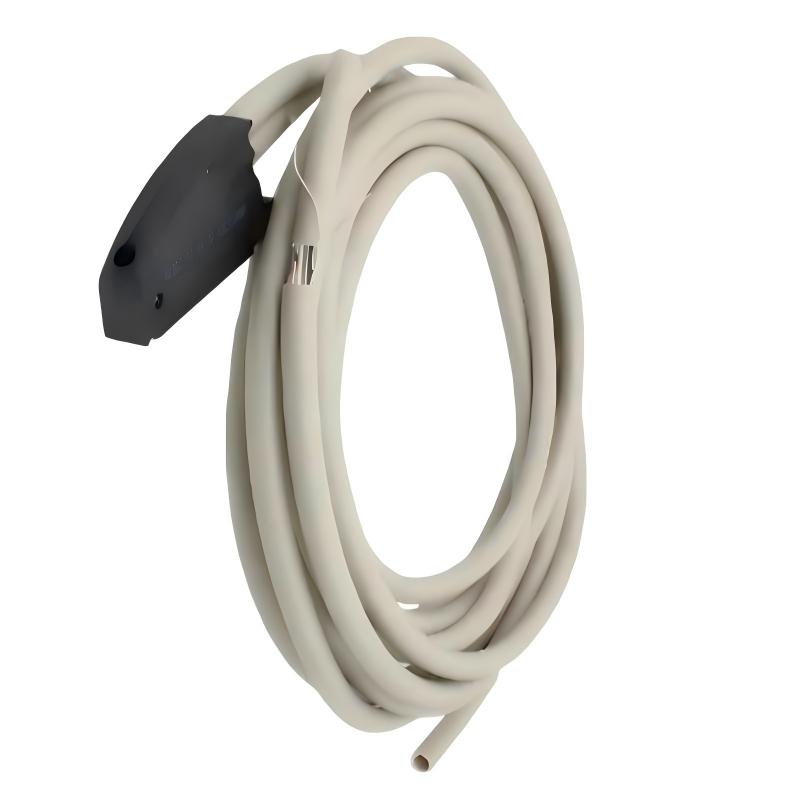

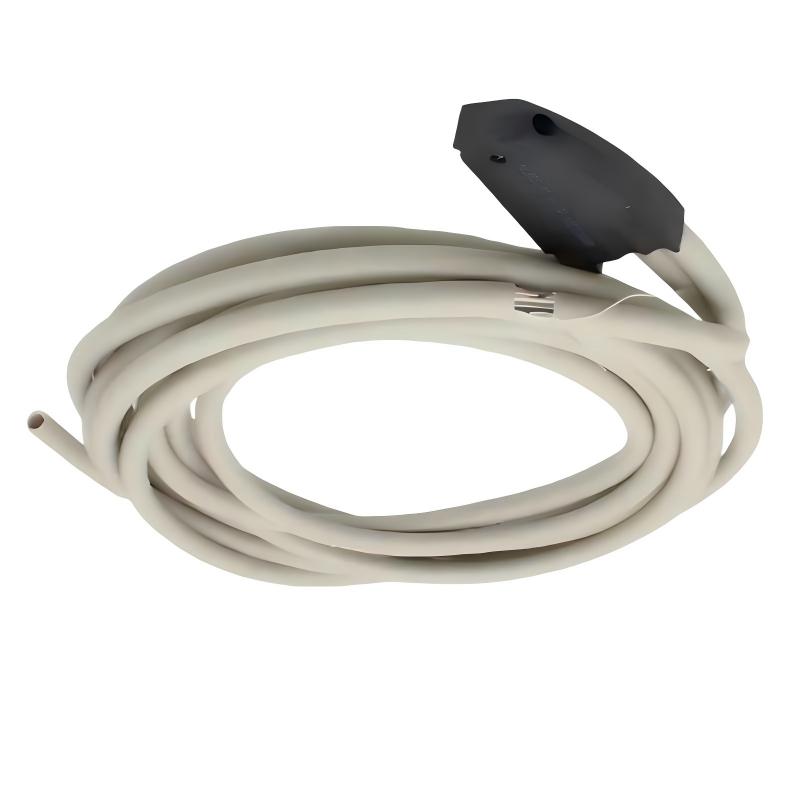

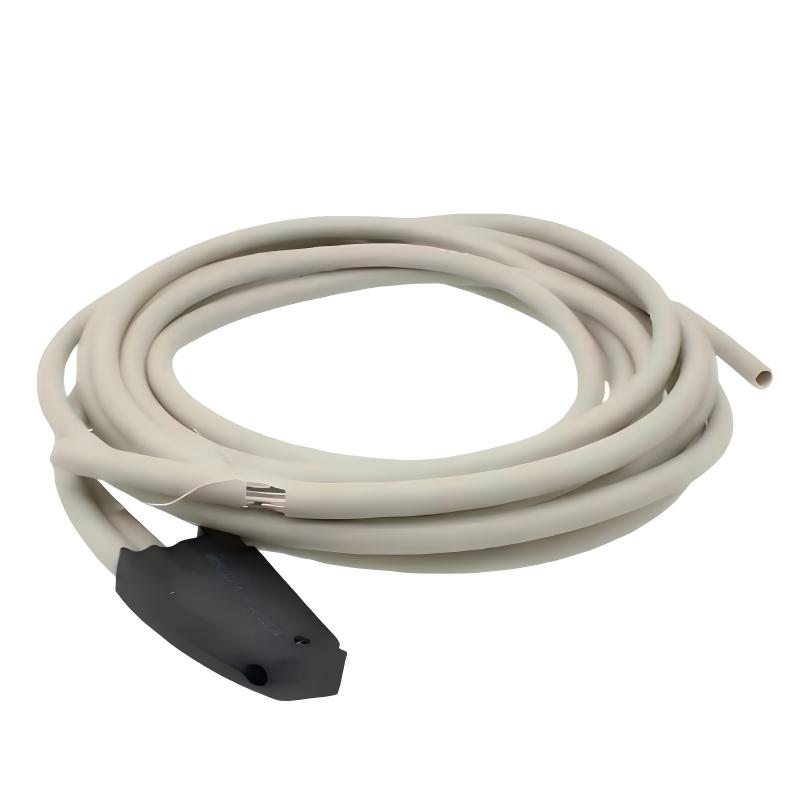

Schneider BMXFCC301 Cable Assembly

Applications and Industrial I/O Wiring Connection Solutions

The Schneider BMXFCC301 Cable Assembly is a preformed connection cable designed for Schneider Electric Modicon X80 automation platforms, providing a reliable and efficient wiring interface between PLC I/O modules and Telefast Advantys ABE7 connection systems. This cable assembly is widely used in industrial control panels where simplified installation, reduced wiring complexity, and stable signal transmission are important requirements.

The BMXFCC301 is commonly applied in manufacturing automation, machine control systems, process automation projects, and distributed I/O architectures. Designed for I/O modules with 40-way connectors, this cable assembly provides a convenient connection method using a 40-way terminal connector and an HE10 connector, helping engineers achieve cleaner cabinet layouts and faster commissioning.

With a 3-meter cable length, the BMXFCC301 offers installation flexibility between PLC modules and field connection interfaces. Its preassembled structure reduces manual wiring work, improves connection consistency, and supports reliable operation in Schneider Electric Modicon control environments.

Connection Performance Advantages and Automation Benefits

Pre-Wired Design for Faster Installation
The BMXFCC301 features a factory-prepared cordset design that simplifies PLC cabinet wiring processes. By eliminating complex manual point-to-point wiring, it helps reduce installation time and minimizes potential wiring errors during system assembly.

Reliable 40-Way I/O Module Interface
Designed for Modicon I/O modules with 40-way connectors, this cable assembly provides a secure electrical connection between automation modules and Telefast Advantys ABE7 sub-bases, supporting efficient signal distribution.

Compact 3-Meter Connection Distance
The 3-meter cable length provides practical flexibility for control cabinet layouts, allowing engineers to position PLC hardware and terminal connection systems according to machine design requirements.

Improved Cabinet Organization
By using standardized preformed wiring solutions, the BMXFCC301 helps maintain cleaner control panel designs, improves maintenance accessibility, and supports professional industrial installation practices.

Reliable Schneider Automation Compatibility
As part of the Modicon X80 accessory family, the BMXFCC301 is designed to work with Schneider Electric PLC I/O systems, providing dependable connectivity for industrial automation projects.

Technical FAQs About Schneider BMXFCC301 Cable Assembly

1. What type of product is the Schneider BMXFCC301?
The BMXFCC301 is a preformed cordset cable assembly designed for PLC I/O connection applications.

2. Which Schneider automation platforms are compatible with the BMXFCC301?
The cable assembly is designed for Modicon X80 and Modicon M340 I/O systems.

3. What is the main function of the BMXFCC301?
Its main function is to connect compatible 40-way I/O modules with Telefast Advantys ABE7 connection systems.

4. What connectors are included in the BMXFCC301?
The cable includes one 40-way connector and one HE10 connector for industrial I/O connections.

5. How many wires are included in this cable assembly?
The BMXFCC301 contains 20 wires for signal connection applications.

6. What causes signal interruption when using this cable?
Possible causes include loose connectors, damaged cable insulation, incorrect installation, or poor cabinet wiring conditions.

7. How can a BMXFCC301 connection fault be diagnosed?
Technicians should check connector seating, perform continuity testing, verify module configuration, and review PLC diagnostic information.

8. Can the BMXFCC301 be used with analog I/O modules?
This cable is mainly intended for compatible discrete I/O modules with 40-way connectors.

9. What installation practices improve cable reliability?
Proper routing, avoiding sharp bends, protecting connectors, and keeping cables away from strong electromagnetic interference sources can improve reliability.

10. How should this cable assembly be maintained?
Regular inspection of connectors, cable condition, cabinet environment, and signal performance helps maintain stable operation.
