Brand:Schneider PLC Item No.:BMXDDI3203 Product Origin:France Product Dimensions:134.6 x 32 x 86 mm Product Weight:0.137 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

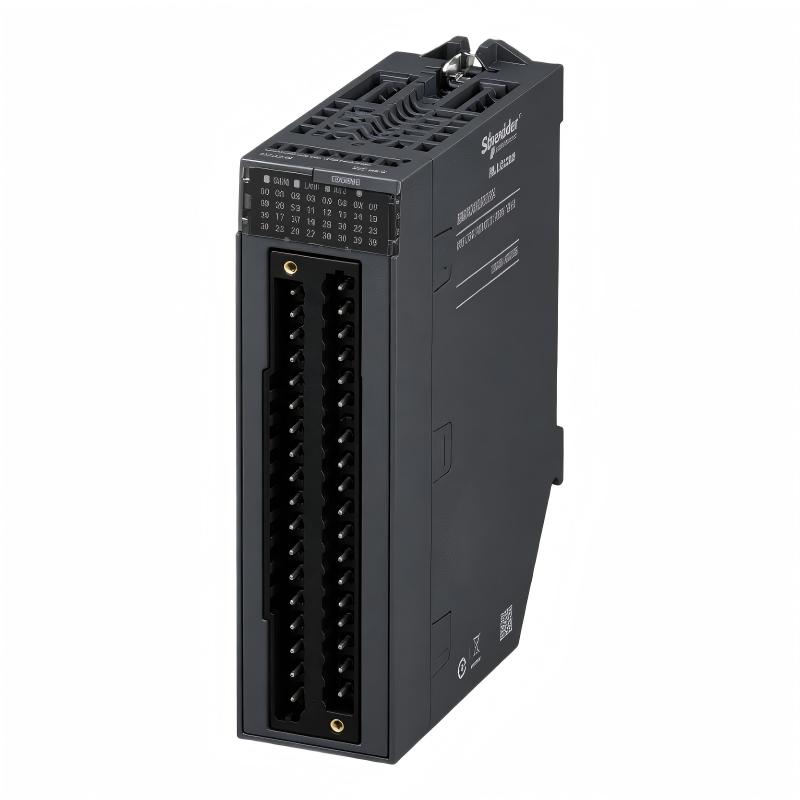

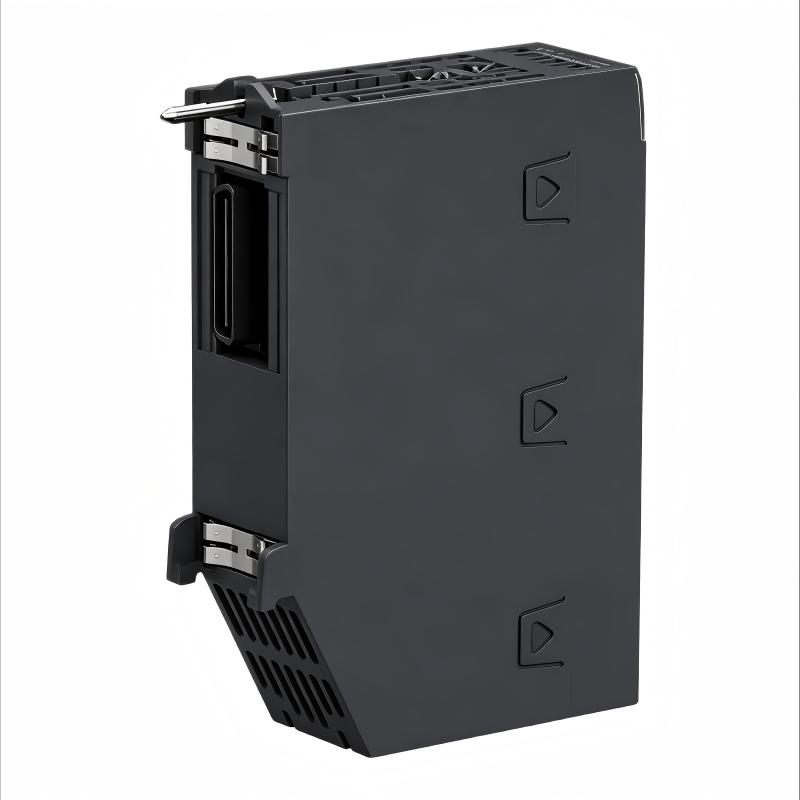

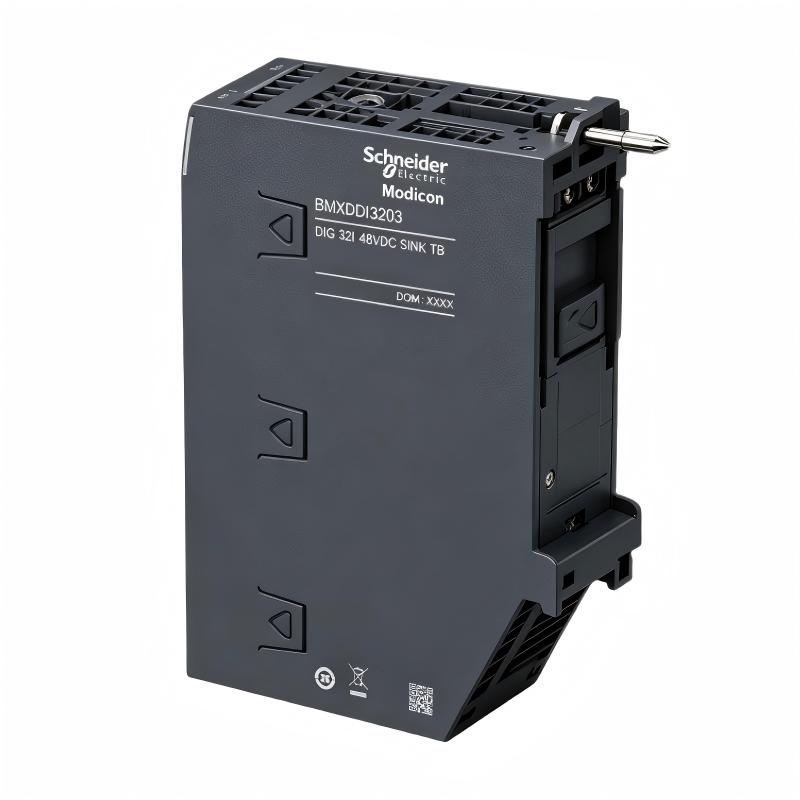

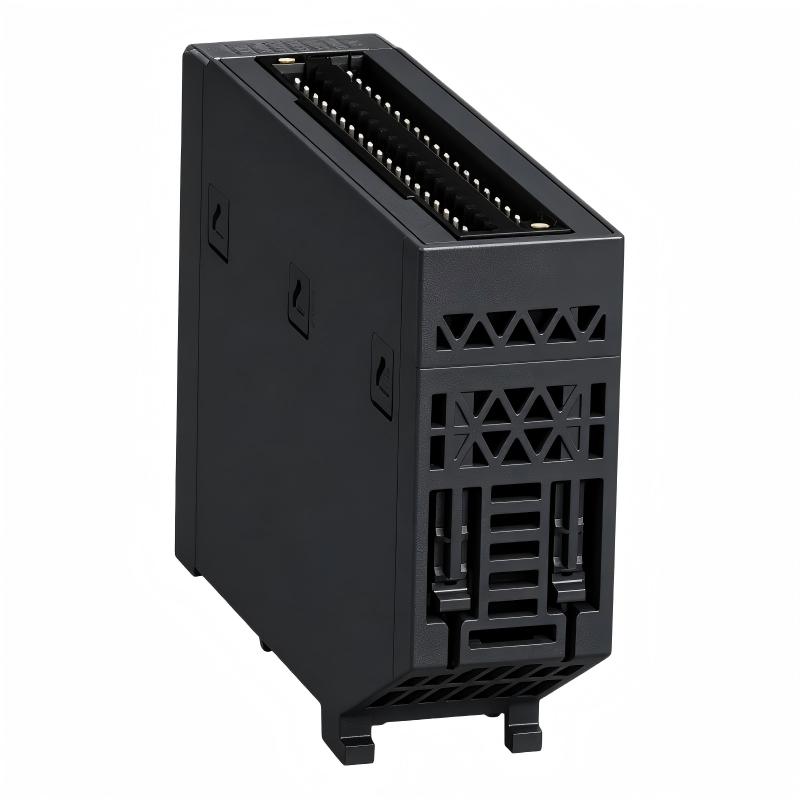

Introduction to Schneider BMXDDI3203 Discrete Input Module
The Schneider BMXDDI3203 Discrete Input Module is a dependable digital signal acquisition component developed for industrial automation applications based on the Modicon X80 platform. It provides a direct interface between PLC controllers and field devices, enabling accurate monitoring of machine conditions, equipment status, and process signals.
Built for demanding automation environments, the module combines high channel density, reliable 48 V DC input capability, and flexible system compatibility. It is particularly suitable for applications where multiple digital signals must be monitored within a compact control cabinet design.
For automation engineers, system integrators, and maintenance professionals, the BMXDDI3203 offers a practical solution for expanding digital input capacity, upgrading existing Modicon installations, and improving overall control system reliability.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
BMXDDI3203
Product Type
Discrete Input Module
Series
Modicon X80
Input Channels
32 Digital Inputs
Input Type
Isolated Digital Input
Input Voltage
48 V DC Positive Logic
Input Current
2.3 mA
Input Compatibility
IEC 61131-2 Type 3 Sensors
Sensor Power Supply Range
38–60 V DC
Voltage State 1
>30 V DC
Voltage State 0
≤10 V DC
Typical Response Time
4 ms
Maximum Response Time
7 ms
Protection Function
Reverse Polarity Protection
Diagnostic Indicators
RUN / Channel / Error LEDs
Compatible Platform
Modicon M340 / Modicon X80 / Modicon M580
Connection Type
40-Pin Removable Terminal Block
Dimensions
134.6 × 32 × 86 mm
Weight
0.14 kg (0.30 lb)
Recommended Related Models
Model
Product Type
Schneider BMXDDI3202
Discrete Input Module
Schneider BMXDDO3202
Discrete Output Module
Schneider BMXDDI6402
High-Density Discrete Input Module
Schneider BMXAMI0810
Analog Input Module
Schneider BMXP3420302
Modicon M340 Processor Module
Popular Related Models
Model
Application Category
Schneider BMXDDO1602
Digital Output Module
Schneider BMXDAI1604
AC Input Module
Schneider BMXDAO1605
Analog Output Module
Schneider BMEP584040
Modicon M580 Processor Module
Schneider BMEXBP0800
Ethernet Backplane Module
Applications and Industrial Digital Signal Acquisition
The Schneider BMXDDI3203 Discrete Input Module is a high-reliability digital input module designed for the Modicon X80 automation platform, providing stable field signal acquisition for industrial PLC control systems. This module is engineered to collect ON/OFF status signals from sensors, switches, and field devices, allowing automation controllers to monitor and manage industrial processes with high accuracy.
The BMXDDI3203 is widely used in manufacturing automation, machine control systems, process industries, energy management, and infrastructure applications where dependable digital signal monitoring is essential. With 32 isolated 48 V DC positive logic inputs, the module provides an efficient interface between field devices and Schneider Electric PAC systems.
Designed for integration with Modicon M580 and Modicon X80 architectures, this discrete input module helps engineers build flexible control systems with improved diagnostics, simplified maintenance, and reliable field communication. Its compact structure makes it suitable for applications requiring high-density digital input expansion.
Technical Advantages and Automation System Benefits
High-Density 32-Channel Digital Input Capability
The BMXDDI3203 provides 32 discrete input channels, allowing a single module to monitor multiple field devices while reducing cabinet space requirements and simplifying PLC system design.
Reliable 48 V DC Signal Processing
Supporting 48 V DC positive logic input signals, the module is suitable for industrial environments where higher voltage digital sensors and switching devices are commonly used.
Isolated Input Design for Improved Signal Stability
The isolated input architecture helps reduce electrical interference between field wiring and control systems, improving operational reliability in electrically noisy industrial environments.
Fast Signal Response Performance
With a typical DC response time of approximately 4 ms, the BMXDDI3203 provides rapid detection of field signal changes, supporting efficient machine monitoring and control operations.
Modicon X80 Platform Compatibility
The module is designed for Schneider Electric Modicon X80 systems, providing straightforward integration with M340 and M580 automation architectures for system expansion and modernization projects.
Technical FAQs About Schneider BMXDDI3203 Discrete Input Module
1. What type of module is the Schneider BMXDDI3203?
The BMXDDI3203 is a discrete digital input module designed for Modicon X80 PLC systems.
2. How many input channels does the BMXDDI3203 provide?
The module provides 32 isolated digital input channels.
3. What input voltage does the BMXDDI3203 support?
The module supports 48 V DC positive logic input signals.
4. Which Schneider automation platforms are compatible with this module?
The BMXDDI3203 is designed for Modicon X80 systems used with Modicon M340 and M580 platforms.
5. What types of field devices can connect to this module?
Compatible devices include proximity sensors, limit switches, push buttons, and other digital field instruments.
6. How can input signal failures be diagnosed on the BMXDDI3203?
Technicians should check field wiring, sensor power supply, terminal connections, input indicators, and PLC diagnostic information.
7. What causes an input channel to remain inactive?
Possible causes include incorrect wiring polarity, failed sensors, insufficient field voltage, damaged cables, or configuration errors.
8. Does the BMXDDI3203 provide channel diagnostics?
Yes. The module provides LED indicators for operating status, channel diagnostics, and module fault conditions.
9. How can noise interference on digital inputs be reduced?
Proper grounding, cable separation, shielding practices, and correct installation methods help reduce electrical interference.
10. What maintenance is recommended for this input module?
Regular inspection of wiring connections, field devices, power stability, and PLC diagnostics helps maintain reliable operation.
