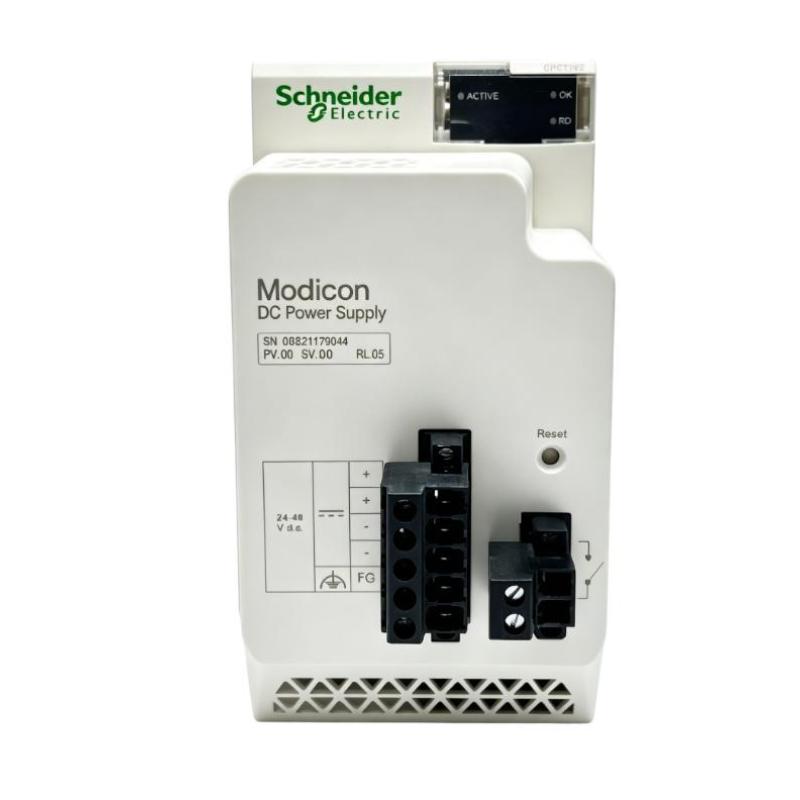

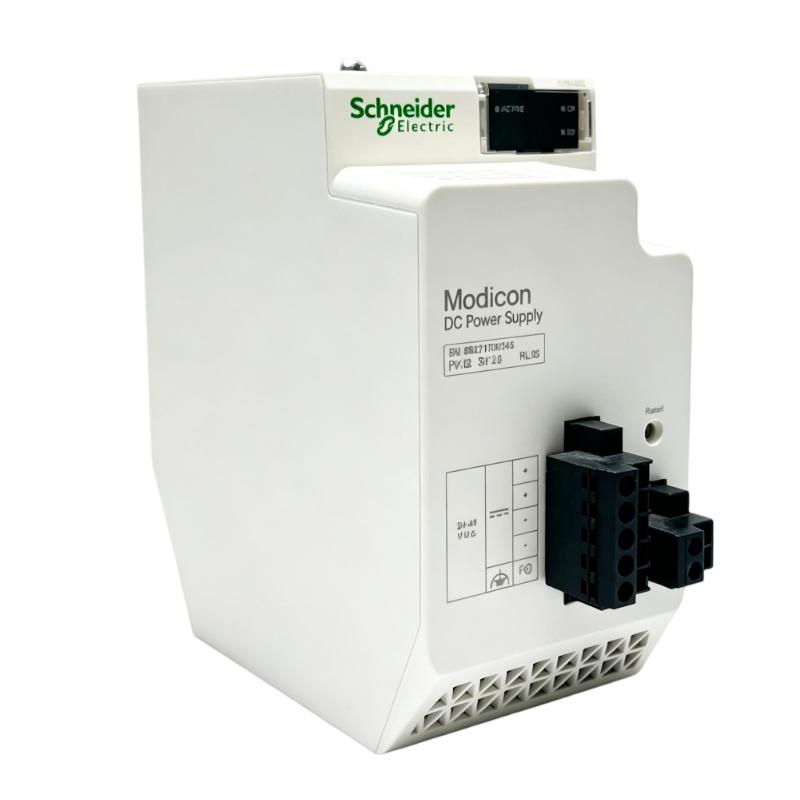

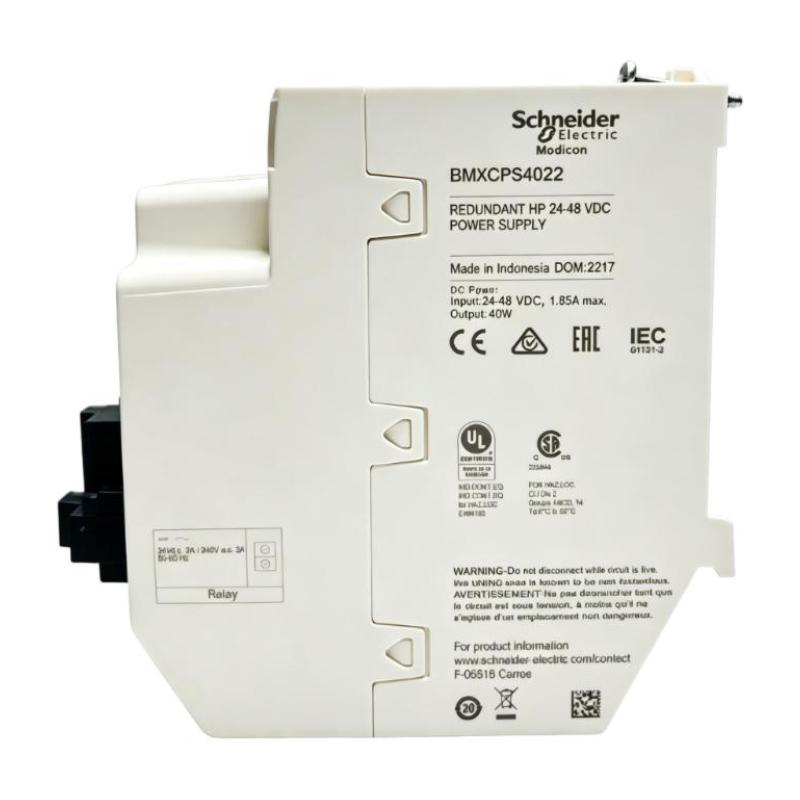

Introduction to Schneider BMXCPS4022 Redundant Power Supply Module
The Schneider BMXCPS4022 Redundant Power Supply Module is an industrial-grade power solution designed to provide dependable electrical support for Modicon X80 automation systems. It plays an important role in maintaining stable operation of PLC controllers, I/O modules, and communication components in demanding industrial environments.
Unlike standard power modules, the BMXCPS4022 focuses on high availability by supporting redundant power architectures and intelligent monitoring features. This makes it suitable for applications where unexpected power interruptions could affect production efficiency, safety, or process continuity.
With strong compatibility, integrated protection functions, and reliable DC power management, the BMXCPS4022 provides automation engineers and system integrators with a dependable solution for building robust Schneider Electric control systems.
Redundancy Test, Temperature Monitoring, Remaining Lifetime Monitoring
Compatible Platform
Modicon M340 / Modicon M580 / Modicon X80
Backplane Compatibility
All Modicon X80 Backplanes
Maximum Power Dissipation
8.50 W
Operating Temperature
0 to 60 °C
Dimensions
250 × 178 × 90 mm
Weight
0.81 kg (1.79 lb)
Recommended Related Models
Model
Product Type
Schneider BMXCPS3500
Modicon X80 Power Supply Module
Schneider BMXCPS3020
Standard Power Supply Module
Schneider BMEXBP0800
8-Slot Ethernet Backplane
Schneider BMEXBP0400
4-Slot Ethernet Backplane
Schneider BMEP586040
Modicon M580 Independent Processor
Popular Related Models
Model
Application Category
Schneider BMEP584040
Modicon M580 Processor Module
Schneider BMENOP0300
Communication Module
Schneider BMXCRA31200
Remote I/O Adapter Module
Schneider BMXDDI3203
Discrete Input Module
Schneider BMXDDO3202
Discrete Output Module
Applications and High-Availability Industrial Power Supply Systems
The Schneider BMXCPS4022 Redundant Power Supply Module is a specialized power management component designed for the Modicon X80 automation platform, providing stable DC power distribution for PLC processors, I/O modules, and automation communication devices. As a redundant power supply solution, it is developed for industrial systems where continuous operation, fault tolerance, and high system availability are essential.
The BMXCPS4022 is widely used in process automation, manufacturing facilities, energy management systems, water treatment plants, transportation infrastructure, and other critical control applications. It supports 24–48 V DC input power and delivers regulated power outputs for Modicon X80 racks, helping maintain reliable operation of connected automation equipment.
Designed for Schneider Electric Modicon M340 and M580 architectures, this redundant power supply module provides engineers with improved system resilience, advanced diagnostics, and flexible installation options. It is an ideal choice for automation projects requiring enhanced uptime and dependable power management.
Power Reliability Advantages and Automation Integration Benefits
Redundant Architecture for Maximum System Availability
The BMXCPS4022 supports redundant power configurations, allowing automation systems to maintain operation even when one power source experiences an issue. This design reduces single points of failure in critical industrial control applications.
Wide 24–48 V DC Input Compatibility
Supporting a broad DC input range, the module can integrate into different industrial power environments. Its flexible voltage compatibility simplifies system design and improves application adaptability.
Stable Backplane Power Distribution
The module provides dedicated power outputs for Modicon X80 system components, ensuring reliable energy delivery to processors, I/O modules, and communication devices installed on the backplane.
Integrated Protection Functions
Built-in overload protection, overvoltage protection, and short-circuit protection help safeguard connected automation components and improve overall system reliability.
Advanced Diagnostic Monitoring
The BMXCPS4022 includes diagnostic functions such as redundancy testing, temperature monitoring, lifetime estimation, and operating status indication, helping maintenance teams identify potential power issues before system downtime occurs.
Technical FAQs About Schneider BMXCPS4022 Redundant Power Supply Module
1. What type of module is the Schneider BMXCPS4022?
The BMXCPS4022 is a redundant DC power supply module designed for Modicon X80 automation systems.
2. Which Schneider automation platforms support the BMXCPS4022?
The module is designed for Modicon X80 systems and can be used within Modicon M340 and M580 architectures.
3. What input voltage does the BMXCPS4022 support?
The module supports a 24–48 V DC input power supply range.
4. What is the main purpose of the redundancy function?
The redundancy function improves system availability by allowing backup power operation in critical automation installations.
5. What outputs are provided by the BMXCPS4022?
The module provides 3.3 V DC logic power and 24 V DC power outputs for compatible X80 modules.
6. How can a BMXCPS4022 power fault be diagnosed?
Technicians should check input voltage, LED status indicators, redundancy status, wiring connections, and PLC diagnostic information.
7. What causes a redundant power supply module to stop operating?
Possible causes include incorrect input voltage, overload conditions, wiring faults, excessive temperature, or internal protection activation.
8. Can the BMXCPS4022 work with Ethernet backplane systems?
Yes. The module is compatible with Modicon X80 Ethernet backplane architectures.
9. How is the BMXCPS4022 installed in a PLC rack?
The module is mounted directly on a compatible Modicon X80 rack and configured as part of the automation hardware structure.
10. What maintenance is recommended for this power module?
Regular inspection of power connections, environmental conditions, status indicators, and system diagnostics helps maintain reliable performance.
