Brand:Hima DCS Modules Item No.: K9203A Product Origin: Germany Product Dimensions:109 × 64 × 58 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

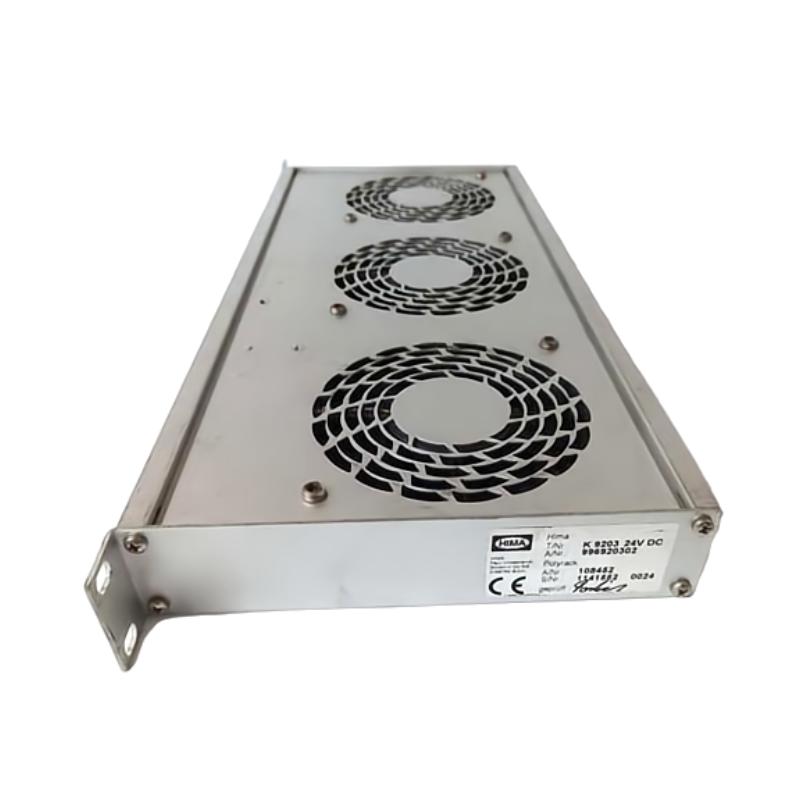

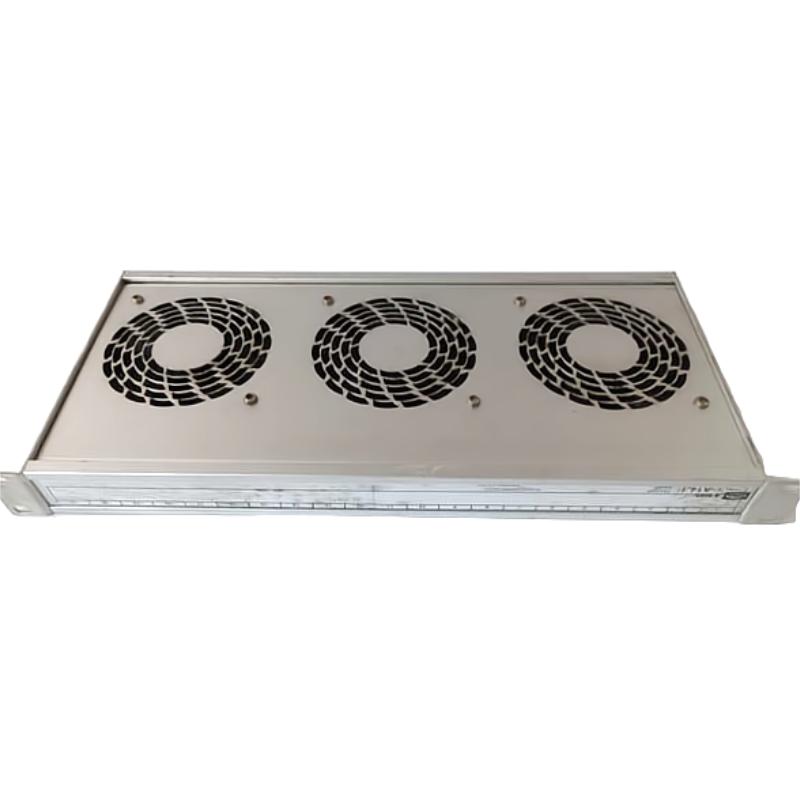

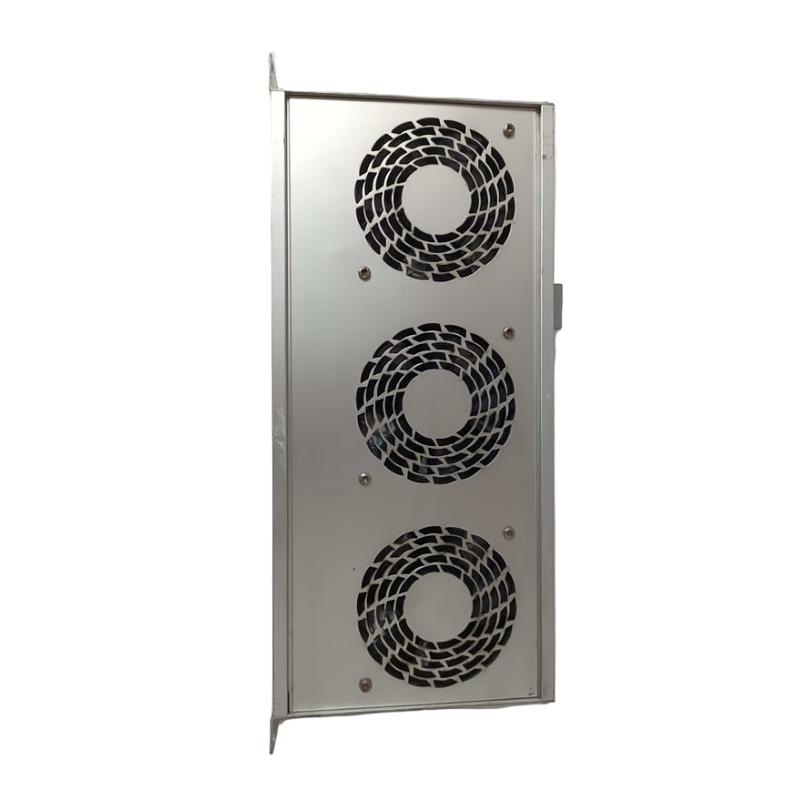

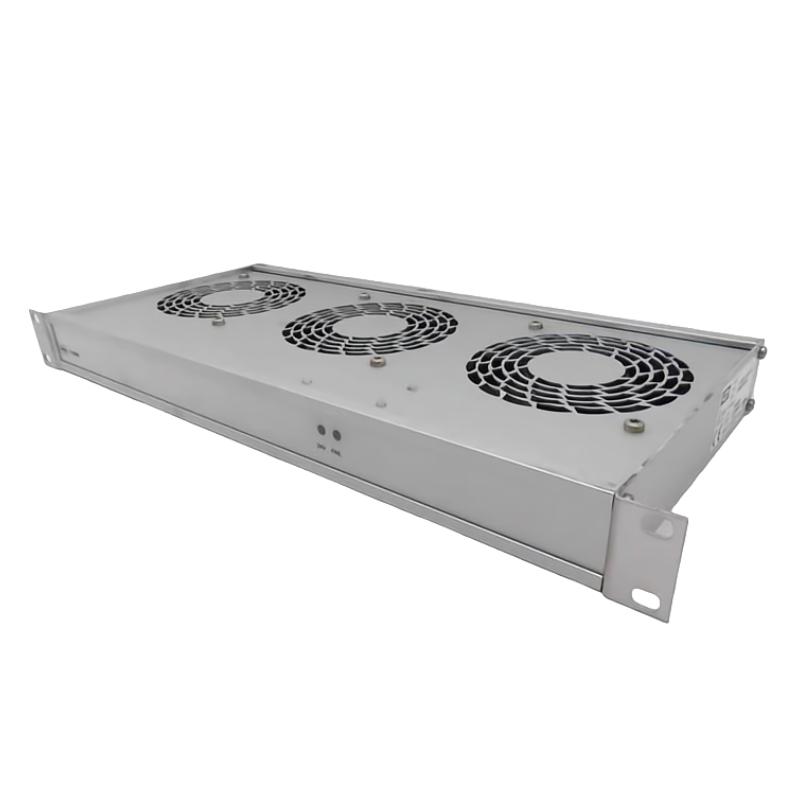

The HIMA K9203A Rack Fan Module is a dedicated cooling solution developed for HIMA safety automation systems. Designed for rack-mounted installations, it provides efficient airflow circulation to support stable operating conditions for critical electronic modules.
In safety-related industrial applications, temperature control plays an important role in maintaining system availability and extending equipment service life. The K9203A combines reliable fan operation, monitoring capability, and modular installation design, making it a practical choice for maintaining high-performance HIMA safety system environments.
Technical Specifications
Specification
Details
Manufacturer
HIMA
Model
K9203A
Part Number
996920360
Module Type
Rack Fan Module
Function
Cabinet Cooling and Air Circulation
Fan Configuration
3 Axial Fans
Power Supply
24 VDC
Installation Type
19-inch Rack Mounting
Airflow Function
Forced Cooling Circulation
Monitoring Function
Fan Run Monitoring
Compatible Systems
HIMA HIQuad X / H51q Safety Systems
Application Area
Safety Instrumented Systems, Industrial Control Cabinets
Dimensions
Approx. 483 × 44 × 250 mm
Weight
Approx. 1.8 kg
Recommended Companion Models
Model
Product Name
F-BASE RACK 01
HIMA HIQuad X Base Rack Module
F-CPU 01
HIMA HIQuad X Safety CPU Module
F-IOP 01
HIMA HIQuad X Processing Module
F-PWR 01
HIMA HIQuad X Power Supply Module
Frequently Selected Alternatives
Model
Product Name
K9202B
HIMA Rack Fan Module with 2 Axial Fans
K9203
HIMA Rack Circulation Fan Module
H7034
HIMA 24V Mains Filter Module
F8650
HIMA Safety Central Processor Module
Where It Excels in Industrial Use
The HIMA K9203A Rack Fan Module is designed to provide reliable forced-air cooling for HIMA safety system racks, helping maintain stable operating temperatures for CPU modules, I/O modules, communication units, and other critical automation components. It is used as a rack-mounted circulation fan assembly within HIMA safety architectures.
It is suitable for industries including oil and gas, petrochemical, chemical processing, power generation, transportation, and manufacturing facilities where continuous operation of safety control systems requires effective thermal management.
The module performs effectively in applications involving HIMA HIQuad X, H51q, and related safety system cabinets where reliable airflow circulation, temperature control, and equipment protection are essential.
By supporting consistent cabinet cooling performance, the K9203A helps improve system availability, reduce thermal stress on electronic components, and maintain dependable operation in demanding industrial environments.
Key Strengths at a Glance
Three axial fan design provides efficient airflow circulation for industrial control cabinets and safety system racks.
Redundant power supply concept and fan monitoring functions support enhanced operational reliability in safety-related installations.
Designed for HIMA rack-based systems, ensuring compatibility with established safety automation platforms.
Helps protect sensitive electronic modules from excessive heat accumulation during continuous operation.
Compact rack-mounted construction simplifies installation, replacement, and preventive maintenance.
Technical FAQs
1. What is the primary function of the HIMA K9203A?
The HIMA K9203A is a rack fan module designed to provide forced-air cooling and temperature management for HIMA safety system cabinets.
2. How many fans are integrated into the K9203A?
The module integrates three axial fans to provide continuous airflow circulation within the equipment rack.
3. Which HIMA systems use the K9203A?
The K9203A is used with HIMA rack-based safety systems, including HIQuad X and related H51q system configurations.
4. Why is cooling important for safety automation systems?
Effective cooling helps maintain stable operating conditions, prevents overheating, and supports long-term reliability of electronic control components.
5. Does the K9203A include fan monitoring functions?
Yes, the module includes monitoring features to help identify fan operation status and support system diagnostics.
6. What type of power supply does the K9203A require?
The module is designed for industrial 24 VDC power operation within HIMA safety system installations.
7. Is the K9203A a control or I/O module?
No. The K9203A is an auxiliary cooling module and does not perform control logic processing or signal input/output functions.
8. How does the K9203A improve system reliability?
It improves reliability by maintaining airflow circulation and reducing thermal stress on safety-critical electronic modules.
9. Can the K9203A operate continuously?
Yes, it is designed for continuous industrial operation where stable cabinet temperature control is required.
10. What is the advantage of using a dedicated rack fan module?
A dedicated rack fan module provides optimized airflow management, improved equipment protection, and better compatibility with industrial safety cabinets.
