Introduction

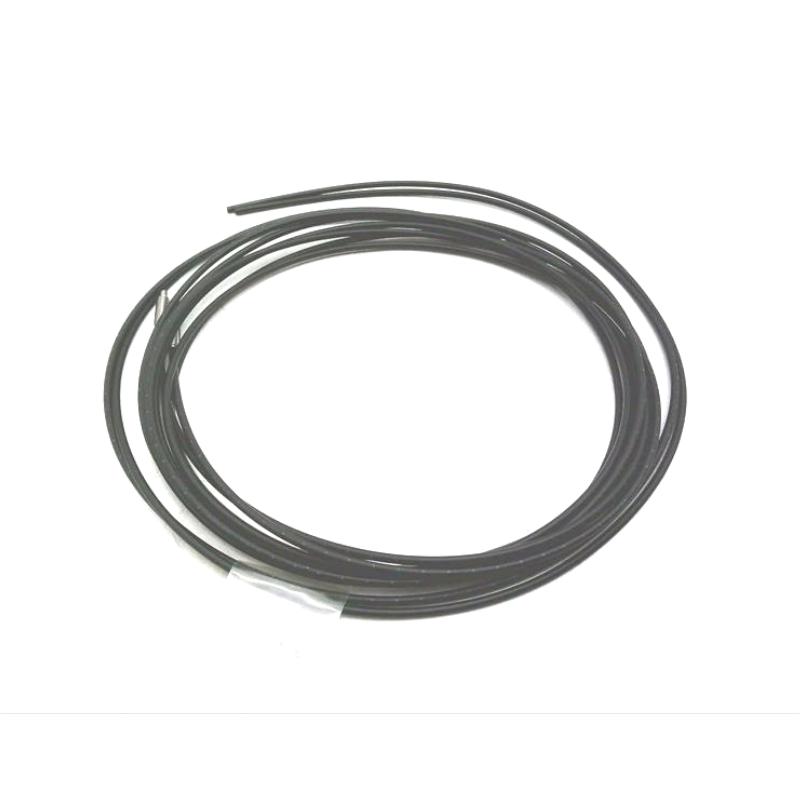

The HIMA Z7127/6217/C1,5/IT I/R Analog Input Cable Assembly is a specialized connection accessory developed for HIMA safety automation systems using the F6217 analog input module. It provides a reliable interface between field measurement devices and safety controller input channels, supporting accurate process data acquisition in critical applications.
Designed for professional industrial installations, this cable assembly helps streamline cabinet wiring, improve signal organization, and enhance overall system reliability. Combined with the F6217 analog input module, it provides a dependable solution for safety-related process monitoring where measurement accuracy and operational availability are essential.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | HIMA |
| Model | Z7127/6217/C1,5/IT I/R |
| Module Type | Analog Input Cable Assembly |
| Compatible Module | HIMA F6217 Analog Input Module |
| Function | Field Signal Connection Interface |
| Signal Type | Analog Current / Voltage Signal |
| Supported Input Signals | 0/4–20 mA, 0–5 V, 0–10 V |
| Connection Application | 8-Channel Analog Input Interface |
| Installation Type | Cabinet Wiring / Front Connector Connection |
| Application Area | Safety Instrumented Systems, Process Automation |
| Cable Length | Approx. 1.5 m |
| Connector Type | HIMA Dedicated Interface Connector |
| Dimensions | Approx. 1500 × 30 × 20 mm |
| Weight | Approx. 0.15 kg |
Recommended Companion Models
| Model | Product Name |
|---|
| F6217 | HIMA 8-Channel Analog Input Module |
| F8621A | HIMA Safety Central Module |
| F7131 | HIMA Digital Input Module |
| F3330 | HIMA Digital Output Module |
Frequently Selected Alternatives
| Model | Product Name |
|---|
| Z7127/6217/C2/I/R | HIMA F6217 Analog Input Cable Assembly |
| Z7127/6217/C5/1/R2 | HIMA F6217 8-Channel Analog Input Cable Assembly |
| Z7128/F6217 | HIMA F6217 Front Connector Cable |
| Z7127/6217/C../U10V/R2 | HIMA F6217 Voltage Input Cable Assembly |
Technical FAQs
1. What is the primary function of the HIMA Z7127/6217/C1,5/IT I/R?
The HIMA Z7127/6217/C1,5/IT I/R is a cable assembly designed to connect field analog signals with the HIMA F6217 analog input module.
2. Which HIMA module is compatible with this cable assembly?
The cable assembly is designed for use with the HIMA F6217 8-channel analog input module.
3. What types of signals can be connected through this cable assembly?
It supports analog measurement signals such as 0/4–20 mA current inputs and voltage input signals used by compatible HIMA analog input modules.
4. Is the Z7127/6217/C1,5/IT I/R an active electronic module?
No. It is a passive connection accessory used for signal interface and wiring organization.
5. What applications commonly use this cable assembly?
Typical applications include process monitoring, safety instrumented systems, emergency shutdown systems, and industrial measurement applications.
6. Why use a dedicated HIMA cable assembly instead of standard wiring?
A dedicated cable assembly ensures correct terminal assignment, improves installation reliability, and reduces commissioning errors.
7. Can this cable assembly support redundant analog signal connections?
Yes, compatible HIMA connection arrangements can support redundant transmitter configurations when used with appropriate F6217 system configurations.
8. Does the cable assembly require software configuration?
No. Configuration is performed through the connected HIMA safety system and engineering software rather than the cable itself.
9. What field devices can be connected through this assembly?
Typical devices include pressure transmitters, temperature transmitters, flow meters, and other analog-output instrumentation.
10. How does the cable assembly improve system maintenance?
It provides standardized connections, making replacement, troubleshooting, and maintenance procedures more efficient.
