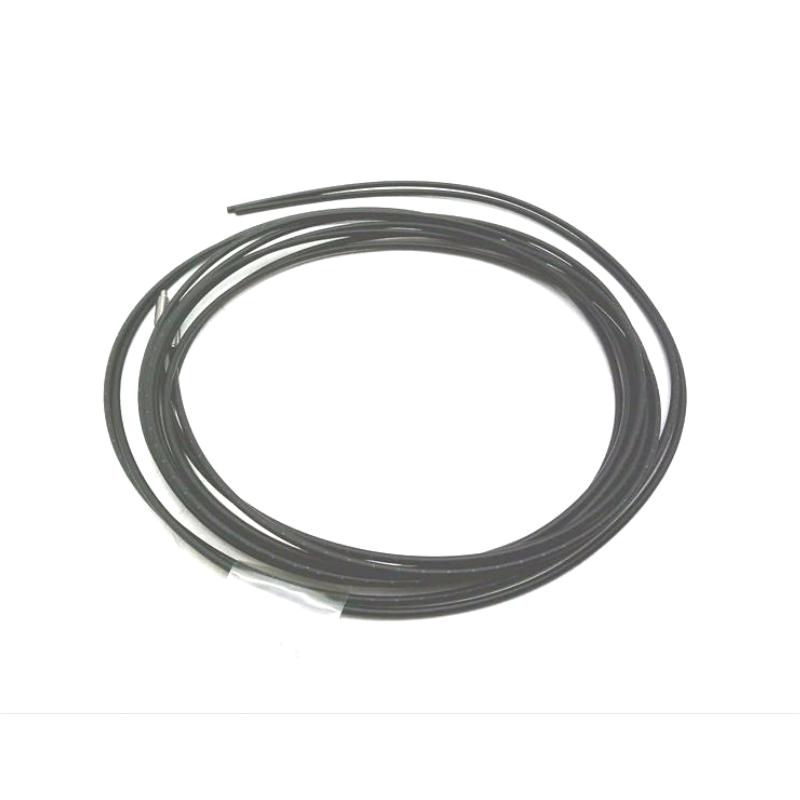

HIMA Z7116/3236/C15/S1 Connection Cable Assembly

Where It Excels in Industrial Use

• The HIMA Z7116/3236/C15/S1 Connection Cable Assembly is designed for interfacing HIMA F3236 digital input modules with field devices, providing reliable signal transmission and organized cabinet wiring for safety-related automation systems. The F3236 module is a 16-channel digital input module designed for safety applications with 24 VDC signals and SIL 3 capability.
• It is suitable for industries including oil and gas, petrochemical, chemical processing, power generation, transportation, and manufacturing environments where dependable digital signal acquisition is required for safety monitoring and process protection.
• The cable assembly performs effectively in applications involving emergency shutdown systems, safety interlocks, limit switches, contact sensors, and industrial field input devices connected to HIMA safety controllers.
• With its pre-configured connection design, the Z7116/3236/C15/S1 helps reduce installation complexity, improve wiring accuracy, and maintain stable signal communication in demanding industrial safety environments.

Key Strengths at a Glance

• Designed specifically for HIMA F3236 digital input module connections, ensuring reliable compatibility with safety-related I/O systems.
• Supports organized connection of 16-channel digital input signals from field devices.
• Pre-assembled cable construction reduces cabinet wiring time and minimizes installation errors.
• Provides stable signal transmission for safety-critical automation applications.
• Available with a 15 m cable length configuration, offering flexibility for larger control cabinet layouts.

Technical FAQs

1. What is the primary function of the HIMA Z7116/3236/C15/S1?

The HIMA Z7116/3236/C15/S1 is a connection cable assembly used to connect field wiring with the HIMA F3236 digital input module.

2. Which HIMA module is compatible with this cable assembly?

The cable assembly is designed for use with the HIMA F3236 16-channel digital input module.

3. What type of signals does the Z7116/3236/C15/S1 transmit?

It transmits digital input signals, typically used for 24 VDC industrial switching devices and safety-related field contacts.

4. Is the Z7116/3236/C15/S1 an active electronic module?

No. It is a passive connection accessory used for signal routing and wiring organization.

5. What field devices can be connected through this cable assembly?

Typical connected devices include switches, sensors, alarms, interlock contacts, and other digital field instruments.

6. Why use a dedicated HIMA cable assembly instead of standard wiring?

A dedicated cable assembly provides correct terminal assignment, improves wiring consistency, and reduces commissioning time.

7. Does the cable assembly affect the safety function of the F3236 module?

The cable assembly supports reliable signal connection, while the safety processing functions are performed by the connected F3236 module and controller system.

8. Can the cable assembly be used in redundant safety configurations?

Yes, it can be applied within suitable HIMA safety architectures where redundant field signal arrangements are required.

9. Does the Z7116/3236/C15/S1 require software configuration?

No. The cable itself requires no software setup; configuration is handled within the connected HIMA engineering environment.

10. How does this cable assembly improve system maintenance?

The standardized connection design simplifies troubleshooting, replacement, and maintenance activities in industrial control cabinets.
