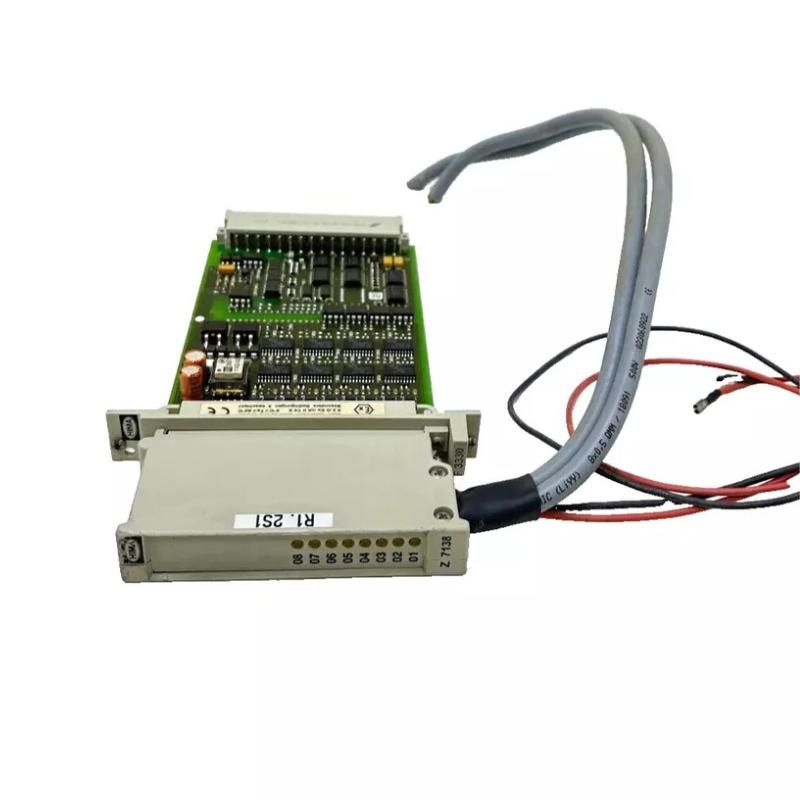

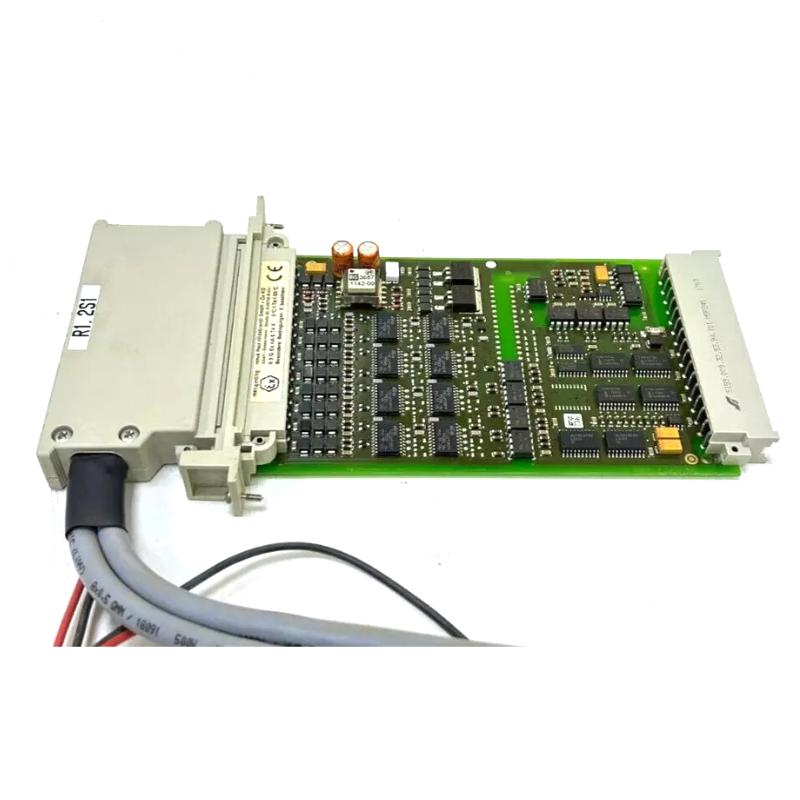

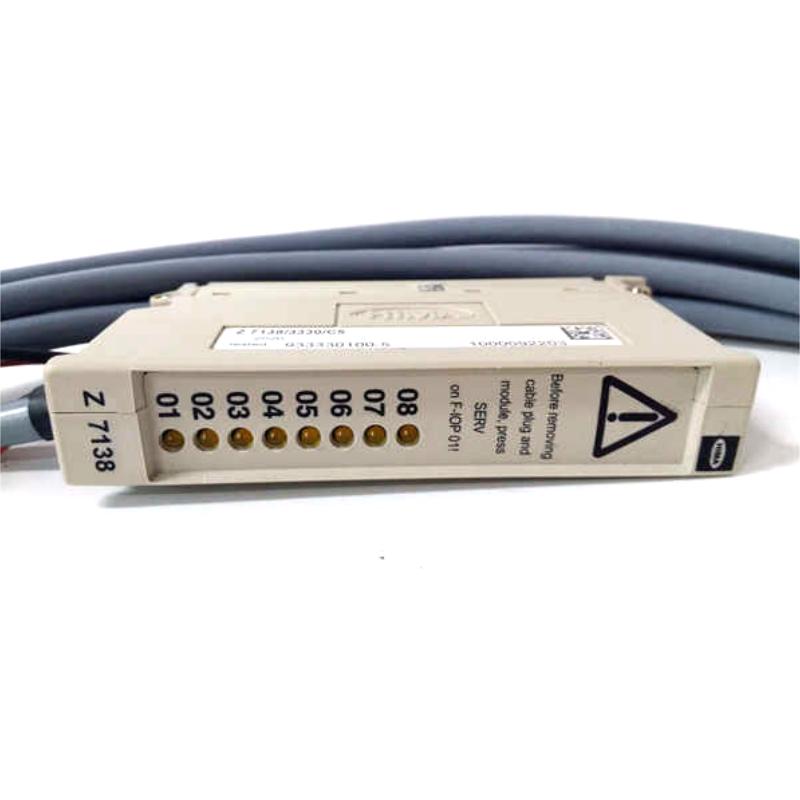

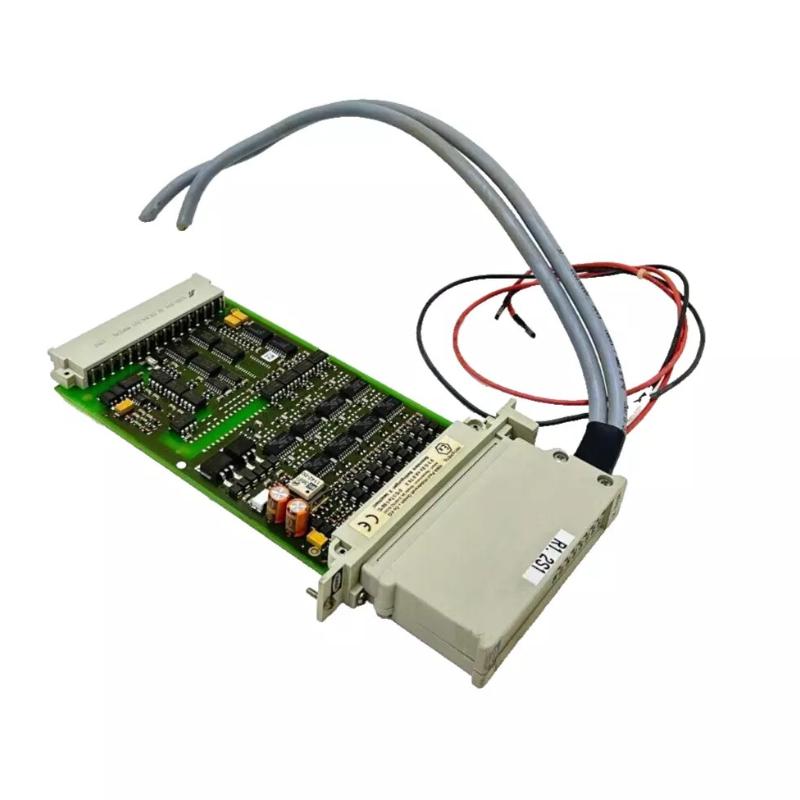

HIMA Z7138/3330/C15/S2 Cable Plug Assembly

Where It Excels in Industrial Use

• The HIMA Z7138/3330/C15/S2 Cable Plug Assembly is designed for connection with the HIMA F3330 Digital Output Module, providing a reliable interface between safety-related output channels and external field devices. It supports structured wiring for industrial safety applications requiring dependable output signal transmission.
• It is suitable for industries including oil and gas, petrochemical, chemical processing, power generation, transportation, and manufacturing environments where safety output signals must be transferred accurately to actuators, valves, relays, and other field equipment.
• The cable assembly performs effectively in applications such as emergency shutdown systems (ESD), safety interlocks, process protection systems, and industrial equipment control where reliable digital output connection is essential.
• With a pre-configured connection design, the Z7138/3330/C15/S2 helps simplify cabinet wiring, reduce installation complexity, and improve long-term reliability of HIMA safety system installations.

Key Strengths at a Glance

• Designed specifically for HIMA F3330 Digital Output Module connection applications.
• Supports stable connection of safety-related digital output signals to external field devices.
• Pre-assembled cable construction reduces wiring workload and improves installation accuracy.
• Provides reliable signal transmission for actuator control and industrial protection applications.
• 15 m cable length configuration offers flexibility for distributed cabinet and field installation requirements.

Technical FAQs

1. What is the primary function of the HIMA Z7138/3330/C15/S2?

The HIMA Z7138/3330/C15/S2 is a cable plug assembly designed to connect HIMA F3330 digital output modules with external field devices.

2. Which HIMA module is compatible with the Z7138/3330/C15/S2?

The cable assembly is designed for use with the HIMA F3330 safety-related digital output module.

3. What type of signals does this cable assembly transmit?

It transmits digital output control signals from the HIMA output module to connected field equipment.

4. Is the Z7138/3330/C15/S2 an active electronic module?

No. It is a passive cable connection accessory used for signal routing and system wiring organization.

5. What field devices can be connected through this cable assembly?

Typical connected devices include safety valves, actuators, relays, contactors, and industrial switching equipment.

6. Why use a dedicated HIMA cable plug instead of standard wiring?

A dedicated cable plug ensures correct terminal assignment, improves wiring consistency, and reduces commissioning time.

7. Can the Z7138/3330/C15/S2 be used for safety-related applications?

Yes. It is intended for use with HIMA safety output modules in safety automation systems.

8. Does the cable assembly require software configuration?

No. The cable itself does not require configuration. System settings are handled through the connected HIMA controller and engineering software.

9. How does the cable assembly improve maintenance efficiency?

The standardized plug connection simplifies troubleshooting, replacement, and maintenance activities inside control cabinets.

10. What is the difference between the Z7138/3330/C15/S2 and a normal industrial cable?

The Z7138/3330/C15/S2 is specifically engineered for HIMA safety module connections, providing defined wiring compatibility and improved installation reliability.
